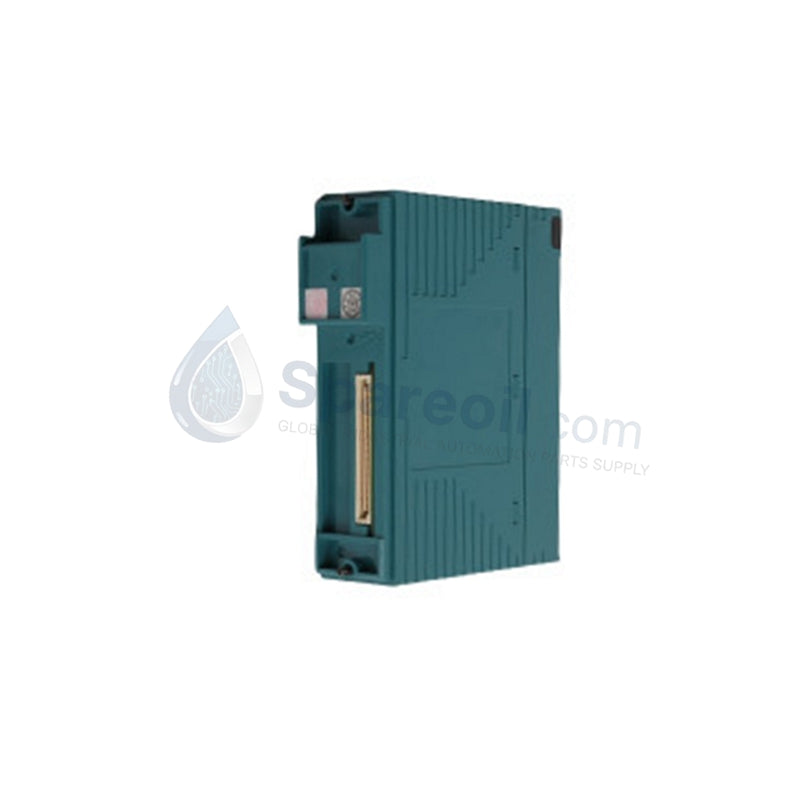

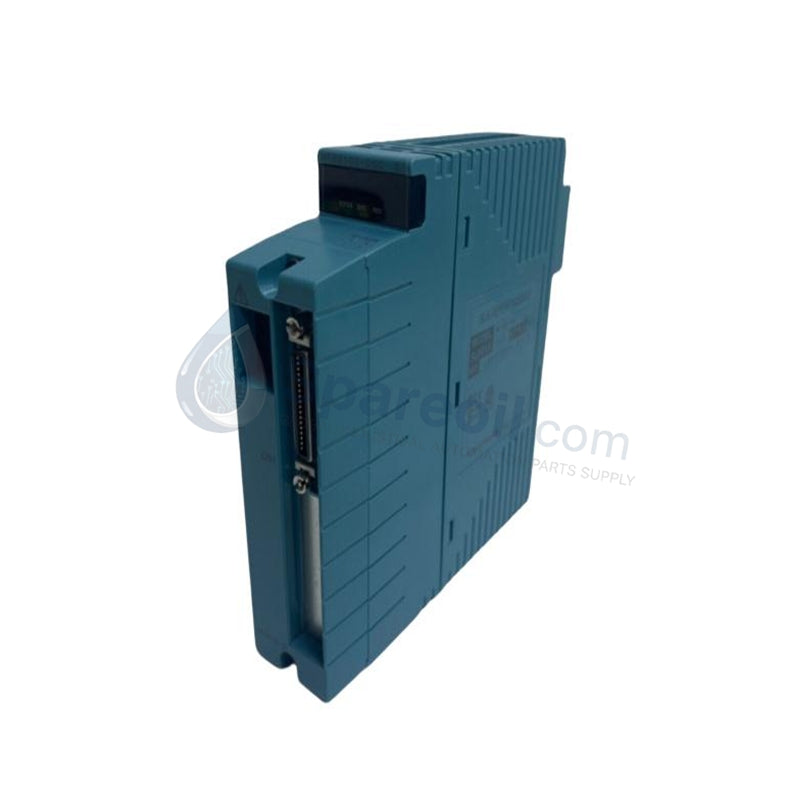

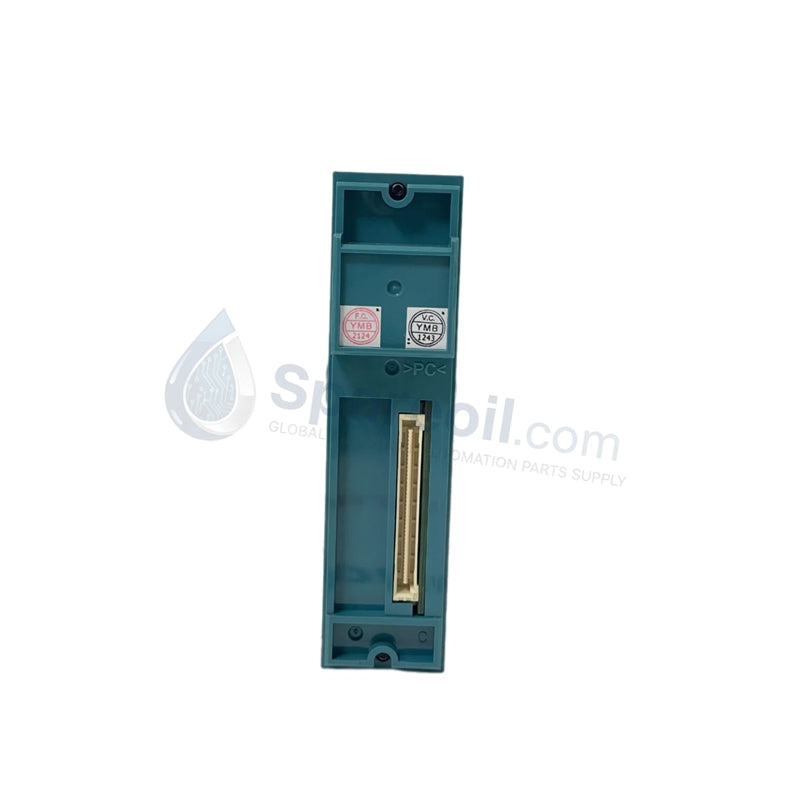

Yokogawa NFTA4S-10 Analog Input Module

Configured for analog signal acquisition in STARDOM and FIO subsystems, the Yokogawa NFTA4S-10 (NFTA4S-10 Analog Input Module) provides direct physical electrical execution for process monitoring.

Hardware Specifications

Parameter Specification
Model NFTA4S-10
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions 150 mm x 20 mm x 100 mm
Operating Temp -10 deg C to +55 deg C
Power Consumption 150 mA at 5 V DC, 450 mA at 24 V DC
Accuracy +/- 0.1% of span
Resolution 16-bit A/D conversion

Process Control and Signal Connectivity

The NFTA4S-10 module interfaces with field transmitters to acquire 4-20 mA DC current loop signals. It integrates intrinsic safety barriers directly onto the module, which streamlines installation by removing the requirement for external barrier hardware. The module supports HART protocol pass-through, allowing the DCS to perform remote diagnostics and configuration of connected smart instrumentation. Galvanic isolation between channels and the system bus prevents common-mode noise propagation. To maintain signal integrity, the module employs 16-bit A/D conversion, ensuring precise data acquisition for regulatory control and safety applications.

Frequently Asked Questions

Q: Does the module support mixed signal types simultaneously? A: The module is optimized for 4-20 mA DC current loop signals. Users should verify that all connected field devices conform to these electrical specifications to maintain the accuracy and safety ratings of the module.

Q: How does the HART transparency function impact loop scan times? A: HART pass-through enables digital communication alongside the analog signal without interrupting the real-time process control loop. However, excessive HART request traffic may incrementally increase the data processing load on the controller bus.

Q: Is this module field-replaceable while the system is under power? A: The design supports standard FIO subsystem maintenance procedures; however, operators must consult the specific system manual to ensure the local field control unit supports hot-swapping for this specific module type.

Field Installation Guidelines

  • Mounting and Ventilation: Install the module in a clean, dry cabinet environment. Ensure sufficient vertical spacing (minimum 50 mm) above and below the module to facilitate convective cooling, as the device components dissipate heat during operation.
  • Shielding and Grounding: Connect cable shields to the cabinet ground bus at the field entry point. This minimizes the risk of induced noise in the analog loops. Do not ground the cable shield at both ends, as this creates ground loops that degrade measurement precision.
  • Wiring Integrity: Utilize high-quality ferrules for all wire terminations. Ensure that terminal screws are tightened to the torque values specified in the Yokogawa hardware manual to prevent contact resistance variations over time.
  • Segregation: Maintain physical separation between input signal wiring and high-voltage power lines or AC motor drive cabling to prevent EMI-induced signal corruption.
