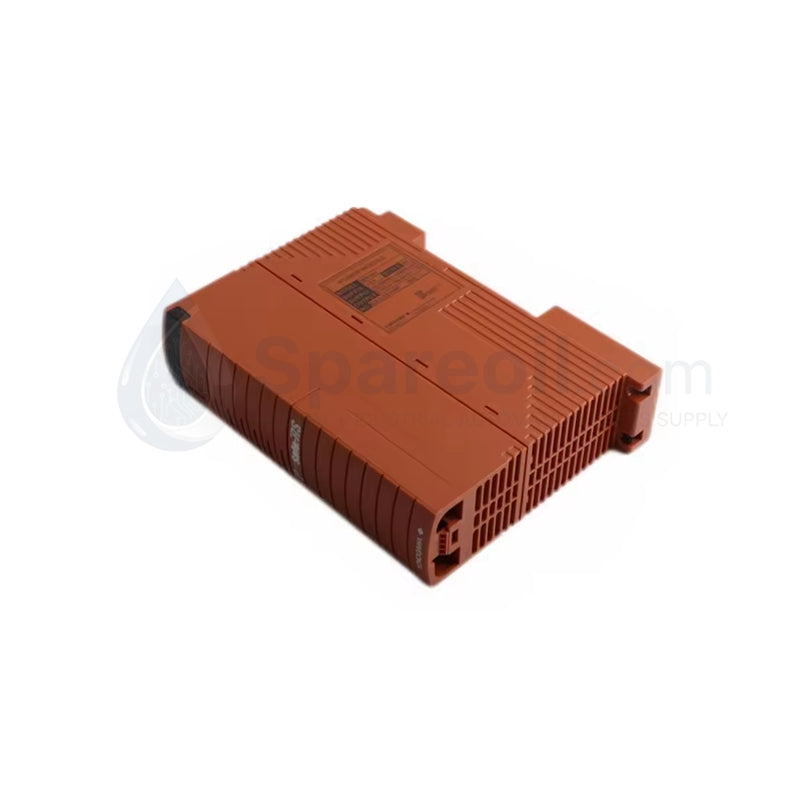

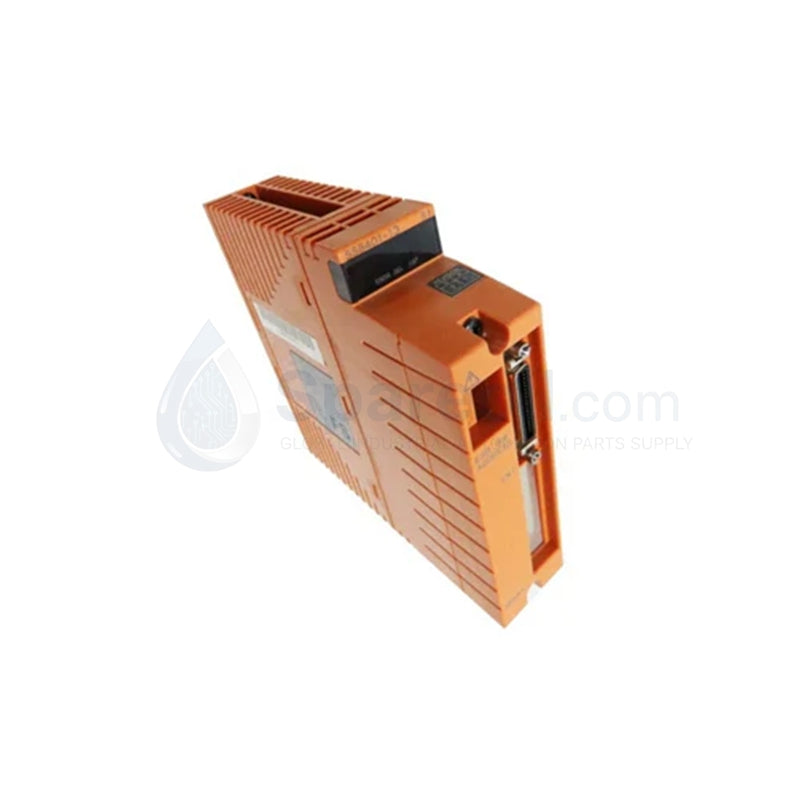

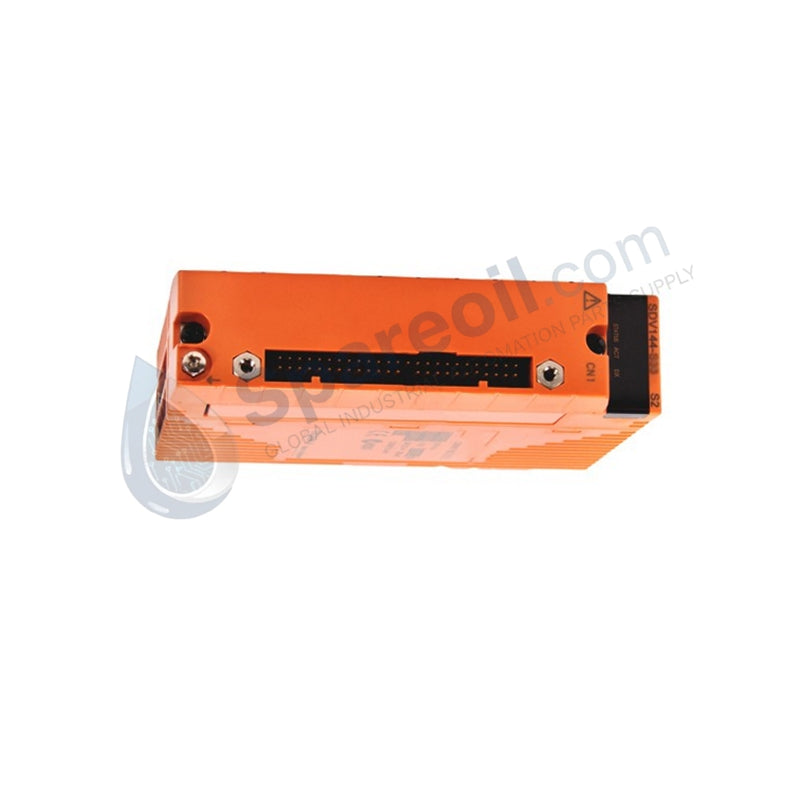

YOKOGAWA SAI143-S53 CENTUM Analog Input Module

The YOKOGAWA SAI143-S53 serves as the primary SAI143 Analog Input Module utilized to execute analog signal acquisition across CENTUM VP / CS 3000 platforms.

Suffix Breakdown & Model Matrix

Code	Type	Description
SAI143	Base Model	Analog Input Module (4 to 20 mA, 16-channel, module isolation)
-S	Suffix Code	Standard type
5	Suffix Code	For pressure clamp terminal block or MIL cable with no explosion protection
3	Suffix Code	With ISA Standard G3 conformal coating and extended temperature support (-20 to 70 deg C)

Note: The SAI143-S53 design directly replaces the older SAI143-S03 model.

Hardware Specifications

Parameter	Specification
Model	SAI143-S53
Brand	Yokogawa
Origin	Japan
Weight	2.0 kg (Shipping Weight) / 0.8 kg (Net Weight)
Dimensions	260 x 180 x 60 mm
Operating Temp	-20 to 70 deg C
Power Consumption	24 VDC nominal
Channels	16
Signal Type	4-20 mA DC
Resolution	16-bit A/D conversion
Accuracy	+/-0.1% of full scale
Input Impedance	250 Ohm
Isolation	Galvanic isolation per channel
Diagnostics	Open-circuit and short-circuit detection
Mounting	Rack-mounted

Channel-to-Channel Galvanic Isolation

To preserve signal integrity in harsh electrical environments, the module incorporates dedicated channel-to-channel isolation. This physical separation prevents ground loop currents and transient voltage spikes from propagating between input channels or into the internal system backplane. Optocouplers and isolated DC-DC converters decouple the field-side loop power from the control-side processing electronics, suppressing common-mode noise and ensuring high precision during 16-bit analog-to-digital conversion.

Frequently Asked Questions

Q: Can the SAI143-S53 module be hot-swapped while the Field Control Station is powered?

A: Yes. The hardware design allows online module replacement (hot-swapping) without disrupting system power or communication to adjacent I/O modules on the same node.

Q: What physical differences exist when replacing an SAI143-S03 with an SAI143-S53?

A: The SAI143-S53 features upgraded internal components supporting a wider operating temperature range of -20 to 70 deg C and has standard ISA Class G3 conformal coating for corrosion protection. The physical footprint, backplane connectors, and signal terminal interfaces remain fully compatible.

Field Installation Guidelines

Terminal Tightening: Secure the field wiring to the pressure clamp terminal block using a torque value of 0.5 to 0.6 N-m to maintain secure electrical contact and prevent damage to the terminals.
Shield Grounding: Connect the signal cable shields to the functional ground terminal of the cabinet instrument panel. Do not allow the shield to ground at the field sensor side to prevent ground loops.
Separation of Cables: Route the 4-20 mA signal wires in separate cable trays away from high-voltage AC electrical lines to minimize electromagnetic cross-talk.
