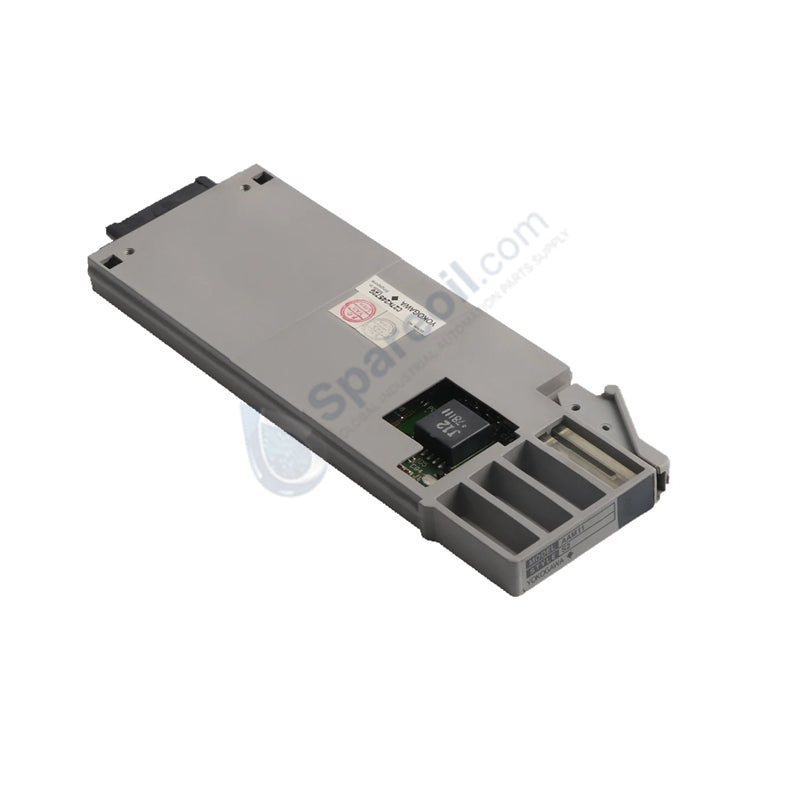

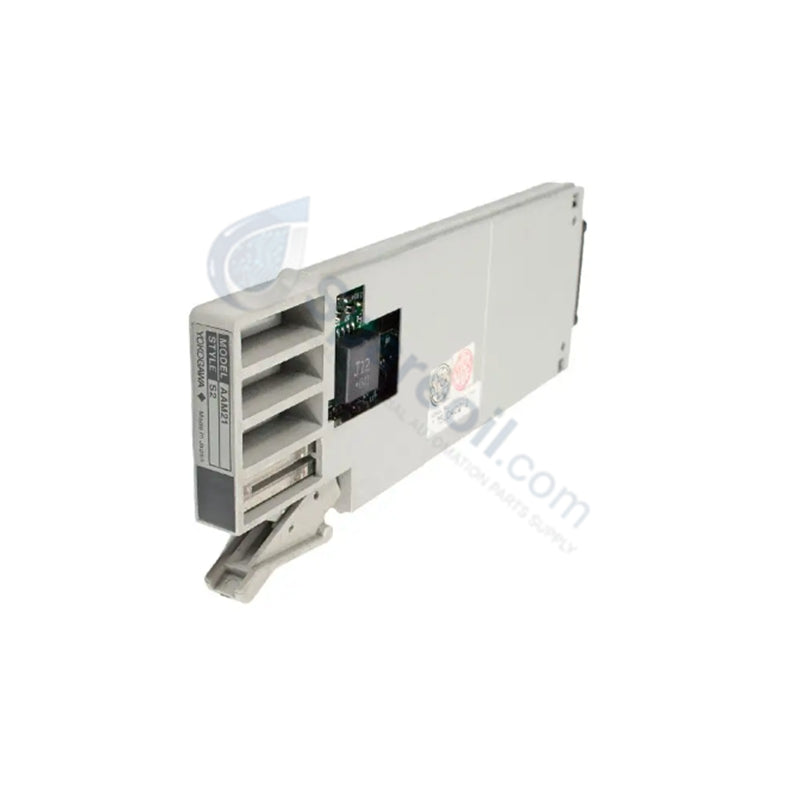

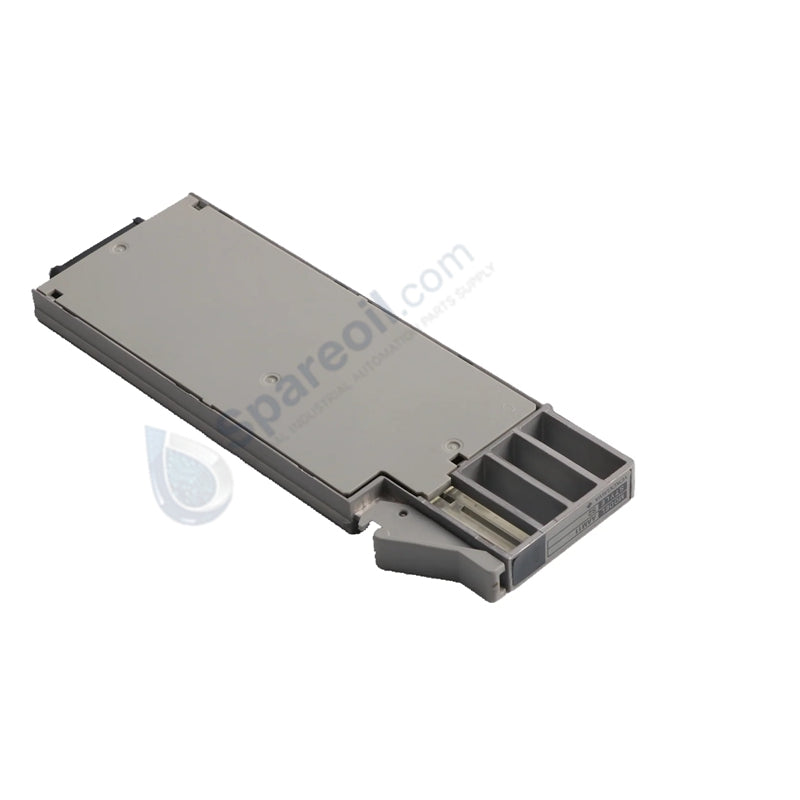

Yokogawa AAM21-S2 Analog Input Module
The Yokogawa AAM21-S2, also cataloged as the AAM21 Analog Input Module, operates as a dedicated hardware component for high-resolution process variable acquisition within CENTUM VP and CS 3000 control networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAM21-S2 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.5 kg |
| Dimensions | 30 mm x 100 mm x 120 mm |
| Operating Temp | -10 deg C to +55 deg C |
| Power Consumption | Nominal DCS Bus Load |
| Input Channels | 16 isolated analog inputs |
| Signal Types | DC Voltage, DC Current |
| Accuracy | +/- 0.1% of full scale |
DCS Process Control Connectivity
The AAM21-S2 module executes signal conditioning for field-mounted transmitters, supporting standard 4-20 mA HART loop protocol connectivity. The architecture incorporates channel-to-channel isolation to prevent potential ground loop formation and minimize cross-talk between high-impedance signal circuits. For current loop inputs, the module maintains specific shunt resistance values to ensure precise voltage drops for the internal 16-bit A/D converters. Proper operation requires consistent impedance matching with field cabling to maintain signal fidelity across the distributed control bus.
Frequently Asked Questions
Q: Does the AAM21-S2 support hot-swapping during active system operation?
A: Yes, the module is engineered for hot-swapping. Operators may replace the module without performing a full controller shutdown or interrupting adjacent active signal loops. Ensure the module is securely seated in the nest to confirm backplane contact before initiating software re-verification.
Q: How should the input channels be configured to prevent measurement drift?
A: Configure signal ranges through the DCS software management interface to match the physical field device output. Ensure all unused channels are terminated according to site standard specifications to prevent floating input noise and maintain the rated accuracy of +/- 0.1% of full scale.
Field Installation Guidelines
- Mounting: Seat the AAM21-S2 firmly into the designated I/O nest slot. Engage the mechanical locking latches to ensure the electrical backplane connectors maintain constant pressure and prevent signal intermittency caused by cabinet vibration.
- Signal Wiring: Utilize shielded twisted-pair instrumentation cable for all analog inputs. Bond the cable shield to the cabinet common earth bus at the field entry point to provide a low-impedance path for noise dissipation.
- Grounding: Verify the I/O nest chassis is bonded to the cabinet earth ground. This connection serves as the reference potential for the 1500 V AC isolation barrier.
- Maintenance: Inspect the module front-panel status LEDs periodically to confirm normal operation. If diagnostic indicators report a fault, verify terminal block seating and signal continuity before attempting a replacement cycle.
