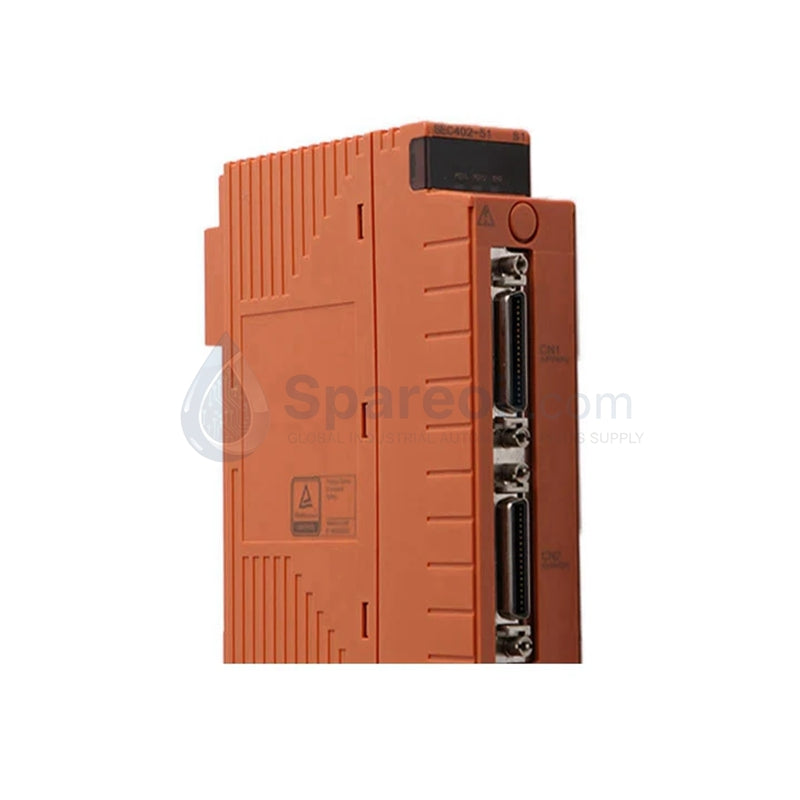

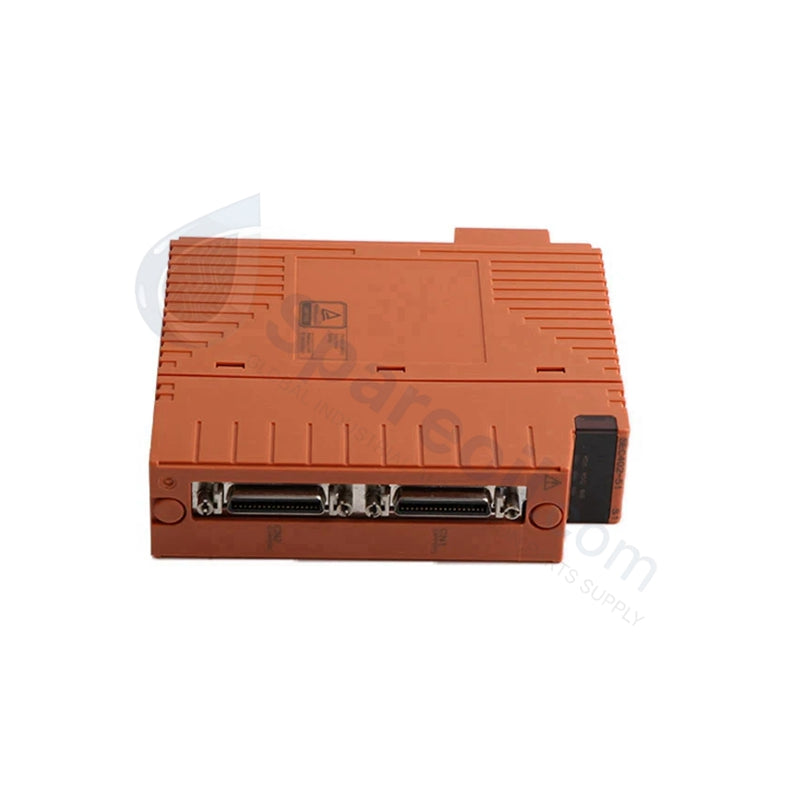

Yokogawa SDV541-S53 Digital Output Module

Configured for discrete process actuation in ProSafe-RS safety systems, the Yokogawa SDV541-S53 (SDV541 Digital Output Module) provides direct physical and electrical execution of 16-channel 24 VDC output control.

Suffix Breakdown & Model Matrix

Suffix Code Description
SDV541 Base Model: 16-channel, 24 VDC Digital Output Module
-S Standard type
5 Connector configuration: Pressure clamp terminal or MIL cable
3 Environmental specification: ISA Standard G3, -20 deg C to 70 deg C

Hardware Specifications

Parameter Specification
Model SDV541-S53
Brand Yokogawa
Origin USA
Weight 0.29 kg
Dimensions 32 mm x 106 mm x 130 mm
Operating Temp -20 deg C to 70 deg C
Power Consumption 300 mA (5 VDC) / 150 mA (24 VDC)
Output Channels 16 channels
Output Format Current source
Max Load Current 0.2 A per channel (3.2 A total)

Safety Instrumented System (SIS) Technical Characteristics

The SDV541-S53 module is engineered to operate within safety instrumented systems where fail-safe state execution is mandatory. The module architecture incorporates comprehensive galvanic isolation, ensuring that internal control logic remains decoupled from the 24 VDC field power rail. This design enforces strict electrical separation, mitigating the impact of field-side faults on the backplane bus. In the event of an internal system fault or loss of communication, the module transitions to a defined de-energized state, facilitating secure equipment shutdown. The hardware adheres to ISA G3 corrosion resistance standards, allowing for reliable performance in harsh industrial atmospheres.

Frequently Asked Questions

Q: Does the SDV541-S53 support hot-swapping during active system operation?

A: Yes, the module supports hot-swap replacement within the I/O rack. Before extraction, verify that the connected field load is de-energized or in a safe state to prevent unintended mechanical actuation. Ensure the replacement module is correctly keyed to the slot to prevent alignment errors during installation.

Q: What are the constraints for managing the external 24 VDC power supply?

A: The module requires an external power supply of 24 VDC (+ 20 % / - 10 %). The supply must be capable of sourcing a minimum of 3.4 A to accommodate the cumulative load requirements of all 16 channels. Use a power distribution system with fused monitoring to detect over-current conditions at the field supply level.

Field Installation Guidelines

  1. Mounting: Seat the module into the designated I/O nest slot until the locking mechanism engages. Verify that the backplane connector is fully seated to ensure low-resistance contact for the 5 VDC logic supply.
  2. Wiring: For pressure clamp terminal connections, ensure field conductors are stripped to the appropriate length. Secure cables in the cable duct to prevent mechanical tension on the connector header.
  3. Grounding: Terminate the shield of the output cable to the cabinet ground bar at the cable entry point. This minimizes electromagnetic interference and ensures the module isolation barrier operates as specified under high-noise conditions.
  4. Inspection: Periodically verify the status of the output lines using the system diagnostic software. Check the terminal block for signs of overheating or loose wire terminations that could cause intermittent contact resistance.
