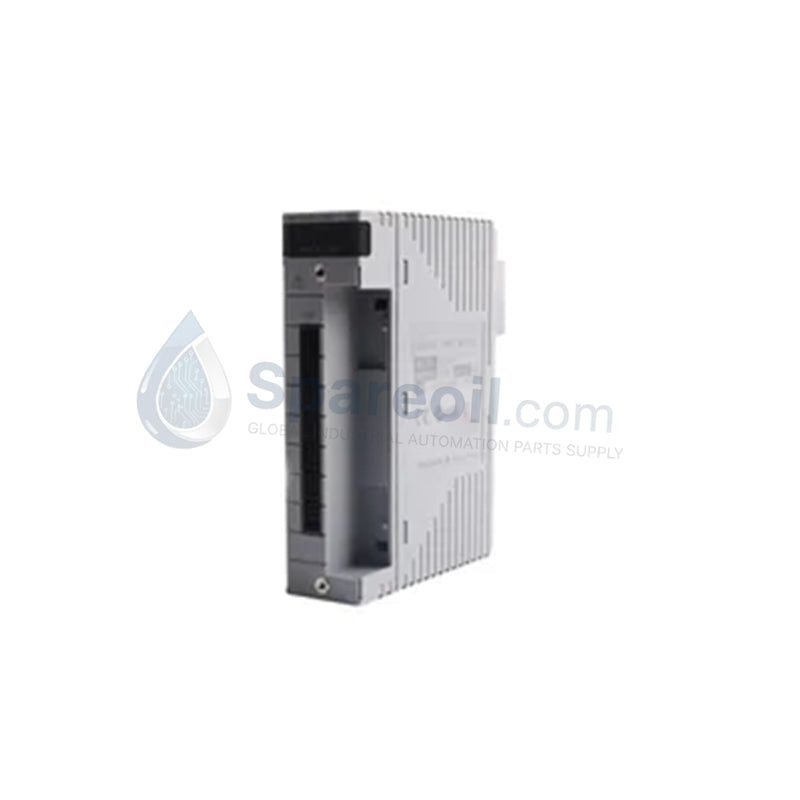

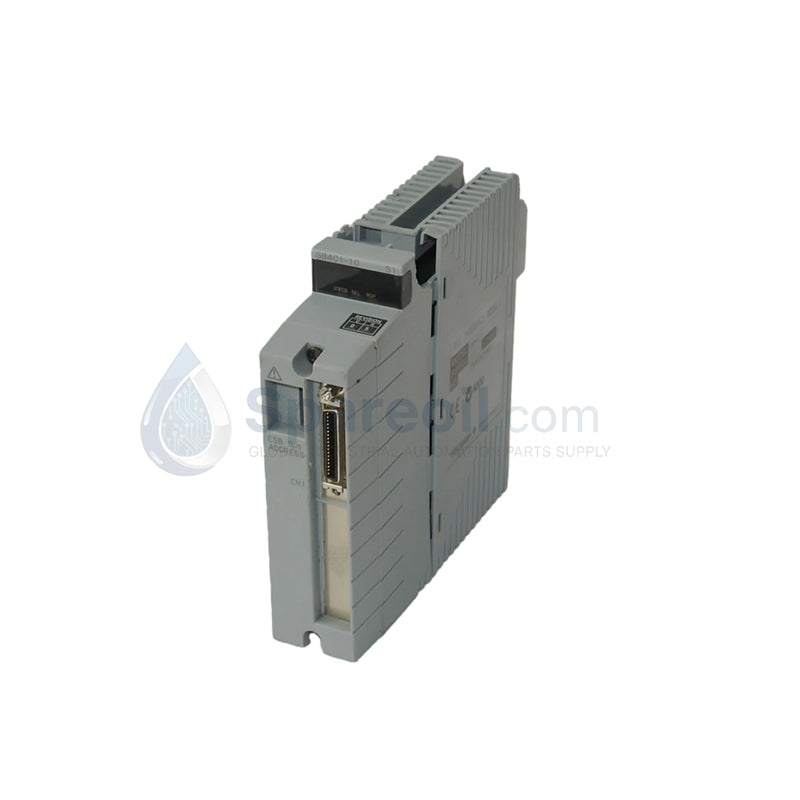

YOKOGAWA AAI543-H00-S1 Analog Output Module

The YOKOGAWA AAI543-H00-S1, also cataloged as the AAI543 Analog Output Module, operates as a dedicated hardware component for 16-channel analog signal transmission and field device control within CENTUM DCS I/O subsystems. This module provides a direct electrical interface for 4-20 mA current loops, facilitating precise actuator modulation and transmitter signal distribution while maintaining high-speed data throughput.

Suffix Breakdown & Model Matrix

Code	Specification
AAI543	Base Model (16-channel analog output)
-H00	HART communication enabled
S1	Style S1 revision index

Hardware Specifications

Parameter	Specification
Model	AAI543-H00-S1
Brand	YOKOGAWA
Origin	Japan
Weight	0.4 kg
Dimensions	3.7 cm x 13.8 cm x 12.1 cm
Operating Temp	-20 deg C to 70 deg C
Power Consumption	310 mA (5 V DC), 500 mA (24 V DC)
I/O Channels	16 Analog Inputs
Accuracy	+/- 16 uA
Signal Range	4-20 mA DC

DCS Process Control & HART Connectivity

The AAI543-H00 utilizes the HART protocol to provide bidirectional communication with smart field instruments, enabling continuous diagnostic monitoring alongside the standard analog control signal. To ensure process stability, the module features a 10 ms data update period and a step response time of less than 100 ms. As the architecture is non-isolated, maintenance of a common potential across the I/O rack is required to mitigate ground loop noise that could otherwise impair the accuracy of the 4-20 mA transmission.

Frequently Asked Questions

Q: Does the module support dual-redundant deployment?

A: Yes. The AAI543-H00 supports dual-redundant configurations, allowing for seamless failover in mission-critical process loops. Ensure that the corresponding redundant module pair is synchronized at the controller level during commissioning.

Q: How should circuit-open detection be verified during startup?

A: The module includes integrated open-circuit detection which triggers when the output current drops below 0.65 mA. This function should be verified by simulating a loop break while monitoring the diagnostic register on the engineering station to ensure the alert logic correctly identifies the fault condition.

Field Installation Guidelines

Mount the module within the CENTUM I/O nest; verify that the module guide rails are aligned to prevent damage to the backplane connector pins.
Connect field devices using either the pressure clamp terminal block or the designated KS/MIL connector cables; ensure all terminations are mechanically secure and vibration-resistant.
Establish a low-impedance ground connection for the I/O rack to ensure proper operation of the non-isolated channel architecture.
Verify that field-side current draw does not exceed the 30 mA maximum threshold per channel to prevent internal circuit overheating or potential damage.
Confirm that the selected suffix codes for explosion protection and ISA G3 compliance are appropriate for the specific installation site's environmental conditions.
