ANT502-53 Yokogawa CENTUM VP Datasheet & Technical Manual

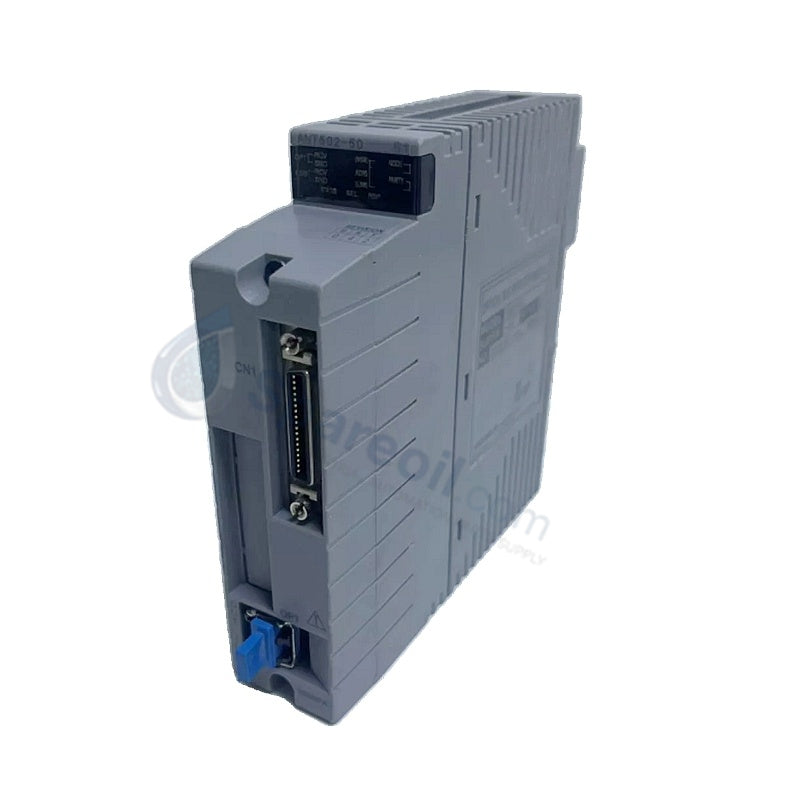

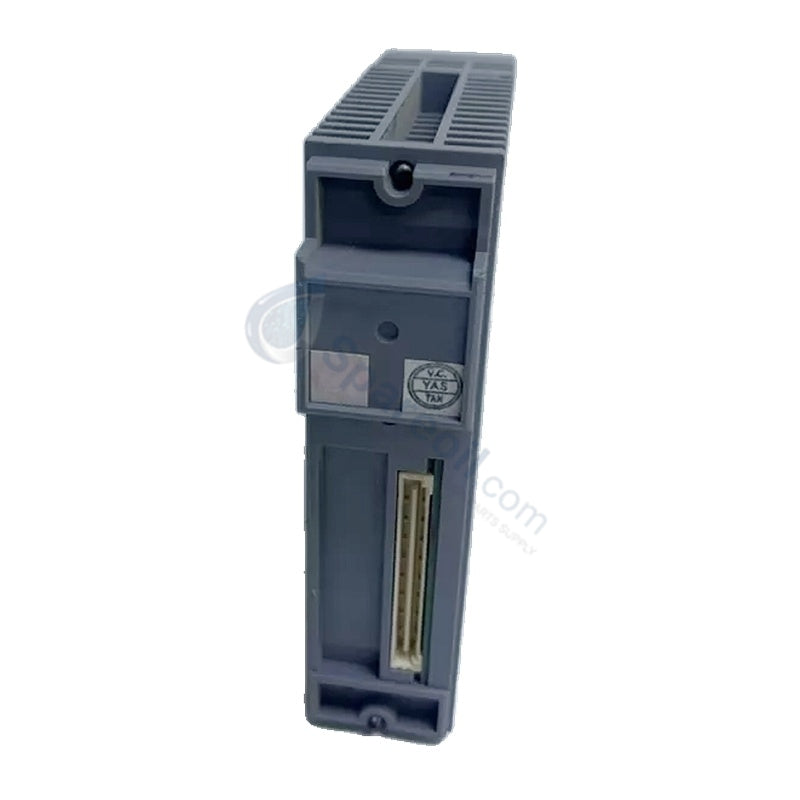

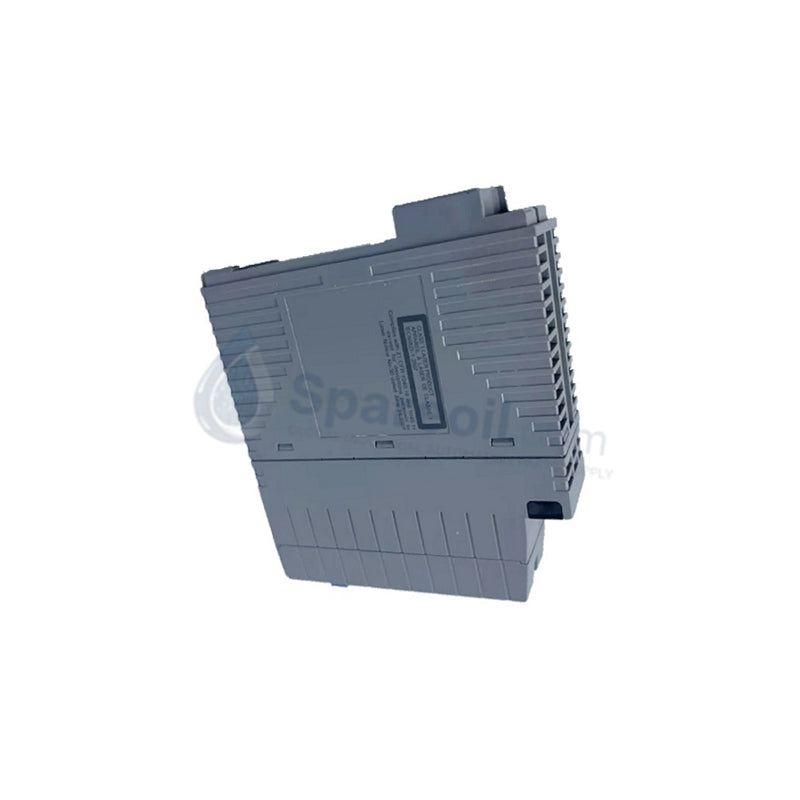

ANT502-53 Yokogawa 5km Optical ESB Bus Repeater Module

ANT502-53 Yokogawa 5km Optical ESB Bus Repeater Module

Availability: 20 left in stock

Yokogawa ANT502-53 Optical ESB Bus Repeater Module Configured for long-distance optical bus extension in CENTUM VP, CS 3000, and ProSafe-RS...

SKU: ANT502

Manufacturer: Yokogawa
Product No.: ANT502
Product Type: Communication Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa ANT502-53 Optical ESB Bus Repeater Module

Configured for long-distance optical bus extension in CENTUM VP, CS 3000, and ProSafe-RS systems, the Yokogawa ANT502-53, also cataloged as the ANT502 Optical ESB Bus Repeater Module, provides direct physical/electrical execution. The hardware converts serial ESB control signals into optical pulses for transmission over distances up to 5 km per hop, delivering galvanic isolation and total immunity to field electromagnetic noise between Field Control Units (FCUs) and remote I/O nodes.

Suffix Breakdown & Model Matrix

Suffix Code	Option Specification
-5	Standard type with no explosion protection
3	ISA Standard G3 conformal coating with extended temperature range option (-20 deg C to +70 deg C)

Hardware Specifications

Parameter	Specification
Model	ANT502-53
Brand	Yokogawa
Origin	Japan
Weight	0.25 kg (Shipping Weight: 1.0 kg)
Dimensions	Standard node module form factor
Operating Temp	-20 deg C to +60 deg C (Option 3 rated up to +70 deg C)
Power Consumption	24 V DC, consuming less than 5 W
Bus Architecture	Enhanced Serial Bus (ESB) slave communication
Max Transmission Distance	5 km per hop
Optical Connectors	LC type (compliant with IEC61754-20)
Fiber Cores / Wavelength	2 optical fiber cores @ 1.3 um wavelength
Permissible Optical Loss	0 to 10 dB

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The ANT502-53 module bridges field nodes processing 4-20 mA HART loop protocol signals back to central processing units over long distances without signal degradation. Complete optical isolation prevents ground loop currents from traversing remote cabinets, preserving channel-to-channel isolation on downstream analog input cards and maintaining cold junction compensation (CJC) stability on remote temperature transmitters.

Frequently Asked Questions

Q: What optical connector type and fiber configuration does the ANT502-53 require?

A: The module utilizes standard duplex LC connectors conforming to IEC61754-20 and requires a 2-core optical fiber link operating at a 1.3 um wavelength.

Q: How does the module handle extended communication distances across field control networks?

A: The module acts as an ESB bus repeater slave that converts electrical bus signals to optical signals, permitting noise-free transmission up to 5 km per optical hop.

Field Installation Guidelines

Mount the ANT502-53 into an assigned node slot or DIN-rail base assembly within the enclosure. Ensure that the cabinet grounding point connects directly to the local earth bus to dissipate electrostatic charges.

When routing optical fiber cables, clean all LC connector end-faces prior to insertion. Respect the minimum bend radius specifications of the optical cable to prevent attenuation losses exceeding the permissible 0 to 10 dB margin. Secure 24 VDC power wiring to the primary supply terminals, keeping power conductors separated from optical paths to allow unobstructed access during routine maintenance.
