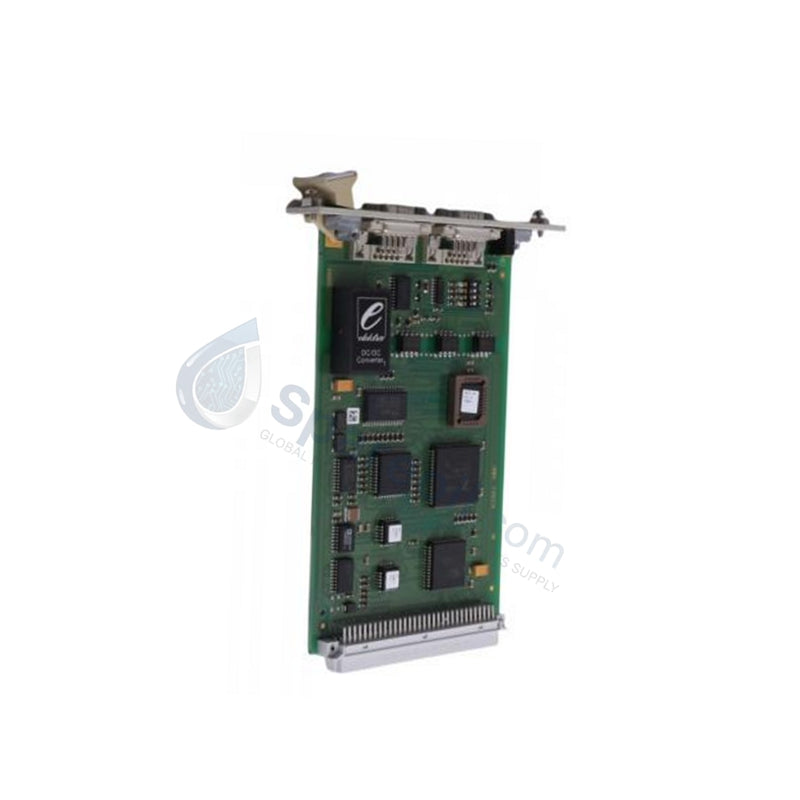

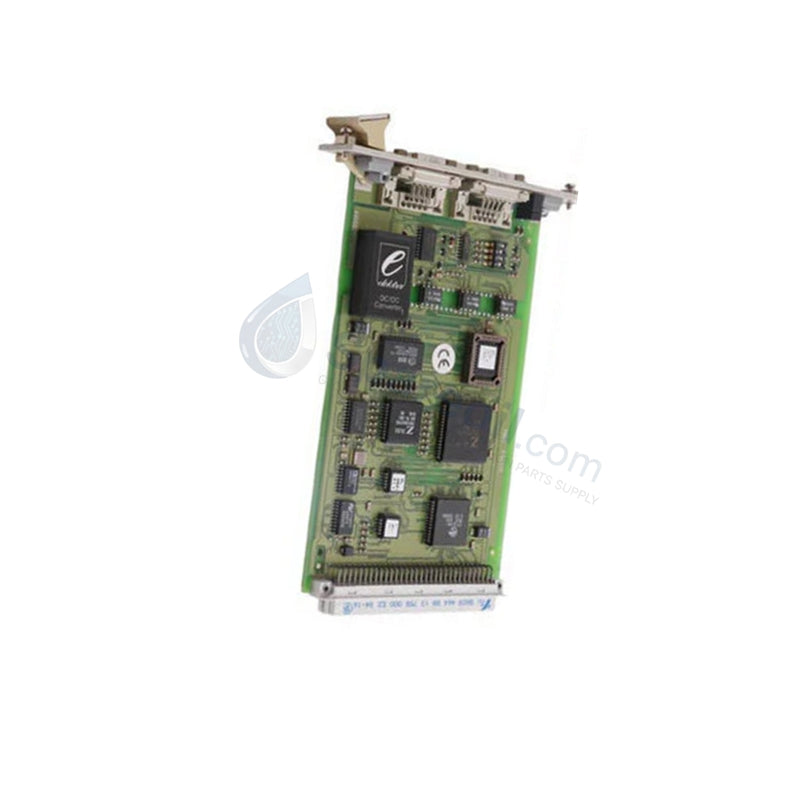

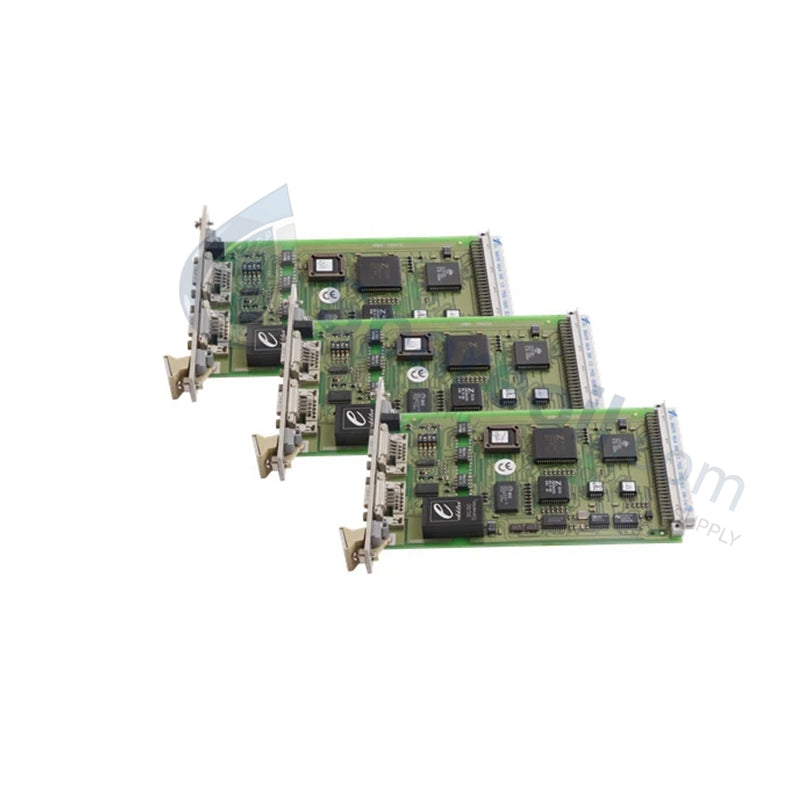

B5233-2 HIMA H51q-HRS System Rack with CU8650X

Availability: 99 left in stock

Product Overview The HIMA H51q-HRS B5233-2 serves as the foundational Central System Rack Assembly for High Redundancy Systems (HRS). This kit provides...

SKU: H519-HRS B5233-2

Manufacturer: HIMA
Product No.: H519-HRS B5233-2
Product Type: Safety Instrumented Systems (SIS)
Product Origin: Germany
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The HIMA H51q-HRS B5233-2 serves as the foundational Central System Rack Assembly for High Redundancy Systems (HRS). This kit provides the structural and electrical backbone for HIMA's safety-related controllers, facilitating critical processing in Emergency Shutdown (ESD) and Fire and Gas (F&G) applications. This specific assembly houses the central CPUs and power distribution modules required for quad-processor redundancy. We supply this kit as 100% Brand New and Original in Factory Packing, ensuring compliance with original equipment manufacturer (OEM) safety certifications and functional integrity.

Technical Specifications

The B5233-2 assembly kit integrates multiple high-availability components into a single chassis:

Feature	Specification
Model Number	B5233-2 (H51q-HRS)
Rack Type	Central Rack Assembly for Redundant Systems
CPU Compatibility	Dual CU 8650 X (Included)
OS Version	OS V7.0 -8 (07.14)
Power Components	Integrated HIMA Power Modules
Redundancy Level	High Redundant System (HRS) / Quad Structure
Dimensions	100 x 100 x 50 mm (Core component footprint)
Assembly Weight	6.0 Kg (Full shipping weight)
Country of Origin	Germany
Condition	Brand New & Original

Engineering Advantages

The B5233-2 assembly addresses the stringent uptime requirements of high-hazard industrial environments:

Pre-Configured Redundancy: The kit includes two CU 8650 X central units, enabling immediate setup of a redundant processor architecture. This dual-unit configuration ensures that a single hardware failure does not interrupt safety functions, maintaining SIL 3 integrity.
Integrated Power Distribution: By bundling the power modules within the central rack, HIMA eliminates complex external wiring between the power source and the CPUs. This design reduces potential points of failure and simplifies the cabinet thermal management profile.
Optimized Thermal Dissipation: The rack chassis utilizes high-grade materials that facilitate heat transfer away from the sensitive CU 8650 X processors. This prevents thermal throttling and extends the lifecycle of the electronic components in hot industrial control rooms.
Vibration Resistant Backplane: The assembly features a reinforced backplane bus designed to withstand the mechanical stresses typical of heavy manufacturing and offshore platforms, ensuring consistent electrical contact between modules and the CPU.

FAQs

What exactly is included in the B5233-2 assembly kit?

The B5233-2 kit provides a complete central control hub, including the physical central rack, the necessary power modules for the chassis, and two CU 8650 X Central Units pre-loaded with OS V7.0.

Does this assembly support H51q-HS or only the HRS version?

This specific assembly (B5233-2) targets the High Redundancy System (HRS) architecture. While H51q systems share some components, the HRS rack is specifically wired and configured to manage quad-structure processor redundancy.

Is there any special requirement for commissioning the CU8650X CPUs?

Since these units come with OS V7.0, you must ensure your ELOP II or SILworX engineering tool version matches the operating system requirements to perform logic downloads and system diagnostics successfully.

What is the warranty coverage for this assembly?

We offer a 12-month factory warranty on this assembly. Because the unit is 100% Brand New and Original, it maintains the full performance specifications and safety ratings established by HIMA Germany.
