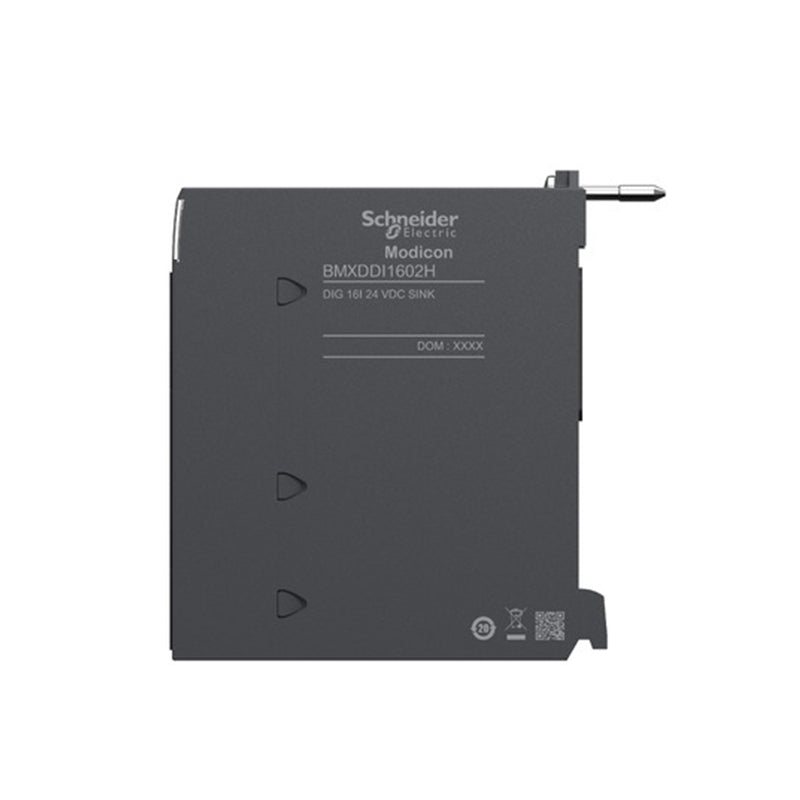

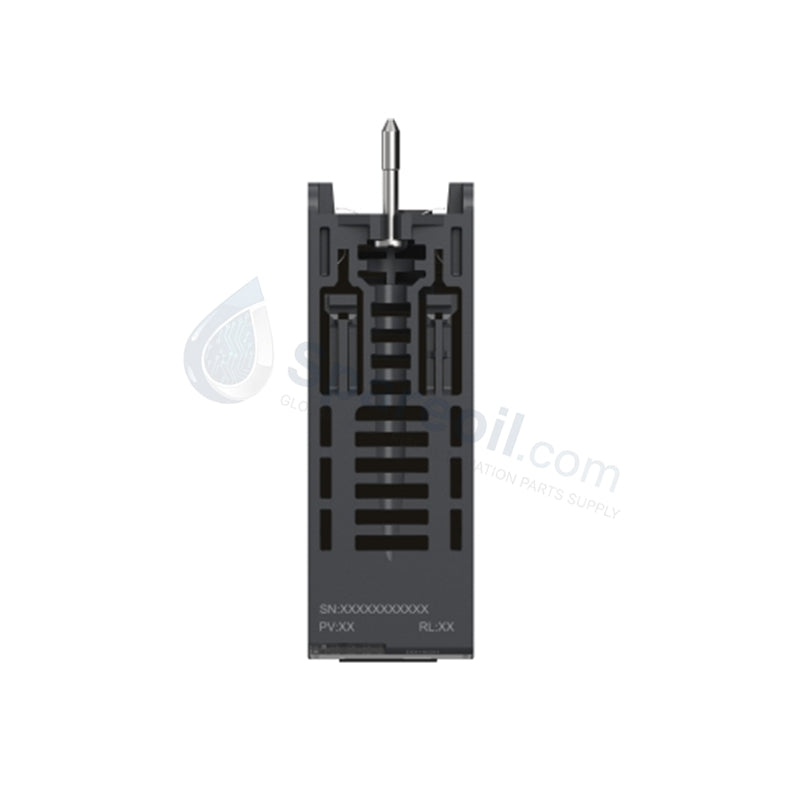

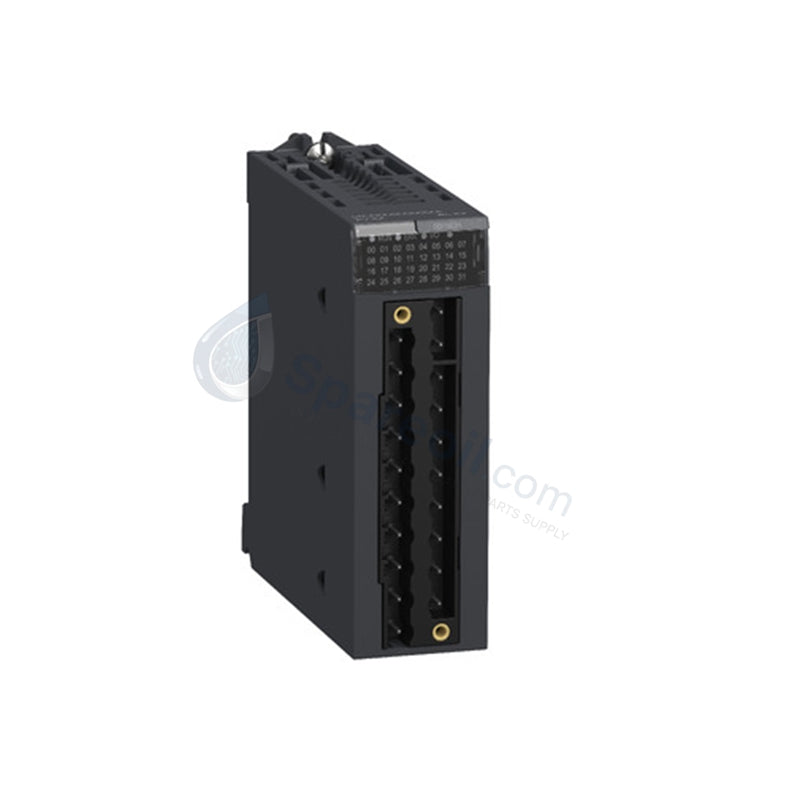

Schneider BMXDDI1602H Modicon X80 Discrete Input Module

The Schneider BMXDDI1602H serves as the primary BMXDDI1602H Discrete Input Module utilized to execute digital ON/OFF signal capture across Modicon M340 and M580 platform networks. The hardware features 16 fully isolated channels operating on positive current sink logic, translating input transitions into structured registers over the active instrumentation rail. Designed to accept binary voltage inputs from proximity sensors and mechanical switches, the component maintains clean signal processing loops inside centralized or extended tracking infrastructures.

Hardware Specifications

Parameter	Specification
Model	BMXDDI1602H
Brand	Schneider Electric
Origin	France
Weight	0.10 kg (0.22 lbs) net weight / 1.50 kg shipping weight
Dimensions	32 mm x 119 mm x 86 mm
Operating Temp	0 to 60 deg C
Storage Temp	-40 to 85 deg C
Power Consumption	Distributed via X80 backplane current consumption profiles
Discrete Input Number	16 isolated channels
Input Type	Current sink (logic positive)
Discrete Input Voltage	24 V DC positive
Input Voltage Limits	19 to 30 V DC
Discrete Input Current	3.5 mA nominal (reaches ~7 mA under peak load conditions)
Input Compatibility	2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
Response Time	<= 0.5 ms for high-speed channel detection
Isolation	Channel-to-bus electrical isolation
Protection Class	IP20
Certifications	CE, UL, CSA, RoHS

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The Schneider BMXDDI1602H interfaces directly with the master rack backplane, passing binary tracking bits to the central processor using integrated backplane bus communication velocity licenses. This synchronous connection processes the 16 hardware input channels within a high-speed conversion phase matching a fast 0.5 ms response rate.

When integrated into hybrid Profinet / EtherNet/IP deterministic networks via native X80 drop adapters, the module preserves hardware state consistency during heavy processing intervals. The isolated layout supports dense I/O density scaling profiles, enabling multiple input blocks to populate a single rack chassis without causing timing drift or register map degradation across the automation network.

Frequently Asked Questions

Q: How does the isolated configuration of the BMXDDI1602H influence channel grounding practices?

A: The module provides independent channel-to-bus electrical isolation. This ensures that electrical faults, surge transients, or ground loops affecting field wiring blocks are confined to the field terminal strip and cannot traverse the backplane to compromise controller logic components.

Q: Is hot-swapping permitted for the BMXDDI1602H inside a running Modicon X80 chassis?

A: Yes, the Modicon X80 platform parameters support hot-swap insertion and removal. The module can be extracted or inserted under power without corrupting data registers or disrupting the continuous execution loops of adjacent modules on the active backplane bus.

Q: Can this discrete input card accept raw 24 V AC signals if the tracking loops require it?

A: No. The internal detection circuitry is engineered exclusively for 24 V DC positive sink logic. Connecting an AC source will result in failure to register logic states and can cause permanent component breakdown due to inverse current paths.

Field Installation Guidelines

Remove field terminal power loops prior to wiring or performing maintenance procedures on the individual channel connection lines.
Align the module chassis with the target slot on the X80 rack, pressing the housing backward until the bottom rear plastic latch locks onto the rail assembly.
Terminate all sensor lines using twisted-pair cables, keeping the 24 V DC signal lines distinct from high-power AC distribution or variable frequency drive runs by a minimum of 30 cm.
Connect 2-wire and 3-wire proximity sensors in conformity with standard IEC 60947-5-2 terminal paths to ensure correct current sink operation.
Bond the main chassis grounding lug of the X80 rack directly to the industrial enclosure ground bus using a low-impedance copper conductor to stabilize potential tracking values.
