BMXSDI1602 Schneider Electric Modicon X80 Datasheet & Technical Manual

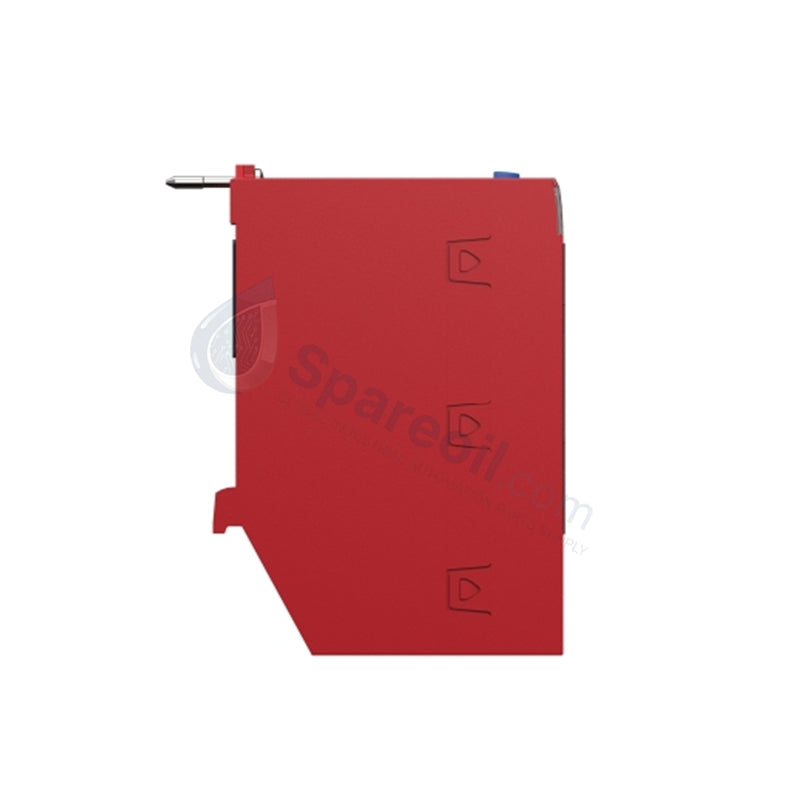

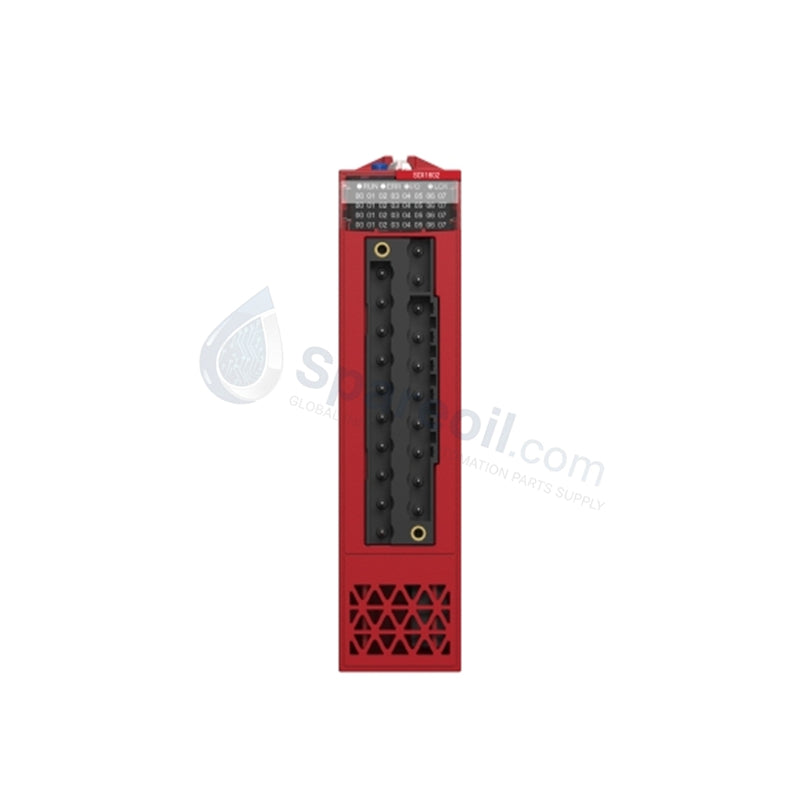

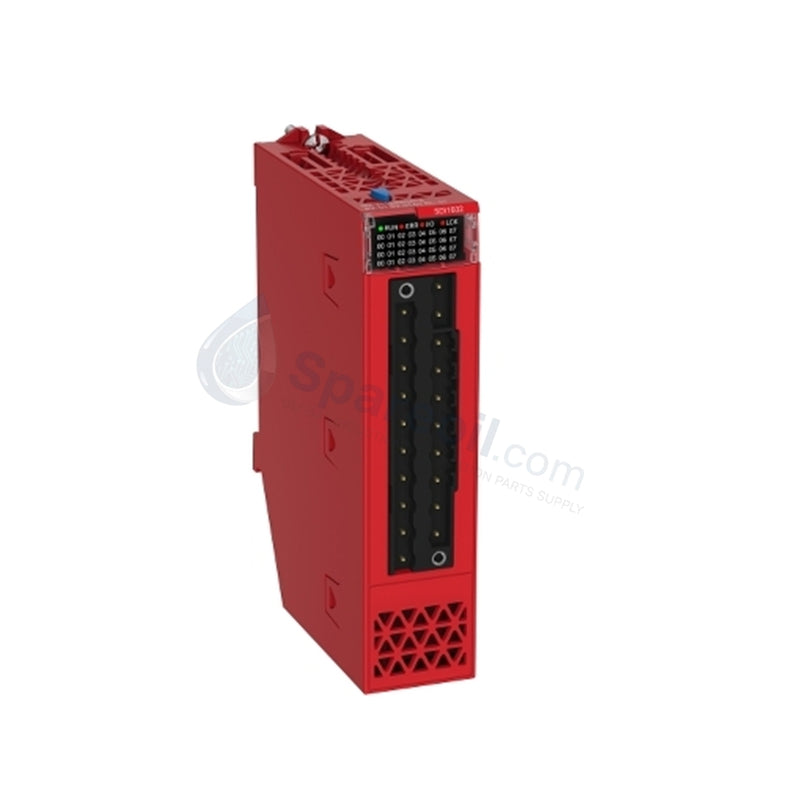

BMXSDI1602 Schneider Electric 16-Input Safety Module - New Stock

BMXSDI1602 Schneider Electric 16-Input Safety Module - New Stock

Availability: 94 left in stock

SCHNEIDER ELECTRIC BMXSDI1602 Modicon X80 Series Configured for high-reliability fail-safe state execution in M580 safety systems, the Schneider Electric BMXSDI1602,...

SKU: BMXSDI1602

Manufacturer: Schneider
Product No.: BMXSDI1602
Product Type: Discrete Input Modules
Product Origin: France
Payment:T/T, Western Union
Weight: 115g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

SCHNEIDER ELECTRIC BMXSDI1602 Modicon X80 Series

Configured for high-reliability fail-safe state execution in M580 safety systems, the Schneider Electric BMXSDI1602, also cataloged as the BMXSDI1602 Discrete Input Module, operates as a dedicated hardware component for safety-critical input processing within industrial automation networks.

Hardware Specifications

Parameter	Specification
Model	BMXSDI1602
Brand	Schneider Electric
Origin	France
Weight	0.115 kg
Dimensions	134.6 mm x 32 mm x 86 mm
Operating Temp	-25 to +70 deg C
Power Consumption	3.57 W max
Input Channels	16 discrete inputs (2 groups of 8, non-isolated)
Input Type	Type 3, Current sink, positive logic
Nominal Input Voltage	24 V DC
Voltage Thresholds	State 1 >= 2 mA; State 0 <= 1.5 mA
Dielectric Strength	1500 V AC, 50/60 Hz, 1 min
Backplane Current	256 mA at 3.3 V DC, 100 mA at 24 V DC
Safety Compliance	SIL 3, Category 4, PLd
Protection Rating	IP20

Safety Control & Firmware Determinism

Operating within the EcoStruxure architecture, this module utilizes high-velocity backplane bus communication velocity Licences to enforce predictable I/O density scaling during critical system demands. Firm deterministic logic execution manages the transition to designated fail-safe states upon detection of channel anomalies or loop fault thresholds (< 14 V DC). The unit coordinates internal diagnostics across separate isolated processing paths, preventing cross-channel failure propagation and ensuring compliance with quantitative safety availability factors up to SIL3 thresholds.

Frequently Asked Questions

Q: What specific terminal block configuration is required to interface field wiring with this safety module?

A: Wiring connection requires the installation of the BMXFTB2000 caged terminal block component.

Q: How does the physical dimension of this module affect rack layout planning?

A: The physical height of the I/O module exceeds the baseline clearance envelope of standard Ethernet or X-bus racks. This geometric variance must be accounted for in enclosure spacing prior to mounting.

Field Installation Guidelines

Ensure proper mechanical alignment prior to securing the module into local or remote Modicon X80 backplane slots.
Terminate all field cables using the designated BMXFTB2000 caged terminal block, enforcing proper torque limits on terminal screws to maintain low contact resistance.
Keep standard physical isolation distances between low-voltage safety input loops and heavy power-carrying conductors to limit electromagnetic field induction.
Ground the external shield paths of the sensor wiring at a single point inside the enclosure cabinet to suppress external signal distortion.
