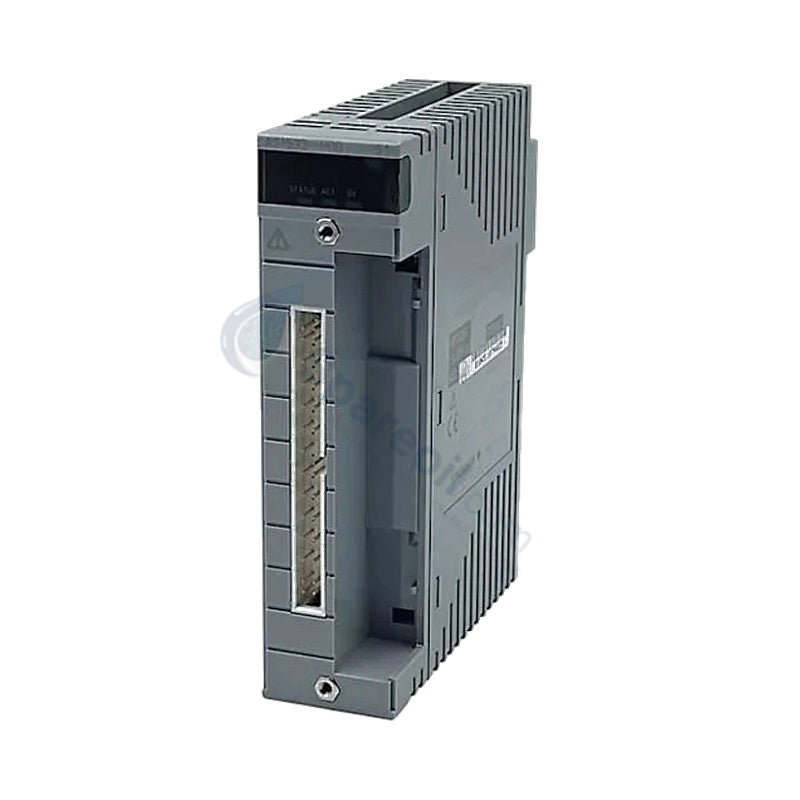

YOKOGAWA ASI533-H00 S1 CENTUM VP Module

The YOKOGAWA ASI533-H00 S1, also cataloged as the ASI533 Analog Input Module, operates as a dedicated hardware component for 16-channel current loop collection within CENTUM VP control system networks. The hardware samples 4-20 mA current loops from field transmitters and updates digitized process variables to the primary Field Control Unit (FCU). Deployed inside standard Node Interface Units, the card establishes physical galvanic isolation limits across processing loops to block ground loop interference before data enters the active backplane bus.

Hardware Specifications

Parameter Specification
Model ASI533-H00 S1
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions 125 mm (W) x 130 mm (D) x 248 mm (H)
Operating Temp -20 to +60 deg C
Power Consumption 300 mA at 5 VDC (Backplane feed) / 24 VDC external rated
Channel Density 16 isolated channels
Signal Input Type 4-20 mA current input
Measurement Accuracy ±0.1% of full scale
Input Impedance 250 Ω
Update Response Time Less than or equal to 100 ms
Environmental Shielding ISA G3 conformal corrosion coating

DCS Process Control & Channel-to-Channel Isolation

The module architecture incorporates explicit channel-to-channel isolation barriers along with system-side optocoupler isolation arrays. This configuration decouples the 250 Ω internal signal resistors from adjacent field loops, preventing a localized electrical short or ground potential difference from causing cross-talk corruption or cascading hardware failures. The board supports the standard 4-20 mA HART loop protocol layer, which enables the simultaneous transmission of digital instrument metrics alongside the basic analog variable without affecting the nominal update cycle time.

Frequently Asked Questions

Q: Does the ASI533-H00 S1 support live online module hot-swapping during active DCS operations?

A: Online hot-swapping depends strictly on the configuration of the Node Interface Unit baseboard slot. If the slot configuration enables hot-swap protection, technicians can remove the module without causing a power drop across the internal 5 VDC backplane bus, though current loop tracking on those 16 points will pause.

Q: What indicates an internal processing fault or channel-level component failure?

A: The front faceplate contains dedicated diagnostic LEDs. When internal diagnostics identify a data failure, a channel overcurrent condition, or an open wire fault dropping beneath the scale baseline, the system changes the status LED array color to alert maintenance staff.

Q: Can this specific module configuration accept 0-10 VDC voltage transmitter signals directly?

A: No. The internal hardware contains fixed 250 Ω drop resistors optimized for 4-20 mA current tracking. Interfacing direct voltage sources will cause measurement errors or cause thermal overloading on the channel shunt resistors.

Field Installation Guidelines

  • Backplane Insertion: Align the card frame with the chassis slot rails inside the node panel. Push the unit straight back until the multi-pin connector snaps cleanly into the backplane socket, then secure the retention screws.
  • Shield Continuity Routing: Connect all transmitter cable shields to the cabinet instrument ground rail. Maintain the shield continuity up to the field termination block to suppress high-frequency ambient noise.
  • Cable Channel Separation: Separate the analog signal cables from heavy AC power feeds inside the panel wiring ducts. Maintain a minimum distance of 300 mm to prevent electromagnetic induction from skewing the accuracy of the loop.
  • Thermal Environment Management: Keep the cabinet ventilation openings clear of obstructions. Ensure that vertical air currents remain continuous so that the internal temperature within the enclosure does not exceed the 60 deg C threshold.
