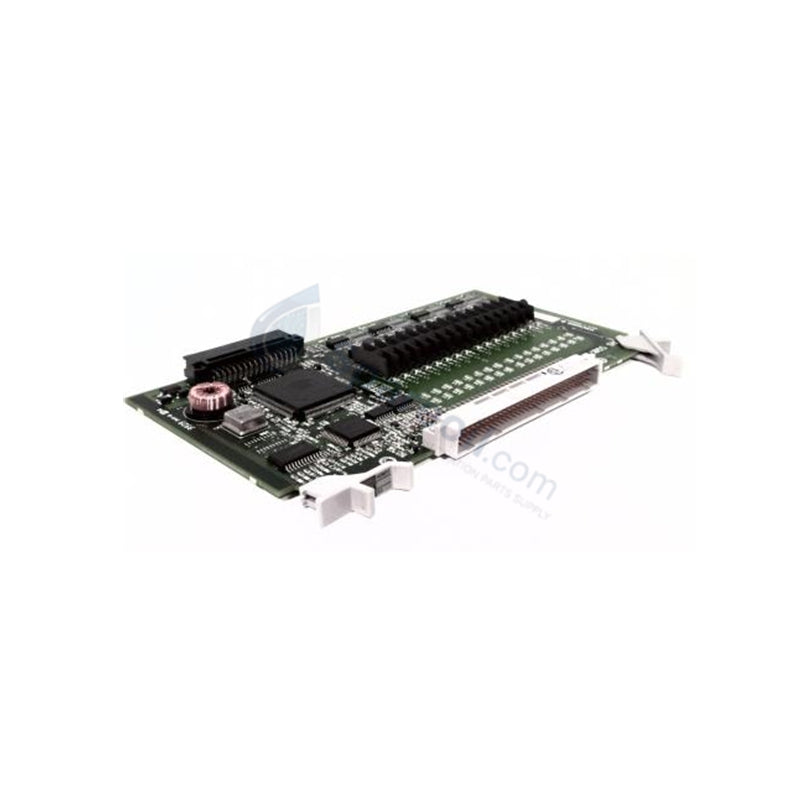

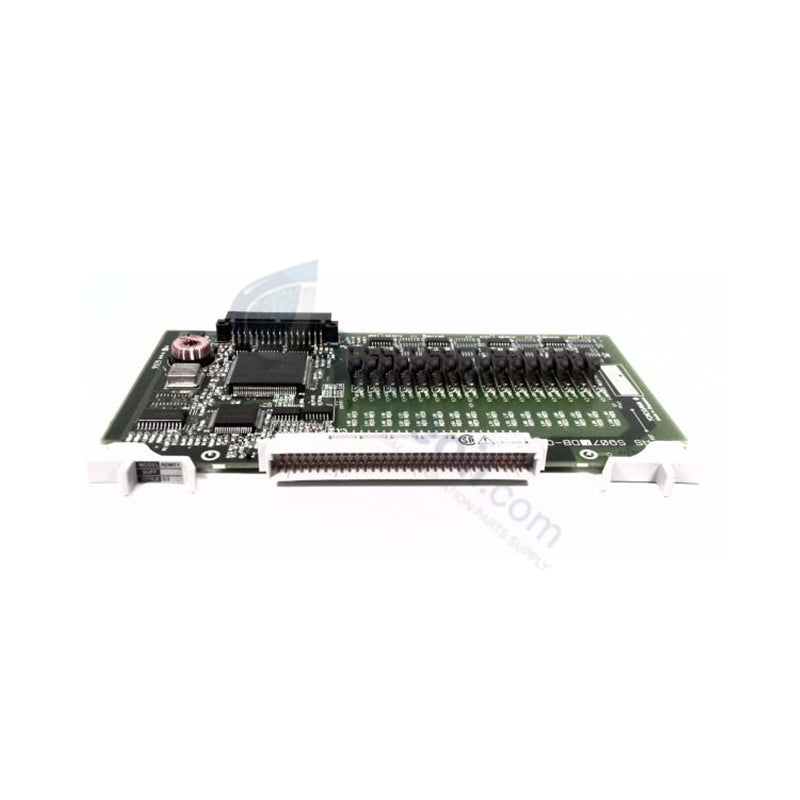

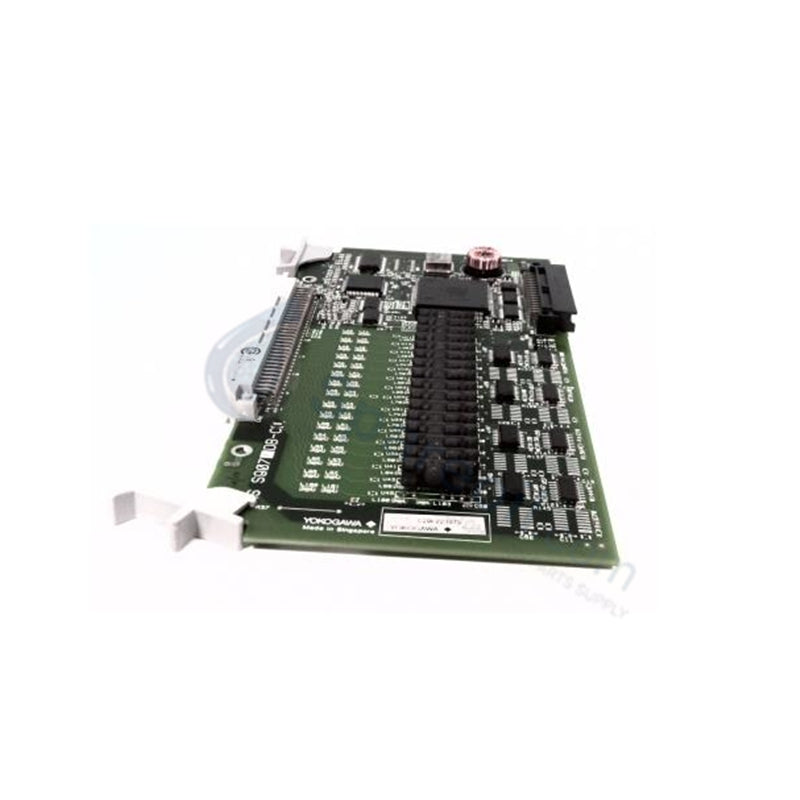

Yokogawa ADM11 S3 Contact Input Modules

Configured for discrete state monitoring and signal evaluation in CENTUM VP control platforms, the Yokogawa ADM11 S3 (ADM11 Contact Input Module) provides direct physical/electrical execution. The unit processes binary status transitions across 16 input channels directly from field-side limit switches, pushbuttons, and relay contacts. Operating across a 0-30 VDC input range with 1500 Vrms channel-to-backplane isolation, the module digitizes field contact behaviors for backplane logic processing.

Hardware Specifications

Parameter Specification
Model ADM11 S3
Brand Yokogawa
Origin Japan
Weight 0.30 - 0.55 kg (0.65 lbs)
Dimensions 125 mm x 100 mm x 150 mm
Operating Temp -10 to 60 deg C (S3 tolerance)
Power Consumption 1.2 W typical (200-400 mA @ 5 VDC backplane draw)
Number of Inputs 16 channels
Input Signal Type Dry contact or 24 VDC voltage
Input Voltage Range 0-30 VDC (4-32 VDC operational range)
Threshold Limits ON-State: >= 15 VDC; OFF-State: <= 5 VDC
Digital Filter Delay Selectable 1 ms, 5 ms, 10 ms, 20 ms (Filter time + 1 ms)
Terminal Connection Removable 20-pin screw terminal block

Channel-to-Channel Isolation and DCS Integration

Yokogawa process architectures require complete galvanic isolation to protect central control nodes from voltage surges and ground loops originating at field switch terminals. The ADM11 S3 incorporates 1500 Vrms dielectric isolation between external channel connections and internal system logic. When integrated into racks housing 4-20 mA HART loops, this isolation barrier maintains complete electrical separation, while hardware-level digital filtering suppresses contact bounce to ensure precise discrete signal processing.

Frequently Asked Questions

Q: What input pulse parameters must field devices meet to guarantee detection on the ADM11 S3? A: Input signal changes require a minimum pulse width of >= 40 ms at a maximum operating frequency of <= 10 Hz.

Q: How do integrated visual indicators assist in field diagnostic verification? A: The front panel includes 1 green LED for system power confirmation alongside 16 red LEDs that provide real-time channel status illumination.

Q: Does the ADM11 S3 support hot-swapping during active system operations? A: Operators can safely replace modules in dual-redundant rack configurations without disturbing secondary process execution or system logic flow.

Field Installation Guidelines

  1. Confirm that style code S3 aligns with rack backplane hardware specifications prior to sliding the module into the designated slot.
  2. Mount the chassis securely onto standard DIN rails or rack assemblies using guided insertion rails.
  3. Terminate field switch wires into the removable 20-pin screw terminal block using wire sizes between 0.2 mm2 and 2.5 mm2.
  4. Separate discrete contact wiring from high-voltage AC lines within cabinet raceways to prevent electromagnetic interference.
  5. Terminate all field cable drain wires directly to the local enclosure grounding bar using short, low-impedance copper grounding connections.
