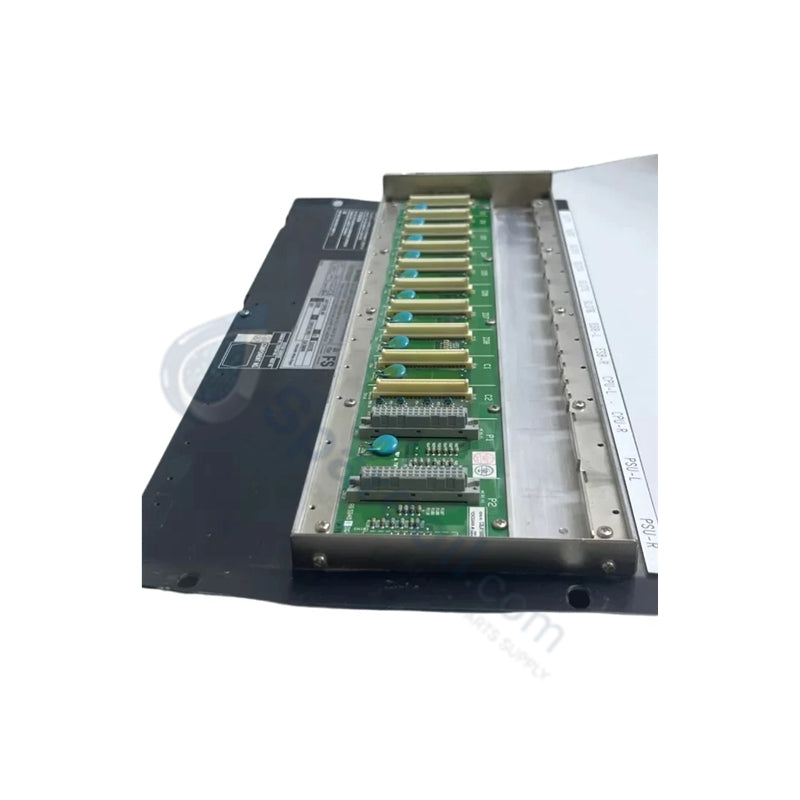

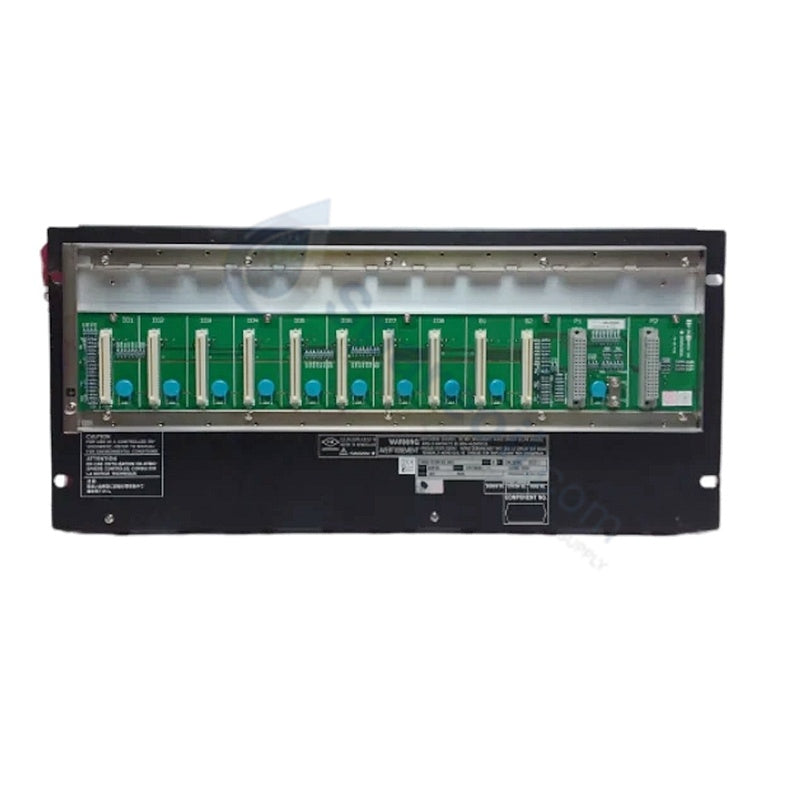

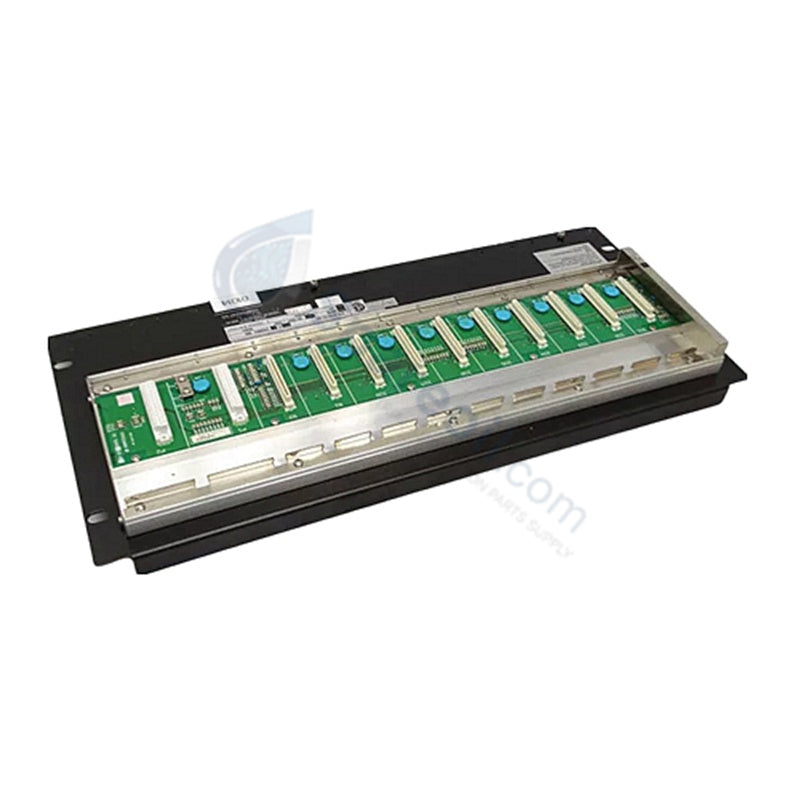

Yokogawa SCS10D-S2121 Control Module

The Yokogawa SCS10D-S2121, also cataloged as the SCS10D Control Module, operates as a dedicated hardware component for control logic execution, communication management, and system diagnostics within Yokogawa CENTUM VP process control platforms.

Hardware Specifications

Parameter Specification
Model SCS10D-S2121
Brand Yokogawa Electric Corporation
Origin Japan
Weight 2.5 kg
Dimensions Rack-mounted module chassis
Operating Temp 0 deg C to +55 deg C
Power Consumption 24 VDC
Processor Industrial-grade high-performance CPU
Program Storage Built-in Flash memory
Data Storage High-reliability RAM
Communication Interfaces Industrial Ethernet / Control bus (V net / ESB)
Mounting Rack-mounted in industrial control cabinet

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The SCS10D-S2121 control module directly processes high-density field data across V net and ESB control bus interfaces, maintaining deterministic scan times during continuous operations. To ensure total signal integrity when communicating with field transmitters, the system leverages galvanic channel-to-channel isolation and internal filtering algorithms. This hardware architecture prevents common-mode noise and ground loop differentials from degrading 4-20 mA HART loop protocol signals, preserving millivolt-level measurement precision for critical control loops.

Frequently Asked Questions

Q: How does the SCS10D-S2121 handle module replacement during active process operations?

A: The SCS10D-S2121 supports online module removal and insertion when integrated into a redundant control node setup. When swapping a secondary card, the primary controller continues processing control loops without cycle time interruption or state corruption on the backplane bus.

Q: What grounding procedure must be enforced for the control bus shielding on this module?

A: Installation engineers must tie the outer shield of all communication bus cables to the master system reference ground bar at a single point. Grounding both cable ends induces circulating earth current loops, which can interfere with high-speed data transmission between the CPU and remote I/O racks.

Field Installation Guidelines

Technicians must verify that the 24 VDC power supply outputs remain within specified voltage tolerances before energizing the module. Mount the module securely into the designated rack slot, tightening all retention fasteners to establish frame grounding and structural rigidity against vibration. Maintain a clearance gap of at least 50 mm above and below the rack chassis to facilitate passive heat dissipation. Route field I/O wiring and bus communication cables through separate cable ducts, keeping them isolated from high-voltage AC power lines to avoid electromagnetic cross-talk.
