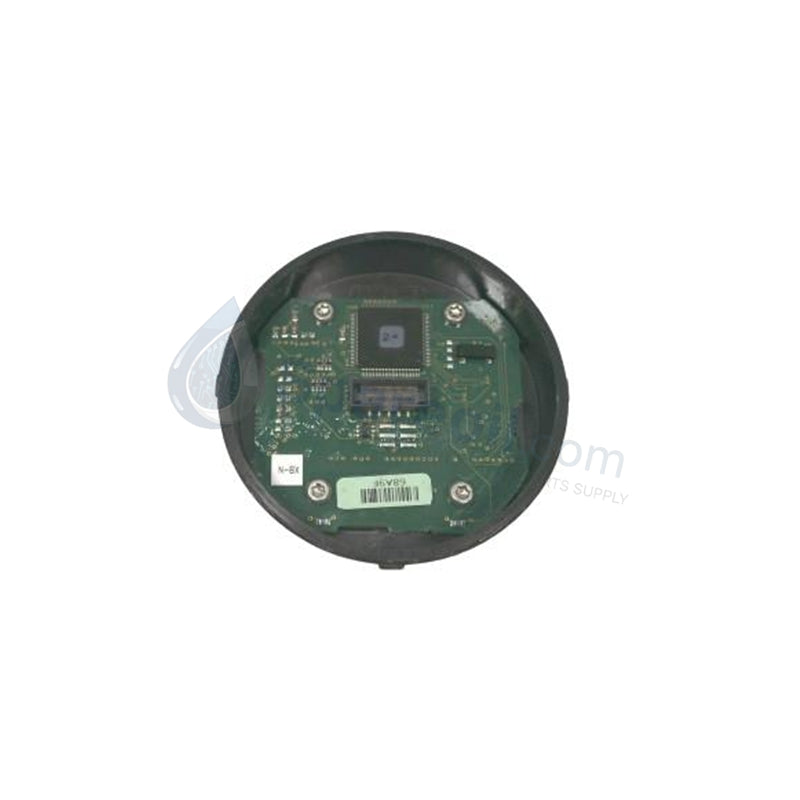

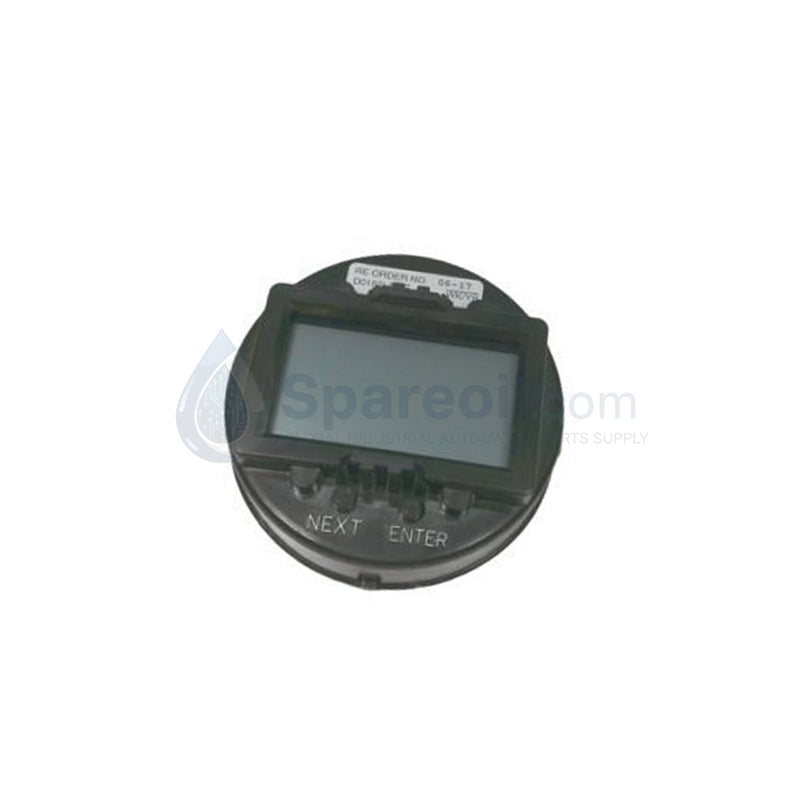

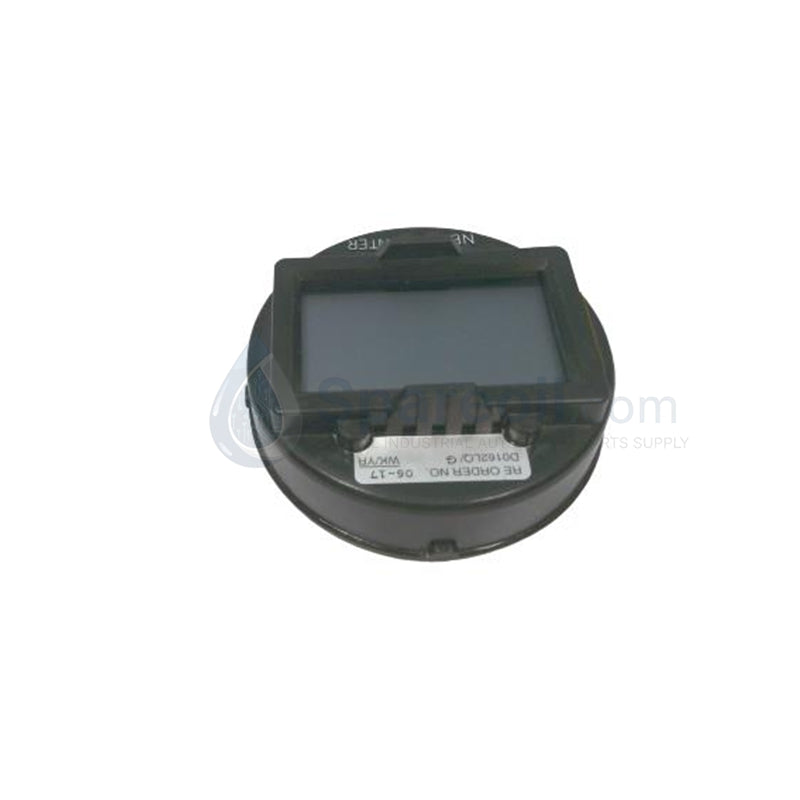

Foxboro D0162LQ Operator Interface Panel

The Foxboro D0162LQ/H, also cataloged as the D0162LQ Indicator Module, operates as a dedicated hardware component for localized data visualization and diagnostic execution within Mesh Control Network platforms. The component establishes direct physical interface links with the FCM100E module, operating at a data throughput speed of 100 Mbps across the control infrastructure.

Hardware Specifications

Parameter Specification
Model D0162LQ/H
Brand Foxboro (Schneider Electric)
Origin USA
Weight 0.37 lbs (1 kg shipping weight)
Dimensions Standard FCM100E slot footprint
Operating Temp -20 to +60 deg C
Power Consumption Sourced via system backplane connection
Display Type LCD Indicator Module
Network Velocity 100 Mbps Mesh Control Network
Environmental Resistance Class G3 - ISA S71.04 harsh environment rating
Termination Type Screw-clamp terminals (12-22 AWG)
Enclosure Rating IP20 (cabinet installation required)
Storage Temp -40 to +85 deg C

Process Control & DCS Instrumentation Properties

The hardware acts as a physical node interface processing diagnostic data streams directly from the network layer. Channel-to-channel isolation circuits safeguard the internal processing bus from external electrical noise and ground voltage variations. The operator interface structure interfaces directly with the 100 Mbps Mesh Control Network, utilizing standard protocols to mirror process parameters from paired fieldbus modules and display loop dynamics without introducing channel latency or data degradation.

Frequently Asked Questions

Q: What specific environmental rating governs the protection of the internal circuitry?

A: The hardware is certified to Class G3 specifications according to ISA S71.04, rendering it resistant to continuous chemical and corrosive particulate exposures commonly found in unregulated control environments.

Q: Does the indicator panel require independent external power routing?

A: No external power connections are necessary. The assembly derives its operational voltage directly from the system rack backplane when seated in its designated slot pairing.

Field Installation Guidelines

  • Backplane Insertion: Guide the module along the chassis rails into the FCM100E assembly socket. Apply uniform pressure until the locking tabs snap into place, establishing firm connection with the 100 Mbps data plane.
  • Shield Grounding Constraints: Ground all external network and signal shielding lines at a single common master ground point within the instrument enclosure. Do not create loops by grounding both ends of the cable run.
  • Thermal Management: Mount the unit vertically within an IP20 enclosure, keeping a minimum clearance of 50 mm above and below the housing to maintain temperature values within the -20 to +60 deg C operational envelope.
