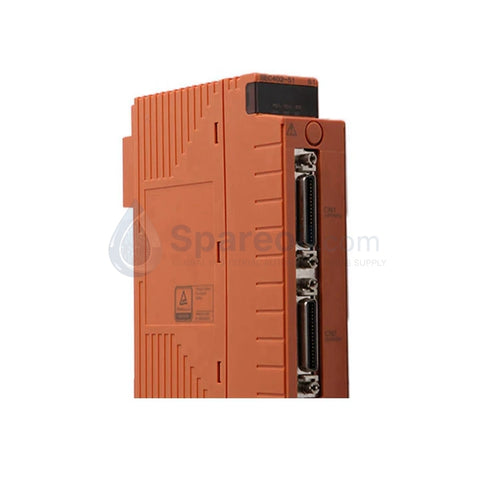

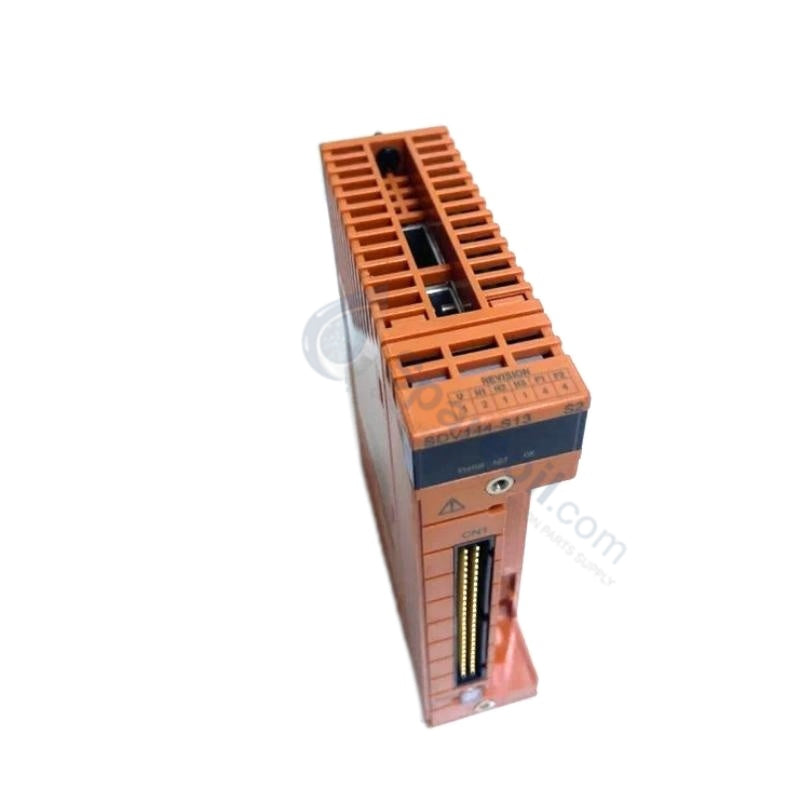

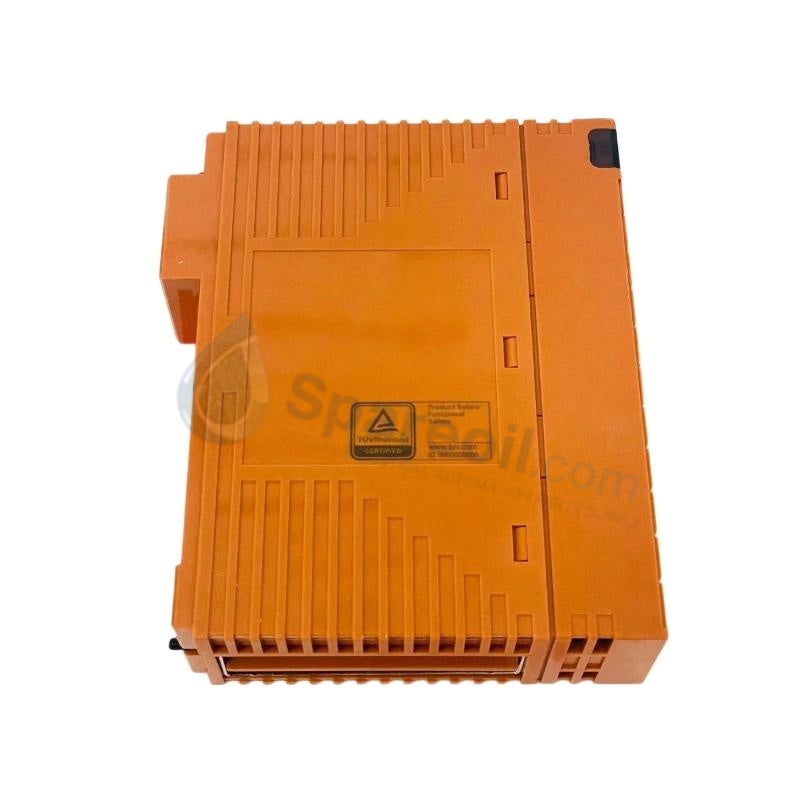

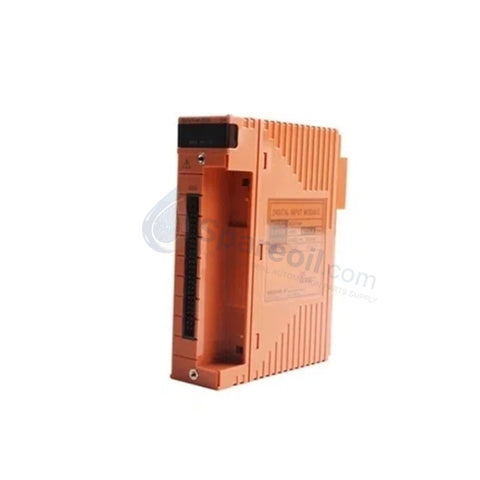

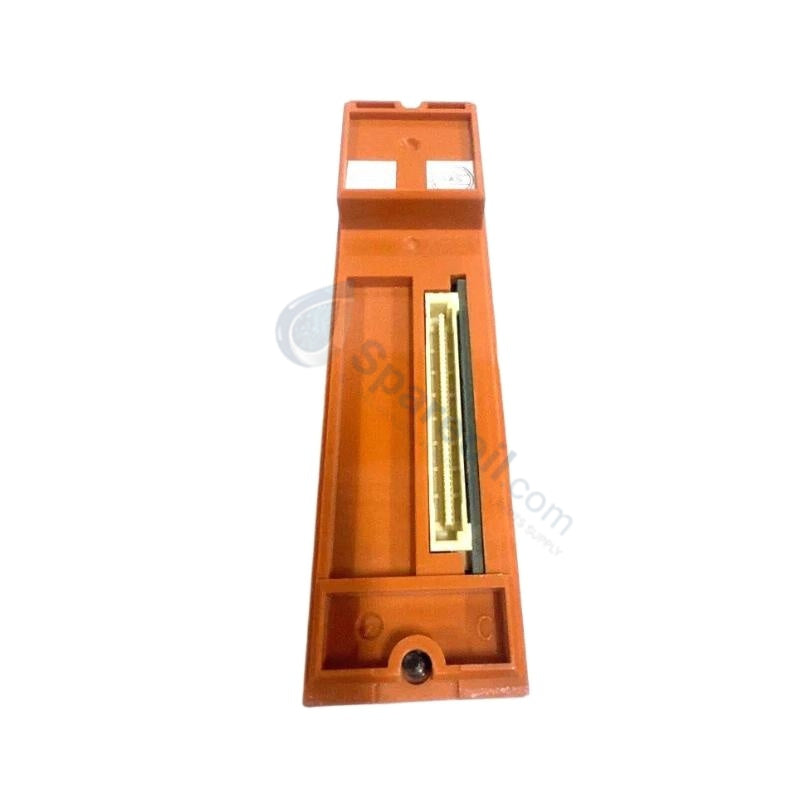

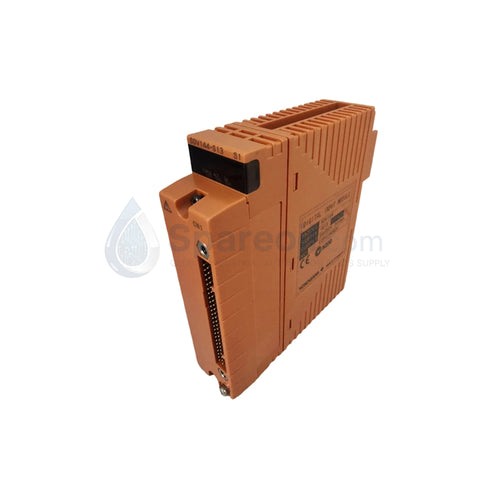

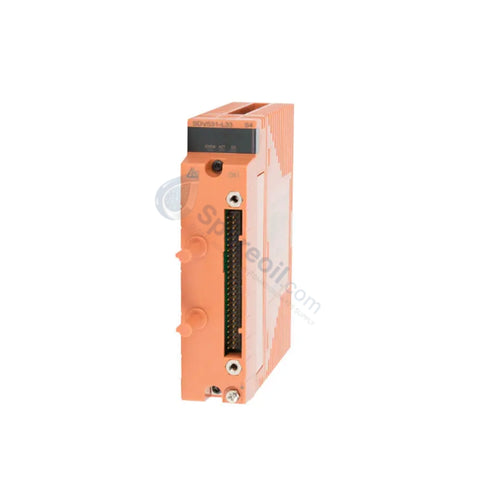

Yokogawa SDV144-S63 S4 Digital Input Module

The Yokogawa SDV144-S63/PRP S4, also cataloged as the SDV144 Digital Input Module, operates as a dedicated hardware component for 24 VDC signal acquisition within ProSafe-RS and CENTUM VP platforms. It receives input signals from field switches, sensors, and relays, converting physical state inputs into internal logical data. Designed with dual-redundancy capabilities, the unit ensures continuous operation across distributed control and safety instrumented architectures without signal interruption.

Hardware Specifications

Parameter	Specification
Model	SDV144-S63/PRP S4
Brand	Yokogawa
Origin	Japan
Weight	0.5 kg (0.36 - 0.41 kg module base)
Dimensions	81 mm x 103 mm x 146 mm
Operating Temp	0 to 60 deg C
Power Consumption	Approx. 300 mA (5 VDC), 150 mA (24 VDC)
Number of Inputs	16 channels
Rated Input Voltage	24 VDC +/- 10%
Input Current	Approx. 6 mA per channel
ON Threshold	>= 15 VDC
OFF Threshold	<= 5 VDC
Max Permissible Input Voltage	30 VDC
Input Response Time	<= 40 ms
Isolation	1500 VAC between input and system for 1 minute
Diagnostic Support	Compatible with SCB modules for open/short circuit detection

Signal Galvanic Isolation and DCS Bus Architecture

Yokogawa DCS and safety systems require strict isolation barriers to prevent cross-channel contamination and ground loop current spikes. The SDV144 module provides 1500 VAC galvanic isolation between the field input terminals and the internal system backplane. Channel-to-channel isolation design prevents localized field electrical faults from propagating across adjacent channels or affecting the system processing units.

Frequently Asked Questions

Q: Does the module support online module replacement (hot-swapping) during active control logic execution?

A: Yes, the SDV144 module supports online hot-swapping when installed in a dual-redundant configuration, allowing module replacement without disrupting active control processing or safety loop execution.

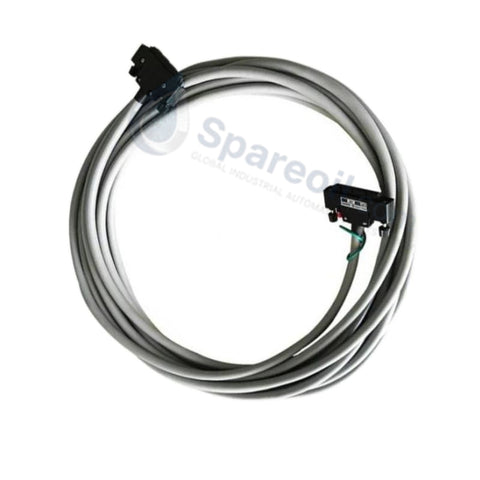

Q: What cable connection options are compatible with the SDV144 input terminals?

A: The module supports direct pressure clamp terminal blocks, MIL cable interfaces, and dedicated signal cable adapters for system cabinet integration.

Q: How does the unit detect open-circuit or short-circuit conditions on input lines?

A: Line monitoring is achieved by integrating optional Signal Conditioner Block (SCB) modules, which evaluate loop resistance variations to signal fault diagnostics to the host controller.

Field Installation Guidelines

Ensure the system power supply is disconnected or redundant module pair is active prior to physical insertion or removal.
Align module guide rails with the rack slot and press firmly until the locking mechanism engages completely.
Route field wiring separately from high-voltage AC cables to minimize electromagnetic interference across signal pairs.
Connect cable shields directly to the designated cabinet earth ground bar with short, low-impedance grounding straps.
Verify that external loop power supplies remain ungrounded (floating) to maximize common-mode noise rejection.
