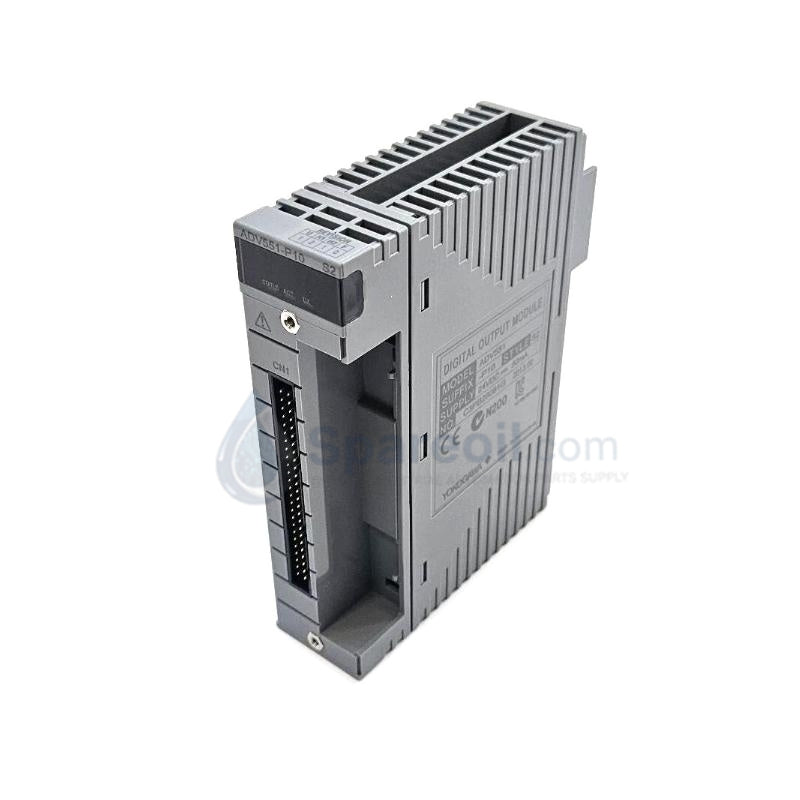

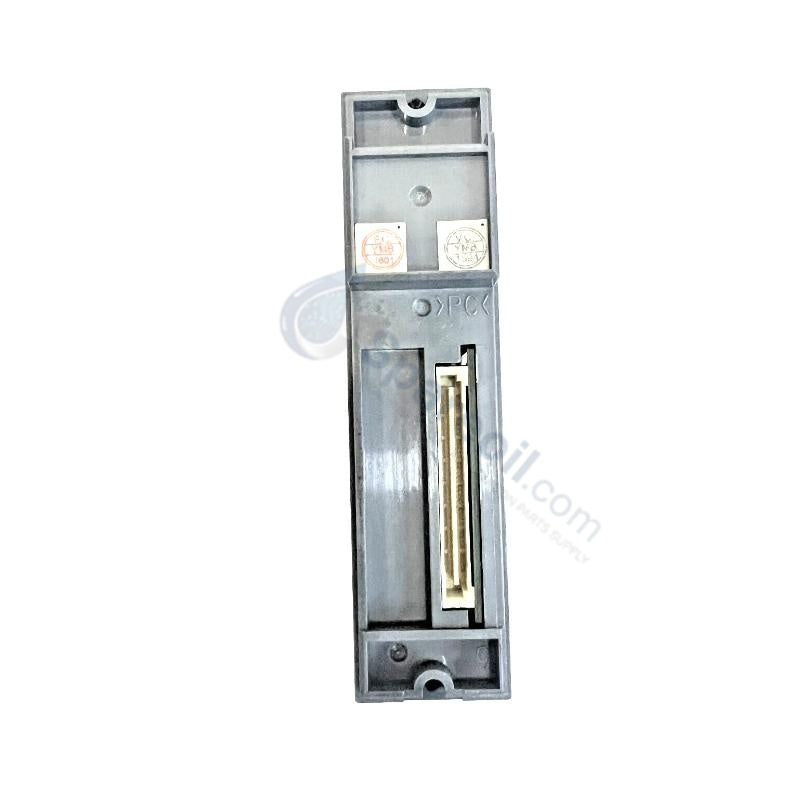

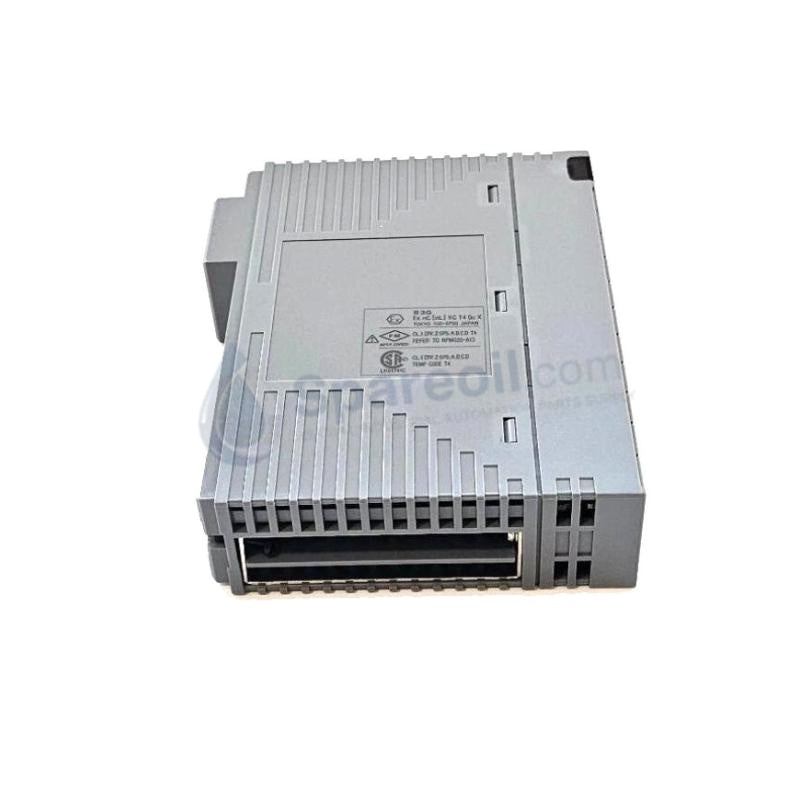

Yokogawa ADV551-P10 S2 Digital Output Module

Configured for high-speed signal actuation in Yokogawa DCS platforms, the Yokogawa ADV551-P10 S2 (ADV551 Digital Output Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model ADV551-P10 S2
Brand Yokogawa
Origin Japan / Indonesia
Weight 0.45 kg
Dimensions 130 mm x 100 mm x 30 mm
Operating Temp -20 deg C to +70 deg C
Power Consumption 700 mA (5 VDC internal), 60 mA (24 VDC external)
Output Channels 16 isolated digital outputs
Output Voltage 24 VDC nominal
Load Current 0.5 A per channel
Response Time 1 ms typical
Isolation Channel-to-channel and channel-to-system isolation (2000 VAC withstand)

Channel-to-Channel Isolation & HART Loop Management

The module incorporates robust channel-to-channel galvanic isolation designed to eliminate ground loops and suppress transient electrical noise across field-side connections. Engineered for high-density DCS integration, each output circuit limits cross-channel interference during inductive load switching, ensuring signal integrity across all 16 channels. The hardware architecture prevents field fault propagation to the internal system backplane, enabling simultaneous execution of fast-response discrete switching and stable co-located 4-20 mA HART loop protocol signaling within the same control enclosure.

Frequently Asked Questions

Q: Does the module support online replacement while the DCS backplane is powered?

A: Yes, the module supports hot-swap functionality. Users can extract or insert the unit online without interrupting system backplane communication or disturbing adjacent I/O modules, provided standard field terminal removal procedures are followed.

Q: How does the unit react when an individual channel encounters an external short-circuit?

A: Each individual output channel features dedicated short-circuit and overload protection circuits. Upon detecting an overcurrent condition, the affected channel isolates its field drive to prevent hardware damage, while adjacent channels continue normal execution without system failure.

Field Installation Guidelines

Mount the unit directly into the dedicated CENTUM VP I/O rack or standard DIN-rail interface using the integrated locking mechanism. Ensure all field wiring maintains proper shield grounding at a single designated point to eliminate potential ground potential differences. Route 24 VDC external load cables separately from sensitive analog input wiring to minimize electromagnetic interference. Verify that terminal screw engagement meets standard industrial torque specs before applying power to the field-side supply circuit.
