Yokogawa SDV541-S33 Digital Output Modules

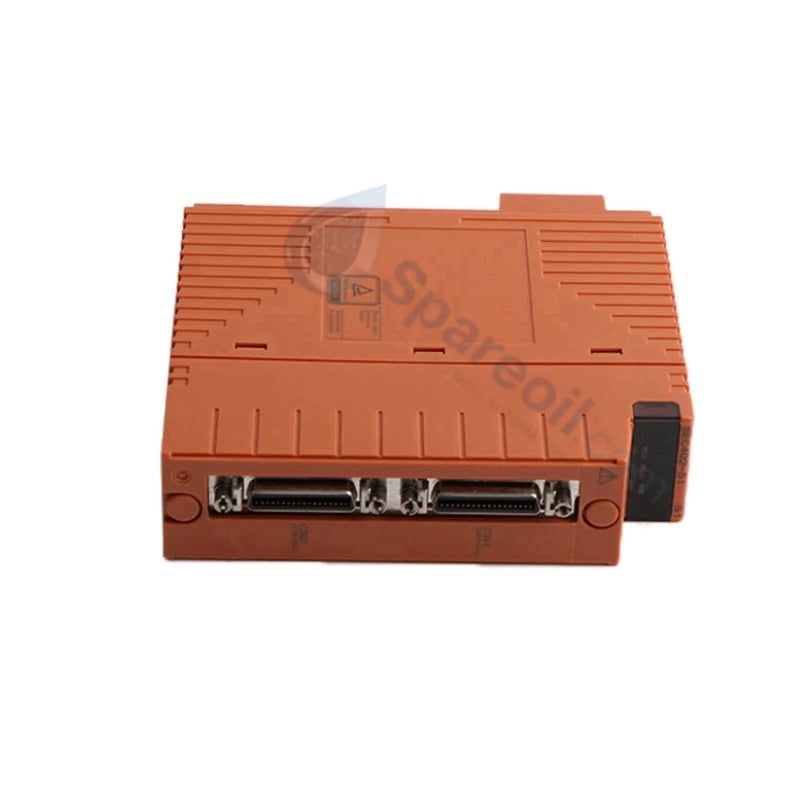

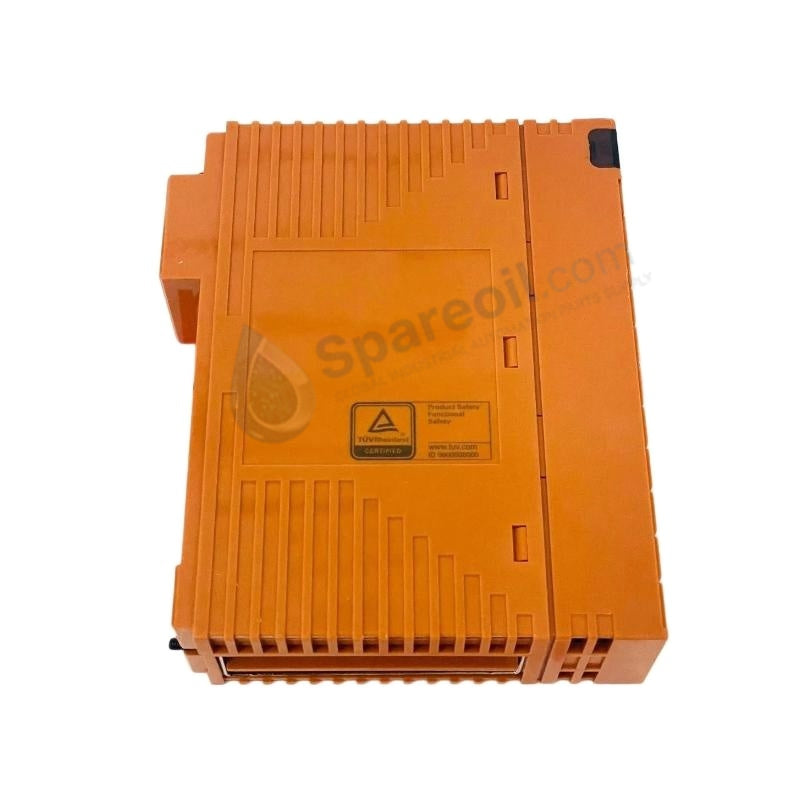

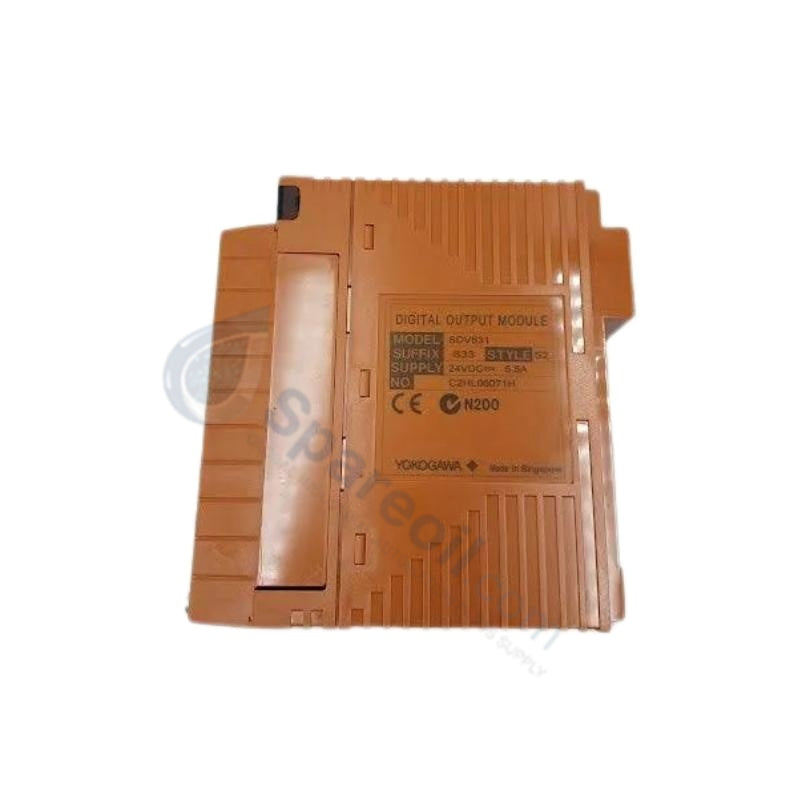

Configured for discrete control execution in CENTUM VP and ProSafe-RS systems, the Yokogawa SDV541-S33/PRP (SDV541 Digital Output Module) provides direct physical/electrical execution. The hardware converts backplane digital logic into physical 24 VDC switching actions across 32 isolated sink-type transistor channels. Featuring ISA Standard G3 conformal coating and optional prevention pins, the assembly drives field actuators, relays, and solenoids while maintaining real-time loop supervision.

Hardware Specifications

Parameter	Specification
Model	SDV541-S33/PRP
Brand	Yokogawa
Origin	Singapore / United States
Weight	0.34 - 0.45 kg
Dimensions	51 mm x 127 mm x 127 mm
Operating Temp	-20 to 70 deg C (G3 standard compliant)
Power Consumption	400 mA (5 VDC), 200 mA (24 VDC)
Output Channels	32 channels
Output Signal Type	24 VDC transistor (sink type)
Rated Load Voltage	24 VDC +/- 10%
Max Load Current	0.5 A per channel (0.6 A maximum)
Response Time	<= 1 ms
Isolation Voltage	1500 VAC between output terminals and system logic for 1 minute

Channel-to-Channel Isolation and DCS Command Execution

Yokogawa control platforms demand high electrical separation to isolate internal processors from field power surges. The SDV541-S33 provides 1500 VAC galvanic isolation between output switching circuits and system backplane logic. Incorporating channel isolation with optional Signal Conditioner Block (SCB) modules allows active line monitoring for open and short circuit diagnostics, preventing localized field wiring faults from affecting adjacent output loops.

Frequently Asked Questions

Q: What current capacity limit applies to each transistor output channel on the SDV541-S33? A: Each channel supports a rated load current of up to 0.5 A at 24 VDC, with an absolute maximum current limit of 0.6 A.

Q: Can pressure clamp terminal blocks attach directly to the front interface of the SDV541-S33? A: No, selecting the -S33 suffix specifies a dedicated signal cable interface adapter, which requires compatible signal cables rather than direct pressure clamp blocks.

Q: Does the module support online hot-swapping during active safety execution? A: Yes, when deployed in a dual-redundant configuration, operators can replace the module without interrupting active control execution or field safety loops.

Field Installation Guidelines

Isolate external loop field power or verify active status of the redundant partner module prior to rack insertion or removal.
Confirm physical keying alignment on the module base to prevent pin bending or connector damage on the system backplane.
Attach compatible dedicated signal cables equipped with retaining screws to secure physical strain relief.
Route output signal wiring through dedicated low-voltage ducts separated from high-power AC lines to reduce electromagnetic interference.
Ensure external 24 VDC load power supplies remain ungrounded (floating) to maximize common-mode noise suppression.
