EASYGEN-3500XT-P1 Woodward 8440-2082 Datasheet & Technical Manual

Availability: 10 left in stock

Woodward EASYGEN-3500XT-P1 8440-2082 Generator Set Controller Configured for complete engine-generator management and breaker control in complex paralleling topologies, the Woodward...

SKU: 8440-2082

Manufacturer: Woodward
Product No.: 8440-2082
Product Type: Tags Generator Set Controllers
Product Origin: USA
Payment:T/T, Western Union
Weight: 1800g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

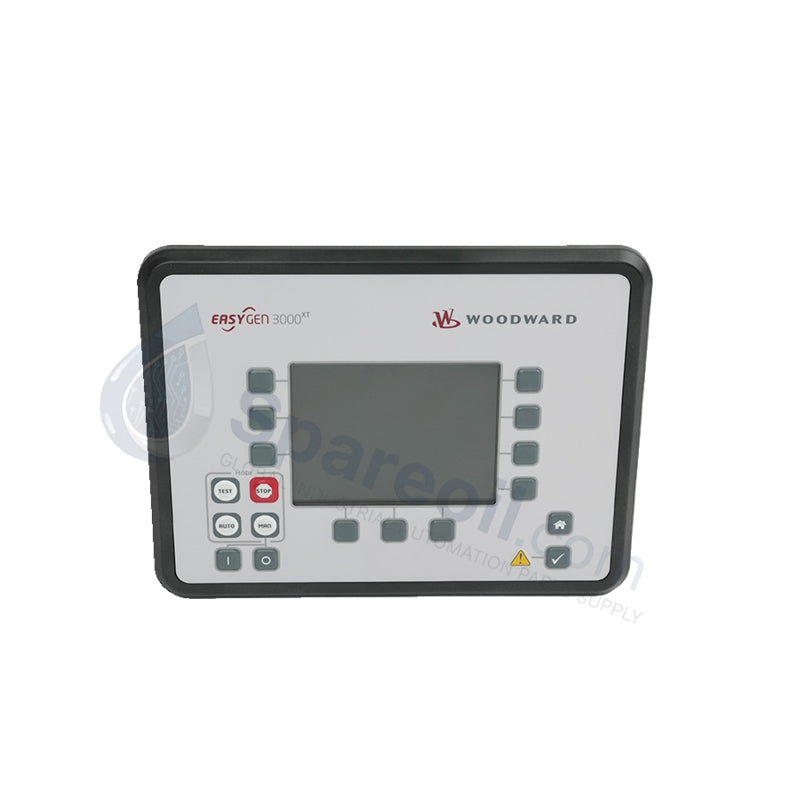

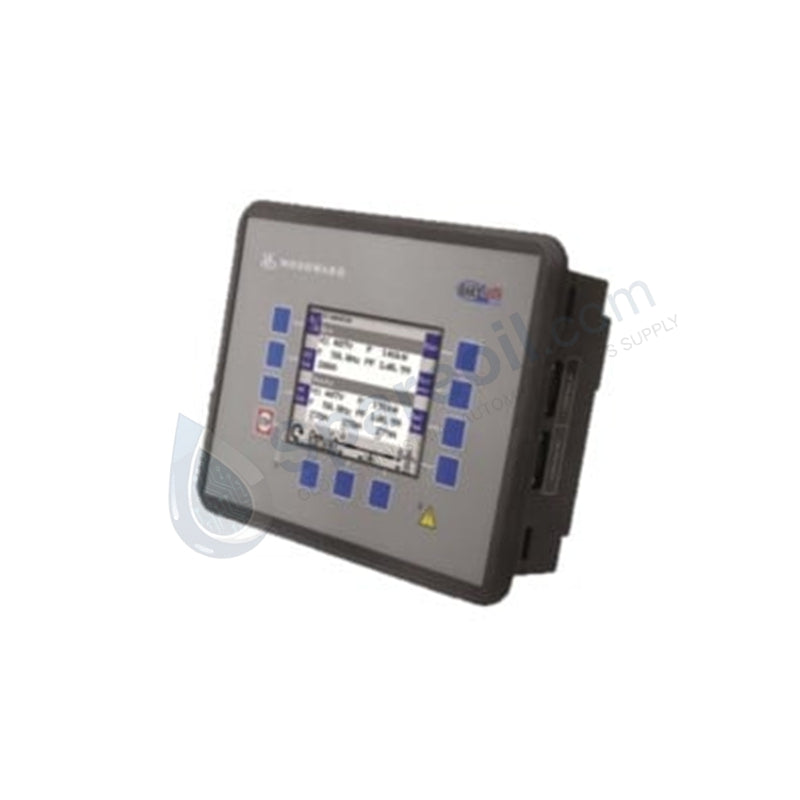

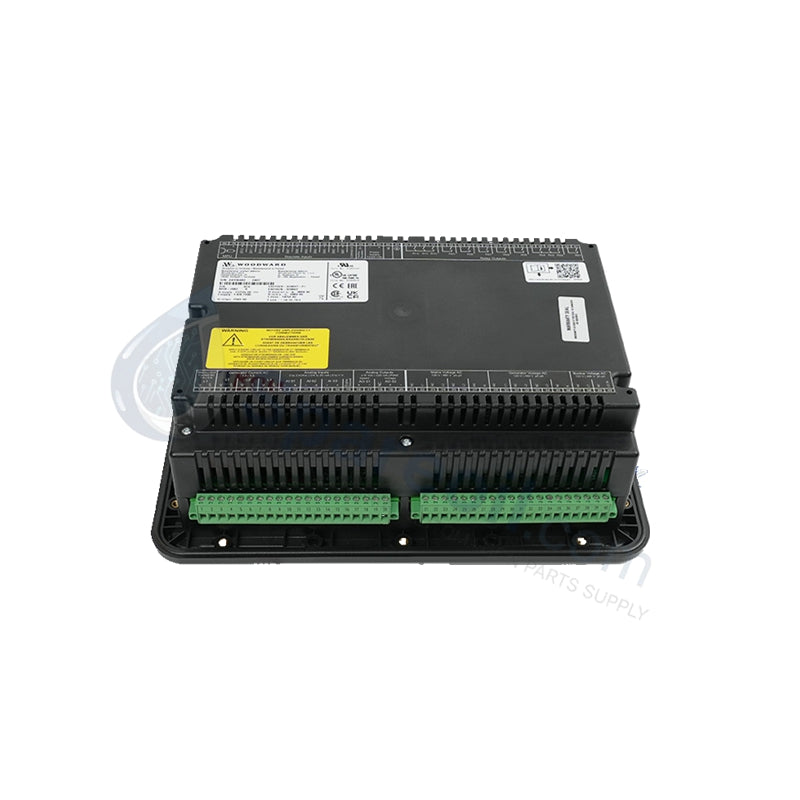

Woodward EASYGEN-3500XT-P1 8440-2082 Generator Set Controller

Configured for complete engine-generator management and breaker control in complex paralleling topologies, the Woodward EASYGEN-3500XT-P1 (8440-2082 Operator Interface) provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	EASYGEN-3500XT-P1 8440-2082 (Spare Model: 8440-2082)
Brand	Woodward
Origin	United States (also manufactured in Poland)
Weight	1.8 kg (4.00 lbs) / Net Weight: 1.9 kg (Shipping basis)
Dimensions	27.9 cm x 21.6 cm x 10.2 cm (11.0 in x 8.5 in x 4.0 in)
Operating Temp	-20 deg C to 70 deg C (Low Temp limit: -40 deg C to 70 deg C)
Power Consumption	Intrinsic consumption max. 14 W
Power Supply Input	12/24 VDC nominal (8 to 40 VDC continuous input range)
Measuring Frequency	50/60 Hz nominal (40 to 85 Hz tracking range)
Linear Measuring Range	Igen = 3.0 x Irated
Input Resistance	Approx. 20 kOhms per path (High Impedance Input)
Max Power Per Path	< 0.15 W
Ambient Humidity	95%, non-condensing
Communication Ports	3 x CANBus, 1 x RS-485, 3 x Ethernet Modbus TCP
Sensing Channels	690 VAC maximum sensing, 2 PT bus sensing, Mains sensing
Tariff Code	8537101190 (also classified under 8528510000)

Actuator Loop Feedback Response & Power Management

The instrument integrates real-time synchronization tracking for generator circuit breakers (GCB) and mains circuit breakers (MCB), utilizing a specialized actuator loop feedback response architecture. Onboard phase-matching routines drive automatic voltage regulator (AVR) outputs and electronic governor speed controls over integrated CANBus paths to match active engine conditions with multi-bus configurations.

Loadsharing calculations run via redundant Ethernet or CANopen links across up to 32 parallel generator sets. Voltage and current monitoring inputs accept up to 690 VAC directly, matching raw three-phase wave profiles against user-defined breaker control vectors without external signal transformation hardware.

Frequently Asked Questions

Q: Does the 8440-2082 operator interface support live hot-swapping under full battery load? A: No. The unit relies on continuous DC power wiring via terminal blocks. Pulling or inserting live terminal connections while the engine-generator is running risks indeterminate relay state changes, interruption of the active CANBus loadsharing networks, and potential actuator runaway conditions.

Q: How is the hardware interface protected against common-mode voltage spikes on sensing circuits? A: The module voltage inputs are designed as high-impedance channels exhibiting approximately 20 kOhms of internal resistance per electrical path. This architecture caps power consumption below 0.15 W per path, isolating internal logic from external cross-coupling transients up to rated 690 VAC limits.

Q: Can the three integrated Ethernet ports be used to partition independent tracking networks? A: Yes. The 3 x Ethernet ports are independently configurable, allowing clear physical separation between local Modbus TCP supervisory control networks, redundant peer-to-peer loadsharing buses, and isolated remote engineering tool access.

Field Installation Guidelines

Enclosure Cutout and Sealed Mounting: Install the controller into a rigid control panel door cutout. Ensure all gasket seals are evenly compressed by the retention brackets to achieve rated IP ingress protection levels on the front-facing operator interface membrane.
DC Power Distribution Filters: Connect the 12/24 VDC power lines using minimum 1.5 mm2 (16 AWG) copper conductors. Run the power wires directly from the starting battery bus bar through dedicated fast-acting fuses, minimizing length to handle heavy voltage drops during crank cycles.
Shielding of Analog and Comm Cables: Ground the shielding of all CANBus, RS-485, and speed governor signaling runs at a single low-impedance grounding point inside the control panel. Do not allow cable shields to make contact with high-voltage AC phase terminals.
