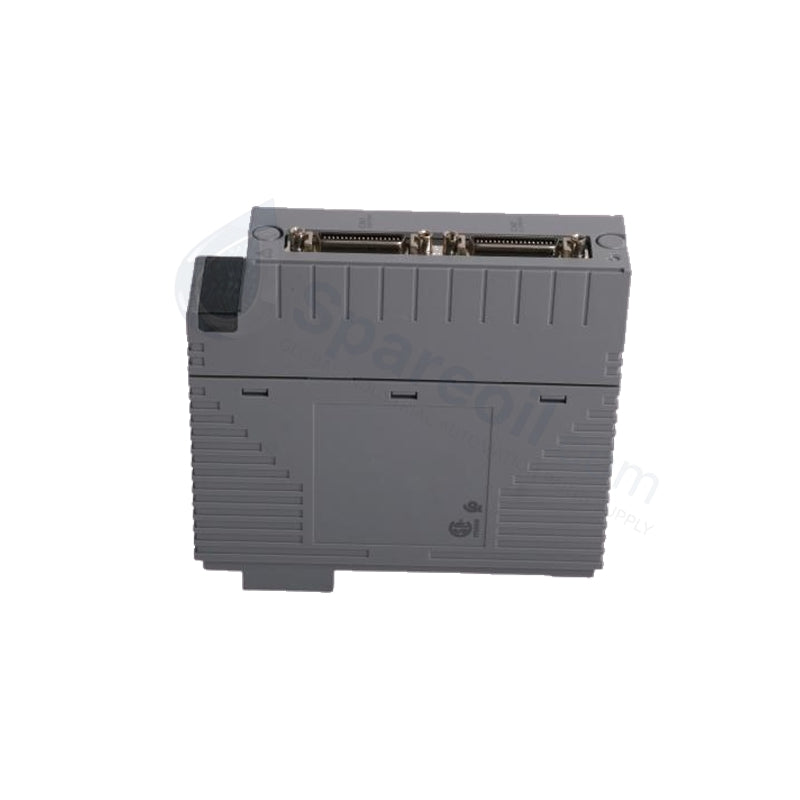

EC402-51 Yokogawa N-IO FIO Series Datasheet & Technical Manual

Availability: 99 left in stock

Yokogawa EC402-51 ESB Bus Coupler Module The Yokogawa EC402-51, also cataloged as the EC402 ESB Bus Coupler Module, operates as...

SKU: EC402-51

Manufacturer: Yokogawa
Product No.: EC402-51
Product Type: Bus Coupler Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 240g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

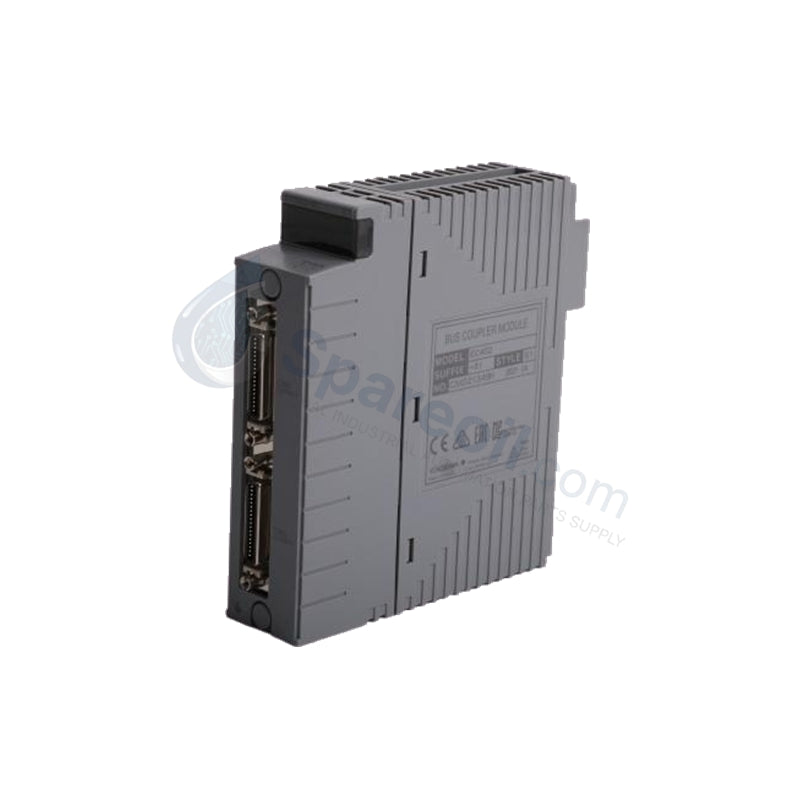

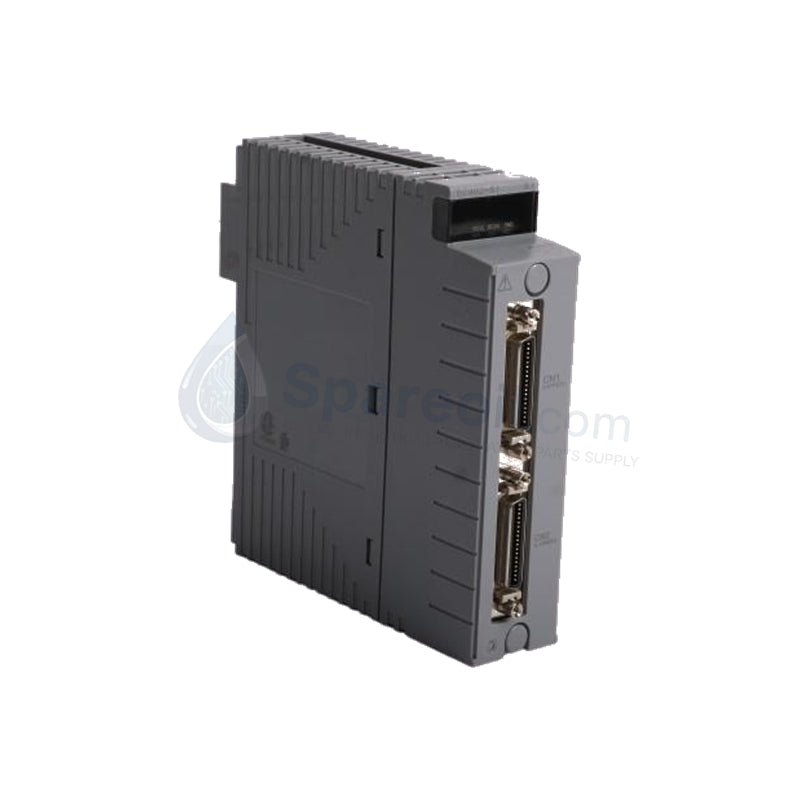

Yokogawa EC402-51 ESB Bus Coupler Module

The Yokogawa EC402-51, also cataloged as the EC402 ESB Bus Coupler Module, operates as a dedicated hardware component for field-level discrete and analog network data compilation within N-IO / FIO distributed control systems platforms.

Suffix Breakdown & Model Matrix

Suffix Code	Functional Description
EC402	Base model designation for the ESB Bus Coupler Module
-5	Configuration with no integrated explosion protection metrics
1	Standard functional specification block layer

Hardware Specifications

Parameter	Specification
Model	EC402-51
Brand	Yokogawa
Origin	Japan
Weight	0.24 kg
Dimensions	3.2 cm x 12.8 cm x 13.0 cm (130 mm x 129.5 mm x 32.8 mm)
Operating Temp	0 to 60 deg C (Storage range: -20 to 70 deg C)
Power Consumption	Current consumption rated at 0.5 A via 24 V DC internal distribution
Bus Architecture	Enhanced Serial Bus (ESB) master interface link
Transmission Speed	128 Mbps deterministic I/O module data transmission velocity
Node Capacity Limits	Max 9 units on upper trunk, 9 units on lower trunk; total system threshold limit of 13 units
Topology Distance	Max 10 m (upper run), 10 m (lower run), 20 m total physical segment length
Enclosure Composition	Industrial-grade polymer and treated metal shielding housing
Operating Humidity	10% to 95% RH, non-condensing

Process Control & DCS Instrumentation Properties

The Yokogawa EC402-51 establishes high-speed 128 Mbps communication pathways across the Enhanced Serial Bus (ESB) layer, passing raw process variables straight to the central processing matrix. The hardware incorporates strict channel-to-channel isolation parameters to shield the core system logic from high-frequency noise spikes picked up along the distributed I/O buses. Dual-port physical connections allow for redundant cabling topologies, keeping the 4-20 mA HART loop protocol passes and safety sensor interlock signals transmitting continuously without data packet dropouts if an active cable branch is damaged.

Frequently Asked Questions

Q: What are the exact physical wiring distance limits enforced by the 128 Mbps transmission clock speed?

A: The high-speed 128 Mbps bus speed requires precise signal timing profiles. The physical cable lengths are strictly limited to a maximum of 10 m for the upper trunk run and 10 m for the lower trunk run, creating an absolute maximum end-to-end total hardware path limit of 20 m.

Q: How does the module handle communication routing if the total number of connected node units hits maximum capacity?

A: The master interface supports up to 9 separate node units on either individual upper or lower branch, but the internal microprocessor addresses a maximum total configuration limit of 13 nodes per coupler link. Attempting to loop additional expansion nodes beyond 13 units will stall data scans and cause configuration validation faults within the DCS environment.

Q: Can the EC402-51 operate continuously inside unventilated control panel assemblies that track near high temperature thresholds?

A: The module is rated for stable operations between 0 and 60 deg C using natural convection airflow. In tight, unventilated enclosures where high-density I/O arrays generate heat, you must verify that the ambient temperature directly surrounding the coupler housing does not exceed the 60 deg C ceiling to prevent communication timing drift.

Field Installation Guidelines

DIN Rail Mechanical Seating: Place the coupler base bracket onto the standard DIN rail profile. Press the module back firmly until the metal retention clip snaps tightly into position, and verify there is no lateral play along the track.
Redundant Port Cable Locking: Connect the specialized ESB bus communication cables directly to the upper and lower interface ports. Tighten the cable housing retention screws fully to prevent vibration from loosening the connections and causing intermittent packet loss.
Signal Cable Track Segregation: Route all high-speed ESB communication cables through dedicated wire tracks. Keep them separated from AC mains lines, motor control loops, and high-current power cables by a minimum distance of 30 cm to avoid electromagnetic noise induction.
Shield Continuity Grounding: Terminate the braided shields of all incoming bus cables at the master enclosure instrumentation ground bar. Ensure single-point grounding methods are used to avoid creating ground loop paths that could corrupt the 128 Mbps data stream.
