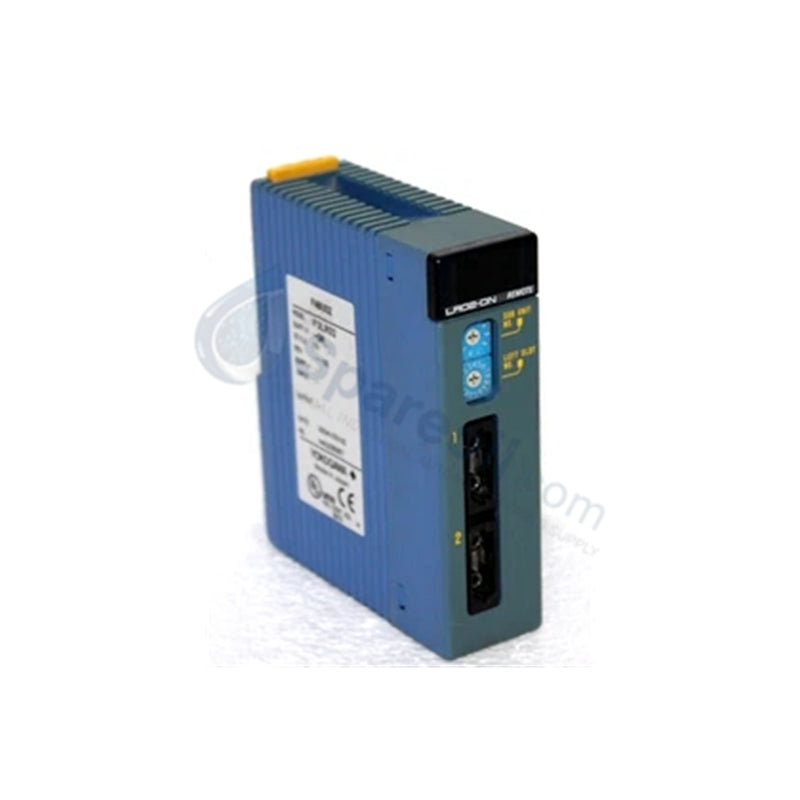

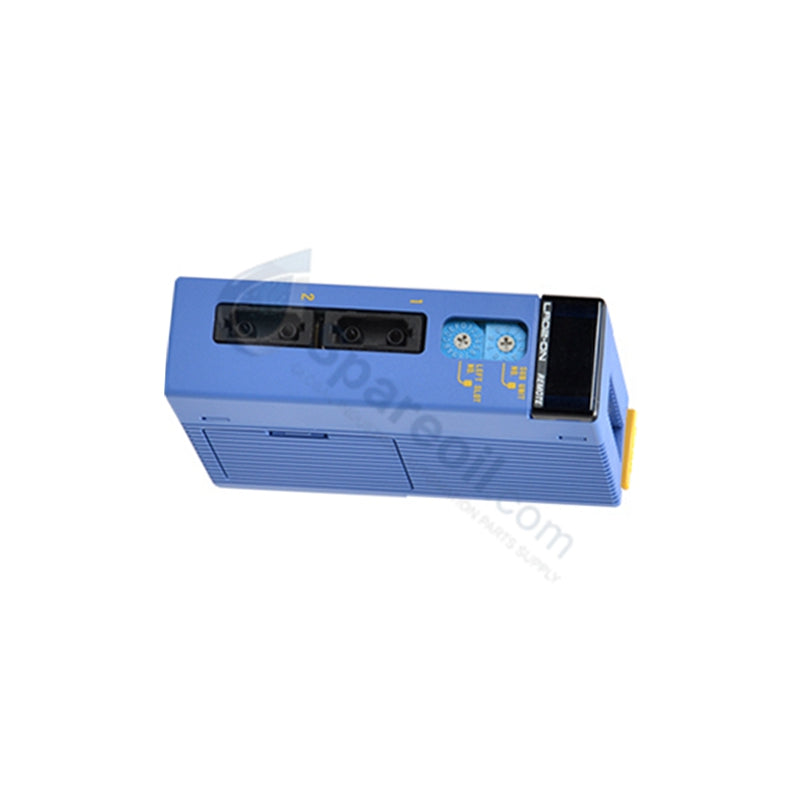

Yokogawa F3NC51-0N FA-M3 Positioning Module

The Yokogawa F3NC51-0N, also cataloged as the F3NC51-0N Positioning Module, operates as a dedicated hardware component for 1-axis motion positioning execution within FA-M3 PLC platforms. It outputs a -10 to +10 VDC analog velocity command while processing incremental encoder feedback in a semi-closed loop circuit to achieve position control and trajectory generation.

Suffix Breakdown & Model Matrix

The catalog code for the Yokogawa FA-M3 positioning module breakdown specifies functional attributes:

  • F3NC51: Identifies the single-axis analog velocity command positioning module base hardware within the FA-M3 series.
  • -0N: Designates standard hardware options without special firmware customizations.

Hardware Specifications

Parameter Specification
Model F3NC51-0N
Brand Yokogawa Electric
Origin Japan
Weight 0.20 kg
Dimensions 100 mm x 25 mm x 90 mm
Operating Temp 0 to +55 deg C
Power Consumption 0.5 A at 5 VDC (backplane powered)
Controlled Axes 1 axis
Control Method Semi-closed loop (-10 to +10 VDC velocity command output)
Encoder Support Incremental (A/B phase, line driver, max 2 Mpps with 4x multiplication) / Absolute
Response Time <= 10 ms
Isolation Voltage 2000 VAC for 1 minute

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The module maintains signal separation between its internal digital processing bus and high-speed field feedback lines. While processing system instructions alongside 4-20 mA HART loop protocol analog channels on adjacent I/O modules, the unit utilizes galvanic isolation up to 2000 VAC to prevent noise coupling. Integrated channel-to-channel isolation suppresses common-mode voltage interference, protecting internal encoder counters and analog velocity command generators from earth potential differences across field drive sub-panels.

Frequently Asked Questions

Q: Does the F3NC51-0N module require an external power supply for internal logic processing?

A: No. The internal logic and processing circuits draw operational power directly from the FA-M3 backplane bus (approximately 0.5 A at 5 VDC).

Q: What type of encoder signals are supported by the F3NC51-0N positioning module?

A: The module supports differential line-driver incremental encoder inputs (A/B phase) up to 2 Mpps (with 4x multiplication) as well as absolute encoder interfaces.

Q: Can the F3NC51-0N module be replaced while the FA-M3 base rack is powered?

A: No. Power to the FA-M3 base module rack must be turned off before inserting or removing the F3NC51-0N positioning module to prevent electrical damage to backplane pin connections.

Field Installation Guidelines

Seat the F3NC51-0N module firmly into the designated slot on the FA-M3 base module rack and tighten the top module fixing screw to ground the module frame. Connect encoder inputs and analog command output signals using shielded twisted-pair cables. Ground the cable shield at a single point to the instrument ground bar to prevent ground loops from corrupting differential encoder pulse streams. Route encoder and command signal wiring in separate conduits away from AC power lines, motor leads, or high-voltage relays to prevent electromagnetic interference.
