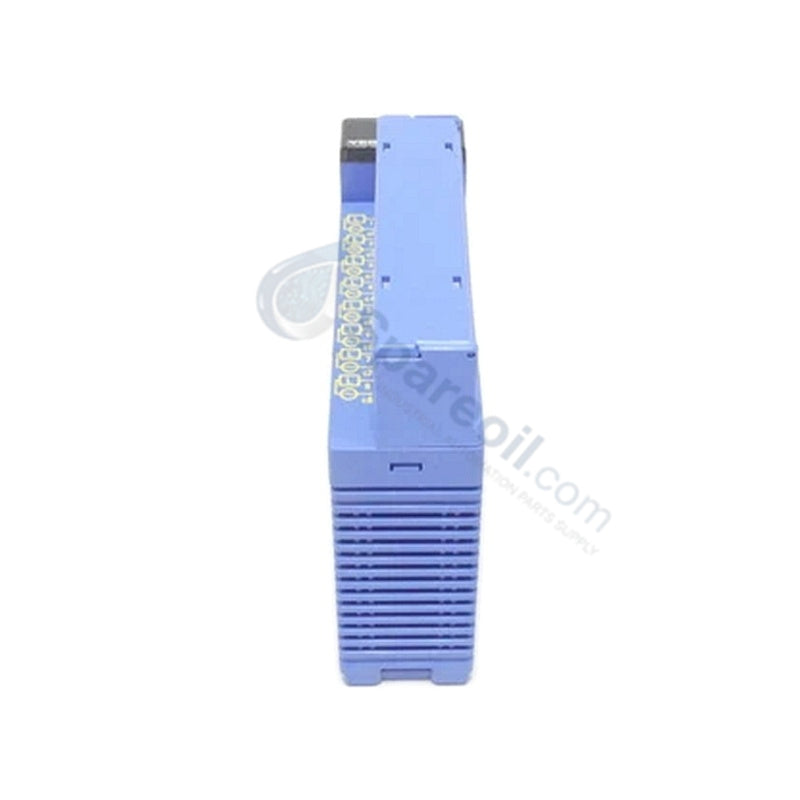

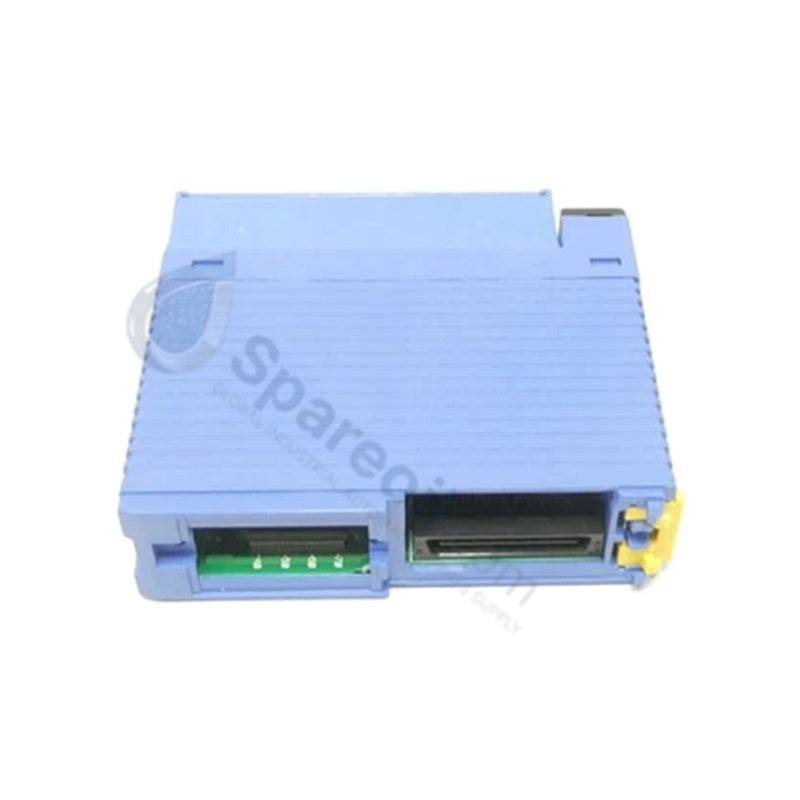

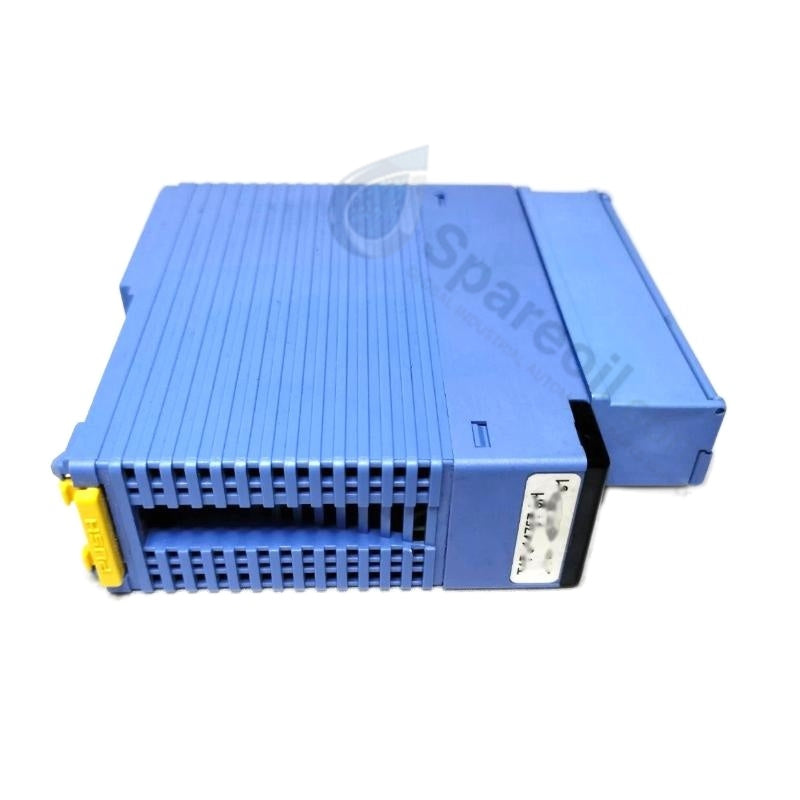

Yokogawa F3YP12-0N FA-M3 Positioning Module

The Yokogawa F3YP12-0N, also cataloged as the F3YP12 Positioning Module, operates as a dedicated hardware component for pulse train generation and motion processing within Yokogawa FA-M3 Range-Free Multi-Controller platforms.

Hardware Specifications

Parameter Specification
Model F3YP12-0N (Base Model: F3YP12)
Brand Yokogawa
Origin Japan
Weight 0.2 kg
Dimensions 28.9 mm x 100 mm x 83.2 mm
Operating Temp 0 to +55 deg C
Power Consumption 300 mA at 5 VDC (Backplane) / 24 VDC (External circuit)
Controlled Axes 2 axes per module
Output Type Transistor output (Open collector / differential)
Max Pulse Rate 200 kpps
Response Time Less than or equal to 1 ms
Acceleration Profiles Trapezoidal and S-curve
I/O Interface 40-pin high-density connector

Channel Isolation and Loop Response Execution

The Yokogawa F3YP12-0N offloads multi-axis motion calculations directly from the main CPU, executing high-speed pulse train sequences for stepper motors and servo drive amplifiers. Operating with a processing latency under 1 ms, the hardware maintains channel-to-channel isolation between internal logic elements and field-side wiring connections. The integrated pulse circuits execute linear interpolation and S-curve speed transitions without introducing backplane bus latency. Internal galvanic separation mitigates noise coupling across external 24 VDC power loops, maintaining stable pulse train propagation to connected drive receivers.

Frequently Asked Questions

Q: How does the F3YP12-0N interface with external drive receivers and sensors?

A: Field connections route through a dedicated 40-pin high-density connector on the front panel, accommodating transistor outputs for pulse train command signals alongside external 24 VDC circuit power wiring.

Q: What profile modes are available for velocity ramping within the internal control logic?

A: The onboard hardware executes both trapezoidal and S-curve acceleration and deceleration profiles independently across both controlled axes to minimize mechanical system shock.

Field Installation Guidelines

Ensure total backplane power remains disconnected before seating the module into the FA-M3 base unit. Align the rear edge connector along the guide rails and press firmly until the locking mechanism fully engages. Route high-density 40-pin signal cables separately from high-voltage AC lines to minimize electromagnetic cross-talk. Ground all cable shielding directly at the chassis earthing point, and verify that the external 24 VDC power supply meets system voltage tolerances prior to energizing the output stage.
