FBM204 Foxboro I/A Series Datasheet & Technical Manual

Availability: 10 left in stock

Foxboro FBM204 I/A Series Module The Foxboro FBM204, also cataloged as the FBM204 Analog Input/Output Module, serves as the primary...

SKU: FBM204 RH914SY

Manufacturer: Foxboro
Product No.: FBM204 RH914SY
Product Type: Analog Input/Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

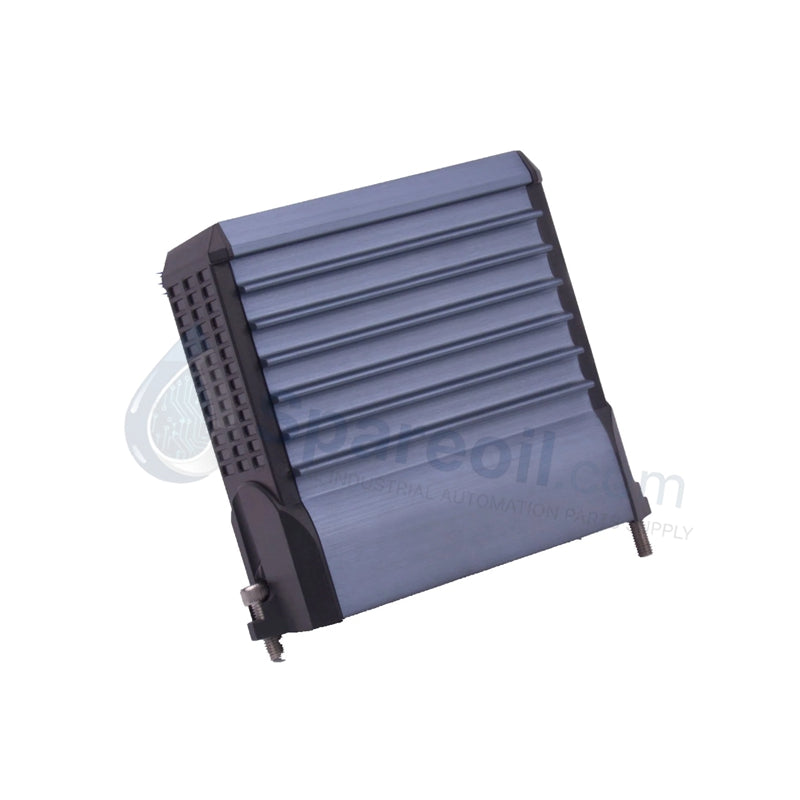

Foxboro FBM204 I/A Series Module

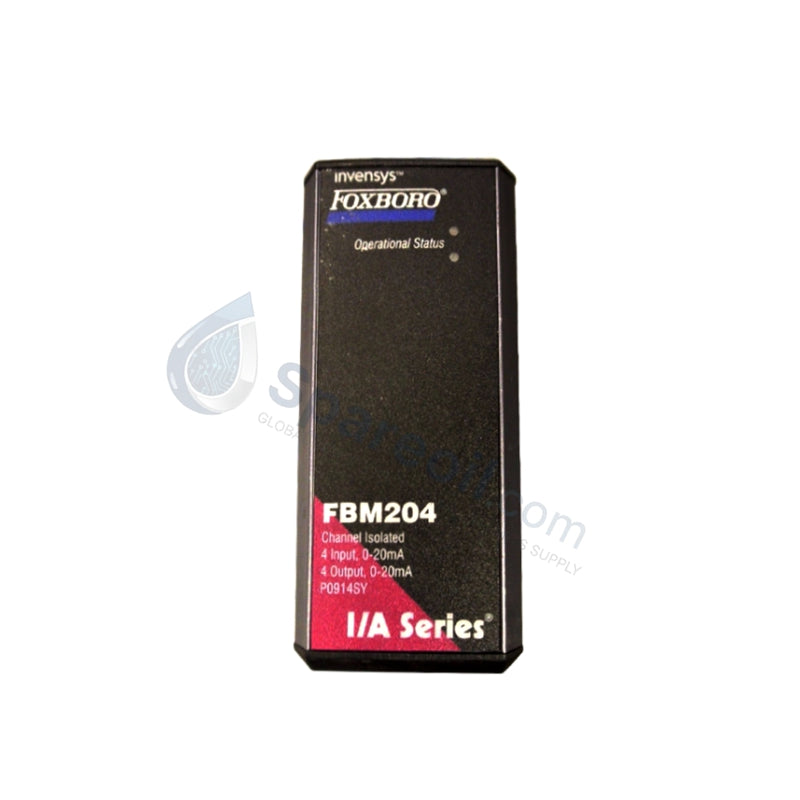

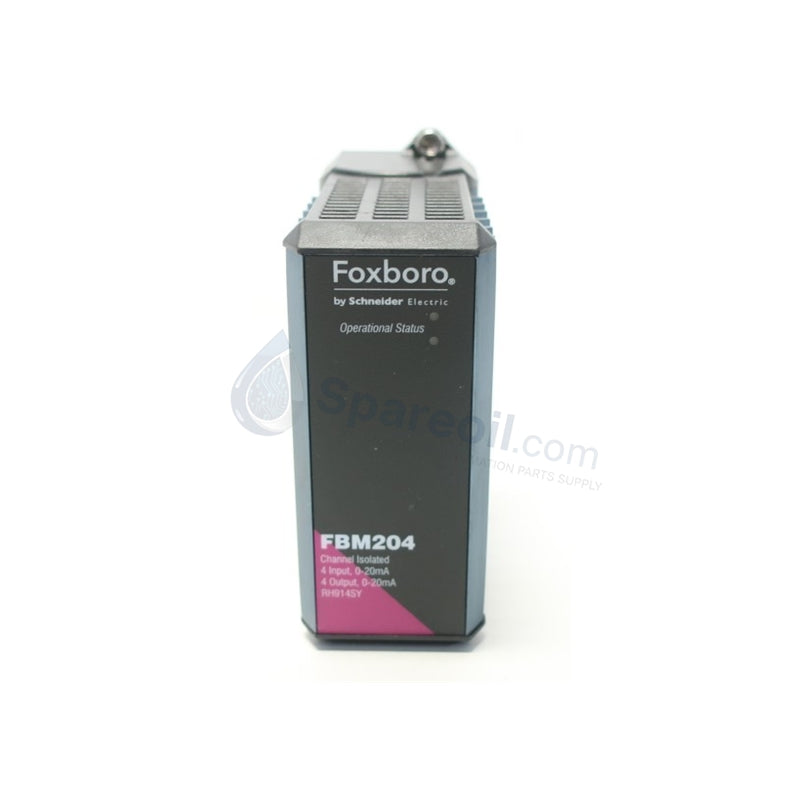

The Foxboro FBM204, also cataloged as the FBM204 Analog Input/Output Module, serves as the primary FBM204 Analog Input/Output Module utilized to execute bidirectional analog signal conversion across I/A Series Distributed Control System platforms. The hardware establishes direct physical connectivity to external field transmitters and final control elements, processing four dedicated input channels and four dedicated output channels.

Hardware Specifications

Parameter	Specification
Model	FBM204
Brand	Foxboro (Schneider Electric)
Origin	USA
Weight	0.8 kg
Dimensions	Standard 200 Series module footprint
Operating Temp	-40 to +85 deg C
Power Consumption	Standard 200 Series baseplate load limits
Input Channels	4 channels, 0-20 mA DC
Output Channels	4 channels, 0-20 mA DC
Conversion Type	Sigma-Delta
Input Update Rate	25 ms
Accuracy	+/-0.03% of full scale
Isolation	Channel-to-channel galvanic isolation
Enclosure	Extruded aluminum, Class G3 harsh environment rating
Mounting	200 Series baseplate (DIN rail or rack mount options)
Communication	Redundant 2 Mbps fieldbus interface

Process Control & DCS Instrumentation Properties

The hardware incorporates independent channel-to-channel galvanic isolation to prevent ground loop currents from degrading signal integrity across the four input and four output circuits. The analog output stages are electrically compatible with standard 4-20 mA HART loop protocol signaling, allowing the superposition of digital digital communications over the analog instrumentation wiring. Internal microprocessors execute a distributed PIDA (DPIDA) algorithm, enabling deterministic, fast control loop processing directly at the subsystem level independently of the primary control processors.

Frequently Asked Questions

Q: What is the behavior of the output channels upon a loss of communication with the fieldbus?

A: Each output channel features configurable fail-safe execution. The hardware can be set via software parameters to either hold the last valid analog value or fall back to a predetermined, user-defined safety current.

Q: Can this module be replaced while the remaining system is online?

A: Yes, the physical design supports hot-swappable replacement under power. The module detaches from the 200 Series baseplate without requiring the disconnection of field wiring or interruption of adjacent modules on the redundant 2 Mbps fieldbus.

Field Installation Guidelines

Baseplate Engagement: Align the module guide pins with the 200 Series baseplate connectors. Press firmly until the mechanical latching mechanism engages securely to guarantee stable electrical contact with the redundant 2 Mbps fieldbus backplane.
Shielding and Grounding: Terminate instrument cable shields at the dedicated chassis ground bar on the baseplate assembly. Do not ground the shield at both ends to eliminate the risk of induced ground loops.
Environmental Considerations: Ensure the installation enclosure maintains adequate convection airflow to prevent thermal buildup, keeping the ambient operational envelope within the rated -40 to +85 deg C parameters.
