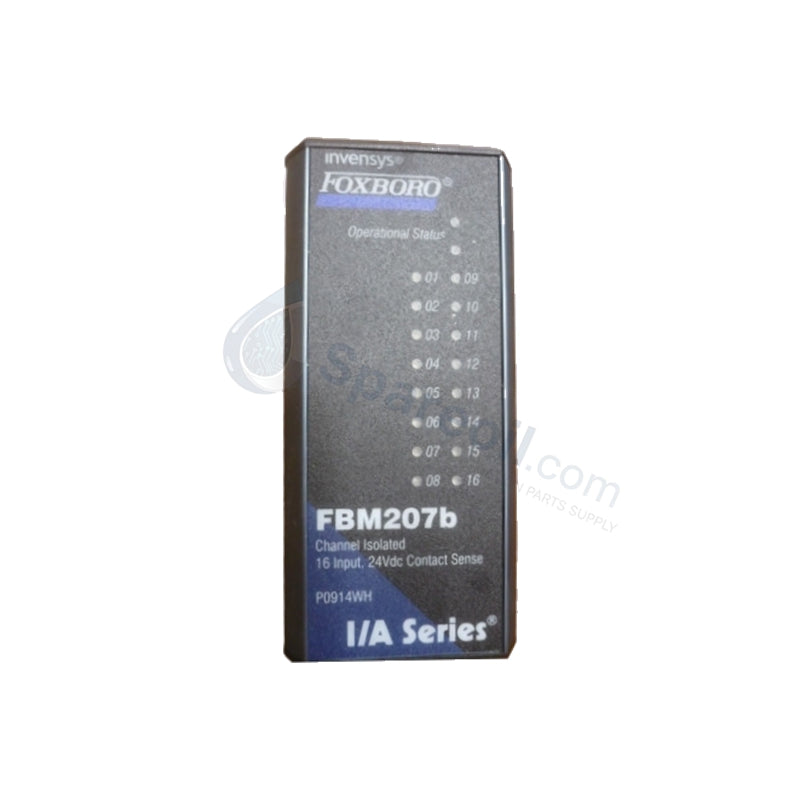

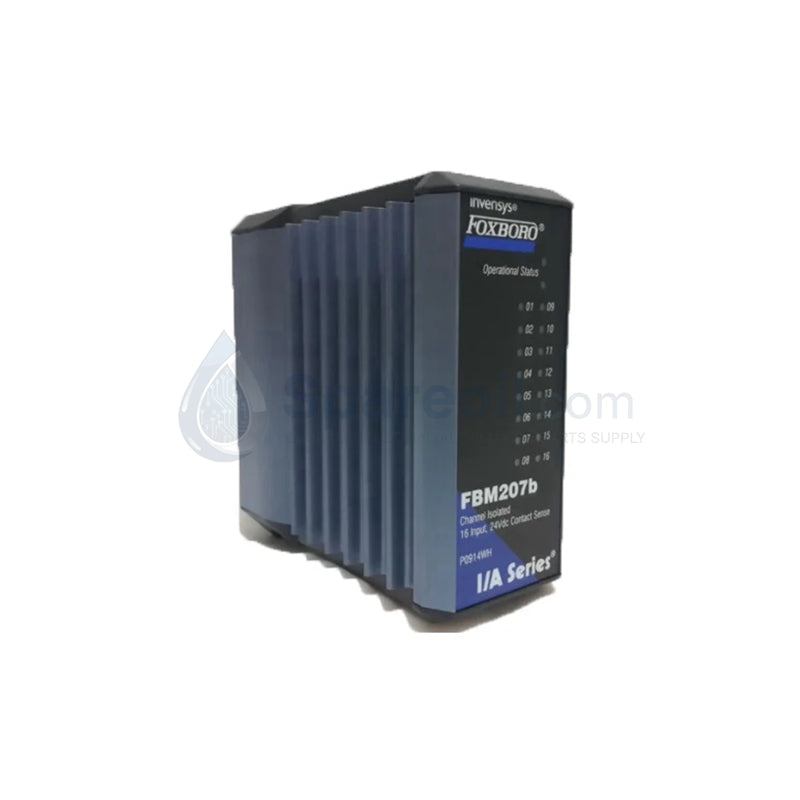

Foxboro FBM207B P0914WH Fieldbus Module

The Foxboro FBM207B, also cataloged as the FBM207B Analog Input Fieldbus Module, operates as a dedicated hardware component for field transmitter interfacing within I/A Series DCS networks. Configured for high-density physical signal acquisition, the Foxboro FBM207B P0914WH processes 16 isolated analog channels concurrently, driving real-time digitization of loop currents directly via the system backplane interface. The hardware runs localized analog-to-digital conversion parameters to offload raw processing tasks from the primary system controllers.

Hardware Specifications

Parameter	Specification
Model	FBM207B (P0914WH)
Brand	Foxboro (Schneider Electric)
Origin	United States
Weight	0.4 kg
Dimensions	25 cm x 6.2 cm x 15 cm
Operating Temp	-20 to +60 deg C
Power Consumption	24 V DC via system backplane
Channel Capacity	16 analog input channels
Input Signal Types	4-20 mA current loops
Resolution	12-16 bit A/D conversion
Isolation	Channel-to-channel and channel-to-ground
Update Rate	Deterministic scan cycle, configurable
Diagnostics	Built-in monitoring of open/short circuits, signal integrity
Enclosure Rating	IP20 (Cabinet installation required)
Certifications	CE, UL, cUL, ATEX compliant

Process Control & DCS Instrument Characteristics

The FBM207B structural design features hardwired conditioning loops optimized to sustain the 4-20 mA HART loop protocol across all 16 integration points. The internal board routing implements strict channel-to-channel isolation barriers, preventing stray ground loop current propagation from shifting concurrent loop measurement baselines. When processing mixed analog networks, this electrical isolation maintains terminal stability against high-frequency electromagnetic noise, preserving physical data properties for cold junction compensation (CJC) cross-referencing on adjacent high-density sensor networks.

Frequently Asked Questions

Q: What are the physical constraints when executing a hot-swap replacement of the FBM207B?

A: The module supports live backplane removal and insertion under power. The mechanical baseplate keys align matching pins before power contacts touch, preventing transient bus reflection or noise on adjoining active cards during hot-swap execution.

Q: How does the internal hardware manage an unexpected field-side short circuit?

A: Each channel contains independent over-current sensing. If a short circuit occurs, the affected channel limits current loops internally to protect internal A/D converter components while updating the system diagnostic word.

Q: Does the P0914WH module require an external power supply for 4-20 mA loop excitation?

A: No. Loop power is distributed directly from the system backplane through the isolated channel circuits of the FBM207B, eliminating the need for independent external distribution rails inside the cabinet.

Field Installation Guidelines

Enclosure Environmental Controls: Secure the module onto the matching I/A Series baseplate structure inside a sealed IP54 or NEMA Type 12 cabinet. Maintain unhindered vertical ventilation paths to prevent localized thermal accumulation below the chassis boundary.
Shield Grounding Matrix: Terminate all field transmitter cable shield drains at the central instrument ground bus-bar. Never ground a single shield at both the field device and the enclosure terminals to eliminate parasitic ground loop currents.
Cable Pathway Separation: Separate all 4-20 mA instrumentation lines from AC power distribution conduits. Maintain a minimum physical clearance of 300 mm inside the wiring trays to suppress inductive noise coupling.
Conductor Mechanical Termination: Ensure field conductors match the 12-22 AWG specification of the paired termination block. Strip wire ends to exactly 7 mm and secure the screw terminals to factory-defined torque limits to prevent contact resistance variation.
