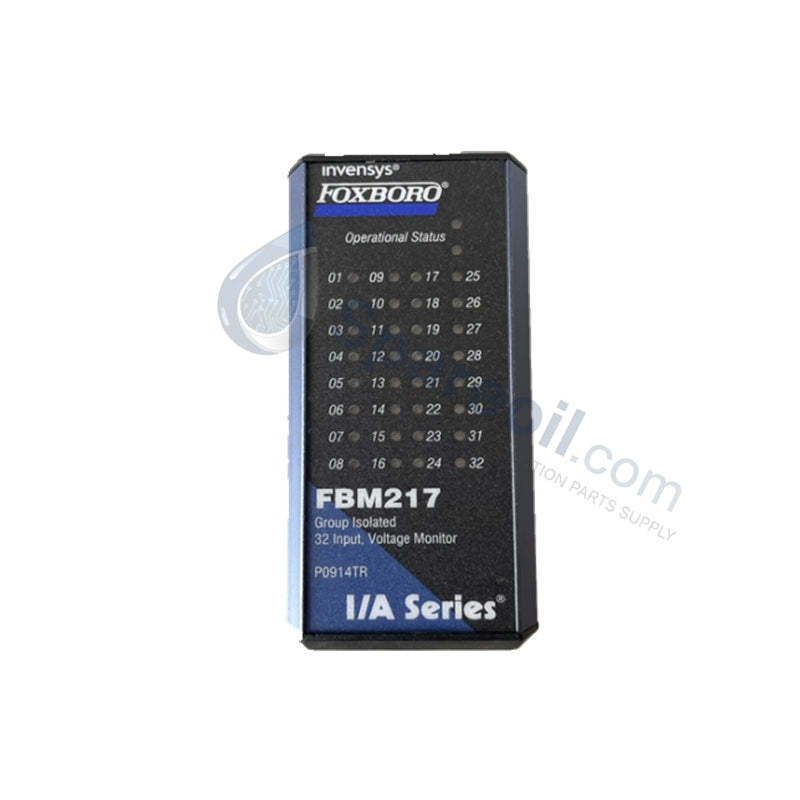

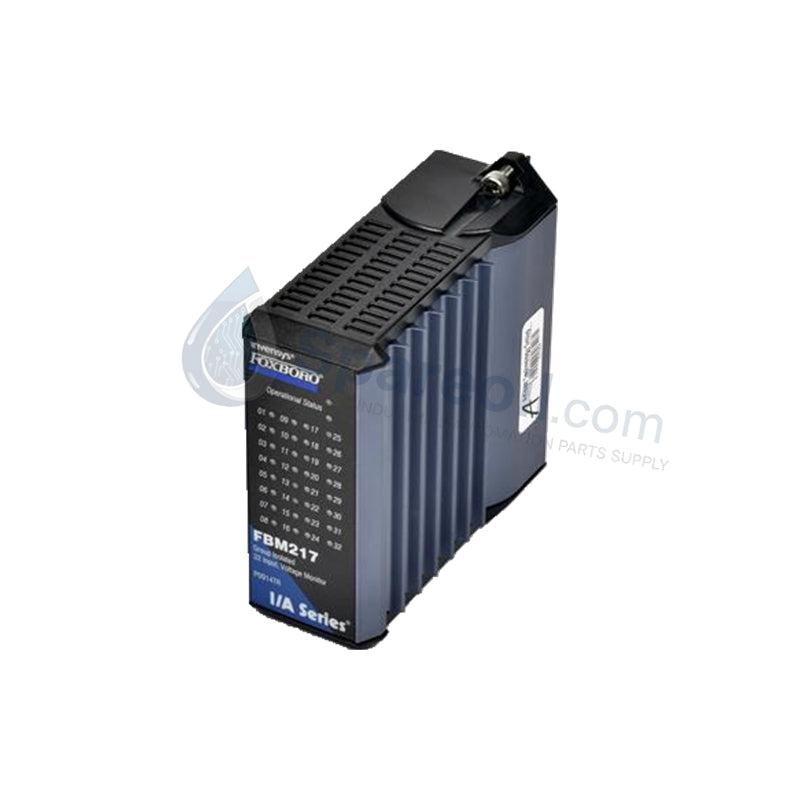

FBM217 Foxboro Schneider Electric Discrete Input Interface

FBM217 Foxboro Schneider Electric Discrete Input Interface

Availability: 10 left in stock

Product Overview The Foxboro FBM217 (by Schneider Electric) serves as a high-density digital interface for the I/A Series Distributed Control System (DCS)....

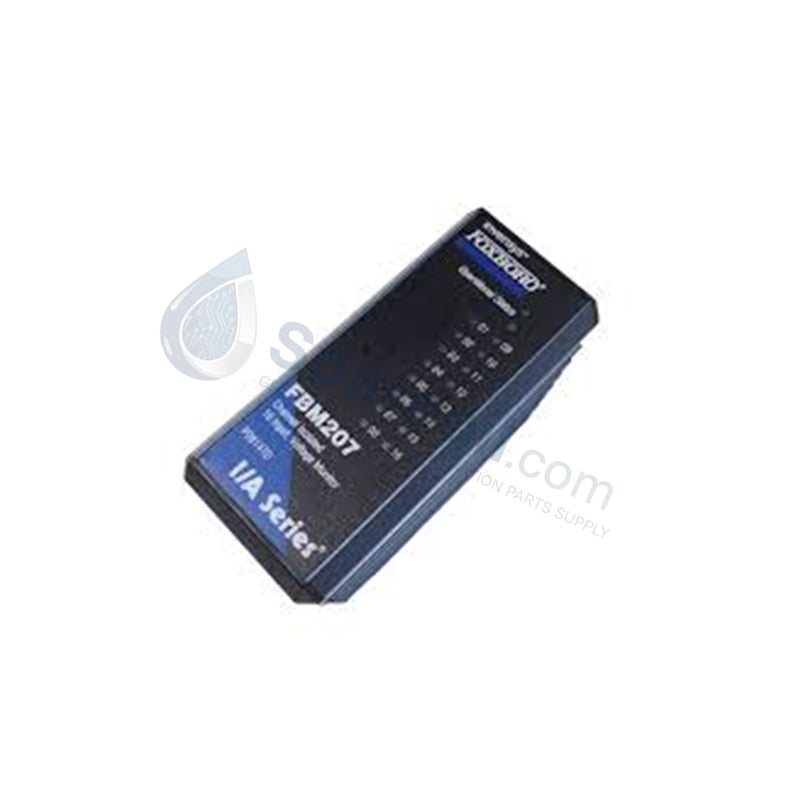

SKU: FBM207/FBM217

Manufacturer: Foxboro
Product No.: FBM207/FBM217
Product Type: Fieldbus Interface Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Foxboro FBM217 (by Schneider Electric) serves as a high-density digital interface for the I/A Series Distributed Control System (DCS). This module provides 32 group-isolated discrete input channels, specifically designed to monitor the status of dry contacts, limit switches, and other binary field devices. By integrating into the redundant 2 Mbps module Fieldbus, the FBM217 ensures high-speed data transmission and system resilience. We supply this module as 100% Brand New original equipment, offering a reliable solution for complex process monitoring in the energy and chemical sectors.

Technical Specifications

Feature	Specification
Model	FBM217
Input Channels	32 Group-Isolated Channels
Input Current	2.2 mA (typical) at 30 V DC
Communication	Redundant 2 Mbps Module Fieldbus (via FCM or FCP)
Input Voltage Range	24 V DC +5%, -10%
Power Consumption	3 W (Maximum) at 24 V DC
Isolation	Galvanic; withstands 600 V AC for 1 minute
Operating Temperature	-20 °C to +60 °C (Module)
Relative Humidity	5% to 95% RH, non-condensing
Dimensions (HxWxD)	10.2 cm x 4.5 cm x 10.4 cm
Certifications	UL, CSA, CE, ATEX, Class 1 Div 2

Engineering Advantages

High-Density Channel Layout: The FBM217 incorporates 32 input channels within a compact 4.5 cm wide footprint. This density maximizes cabinet space efficiency, allowing engineers to reduce the number of required I/O racks and overall footprint in crowded control rooms.
Galvanic Protection & Noise Immunity: Each group of inputs features robust galvanic isolation capable of withstanding 600 V AC. This architecture effectively shields the sensitive DCS backplane from ground loops, electrical surges, and field-side transients common in heavy industrial environments.
Hot-Swappable Maintenance: The module supports live installation and removal without interrupting the communication of adjacent modules on the Fieldbus. This design allows maintenance teams to replace units during active process cycles, significantly reducing Mean Time to Repair (MTTR).
Industrial Ruggedness: Engineered for harsh environments, the FBM217 carries G3 harsh environment ratings and Class 1 Div 2 certifications. It maintains steady operation in corrosive atmospheres and temperature extremes ranging from -20 °C to +60 °C.
Redundant Communication Path: The module utilizes a redundant 2 Mbps Fieldbus interface. This dual-path communication strategy ensures that the control station continues to receive critical status data even if a single bus failure occurs, maintaining safety interlocks and process visibility.

FAQs

Can the FBM217 monitor both 24V DC and 120V AC inputs?

The FBM217 is specifically rated for 24V DC voltage ranges. For AC monitoring, you must utilize the appropriate Foxboro Termination Assembly (TA) with the correct interposing circuitry or select an AC-specific FBM model.
Does this module require an external power supply for the field contacts?

Yes. While the FBM217 draws 3W for its internal logic, the field contacts typically require an external 24V DC source to drive the loop current. Consult the specific Termination Assembly manual for wiring diagrams.
Is the FBM217 compatible with older FCP270 or FCP280 controllers?

Absolutely. The FBM217 communicates through Fieldbus Communications Modules (FCM) or directly with Field Control Processors (FCP) via the 2 Mbps Fieldbus, ensuring full compatibility with modern I/A Series and EcoStruxure Foxboro DCS architectures.
What is the typical shipping weight for a single unit?

A single FBM217 module, when packed for international shipping with protective cushioning, weighs approximately 2 Kg (4.4 lbs).
