FC-DCOM-234/485 Honeywell Safety Manager Datasheet & Technical Manual

Availability: 99 left in stock

Honeywell FC-DCOM-234/485 Safety Manager Series The Honeywell FC-DCOM-234/485 serves as the primary FC-DCOM-234/485 Serial Communication Interface Module utilized to execute...

SKU: FC-DCOM-234/485

Manufacturer: Honeywell
Product No.: FC-DCOM-234/485
Product Type: Communication Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 660g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Honeywell FC-DCOM-234/485 Safety Manager Series

The Honeywell FC-DCOM-234/485 serves as the primary FC-DCOM-234/485 Serial Communication Interface Module utilized to execute physical layer signal conversion across Honeywell Safety Manager platforms.

Hardware Specifications

Parameter	Specification
Model	FC-DCOM-234/485
Brand	Honeywell
Origin	United States
Weight	0.66 kg
Dimensions	110 mm x 70 mm x 61 mm
Operating Temp	-10 to +60 deg C
Power Consumption	Typ. 1.2 W
Input Voltage	5 VDC (Directly sourced from the Controller backplane)
Physical Layer Interfaces	RS-232, RS-485, RS-422
Data Transmission Rates	Up to 2 MBaud (RS-485/422)
Coding Schemes	Manchester, FM0, FM1, and Transparent Data Mode
Environmental Hardening	Conformal coated PCB (Class G3 compliant)

High Reliability Safety Control (SIS)

The module is integrated into the Safety Manager architecture, which incorporates fail-safe state execution to maintain system status under faulty loop conditions. Galvanic isolation barriers are structurally embedded within the serial channels, providing full electrical separation between the internal safety processor logic and external field wiring connections. This configuration prevents ground loop currents and transient electromagnetic interference (EMI) from degrading the system logic, preserving the SIL3 certification parameters of the overall emergency shutdown safety architecture.

Frequently Asked Questions

Q: How is the module powered within the Safety Manager rack architecture?

A: The module does not require external line voltage connection. It derives its operating power via the 5 VDC input line directly sourced from the controller backplane assembly, maintaining a typical low thermal signature with a 1.2 W consumption rate.

Q: What specific encoding schemes are supported by the serial processor?

A: The physical layer converter supports Manchester, FM0, and FM1 hardware coding schemes alongside a transparent data mode, enabling interface mapping up to 2 MBaud data transmission rates over RS-485 or RS-422 topologies.

Q: Can this interface module be exposed to corrosive industrial atmospheres?

A: Yes, the printed circuit board assembly is built with standard conformal coating meeting Class G3 environmental resistance specifications, protecting the components against moisture, dust, and gaseous chemical contaminants.

Field Installation Guidelines

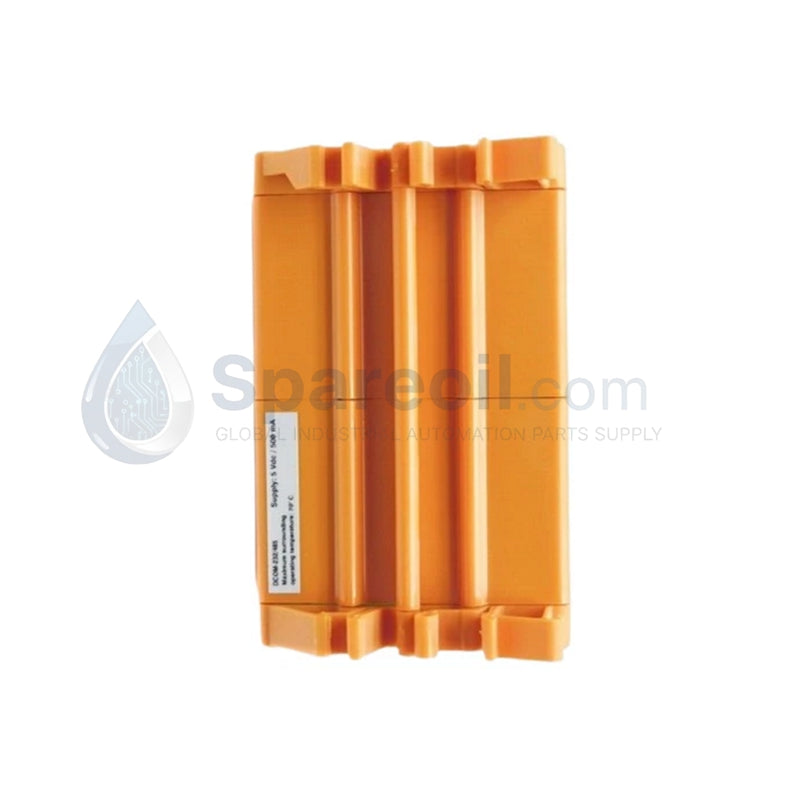

DIN-Rail Stability and Grounding: Snaps directly onto standard 35 mm DIN rails inside the safety enclosure. Ensure the rail is bonded to the master instrumentation earth busbar to provide a low-impedance dissipation path for EMI.
Serial Cable Shielding Protocol: Terminate signal line shields at the designated safety terminal grounding clips only. Do not ground the cable shield at both ends to ensure ground loop currents are not generated across different potential planes.
Wiring Trajectories: Separate external RS-232/485/422 serial data run wires from high-voltage AC distribution buses and high-power inductive device cables to prevent magnetic noise induction on data frames.
