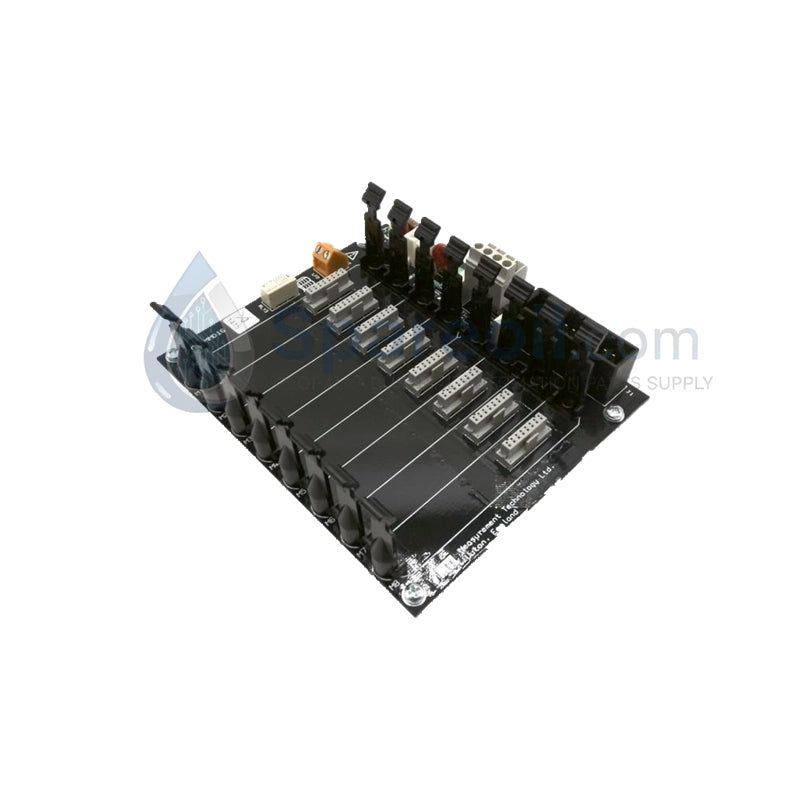

FC-GMMD16 Honeywell Safety Manager 16-Channel I/O Module

Availability: 99 left in stock

Product Overview The Honeywell FC-GMMD16 serves as a high-density Mixed Digital I/O Module for the Safety Manager SC (S300 IOTA) platform. This versatile module...

SKU: FC-GMMD16

Manufacturer: Honeywell
Product No.: FC-GMMD16
Product Type: Mixed Digital I/O
Product Origin: USA
Payment:T/T, Western Union
Weight: 750g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell FC-GMMD16 serves as a high-density Mixed Digital I/O Module for the Safety Manager SC (S300 IOTA) platform. This versatile module optimizes cabinet space by combining 8 Digital Inputs and 8 Digital Outputs within a single chassis slot. It interfaces field devices—such as limit switches, sensors, and solenoids—directly with the Safety Manager controller. Certified for SIL3 applications, the FC-GMMD16 ensures uncompromising safety and operational logic for critical process loops. We supply this unit as 100% Brand New and Original in Factory Packing, providing the baseline reliability required for modern safety-instrumented systems (SIS).

Technical Specifications

Attribute	Specification Value
Model Number	FC-GMMD16
Total Channels	16 (8 Digital Inputs + 8 Digital Outputs)
Input Type	24 VDC Dry Contact or Voltage Input
Output Type	24 VDC Solid-state / Relay (Configuration dependent)
Max Switching Current	2 A per output channel
Safety Certification	SIL3 (IEC 61508 Compliant)
Isolation	Galvanic (Channel-to-channel and bus isolation)
Operating Temp	–40°C to +85°C
Hot-Swap Support	Yes
Dimensions	240 × 109 × 80 mm

Engineering Advantages

Optimized Cabinet Footprint: The mixed I/O architecture reduces the number of individual modules required for a safety loop. By consolidating 8 inputs and 8 outputs onto a single card, engineers significantly decrease rack space requirements and total hardware costs.
Superior Safety Integrity (SIL3): Every channel incorporates self-testing diagnostics to meet stringent IEC 61508 standards. This module maintains the highest probability of failure on demand (PFD) performance, ensuring critical safety actions execute flawlessly in emergency shutdown (ESD) scenarios.
Rugged Environmental Tolerance: Unlike standard PLC hardware, the FC-GMMD16 operates in extreme temperatures ranging from –40°C to +85°C. This capability enables installation in remote instrument enclosures (RIE) located in harsh climates without requiring external climate control.
Real-Time Fault Detection: Built-in line monitoring detects open circuits and shorted field wiring immediately. This proactive diagnostic capability allows maintenance teams to identify and resolve field-side issues before they lead to a dangerous failure or an unplanned process trip.
High-Current Drive Capability: Each output channel supports up to 2 A. This allows the module to drive large solenoids and interposing relays directly, simplifying the electrical design and reducing the need for additional external amplification components.
Non-Disruptive Hot-Swap: The hardware design permits module replacement while the system remains under power. Technicians can swap faulty units without halting the safety controller, ensuring 24/7 process availability and minimized maintenance windows.

FAQs

Can the FC-GMMD16 drive solenoids directly without interposing relays?

Yes. Each of the 8 digital output channels supports up to 2 A at 24 VDC. This capacity is sufficient for most industrial solenoids and actuators, allowing for a more direct and reliable control loop.
What type of field devices can I connect to the 8 input channels?

The input channels accept standard 24 VDC signals. They work perfectly with dry contacts (pushbuttons, limit switches) or active voltage sensors, providing flexible interfacing for various safety-critical monitoring points.
How does the module handle a short circuit on a field output?

The FC-GMMD16 features integrated over-current protection. If it detects a short circuit, the module protects the internal circuitry and triggers a diagnostic fault alarm at the controller to alert the operator immediately.
Is this a genuine Honeywell original part?

Absolutely. We ship only 100% Brand New and Original FC-GMMD16 modules in their original factory-sealed Honeywell packaging. Every unit includes our 12-month warranty for complete peace of mind.
