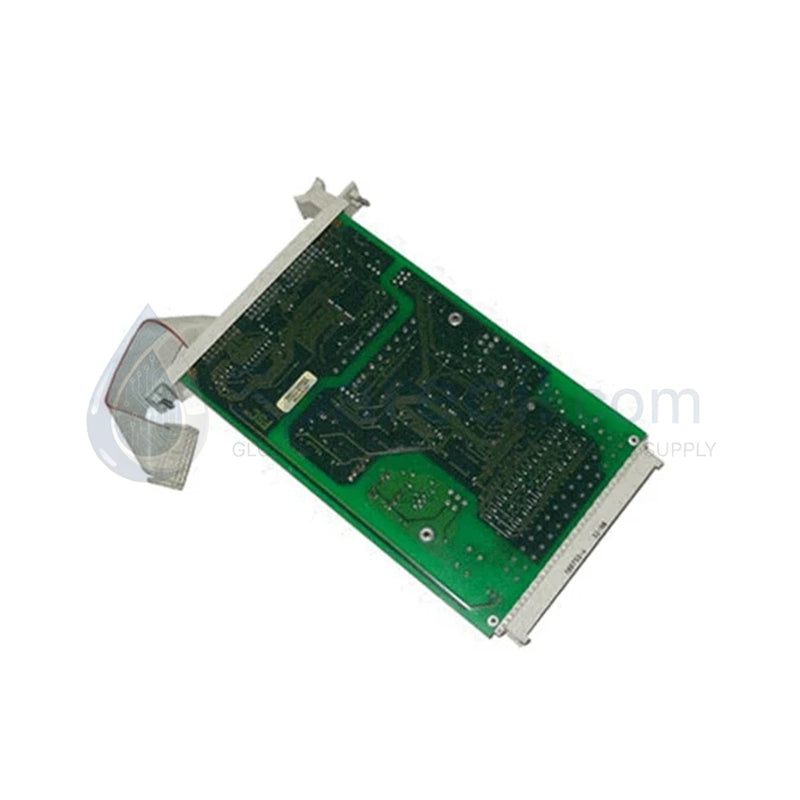

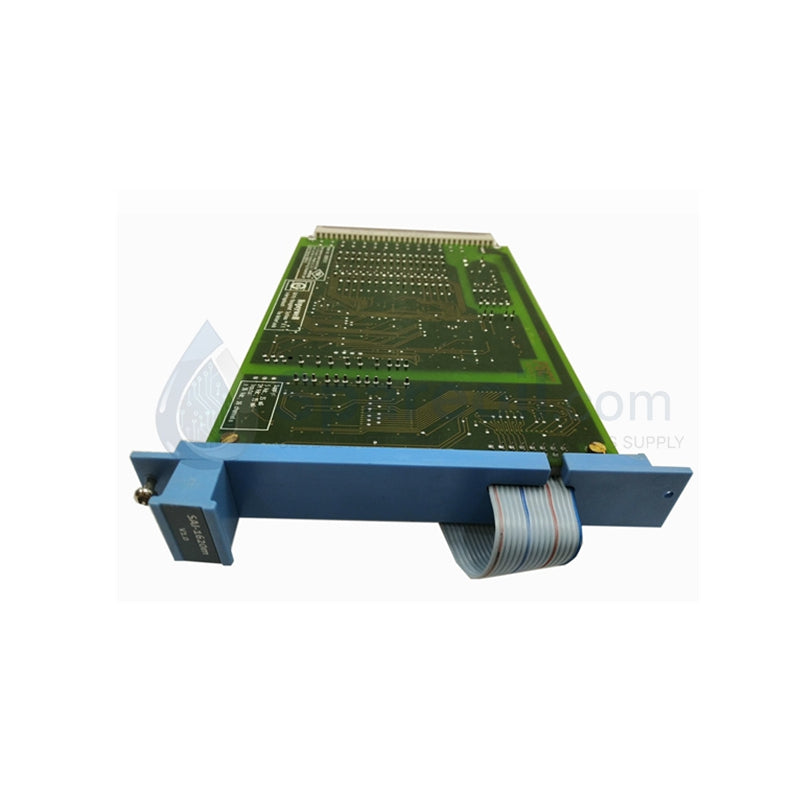

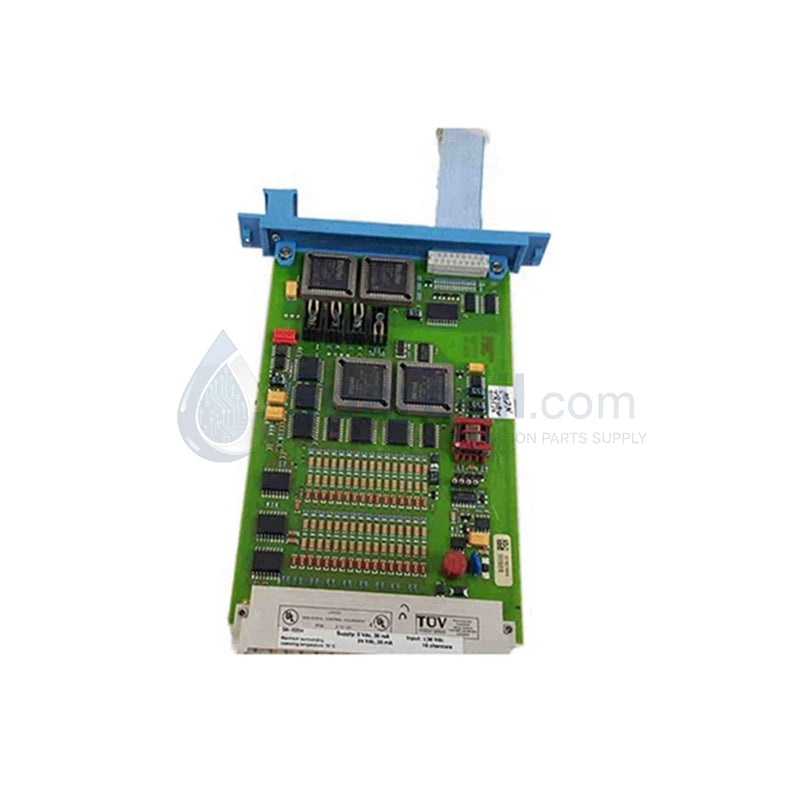

FC-SDI-1624M Honeywell Safe Digital Input Module

FC-SDI-1624M Honeywell Safe Digital Input Module | New & Original Stock

Availability: 99 left in stock

Honeywell FC-SDI-1624M Safety Manager Series Configured for Specific Technical Task in System/Network Name, the Honeywell FC-SDI-1624M (FC-SDI-1624M Safe Digital Input...

SKU: FC-SDI-1624M

Manufacturer: Honeywell
Product No.: FC-SDI-1624M
Product Type: Digital Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 850g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Honeywell FC-SDI-1624M Safety Manager Series

Configured for Specific Technical Task in System/Network Name, the Honeywell FC-SDI-1624M (FC-SDI-1624M Safe Digital Input Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	FC-SDI-1624M
Brand	Honeywell
Origin	United States
Weight	0.85 kg
Dimensions	100 mm x 100 mm x 100 mm
Operating Temp	-40 to +70 deg C
Power Consumption	24 VDC nominal (backplane powered)
Number of Channels	16 discrete inputs
Input Voltage	24 VDC nominal
Safety Integrity Level	SIL 2 and SIL 3 compliant (IEC 61508)
Diagnostic Coverage	>99% internal and external fault detection
System Interface	Quad Processor Pack (QPP) backplane

High Reliability Safety Control (SIS)

The module interfaces directly with Safety Instrumented Systems (SIS), deploying a triple modular redundancy (TMR) 2oo3 architecture across the backplane layers to ensure high-integrity loop execution. Internal processing loops perform continuous galvanic isolation monitoring and diagnostic checks, achieving over 99% fault detection coverage. The module executes fail-safe state execution routines upon detecting out-of-bounds input transitions or loop anomalies, satisfying the strict hardware probability requirements mandated by SIL3 certification.

Frequently Asked Questions

Q: How does the module execute internal diagnostics for discrete input monitoring?

A: The hardware architecture utilizes continuous internal self-tests and signal validation routines combined with integrated hardware/software filtering. This execution architecture yields a diagnostic coverage metric exceeding 99% for both internal components and external field loops.

Q: Is the FC-SDI-1624M module hot-swappable within a redundant configuration?

A: Yes, when deployed in redundant I/O carriers interfacing with the Quad Processor Pack backplane, the module supports online hot-swap operations. A faulty unit can be extracted and replaced without dropping voltage to active safety loops or interrupting system logic.

Q: What defines the structural significance of the "M" suffix in this model number?

A: The "M" designation specifies an enhanced hardware revision. This version is optimized for high-availability redundant configurations, delivering increased mechanical alignment tolerances and enhanced sub-millisecond signal validation stability.

Field Installation Guidelines

Chassis Retention and Latching: Seat the module firmly into the designated Honeywell Safety Manager I/O rack slot. Tighten all hardware retention fasteners to ensure complete contact with the Quad Processor Pack backplane interface.
Shield Grounding Matrix: Connect discrete field device signal shields to the central copper master instrument ground rail within the cabinet. Do not configure multi-point grounds to eliminate the risk of transient ground loops.
Conductor Separation Protocols: Separate all 24 VDC safety-critical input wiring trunks from high-voltage AC lines and inductive switching loads inside the enclosure wire ducts to prevent electromagnetic noise induction.
