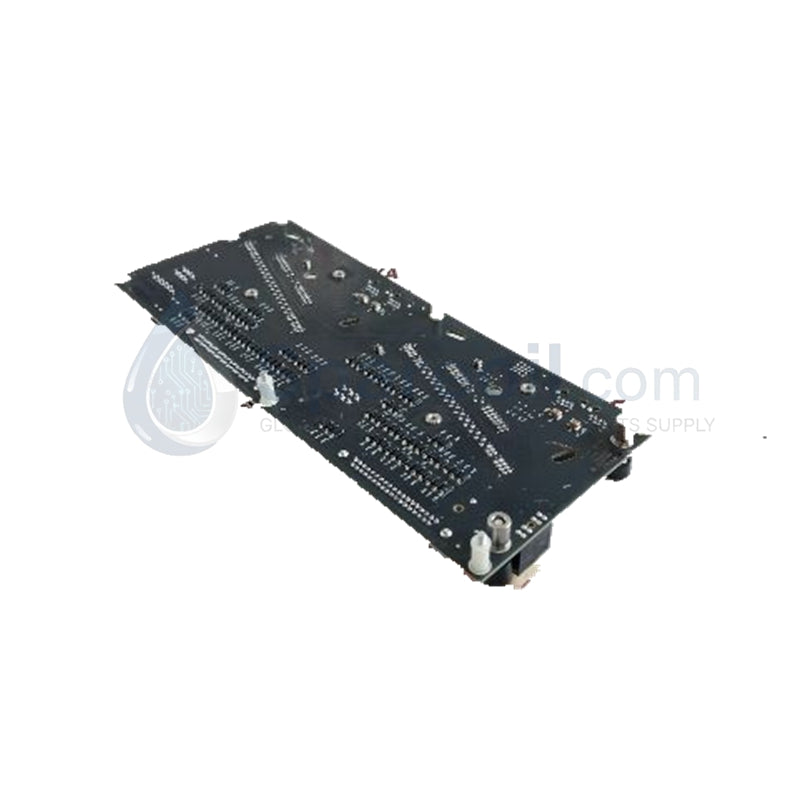

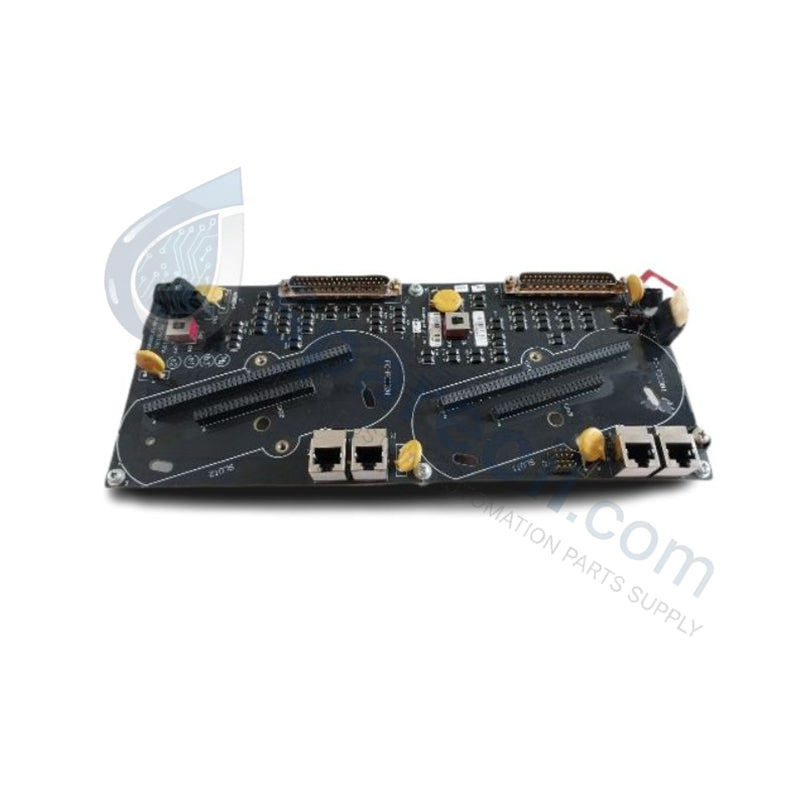

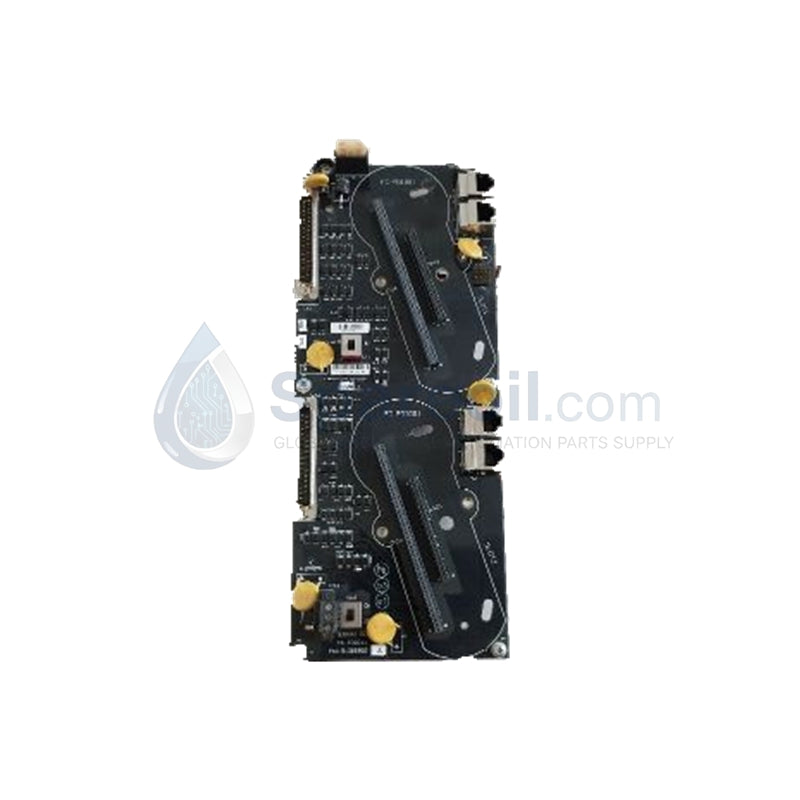

Honeywell FC-TDIO11 Safety Manager SC Redundant IOTA

The Honeywell FC-TDIO11, also cataloged as the FC-TDIO11 Redundant PDIO Termination Assembly (IOTA), operates as a dedicated hardware component for field wiring connection and module signal routing within Honeywell Safety Manager SC platforms.

Hardware Specifications

Parameter	Specification
Model	FC-TDIO11
Brand	Honeywell
Origin	United States
Weight	Standard chassis termination footprint baseline
Dimensions	Safety Manager SC carrier standard format
Operating Temp	-40 deg C to 70 deg C (-40 deg F to 158 deg F)
Storage Temp	-40 deg C to 85 deg C
Relative Humidity	5% to 95% non-condensing
Compatible Modules	FC-PDIO01 (Projected Digital I/O modules)
Redundancy Style	Dual Module Redundancy (Redundant I/O pair support)
Field Terminations	High-density compression terminals or screw terminals
Mounting	Safety Manager SC Carrier / DIN-rail integration
Safety Integrity Level	Suitable for SIL 3 applications
Environmental Protection	Meets G3 (Harsh) environmental standards

Triple Modular Redundancy & Fail-Safe State Execution

The termination assembly forms the physical foundation for execution of Dual Module Redundancy (DMR) topologies using two parallel-mounted FC-PDIO01 digital input/output cards. The IOTA isolates the shared field wiring interface from the independent execution paths of the dual modules, splitting incoming digital input lines and joining active digital output lines into single field terminal blocks.

Internal diode voting networks and hardware diagnostic links enable continuous evaluation of module operational integrity. If an active card reports a failure, the hardware immediately forces a changeover to the standby module, sustaining the current loop states without signal interruption. This design achieves fail-safe state execution by permitting one module to enter a zero-current safe condition while its redundant partner manages the safety-instrumented system (SIS) matrix loop logic.

Frequently Asked Questions

Q: Does the FC-TDIO11 assembly allow on-line hot-swap replacement of the connected I/O modules? A: Yes. The redundant board layout enables removal and replacement of an individual FC-PDIO01 module while its parallel counterpart remains active. The secondary card handles the full logical loop execution throughout the maintenance window, preventing any downtime or unintended system trip.

Q: How is the termination assembly protected against long-term atmospheric contamination? A: The board components are manufactured to satisfy G3 environmental specifications per ISA-71.04. Conformal coating layers guard the embedded circuit traces, relay contacts, and terminal bus tracks from corrosion and chemical degradation in harsh industrial environments.

Q: Can a combination of analog and digital modules be placed simultaneously onto this specific termination structure? A: No. The structural circuit design, pin mapping, and voltage routing paths of the FC-TDIO11 are engineered exclusively to support the FC-PDIO01 digital input/output module pairs.

Field Installation Guidelines

Carrier Assembly Seating: Mount the termination assembly onto the Safety Manager SC carrier base or standard DIN rail system. Confirm the physical alignment tracks match perfectly before engaging the retention clips to ensure solid electrical grounding back to the cabinet matrix frame.
Wiring Terminal Density Constraints: Connect field wires to the high-density compression or screw terminal strips. Use proper ferrule terminations on all conductors, ensuring that stripped wire strands are completely enclosed within the compression clamp to avoid short circuits between adjacent digital channels.
Shield Grounding Protocols: Route all field wiring through independent low-voltage wiring trays inside the enclosure. Terminate cable shields and drain elements exclusively at the assigned cabinet instrument ground bus bar, keeping the connection path as brief as possible to divert noise away from the IOTA electronics.
