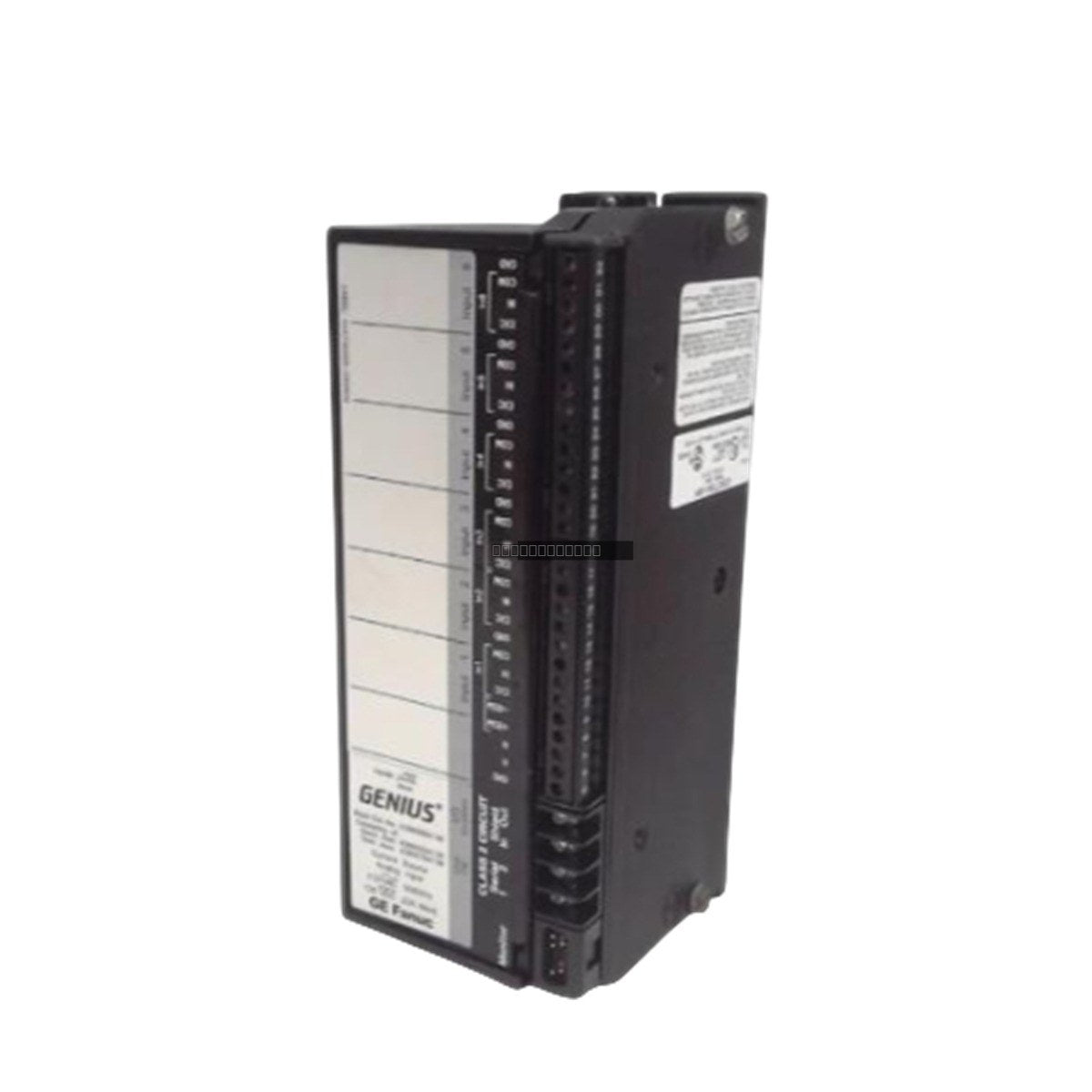

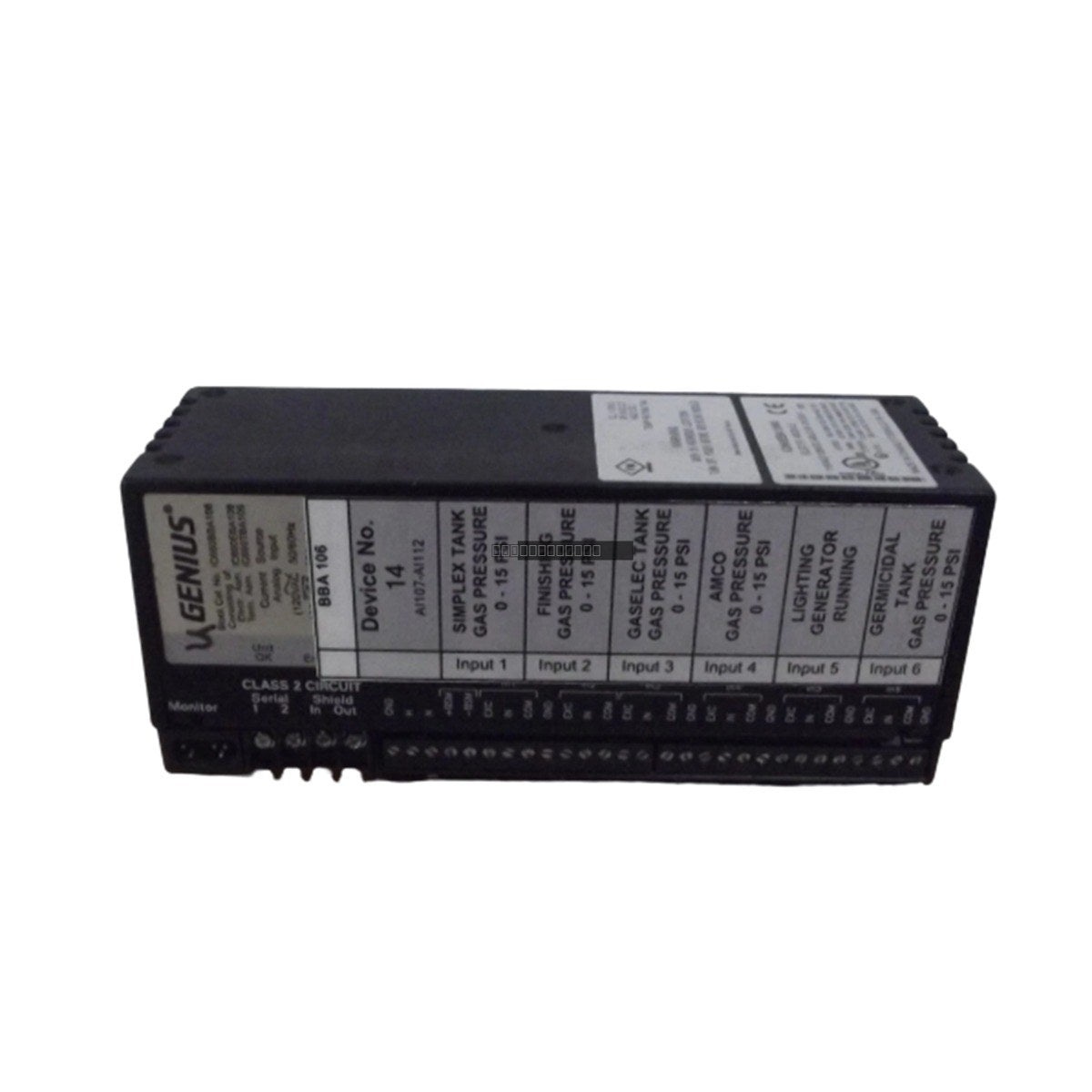

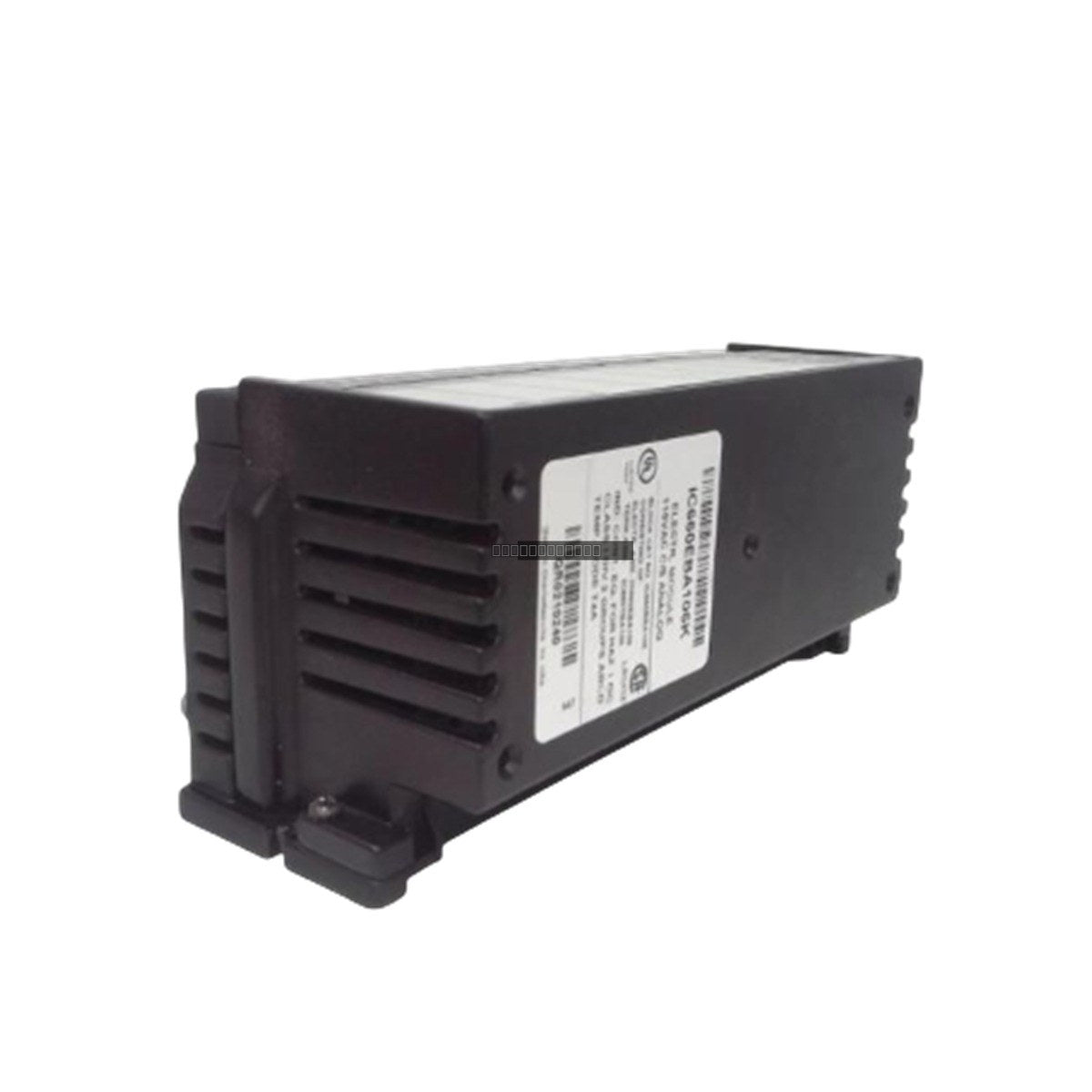

General Electric IC660EBA106 Genius I/O Analog Output Block

Availability: 8 left in stock

DescriptionThe General Electric IC660EBA106 is an electronic assembly belonging to the Genius I/O series. This unit functions as an analog...

SKU: IC660EBA106

Manufacturer: General Electric
Product No.: IC660EBA106
Product Type: Analog Output Block
Product Origin: USA
Payment:T/T, Western Union
Weight: 1400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The General Electric IC660EBA106 is an electronic assembly belonging to the Genius I/O series. This unit functions as an analog output block, designed to provide reliable signal conversion and output control within industrial automation environments. As part of the robust Genius I/O system, it facilitates communication between the controller and field devices, ensuring precise process management.

Features

Integrated diagnostic capabilities for enhanced system monitoring and troubleshooting.
Supports a wide range of power supply voltages, accommodating both 93-132V AC and 105-145V DC inputs.
High-precision performance with an accuracy of 0.15% of full-scale reading at 25 degC.
Designed for stable operation in industrial environments with a thermal drift of 70 PPM per degree Celsius.

Technical Specifications

Product Model	IC660EBA106
Series	Genius I/O
Product Type	Analog Output Block
Power Supply Voltage	93-132V AC / 105-145V DC
Frequency	47-63 Hz
Maximum Current	250 mA (AC) / 140 mA (DC)
Accuracy	0.15% full scale at 25 degC
Thermal Drift	70 PPM/degC
Operating Temperature	0 to 60 degC
Ripple	10% max

Installation Guidelines

Ensure the power supply is disconnected before installing or removing the module to prevent electrical shock or damage to the circuitry.
Mount the block in a location that allows for adequate ventilation, adhering to the specified operating temperature range of 0-60 degC.
Use shielded cables for analog signal connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Verify that the input voltage matches the module specifications before applying power.
Ensure all terminal connections are secure and properly torqued to prevent intermittent signal loss.

FAQ

What is the primary function of the IC660EBA106?

The IC660EBA106 is an analog output block used within the GE Genius I/O system to convert digital control signals into analog outputs for field devices.

Does this module support diagnostics?

Yes, the IC660EBA106 includes built-in diagnostic features that assist in identifying faults and monitoring the health of the I/O connection.

What are the power requirements for this unit?

The module operates on a power supply range of 93-132V AC or 105-145V DC, with a frequency range of 47-63 Hz.
