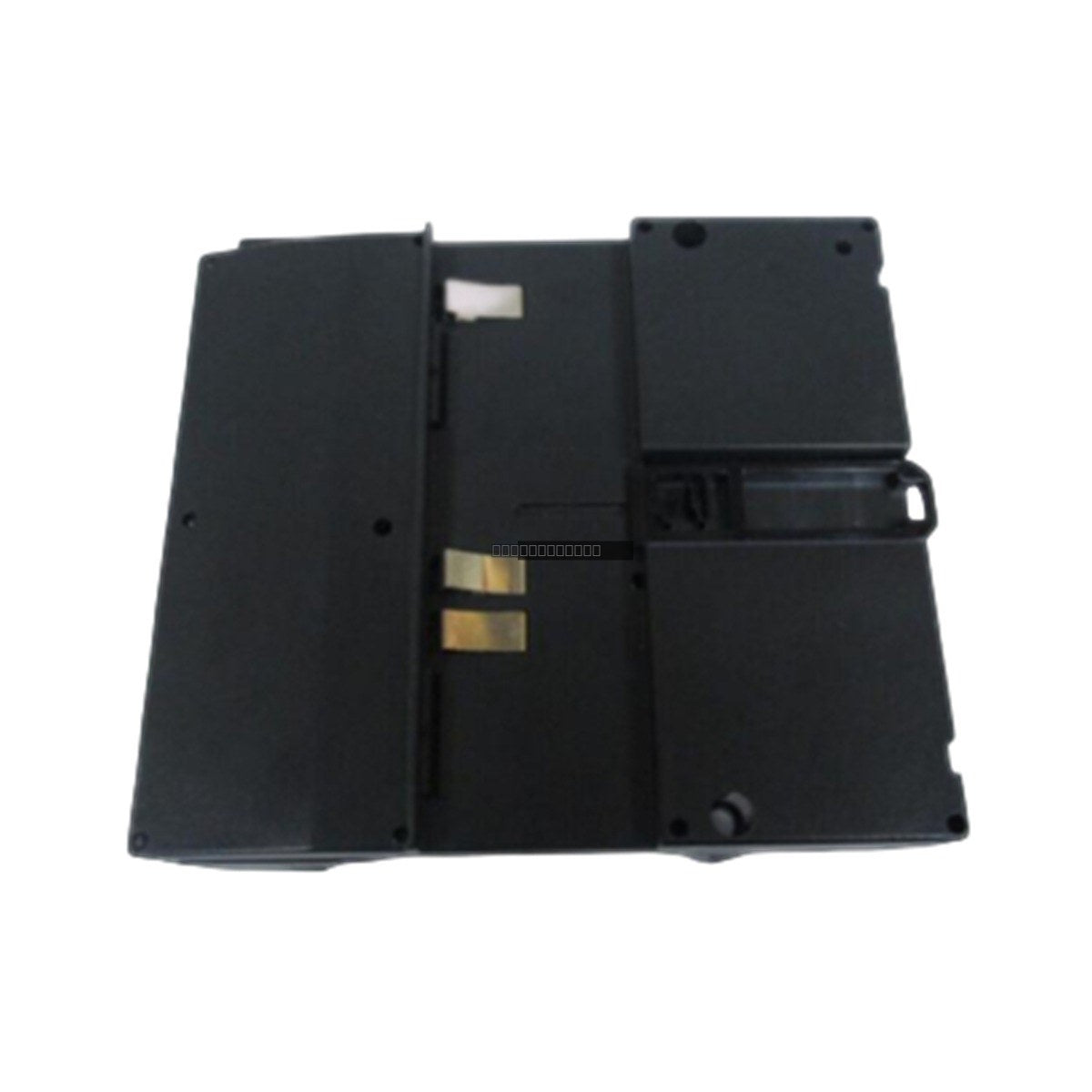

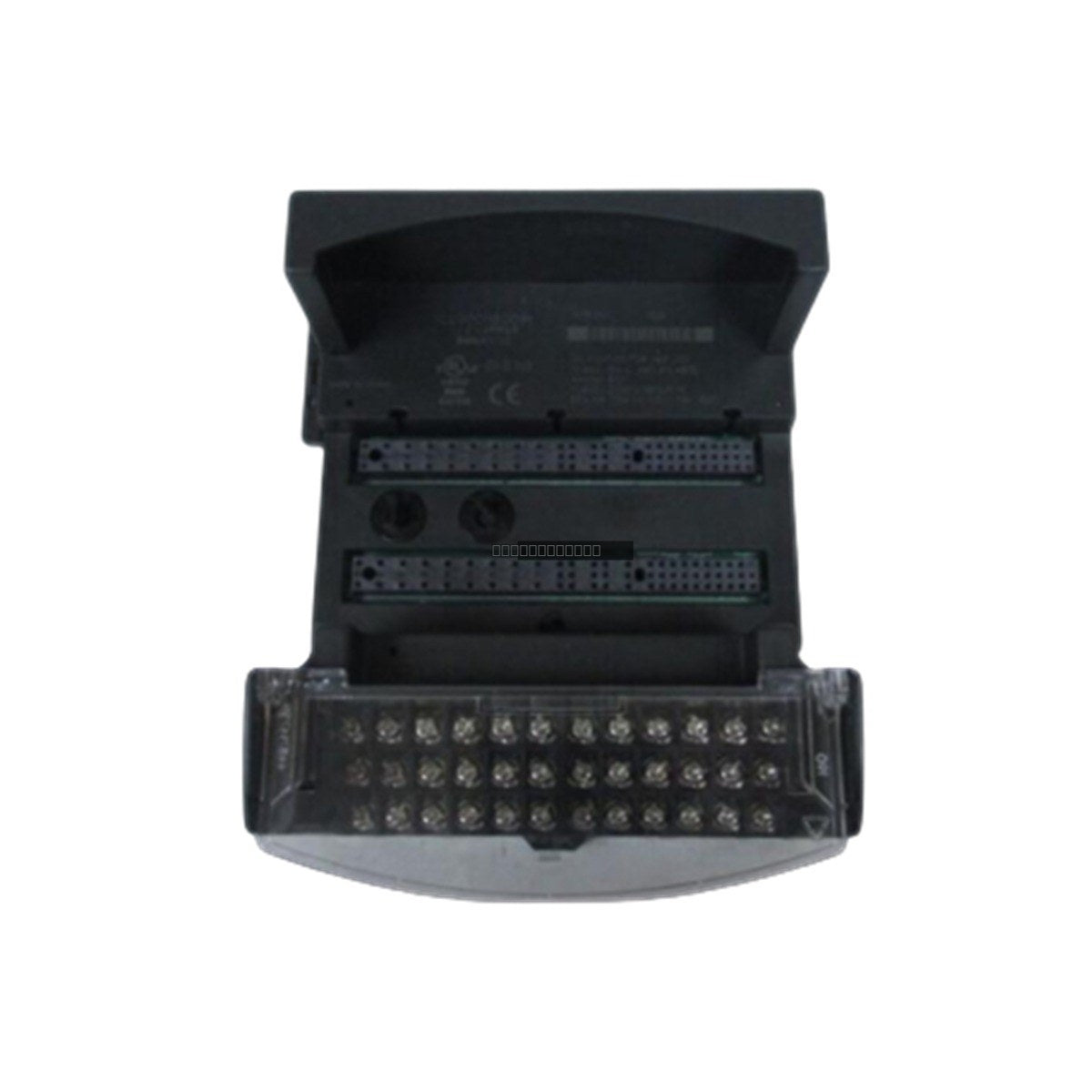

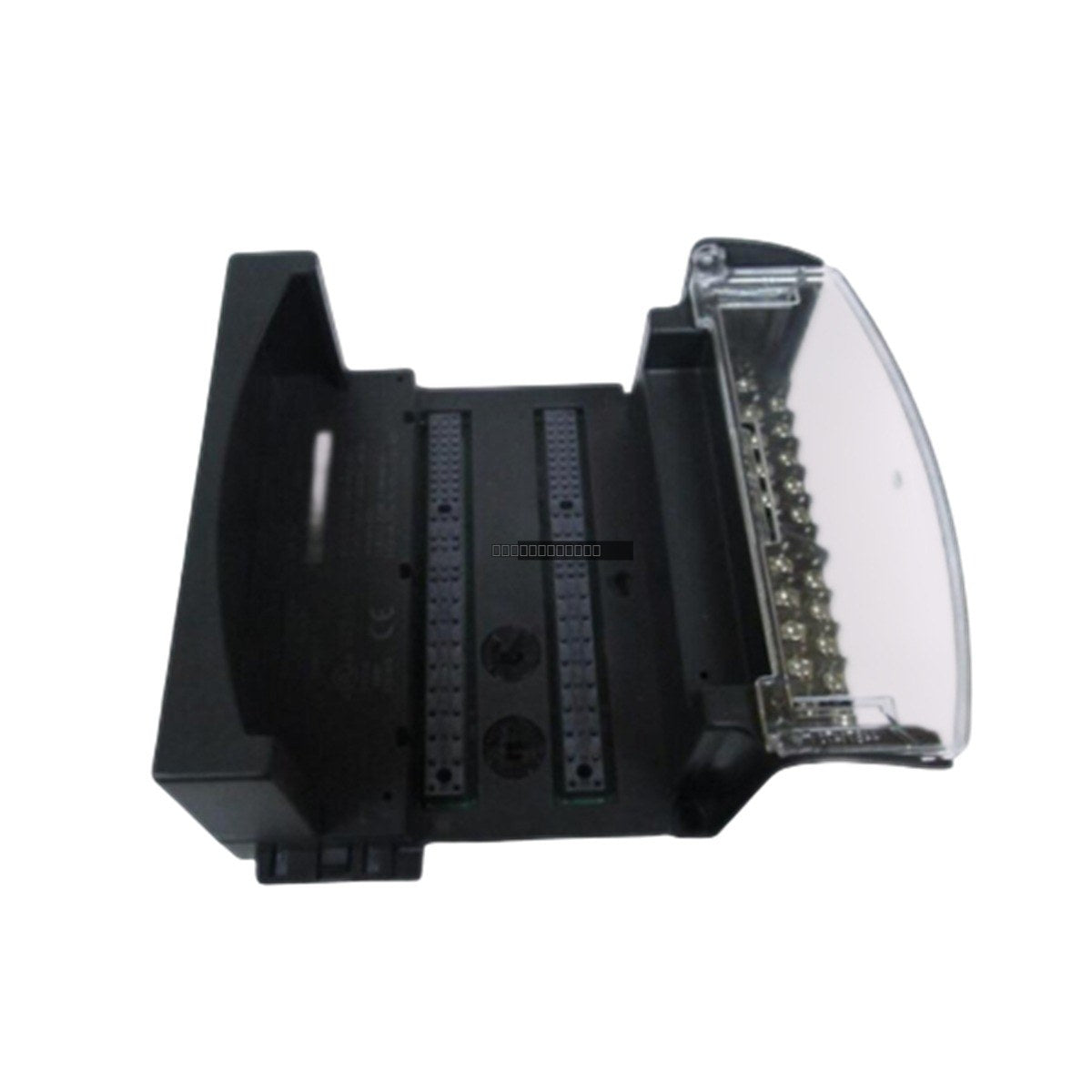

GE IC200CHS001A VersaMax Box-Style I/O Carrier

General Electric IC200CHS001A VersaMax Box-Style I/O Carrier

Availability: 0 left in stock

DescriptionThe General Electric IC200CHS001A is a box-style I/O carrier designed for the VersaMax PLC series. This carrier provides the necessary...

SKU: IC200CHS001A

Manufacturer: General Electric
Product No.: IC200CHS001A
Product Type: I/O Carrier
Product Origin: USA
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The General Electric IC200CHS001A is a box-style I/O carrier designed for the VersaMax PLC series. This carrier provides the necessary mounting and electrical interface for VersaMax I/O modules, facilitating reliable signal distribution and field wiring connections in industrial automation environments. It is engineered to support up to 32 I/O points, offering a compact solution for distributed or centralized control architectures.

Features

Supports up to 32 I/O points for high-density signal management.
Equipped with 36 box-style screw terminals for secure field wiring.
Designed for standard DIN-rail mounting, ensuring quick and efficient installation.
Rated for a maximum voltage of 264 VAC, accommodating a wide range of industrial control applications.
Robust construction suitable for demanding automation environments.

Technical Specifications

Model	IC200CHS001A
Series	VersaMax
Terminal Type	Box-style
Terminal Count	36
Max I/O Points	32
Max Current per Point	2 Amps
Max Voltage Rating	264 VAC
Max Voltage Transients	300 VAC
Mounting	DIN Rail
Terminal Torque	0.37 to 0.5 lb-ft

Installation Guidelines

Ensure all power to the I/O system is disconnected before installing or removing modules from the carrier.
Mount the carrier onto a standard 35mm DIN rail, ensuring it is securely locked in place.
When wiring, ensure that terminal screws are tightened to the specified torque range (0.37 to 0.5 lb-ft) to prevent loose connections and potential signal degradation.
Maintain proper cable routing to minimize electromagnetic interference (EMI) from high-voltage lines or high-frequency drives.
Verify that the total current draw of the I/O modules does not exceed the capacity of the power supply connected to the carrier.

FAQ

What is the primary function of the IC200CHS001A?
The IC200CHS001A serves as a base carrier for GE VersaMax I/O modules, providing both the mechanical mounting interface and the electrical terminal blocks for field wiring.

Can this carrier be used with all VersaMax modules?
This carrier is specifically designed for box-style I/O modules within the VersaMax family. Please verify compatibility with your specific module part number before installation.

What is the maximum current rating per point?
The carrier supports a maximum of 2 Amps per point.
