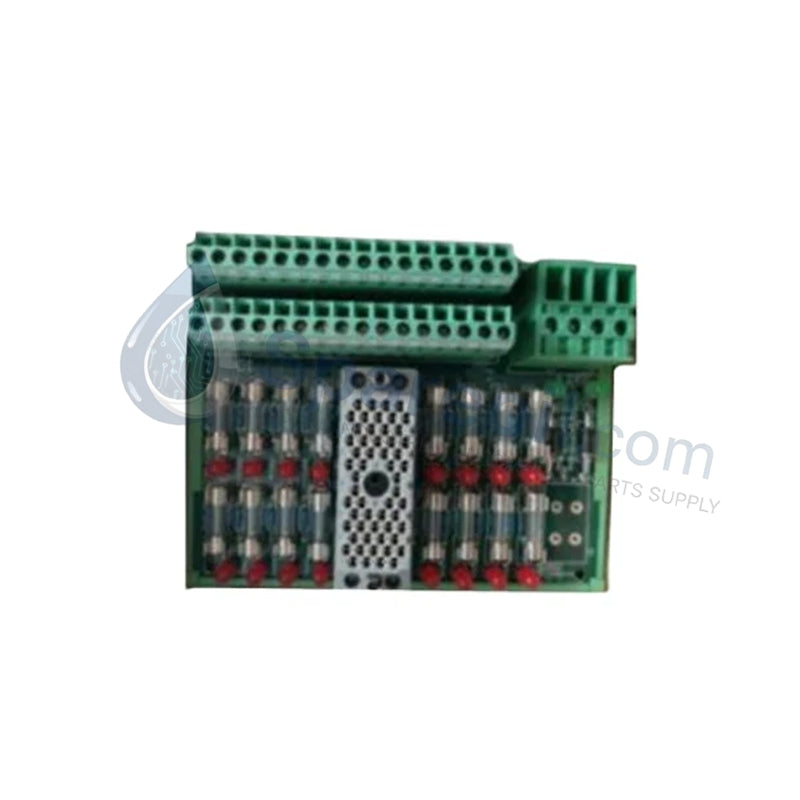

Genuine Triconex 9563-810 Safety I/O Termination

Genuine Triconex 9563-810 Safety I/O Termination

Availability: 10 left in stock

Product Overview The Triconex 9563-810 (Part Number 7760059030) serves as the essential external interface for high-integrity digital input modules within a Triconex Safety...

SKU: 9563-810 7760059030

Manufacturer: Triconex
Product No.: 9563-810 7760059030
Product Type: Triple Modular Redundancy
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Triconex 9563-810 (Part Number 7760059030) serves as the essential external interface for high-integrity digital input modules within a Triconex Safety Instrumented System (SIS). This 100% brand new and original termination panel facilitates the secure connection of field devices—including switches, sensors, and relays—to the TMR controller. Each panel supports 16 input points and features a commoned power architecture for PWR+ and PWR- distribution. Since standard Triconex digital input modules utilize 32 points, engineers typically deploy these panels in pairs to achieve full module utilization while maintaining SIL 3 safety compliance.

Technical Specifications

The 9563-810 integrates robust electrical protection with high-speed signal processing:

Feature	Specification Details
Model / Part Number	9563-810 / 7760059030
Input Points	16 per panel (Commoned)
Voltage Range	24 VDC (Standard) up to 125 VDC / 240 VAC
Current Range	1 mA – 100 mA
Leakage Current	3.3 mA Max (2.5 mA Typical)
Isolation	1500 VAC Channel-to-Ground
Protection	500 mA Slow-blow fuse per channel
Diagnostics	Individual Blown-fuse LED indicators
Operating Temp	–40 °C to +70 °C
Dimensions	495 × 356 × 152 mm
Mounting	DIN-rail or Panel Mounting

Engineering Advantages

Channel-Level Fault Isolation: Every input point features dedicated 500 mA slow-blow fuse protection. This ensures that a localized field-side short circuit only affects a single channel, preventing total panel failure and maintaining the uptime of the remaining 15 inputs.
Instantaneous Diagnostics: Blown-fuse LED indicators provide immediate visual feedback at the panel level. This allows maintenance teams to identify and replace failed fuses without the need for complex software interrogation, significantly reducing Mean Time to Repair (MTTR).
High-Integrity Isolation: The panel provides 1500 VAC channel-to-ground isolation. This protects the sensitive TMR safety controller from high-voltage transients and ground loops common in large-scale refinery and power generation environments.
Rapid Response Capability: The 9563-810 supports switching speeds of less than 1 ms. This high-speed performance ensures the Safety Instrumented System (SIS) captures critical status changes instantly, enabling the execution of emergency shutdown (ESD) logic within safe state time limits.

FAQs

Why do I need two 9563-810 panels for one digital input module?

The 9563-810 features 16 input points, whereas standard Triconex digital input modules (like the 3503E) support 32 points. To utilize the full capacity of the module, you must install two panels per module via the appropriate interface cables.
Does this panel support both AC and DC field devices?

Yes. The rugged design and wide voltage tolerance allow the 9563-810 to interface with a variety of field instruments ranging from 24 VDC to 240 VAC, provided the connected input module supports those voltage levels.
How do I replace a fuse without damaging the board?

The panel utilizes standard screw-terminal blocks and accessible fuse holders. We recommend using a non-conductive fuse puller and verifying that the replacement fuse matches the 500 mA slow-blow specification to maintain proper circuit protection.
