Honeywell 51307141-175 8C-TDILA1 DI Module Termination

Availability: 99 left in stock

Product Overview The Honeywell 8C-TDILA1 (also identified by part number 51307141-175) acts as the physical connection interface for the Experion PKS C300 Series...

SKU: 8C-TDILA

Manufacturer: Honeywell
Product No.: 8C-TDILA
Product Type: Digital Input Termination
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

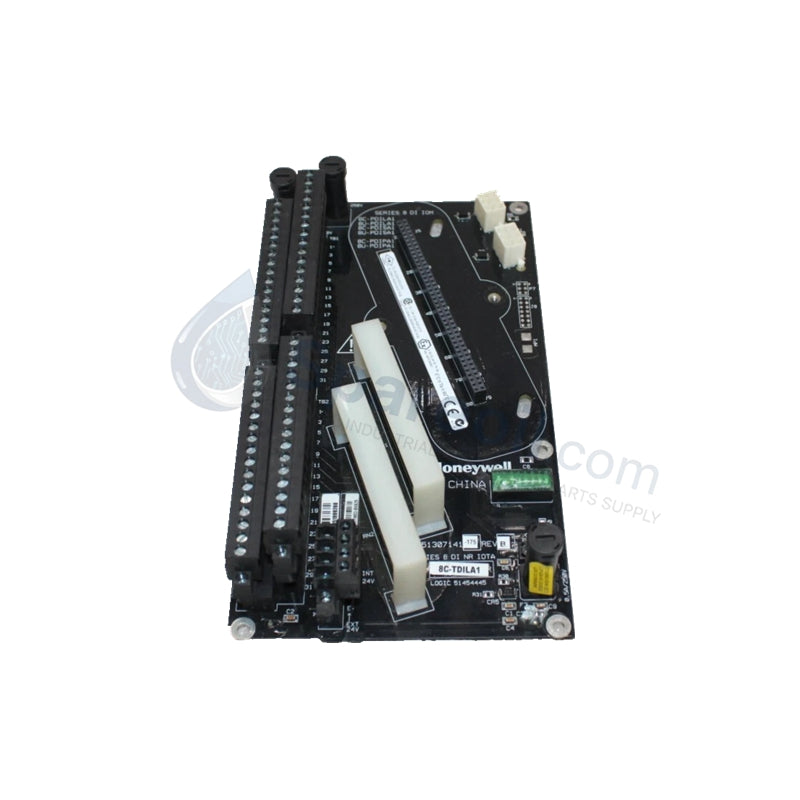

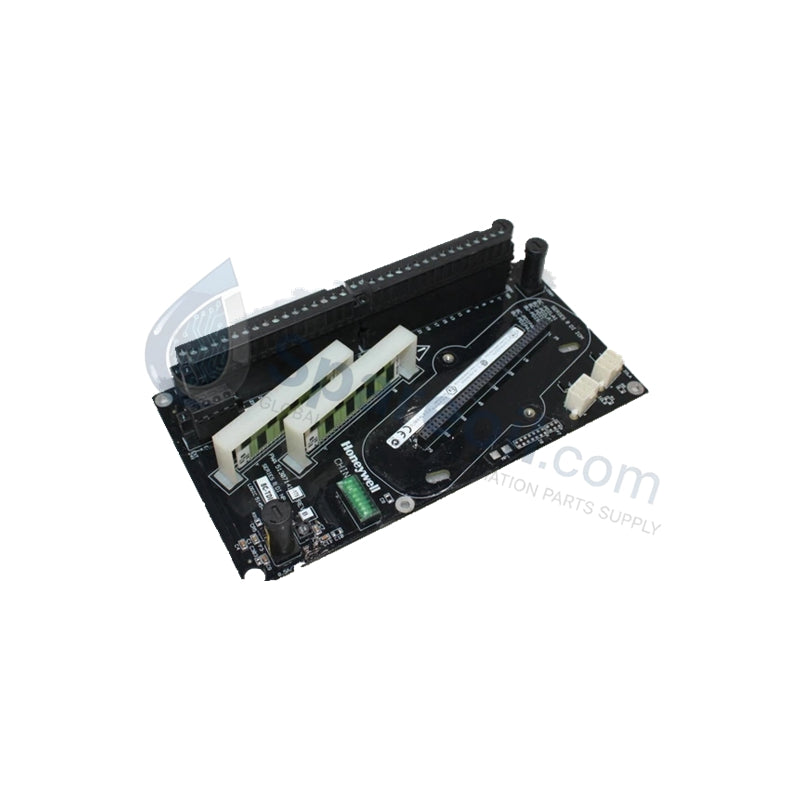

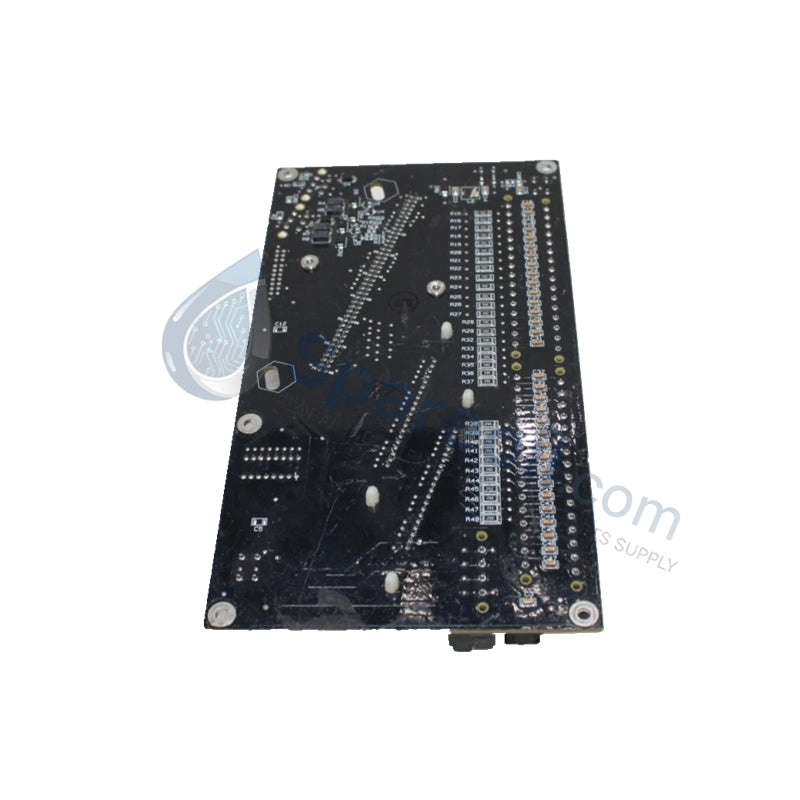

The Honeywell 8C-TDILA1 (also identified by part number 51307141-175) acts as the physical connection interface for the Experion PKS C300 Series 8 hardware. This Digital Input Termination Assembly (IOTA) facilitates the routing of discrete signals from field-side equipment—such as limit switches, push buttons, and dry contacts—directly to the 8C-PDILA1 input module. By centralizing 32 channels of signal acquisition, the 8C-TDILA1 optimizes cabinet space and simplifies field wiring. We supply this unit as 100% Brand New and Original, ensuring seamless integration into critical DCS environments including petrochemical, power generation, and advanced manufacturing facilities.

Technical Specifications

Feature	Specification Details
Model Number	8C-TDILA1 / 8C-TDILA
Part Number	51307141-175
Channels	32 Discrete Digital Input Channels
Operating Voltage	24 VDC (±15%)
Input Compatibility	PNP/NPN Configurable, Dry Contact Support
Scan Rate	50 ms typical
Accuracy (Full Range)	±0.15% of Full Scale (0–60°C)
Configuration	Non-Redundant (Simplex)
Isolation	Galvanic Isolation between channels and system bus
Operating Temp	-40°C to +75°C
Mounting	9-inch Profile, DIN Rail
Pairing Module	Designed for use with 8C-PDILA1 DI Module

Engineering Advantages

Optimized Field Termination: The 8C-TDILA1 provides a structured termination point for 32 separate digital inputs. This high-density layout reduces the footprint required within the control room and minimizes the complexity of cable management.
Universal Input Flexibility: The hardware supports both PNP and NPN configurations. This versatility allows engineers to integrate a wide variety of third-party field devices, including dry contacts, without requiring additional signal conditioning modules.
Extreme Environmental Resilience: Engineered for performance in non-climate-controlled zones, the assembly operates within a temperature range of -40°C to +75°C. This robustness ensures consistent signal monitoring in outdoor enclosures or high-heat process areas.
Enhanced Signal Safety: Built-in galvanic isolation shields the C300 controller from field-side electrical noise and surges. This protection prevents transient faults at the switch level from propagating to the core DCS backplane, maintaining system uptime.
Rapid Hardware Integration: The Series 8 9-inch profile and DIN rail mounting capability allow for fast installation. The IOTA design facilitates a direct, secure interface with the 8C-PDILA1 input module, ensuring reliable data transfer across the system bus.

FAQs

Is the 8C-TDILA1 compatible with redundant configurations?

No, this specific model (8C-TDILA1) is a simplex (non-redundant) termination assembly. For high-availability applications requiring redundancy, a different IOTA part number is necessary.
Does this part number include the electronic input module?

No. The 8C-TDILA1 is the Termination Assembly (IOTA) only. You must pair it with the 8C-PDILA1 electronic input module to create a functional digital input circuit.
Can I use this IOTA with older Honeywell Series A or Series C hardware?

The 8C-TDILA1 belongs strictly to the Series 8 / Experion PKS C300 platform. It is not physically or electrically compatible with legacy Honeywell Series A or C termination systems.
What is the condition of this unit and its shipping time?

We offer this unit as 100% Brand New in original factory-sealed packaging. We maintain stock in our US warehouse, allowing for expedited shipping options to minimize your project downtime.
