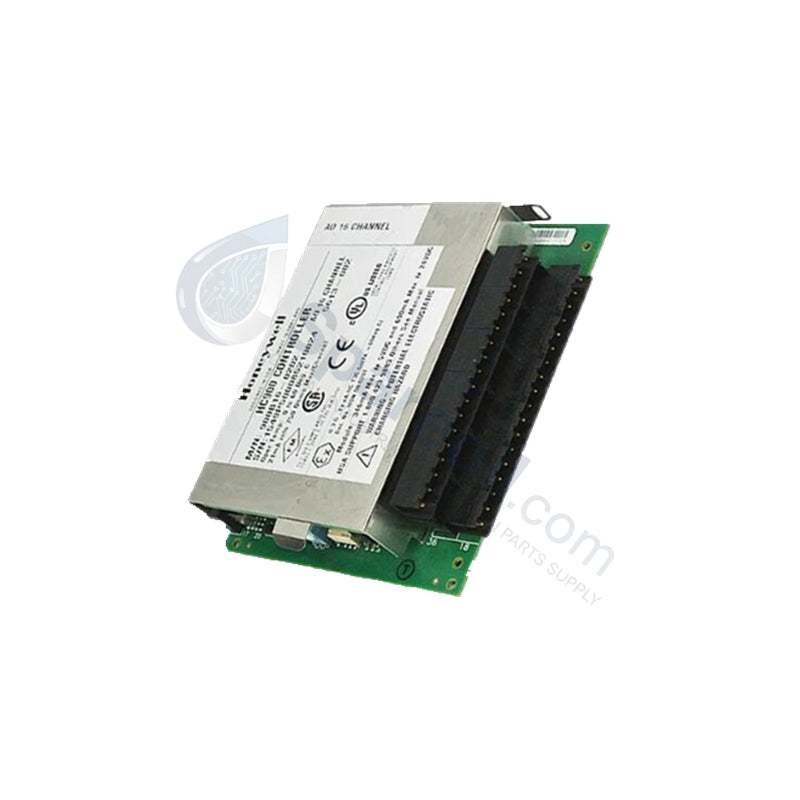

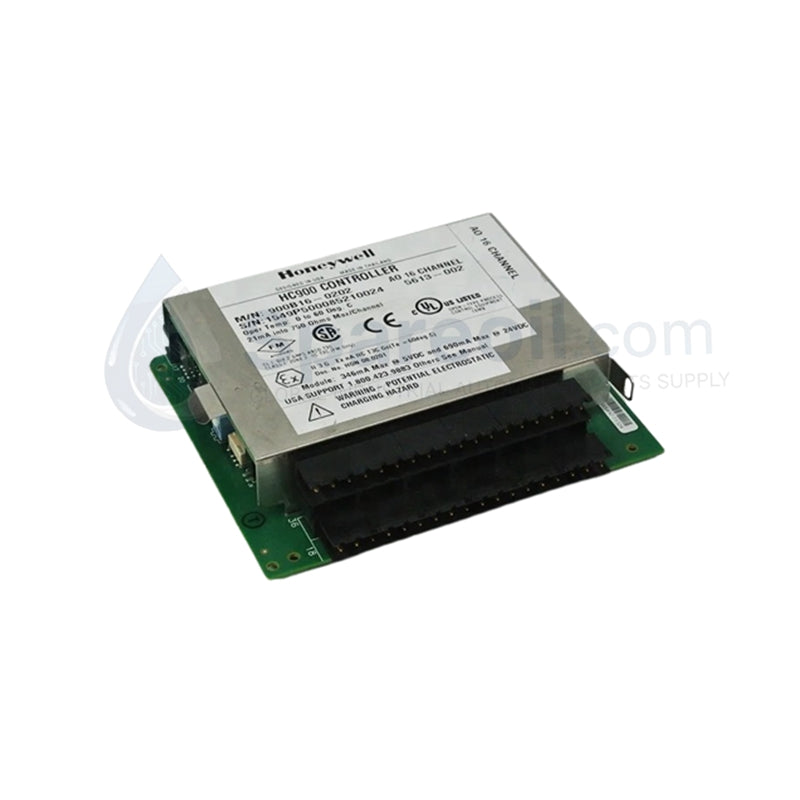

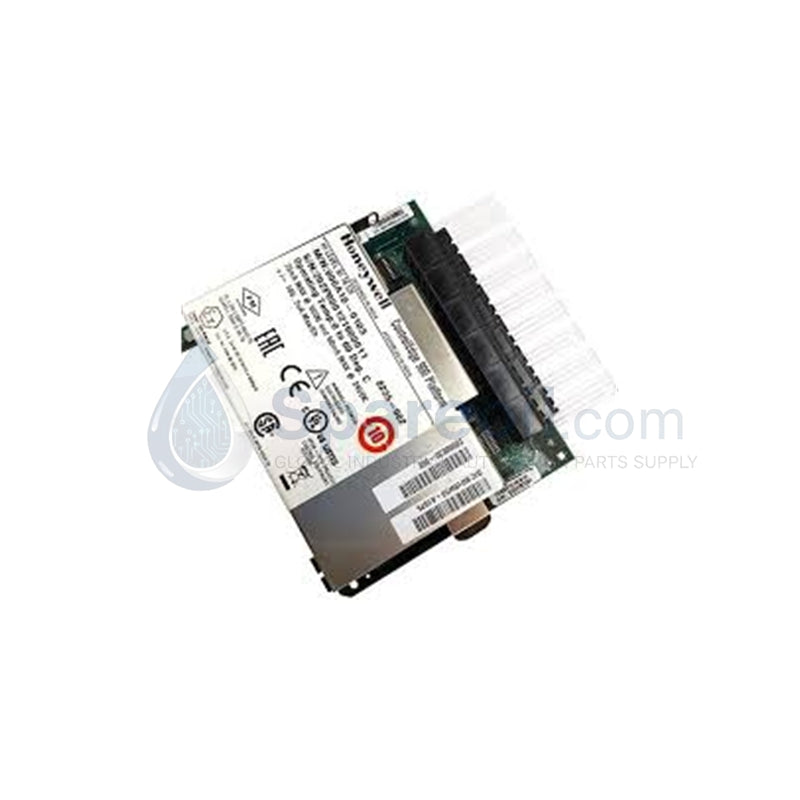

Honeywell 900B16-0202 16-Channel Analog Output Card 0-20mA

Availability: 99 left in stock

Product Overview The Honeywell 900B16-0202 serves as a high-density analog interface for the ControlEdge HC900 process automation system. This module provides 16...

SKU: 900B16-0202

Manufacturer: Honeywell
Product No.: 900B16-0202
Product Type: Process Automation I/O
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell 900B16-0202 serves as a high-density analog interface for the ControlEdge HC900 process automation system. This module provides 16 isolated analog output channels, delivering precise 0 to 20mA current signals to field actuators, valves, and variable frequency drives. It upgrades the previous 900B16-0101 model, offering enhanced signal stability and diagnostic feedback. We supply this module as 100% Brand New and Original in factory packaging, backed by a full 12-month warranty to ensure maximum uptime in critical process environments.

Technical Specifications

Feature	Specification Details
Model Number	900B16-0202 (Replaces 900B16-0101)
Output Channels	16 Channels (Isolated in 4 groups of 4)
Signal Range	0 to 21.0 mA (Selectable)
D/A Resolution	13+ bits (1 part in 13,332)
Accuracy	0.1% Full Scale at reference conditions
Max Load Resistance	750 Ohms
Galvanic Isolation	500VDC Group-to-Group / Group-to-Logic
Power Loading	5V @ 350mA max; 24V @ 700mA max
Terminal Block	36-Position Euro Style (900TCK-0001)
Data Storage	Non-volatile memory for calibration data

Engineering Advantages

High-Density Control: Integrating 16 channels into a single slot drastically reduces the required hardware footprint in control cabinets. This allows for expanded system capacity without the need for additional I/O racks.
Superior Signal Integrity: Galvanic isolation (500VDC) between groups prevents ground loops and electrical interference from migrating between channels or affecting the central CPU logic.
Real-Time Output Verification: The module utilizes an internal feedback mechanism to monitor current flow. It alerts the controller immediately if an output circuit fails, enabling rapid response to field-side hardware issues.
Automated Reliability: Redundant factory calibration data resides in non-volatile memory. The system automatically rejects "bad" configuration versions and supports individual channel field calibration to maintain precision over years of service.
Robust Load Management: With a 750-ohm maximum load resistance, this module drives long-distance cable runs and high-impedance field devices without signal degradation.

FAQs

Is the 900B16-0202 backward compatible with existing HC900 systems? Yes, this module acts as a direct functional replacement for the discontinued 900B16-0101. It integrates seamlessly into existing 900R08 and 900R12 racks.
How does the output verification feature work? The module senses if the current is actually flowing through the loop (detecting currents >0.5mA). If a wire break occurs, the diagnostic feedback triggers an alarm in the HC900 controller.
Can I power more than two of these modules in a single rack? When utilizing the internal 24V backplane power, Honeywell restricts usage to two 900B16-0202 modules per rack due to the high power draw (700mA per module). Always calculate your total power budget during system design.
Does the module include the terminal block? The 900B16-0202 module and the 900TCK-0001 terminal block are often ordered as separate line items. Please confirm if you require the 36-position Euro-style block for your installation.
