MVI69E-MBTCP ProSoft Modbus Module | New & Original Stock

Availability: 99 left in stock

ProSoft MVI69E-MBTCP CompactLogix Modbus TCP/IP Enhanced Communication Module The ProSoft MVI69E-MBTCP, also cataloged as the MVI69E-MBTCP Modbus TCP/IP Enhanced Communication...

SKU: MVI69E-MBTCP

Manufacturer: PROSOFT
Product No.: MVI69E-MBTCP
Product Type: Modbus Communication Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

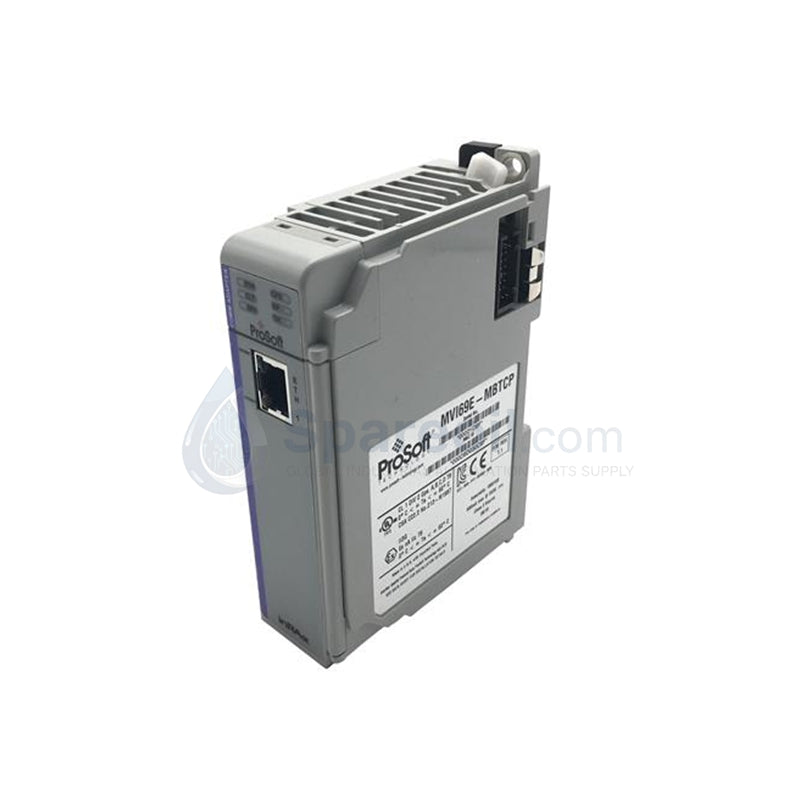

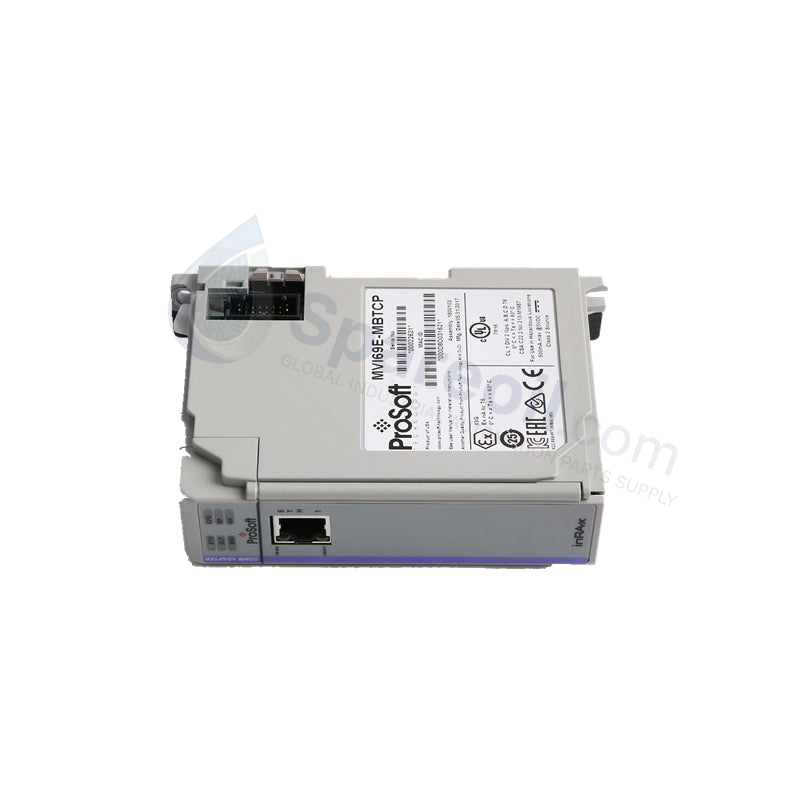

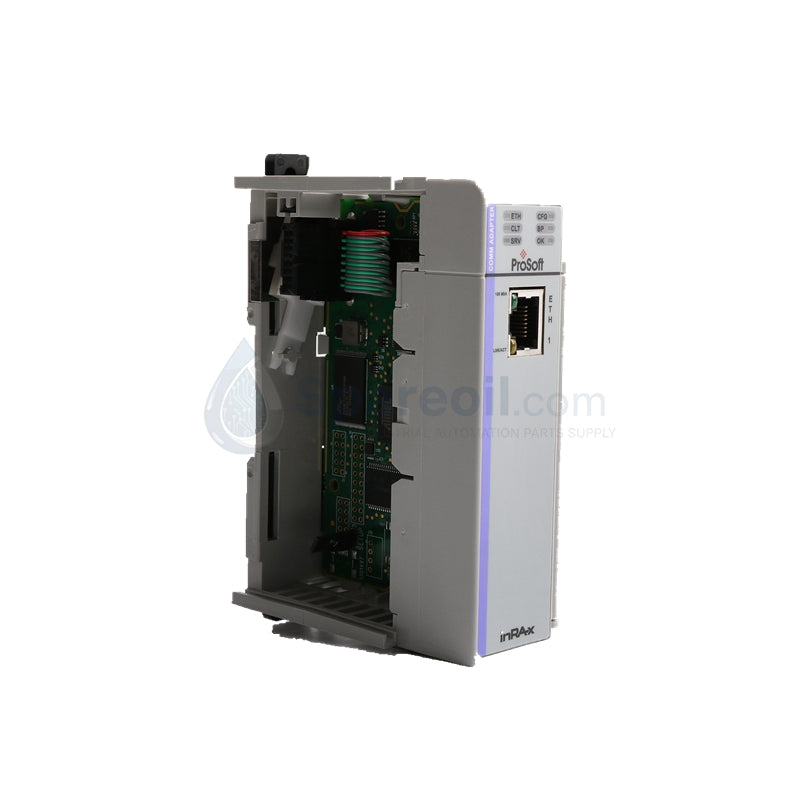

ProSoft MVI69E-MBTCP CompactLogix Modbus TCP/IP Enhanced Communication Module

The ProSoft MVI69E-MBTCP, also cataloged as the MVI69E-MBTCP Modbus TCP/IP Enhanced Communication Module, operates as a dedicated hardware component for multi-client/server data interface management within Allen-Bradley CompactLogix platforms.

Hardware Specifications

Parameter	Specification
Model	MVI69E-MBTCP
Brand	ProSoft Technology
Origin	United States
Weight	0.3 kg (1.06 lbs)
Dimensions	17.8 cm x 21.6 cm x 8.1 cm (7.0 in x 8.5 in x 3.2 in)
Operating Temp	0 deg C to 60 deg C (32 deg F to 140 deg F)
Power Consumption	Backplane powered, 5 VDC slot draw
Ethernet Port	1 x 10/100 Mbps base-T RJ45 connector
Application Layer	Modbus TCP/IP Enhanced Protocol
Tariff Code	8517620050

Modbus TCP/IP Deterministic Networks & Data Transfer

The module interfaces with the CompactLogix processor over the local 1769 backplane via scheduled I/O data blocks. The integrated single 10/100 Mbps Ethernet port runs simultaneous Client and Server connections, translating Modbus TCP/IP data packets directly into the host controller memory arrays.

By mapping internal data registers without intermediate serialization hardware, the communications engine lowers system propagation delays across Ethernet networks. The execution pipeline utilizes pre-allocated data tables within the module memory, enabling synchronous data block delivery across the backplane bus without interrupting deterministic PLC logic.

Frequently Asked Questions

Q: Does the MVI69E-MBTCP support hot-swapping or Remove and Insert Under Power (RIUP) functions? A: No. The 1769 backplane architecture does not feature isolated pin connections for live-swapping. The CompactLogix system must be completely powered down before extracting or inserting this module to avoid electrical breakdown or processor fault states.

Q: Can the single Ethernet port handle monitoring diagnostics and runtime control data concurrently? A: Yes. The 10/100 Mbps RJ45 interface handles both simultaneous Modbus TCP/IP Client/Server process communication and configuration polling from engineering software utilities on the same subnetwork.

Q: How is the mapping layout protected against volatilization during a total power disruption? A: All register configurations, command lists, and communication metrics are written directly to internal non-volatile flash memory, allowing automated state recovery upon backplane power restoration.

Field Installation Guidelines

Backplane Insertion Constraints: Ensure the rack power supply is completely switched off. Align the integrated side guides of the module with the adjacent 1769 module slots and lock the bus levers to establish solid mechanical and electrical continuity.
Shielding and Grounding Standards: Use standard Category 5e or higher shielded twisted-pair (STP) lines for the Ethernet network. Ensure the shield terminates at the network switch infrastructure to isolate internal communication traces from external electromagnetic coupling.
IP Configuration Routines: Allocate a static IP address to the module matching the plant subnet. Avoid DHCP address schemes for runtime controllers to ensure reliable connectivity with downstream Modbus servers.
