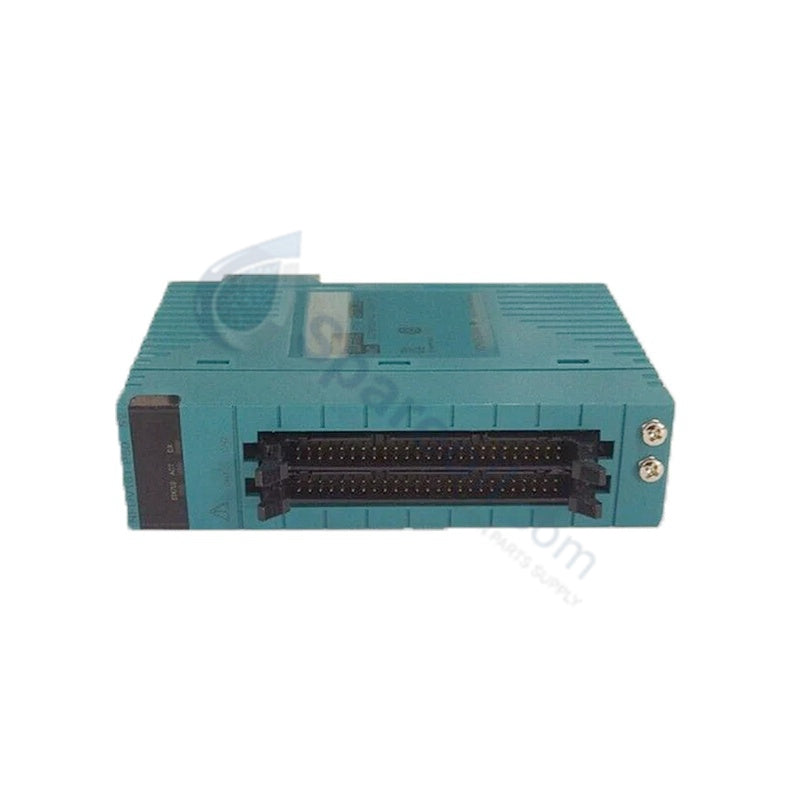

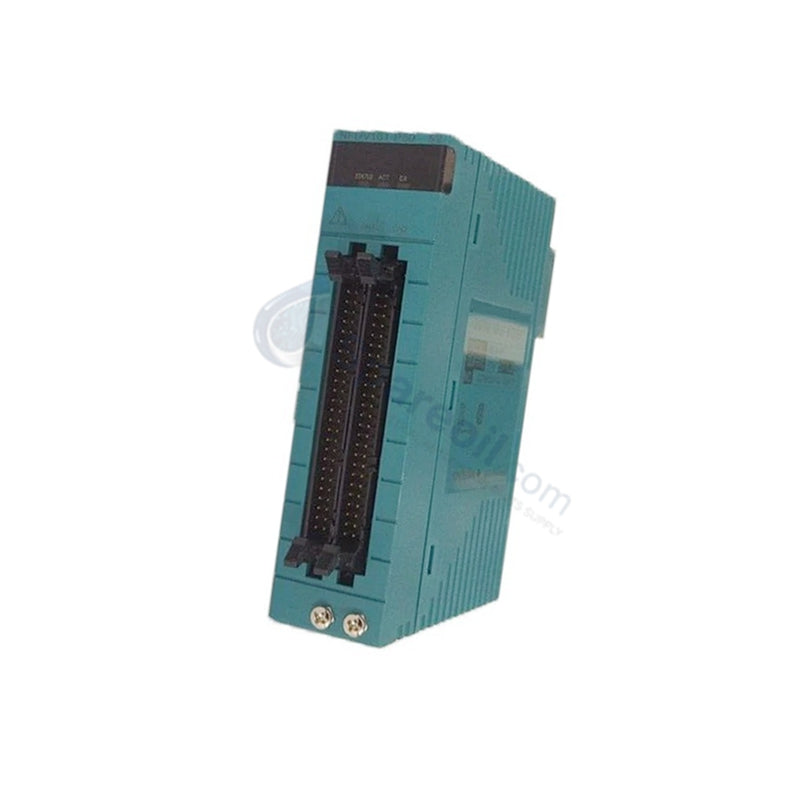

Yokogawa NFAI543 Analog Input Module

Configured for high-accuracy signal acquisition in CENTUM VP Field I/O systems, the Yokogawa NFAI543-S50, also cataloged as the NFAI543 Analog Input Module, provides direct physical/electrical execution. Operating within node units such as ANB10D or ANR10D over ESB and ER bus networks, this unit converts 16 channels of 4-20 mA DC field transmitter signals into 16-bit digital values. The module executes high-density analog monitoring while maintaining total system isolation and signal integrity across process automation loops.

Hardware Specifications

Parameter Specification
Model NFAI543-S50
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions 25 mm x 120 mm x 130 mm
Operating Temp 0 to +55 deg C
Power Consumption 24 V DC backplane supply
Input Channels 16 isolated channels
Signal Type 4-20 mA DC
Input Resistance 250 Ohm
Accuracy +/-0.1% of span
Resolution 16-bit A/D conversion
Update Period 100 ms per channel
Isolation Channel-to-channel and channel-to-system galvanic isolation
Environmental Protection ISA Standard G3 conformal coating compliant
System Compatibility Yokogawa CENTUM VP FIO subsystem via ESB/ER bus

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The NFAI543 utilizes internal galvanic isolation barriers to decouple field wiring loop dynamics from the local system backplane bus. By establishing galvanic channel-to-channel and channel-to-ground separation, the module eliminates ground loop interference and prevents common-mode high-voltage transients from spreading across adjacent input paths. This isolation profile permits transparent 4-20 mA signal conversion while preserving digital HART loop protocol overlays, allowing diagnostic communication and device parameterization data to pass to maintenance workstations without signal corruption.

Frequently Asked Questions

Q: Can the NFAI543 module be inserted into an active FIO baseplate without turning off system power?

A: Yes, the module supports hot-swap functionality within Yokogawa FIO node units, allowing live physical replacement while adjacent modules and system bus communication remain fully operational.

Q: How does the 250 Ohm internal input resistance affect loop voltage calculations?

A: The 250 Ohm internal precision resistor drops 1 to 5 V DC across the 4-20 mA loop, so field transmitters must maintain sufficient terminal voltage to drive this resistance alongside field wiring impedance.

Q: What onboard diagnostic responses occur if an open-circuit fault develops on a field input channel?

A: The module executes self-check routines that detect input wire breaks or out-of-range signal drops below 3.8 mA, driving a channel fault flag to the system software while setting the corresponding status LED on the front panel.

Field Installation Guidelines

When installing the Yokogawa NFAI543 module in control cabinets, field engineers must adhere to the following steps:

  1. Discharge static electricity by wearing a grounded wrist strap before handling the card or removing it from its protective anti-static packaging.
  2. Align the module edge connector with the target slot on the FIO rack unit (ANB10D, ANB10S, or ANR10D) and push firmly until the top and bottom mounting latches click into place.
  3. Connect field transmitter wiring to the matching terminal block, ensuring shielded twisted-pair cables are used for all 4-20 mA signal runs.
  4. Ground the overall cable shield at a single cabinet earth point on the field termination assembly to avoid ground loops.
  5. Maintain dedicated wire ducting to keep low-voltage 4-20 mA signal lines physically separated from high-voltage AC lines and switching motor drives by a distance of at least 300 mm.
