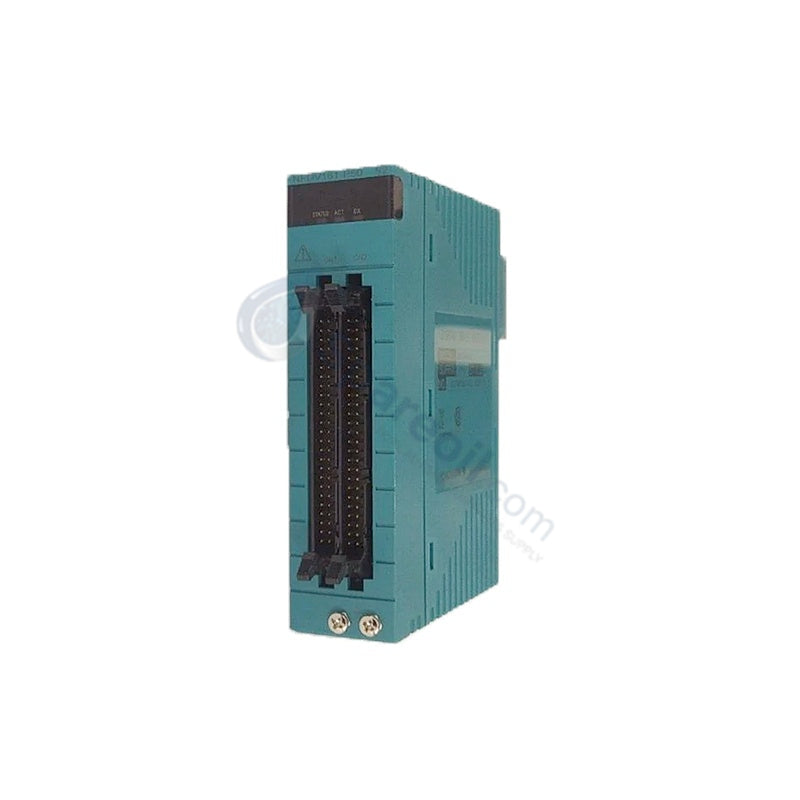

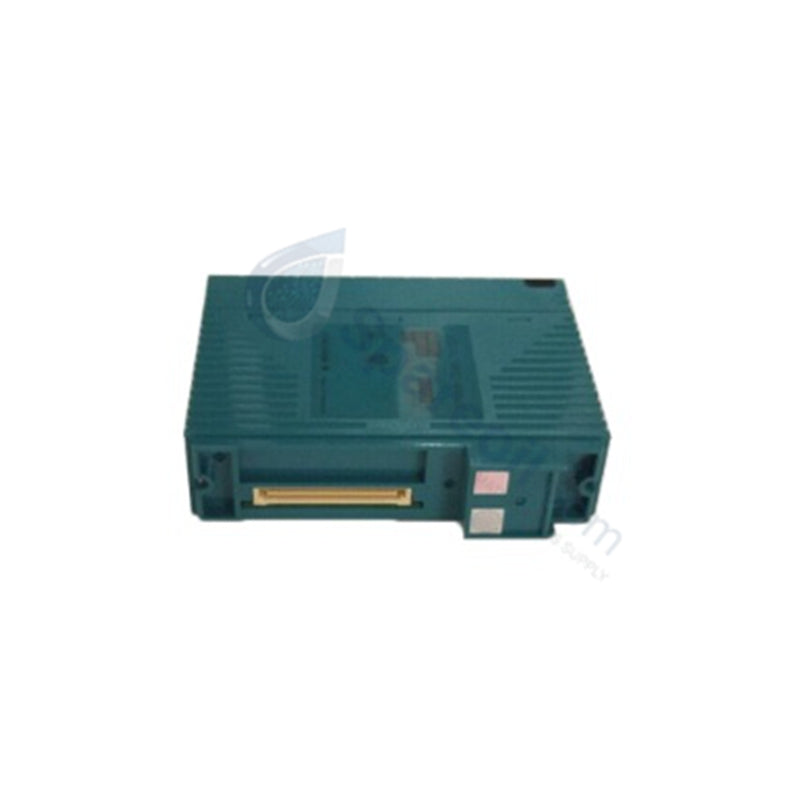

Configured for discrete field device control in CENTUM VP control systems, the Yokogawa NFDR541-T, also cataloged as the NFDR541 Relay Output Module, provides direct physical/electrical execution.
The base module architecture supports specific options designated by suffix codes:
| Parameter | Specification |
|---|---|
| Model | NFDR541-T / NFDR541-P00 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.3 kg |
| Dimensions | 32.0 mm x 127.0 mm x 127.0 mm |
| Operating Temp | -10 to +55 deg C |
| Power Consumption | 780 mA at 5 VDC maximum |
| Output Channels | 16 relay contact outputs |
| Rated Voltage Range | 24 to 125 VDC / 100 to 240 VAC (50/60 Hz) |
| Output Response Time | 12 ms maximum |
| Fallback Modes | HOLD, OFF, NO |
| Withstanding Voltage (Output-to-System) | 2000 VAC for 1 minute |
| Withstanding Voltage (Between Commons) | 1350 VAC for 1 minute (groups of 8 channels) |
The module incorporates channel-to-channel isolation parameters to isolate plant field transients from system backplane communication paths. Digital control signals from the main controller pass through isolated driver circuits before driving the switching coils. Grouped isolation partitions (8 channels per group) isolate adjacent signal banks up to 1350 VAC dielectric strain. Standard cold junction compensation (CJC) logic does not apply to this contact actuation topology; however, internal suppressed relay coils prevent voltage spikes from entering the power bus during inductive load de-energization.
Q: How does the module handle backplane communication failure?
A: During a loss of system communication, the module executes its pre-configured hardware fallback state. Field technicians set the fallback response via system software to maintain current output states (HOLD), force all output relays to open (OFF), or ignore fallback triggers (NO).
Q: What are the dielectric isolation thresholds during field surges?
A: The internal switching array withstands 2000 VAC for 1 minute between output circuitry and system logic, while adjacent channel commons (grouped in sets of 8) sustain 1350 VAC for 1 minute without dielectric breakdown.
Mounting technicians must secure the module into the designated node interface slot within the subrack assembly. Ensure power to the node base plate remains switched off before module insertion to avoid edge connector arc damage.
Terminate external relay wiring using the integrated pressure clamp terminals. Run AC control wiring in separate wire channels away from low-level DC analog signals to prevent electro-magnetic coupling. For inductive loads such as solenoid valves, installers should connect external flyback diodes across DC loads or RC snubbers across AC loads directly at the field element to maximize relay contact life. Ground the subrack chassis directly to the plant grounding bus with a low-impedance copper conductor.
