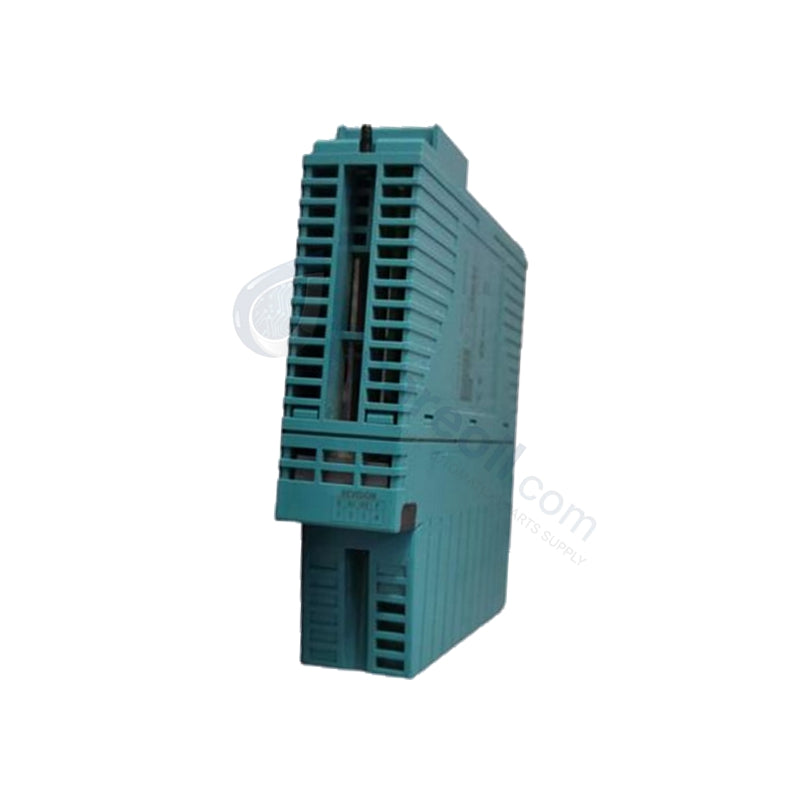

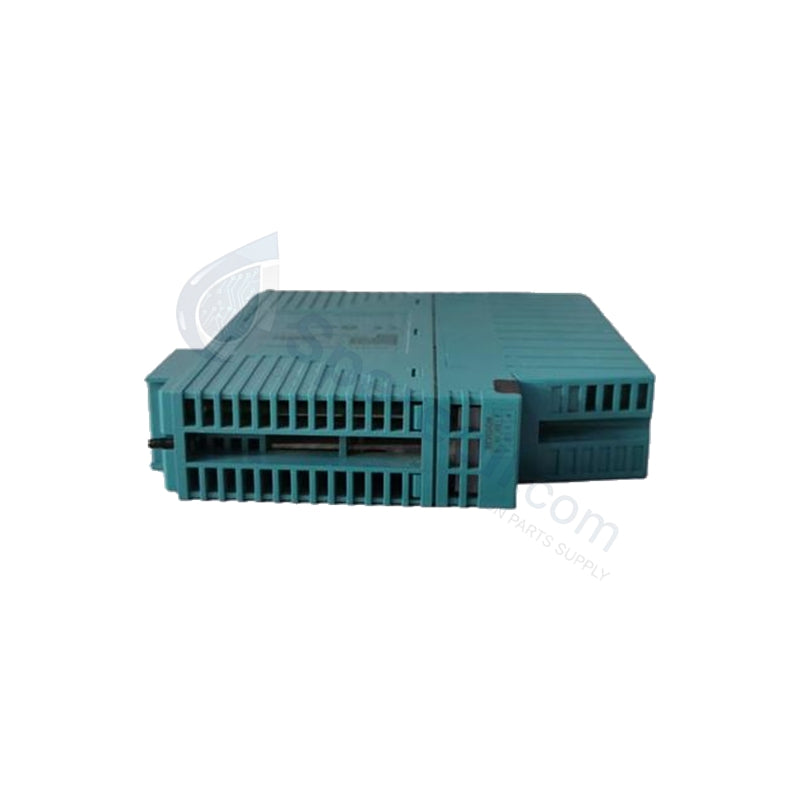

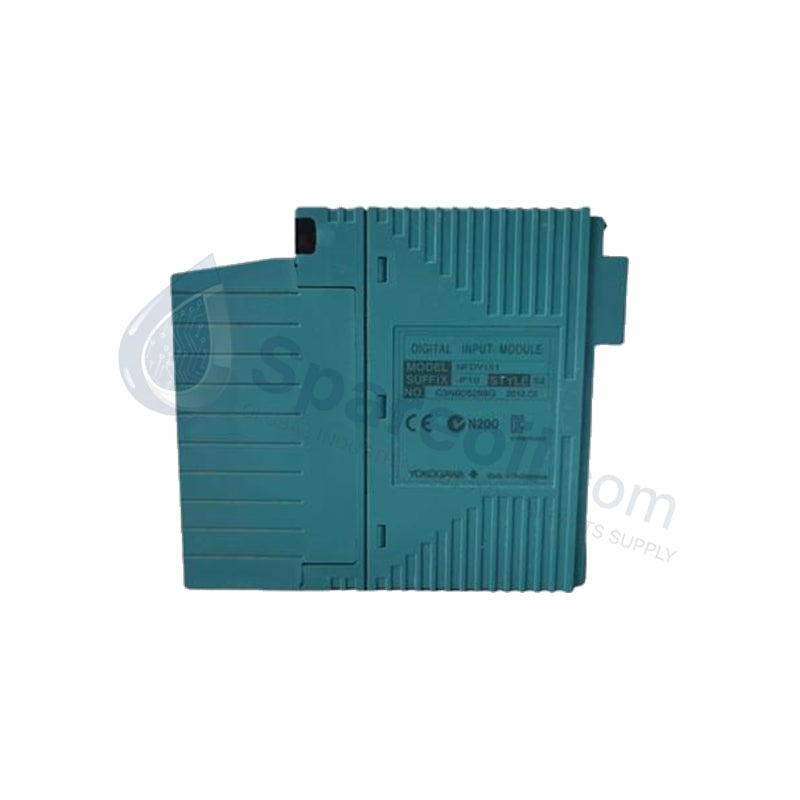

Yokogawa NFDV151-P10 STARDOM FCN Subsystem

Configured for real-time state verification in FCN autonomous controllers, the Yokogawa NFDV151-P10 (NFDV151 Digital Input Module) provides direct physical/electrical execution. This 32-channel isolated hardware component samples status conditions from field switches, proximity sensors, and pushbuttons across a software-defined logic plane.

Suffix Breakdown & Model Matrix

Suffix / Identifier Code Description
Base Model NFDV151 Isolated Digital Input Module
Option Suffix -P10 Standard hardware variant equipped with localized LED diagnostics
Revision Code Style S2 Upgraded hardware physical layout or electronic trace configuration

Hardware Specifications

Parameter Specification
Model NFDV151-P10 Style S2
Brand Yokogawa
Origin Japan
Weight 0.15 kg (Module only)
Dimensions 2.2 cm x 12.4 cm x 12.6 cm
Operating Temp -20 to +70 deg C
Power Consumption 500 mA maximum at 5 VDC (Logic Power)
Input Channels 32 isolated points (Sink and Source compatible)
Rated Input Voltage 24 VDC
Input Voltage Range 18 to 26.4 VDC
Input OFF Voltage 5.0 VDC or less
Input Current Draw 4.1 mA +-20% per channel
Input Response Time 8 ms or less (Status inputs)
Isolation Voltage 2 kV AC (Input-to-system); 500 VAC (Between 16-channel groups)

4-20 mA HART Loop Protocol & Channel Isolation

This digital input structure operates inside control environments alongside 4-20 mA HART loop protocol instruments. Galvanic isolation circuits provide a 2 kV AC threshold between the active 24 VDC field signal inputs and the internal backplane architecture. Channel group separation isolates the 32 inputs into independent 16-channel blocks with a 500 VAC rating. This layout prevents common-mode voltage spikes and transient ground loop interference from altering neighboring low-level analog or digital communication streams.

Frequently Asked Questions

Q: How does the module differentiate between standard static toggles and transient pushbutton operations?

A: The module incorporates user-configurable digital logic paths. Standard status inputs register within a response threshold of 8 ms or less, while specialized pushbutton mode activates edge-detection logic requiring a minimum ON duration of 20 ms with a maximum processing frequency of 25 Hz.

Q: Can the NFDV151-P10 monitor a mix of sink and source wiring topologies simultaneously?

A: Yes, but only when split across the separate 16-channel common groups. Each isolated group is bound to a dedicated common terminal plane, allowing Group 1 to process current-sinking circuits while Group 2 processes current-sourcing circuits.

Field Installation Guidelines

  • Align the module chassis carefully with the designated slot tracking rails on the FCN baseplate, sliding the assembly inward until the backplane multi-pin connectors lock completely.
  • Keep low-voltage 24 VDC input sensor lines separated from high-power AC lines inside local wireways to eliminate electromagnetic noise coupling.
  • Ground all field cable shields at a centralized marshalling bar, ensuring the shield remains insulated at the remote sensor shell to avoid creating ground loops.
  • Tighten all pressure clamp terminal block connections to manufacturer torque limits to prevent intermittent contact errors under industrial vibration.
