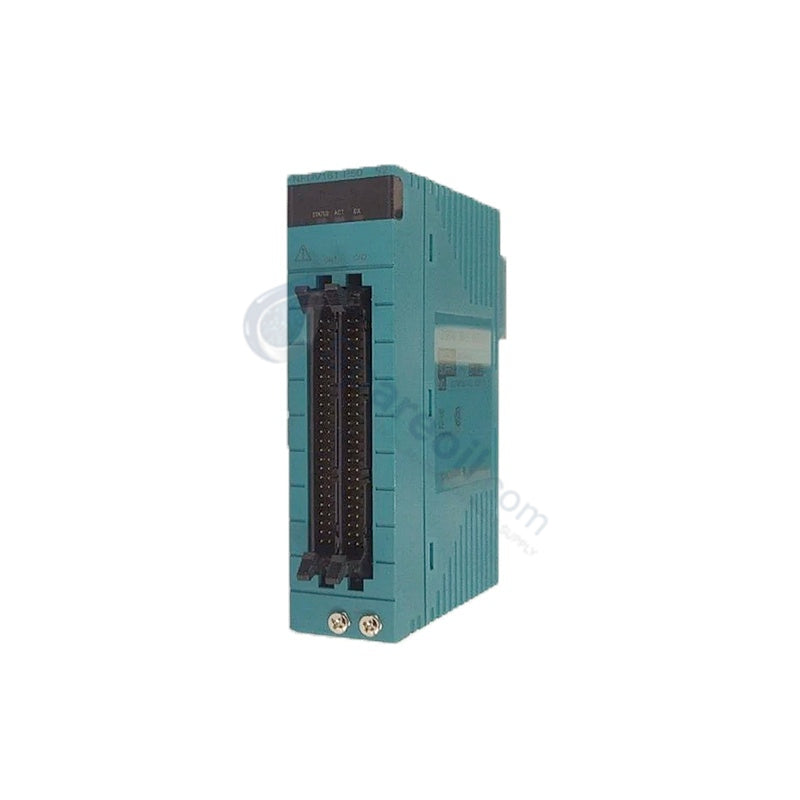

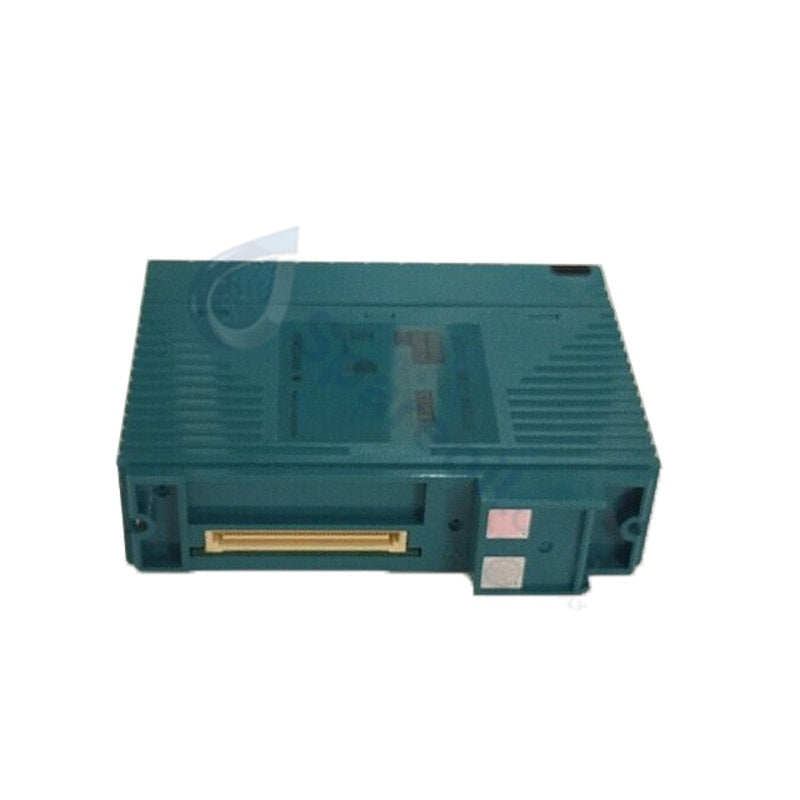

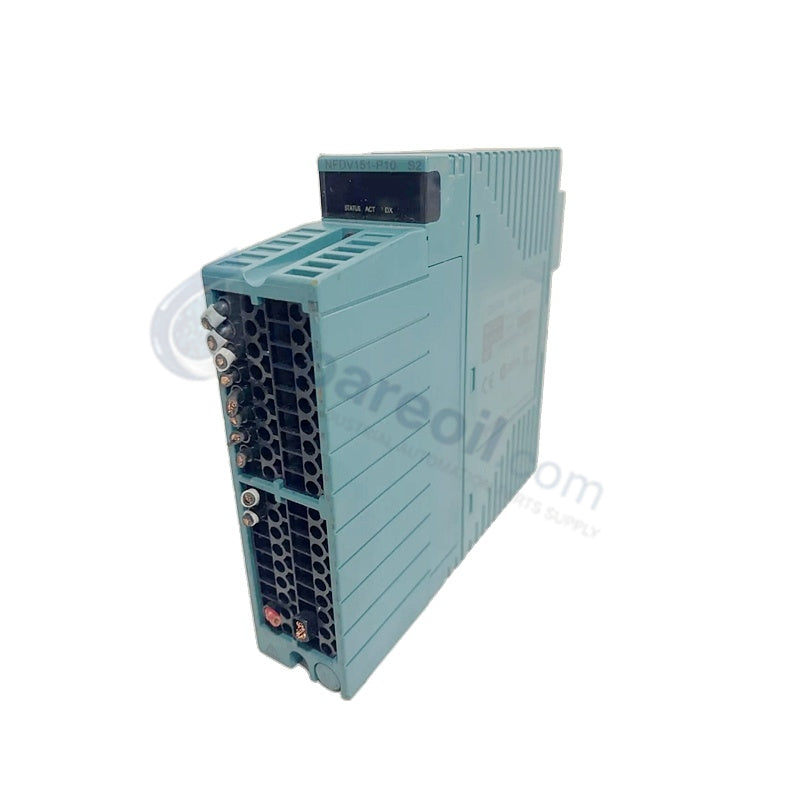

Yokogawa NFDV151-P60/B5S00 Digital Input Module

The Yokogawa NFDV151-P60/B5S00, also cataloged as the NFDV151 Digital Input Module, operates as a dedicated hardware component for 32-channel discrete signal acquisition within STARDOM FCN/FCJ autonomous controller platforms.

Hardware Specifications

Parameter Specification
Model NFDV151-P60/B5S00
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions Standard FCN/FCJ module width
Operating Temp Standard industrial range
Power Consumption 500 mA at 5 VDC max
Number of Channels 32 isolated inputs
Rated Input Voltage 24 VDC
Input ON Voltage 18 to 26.4 VDC
Input OFF Voltage <= 5.0 VDC
Input Current 4.1 mA +-20% per channel at 24 VDC
Instantaneous Max Input Voltage 30.0 VDC
Withstanding Voltage (Input-System) 2000 VAC for 1 min
Withstanding Voltage (Between Commons) 500 VAC for 1 min (per 16-channel group)
Input Response Time <= 8 ms (status input)
Minimum ON Detection Time 20 ms (push button input)
Maximum ON/OFF Cycle 25 Hz (push button input)
External Connection Pressure clamp terminal, MIL connector cable

Channel-to-Channel Isolation & Signal Integrity

The Yokogawa NFDV151-P60/B5S00 features galvanically separated input groups divided into 16-channel commons. Galvanic isolation circuits maintain high isolation ratings, preventing ground loops and transient spikes from penetrating the system backplane bus. With an input-to-system withstand capability rated at 2000 VAC for 1 minute and inter-group isolation rated at 500 VAC for 1 minute, the internal optocouplers safeguard field digital loops. The module processes field signals with a fast status input response time of <= 8 ms while supporting edge-counting functionality for push-button operator detection.

Frequently Asked Questions

Q: How does the module handle field-side isolation across its 32 digital channels?

A: Channel wiring routes through two distinct 16-channel common groups, each providing 500 VAC isolation between commons and 2000 VAC isolation between the input channels and internal system electronics.

Q: What happens if an input channel experiences a temporary overvoltage condition?

A: Each input channel withstands an instantaneous maximum input voltage of up to 30.0 VDC, but sustained continuous operation above 26.4 VDC damages internal optical isolation circuitry.

Q: What connecting options exist for field wiring termination?

A: The module connects to field wiring using direct pressure clamp terminal blocks or multi-conductor cable assemblies terminated with standard MIL connectors.

Field Installation Guidelines

Engineers must follow established field setup procedures when installing the module into an active STARDOM autonomous controller rack:

  1. Turn off backplane power to the STARDOM unit prior to inserting or seating the NFDV151 module into its designated base chassis slot.
  2. Route high-density 24 VDC input wiring separately from AC power lines, high-current drive cables, and relay coil circuits to avoid inductive noise coupling.
  3. Ensure the isolated common connections for each 16-channel group remain strictly separated unless system design explicitly requires a shared potential.
  4. Verify that field wiring connections to pressure clamp terminals or MIL connectors are fully latched before applying 24 VDC external excitation power to the field loops.
