NFDV161-P00 Yokogawa Digital Output Module

NFDV161-P00 Yokogawa Digital Output Module | New & Original Stock

Availability: 99 left in stock

Yokogawa NFDV161-P00 CENTUM VP/CS 3000 FIO Subsystem The Yokogawa NFDV161-P00 serves as the primary NFDV161 Digital Output Module utilized to...

SKU: NFDV161-P00

Manufacturer: Yokogawa
Product No.: NFDV161-P00
Product Type: Digital Output Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa NFDV161-P00 CENTUM VP/CS 3000 FIO Subsystem

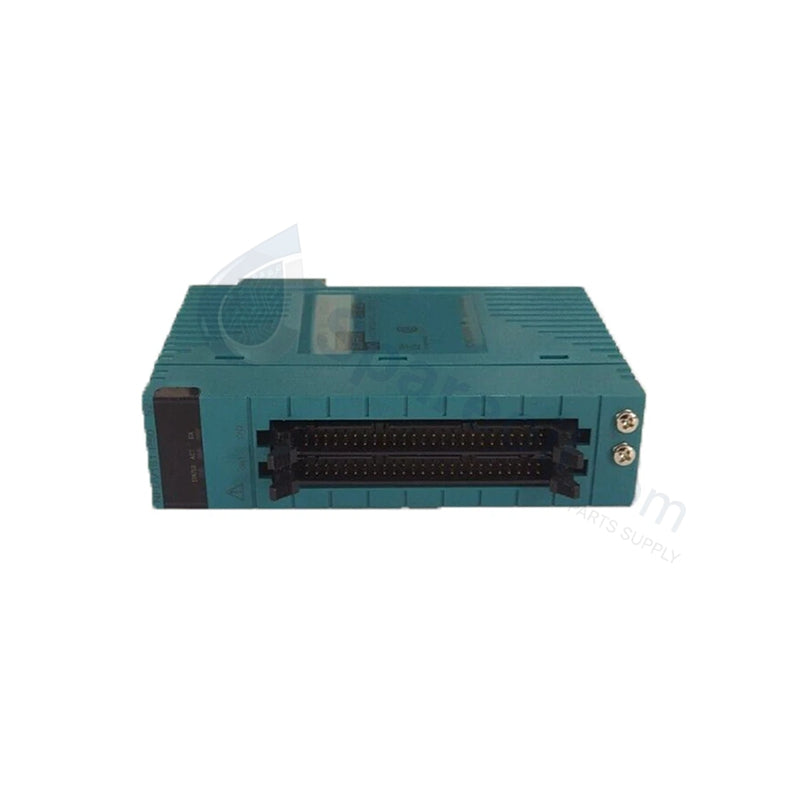

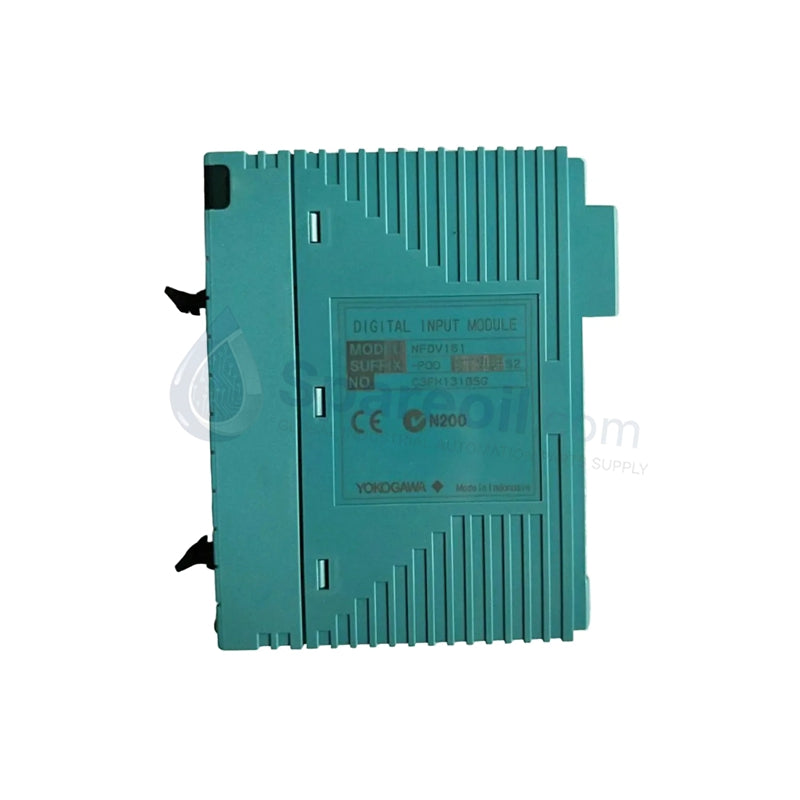

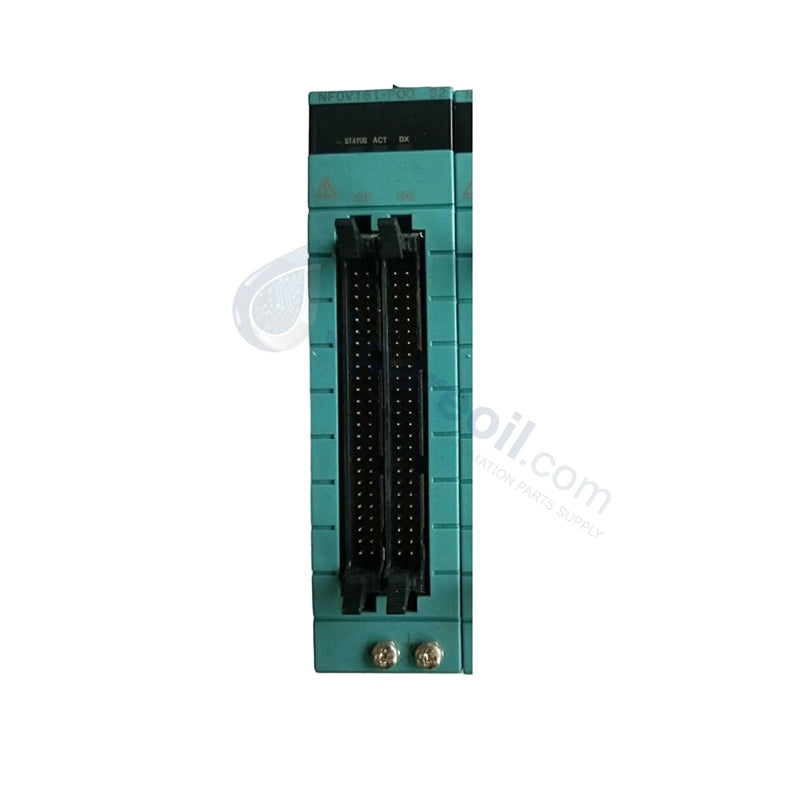

The Yokogawa NFDV161-P00 serves as the primary NFDV161 Digital Output Module utilized to execute discrete signal switching across CENTUM VP / CS 3000 FIO platforms. The hardware distributes 64 independent current-sink transistor output channels designed to modulate external load hardware including solenoids, relays, and status indicators based on backplane command states.

Hardware Specifications

Parameter	Specification
Model	NFDV161-P00
Brand	Yokogawa
Origin	Japan
Weight	0.3 kg
Dimensions	107.5 x 130 x 32.8 mm
Operating Temp	-20 to +70 deg C
Power Consumption	700 mA at 5 VDC (Logic Power); 120 mA at 24 VDC (Field Power)
Output Type	Current-sink transistor output
Channel Capacity	64 digital outputs (divided into 32-channel common groups)
Rated Applied Voltage	24 VDC
Load Voltage Range	20.4 to 26.4 VDC
Maximum Load Current	100 mA per channel at 26.4 VDC
Response Time	3 ms or less
Withstanding Voltage	Output to system: 2000 VAC for 1 minute; Between commons: 500 VAC for 1 minute

4-20 mA HART Loop Protocol & Channel Isolation

This high-density component interfaces with process control systems that route concurrent 4-20 mA HART loop protocol lines. Internal optical components establish an explicit barrier between the field-side electronics and the internal system logic, achieving a 2000 VAC withstanding voltage parameter. Group-to-group isolation provides a 500 VAC limit between individual 32-channel common buses, checking potential ground loop propagation and blocking inductive back-EMF transients from degrading the signal performance of adjacent low-voltage analog instrumentation circuits.

Frequently Asked Questions

Q: What fallback states do the 64 transistor outputs assume upon a communication failure with the Field Control Unit?

A: The internal logic registers support three definitive fallback modes: HOLD (retains the final valid state prior to bus interruption), OFF (forces all 64 channels to open-circuit immediately), or NO (allows independent field conditions to persist without automatic system intervention).

Q: Does the -P00 suffix include localized front-panel LED indicators for channel status monitoring?

A: No. The -P00 suffix denotes the basic high-density configuration which excludes local status displays and explosion-proof containment options, prioritizing standard physical space scaling inside central marshalling cabinets.

Field Installation Guidelines

Insert the module directly into the assigned slot on the FIO baseplate, confirming that the physical retention clips fully lock over the structural tracking elements.
Separate high-density discrete output cables from sensitive analog sensor wiring inside common wire ducts to prevent transient inductive noise coupling.
Install external suppression diodes directly across all external direct current inductive loads to arrest reverse voltage spikes before they contact the transistor interfaces.
Connect the central frame grounding terminal to the local technical plant earth using low-impedance conductors to anchor reference potentials.
