NFPW442-10 Yokogawa ProSafe-RS Datasheet & Technical Manual

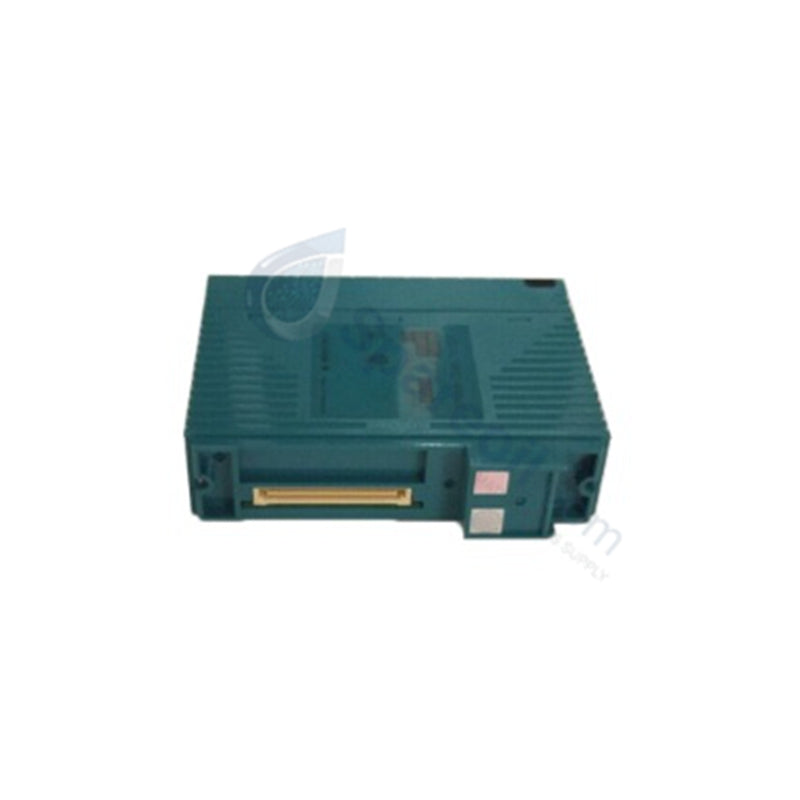

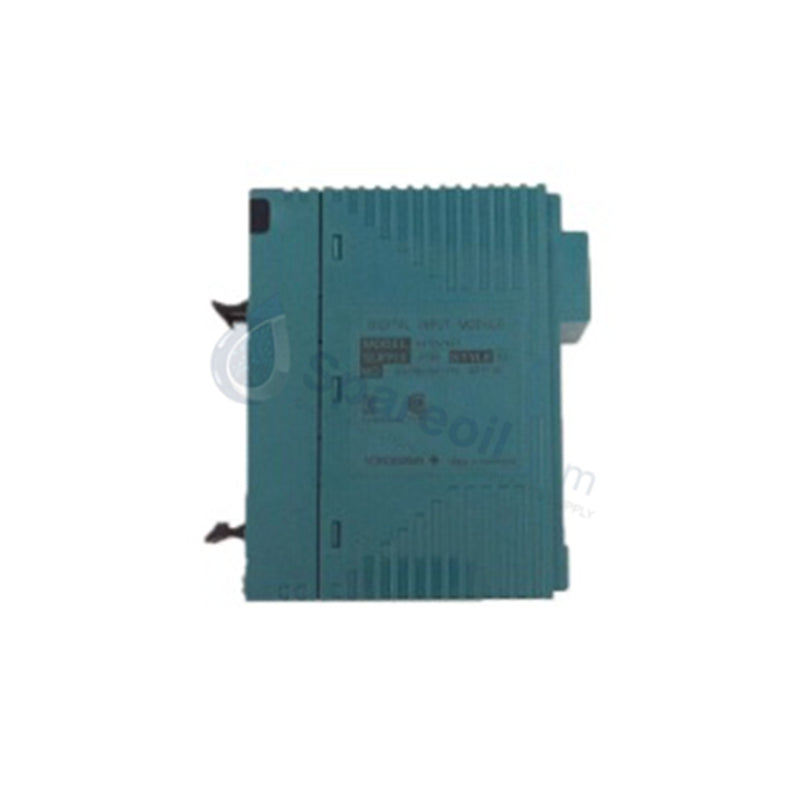

NFPW442-10 Yokogawa ProSafe-RS AC/DC Power Module

NFPW442-10 Yokogawa ProSafe-RS AC/DC Power Module

Availability: 20 left in stock

Yokogawa NFPW442-10 ProSafe-RS Power Supply Module Configured for stable system power conversion in ProSafe-RS Safety Control Stations, the Yokogawa NFPW442-10...

SKU: NFPW 442-10

Manufacturer: Yokogawa
Product No.: NFPW 442-10
Product Type: Power Supply Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa NFPW442-10 ProSafe-RS Power Supply Module

Configured for stable system power conversion in ProSafe-RS Safety Control Stations, the Yokogawa NFPW442-10 (NFPW442 Power Supply Module) provides direct physical/electrical execution. The hardware regulates field and logic power levels to prevent unexpected safety system shut downs during line transients. It delivers steady power distribution directly across the backplane to support safety controllers, logic solvers, and critical subrack I/O channels.

Suffix Breakdown & Model Matrix

Suffix Code	Option Code	Description
-1	-	100-120 V AC Input Voltage Range
-2	-	220-240 V AC Input Voltage Range
0	-	Standard Type Without Explosion Protection
-	/C3GB	Conformal Coating for Harsh Environments

Hardware Specifications

Parameter	Specification
Model	NFPW442-10
Brand	Yokogawa
Origin	Japan
Weight	0.4 kg
Dimensions	88 x 50 x 63 mm
Operating Temp	-20 to +60 deg C
Power Consumption	96 W Output Power Max
Input Voltage Range	100-120 V AC, 50/60 Hz
Output Voltage	24 V DC regulated
Output Current	4 A max
Efficiency	>= 85% typical
Ripple & Noise	<= 50 mV RMS
Isolation	Galvanic isolation between input, output, and frame ground
Redundancy Support	Dual-redundant parallel operation supported
Diagnostic Indicators	Front panel LEDs + backplane fault signal output

Channel Isolation and Galvanic Signal Integrity

The Yokogawa NFPW442-10 incorporates industrial galvanic isolation between the AC primary line circuits and the regulated 24 V DC secondary output buses. This isolation barrier prevents ground loops, common-mode noise propagation, and high-voltage field spikes from reaching sensitive logic components within the ProSafe-RS subrack. When deployed in dual-redundant configurations, integrated decoupling circuitry isolates individual power supply failures from the shared 24 V DC power bus, ensuring continuous controller operation without backfeeding fault currents into parallel units.

Frequently Asked Questions

Q: Can the NFPW442-10 module be hot-swapped while the ProSafe-RS system is powered?

A: Yes. When installed in a dual-redundant power configuration, a failed NFPW442-10 module can be extracted and replaced while the online supply maintains the 24 V DC subrack load without interrupting active safety logic execution.

Q: How does the power supply communicate operational faults to the control system?

A: The module features front-panel diagnostic LEDs for local power and fault status checks. Internal fault monitoring circuitry reports hardware overvoltage, overcurrent, and thermal alarm states across the dedicated backplane lines to trigger system alarms in the SCS controller interface.

Field Installation Guidelines

Ensure the subrack power bus slot is free of dust and debris before sliding the module into the subrack guide rails.
Push the module firmly into the chassis until the rear connector seats completely into the backplane, then hand-tighten the top and bottom retaining screws to secure the unit and establish frame grounding.
Terminate primary AC field wiring using insulated ferrules on the dedicated subrack terminal block, verifying correct line, neutral, and protective earth earth wiring polarity before applying power.
Verify field cable shielding terminates at the cabinet main earth bar, maintaining proper ground separation to minimize high-frequency electromagnetic interference.
