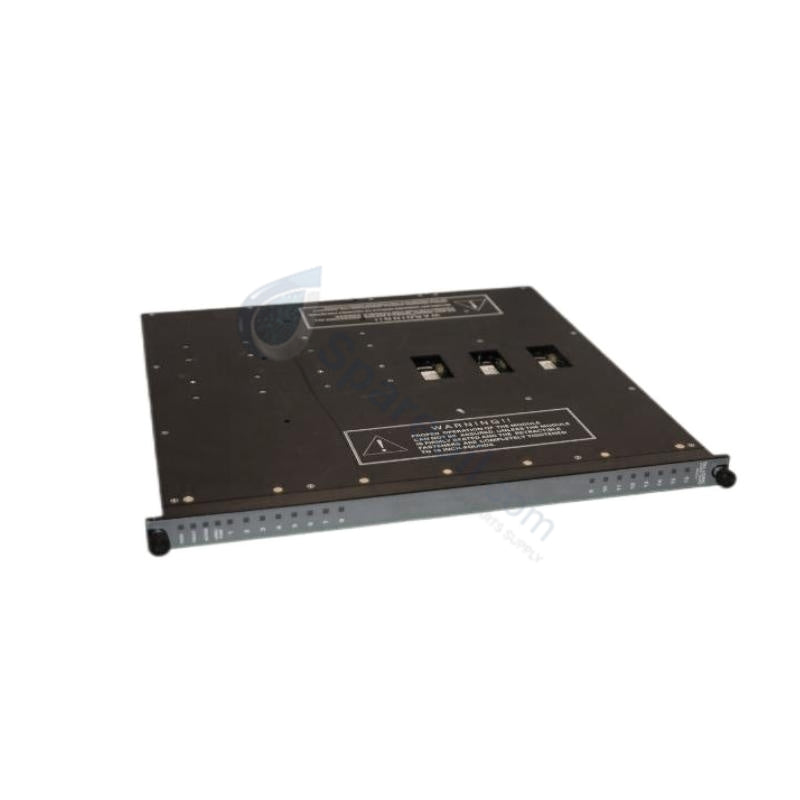

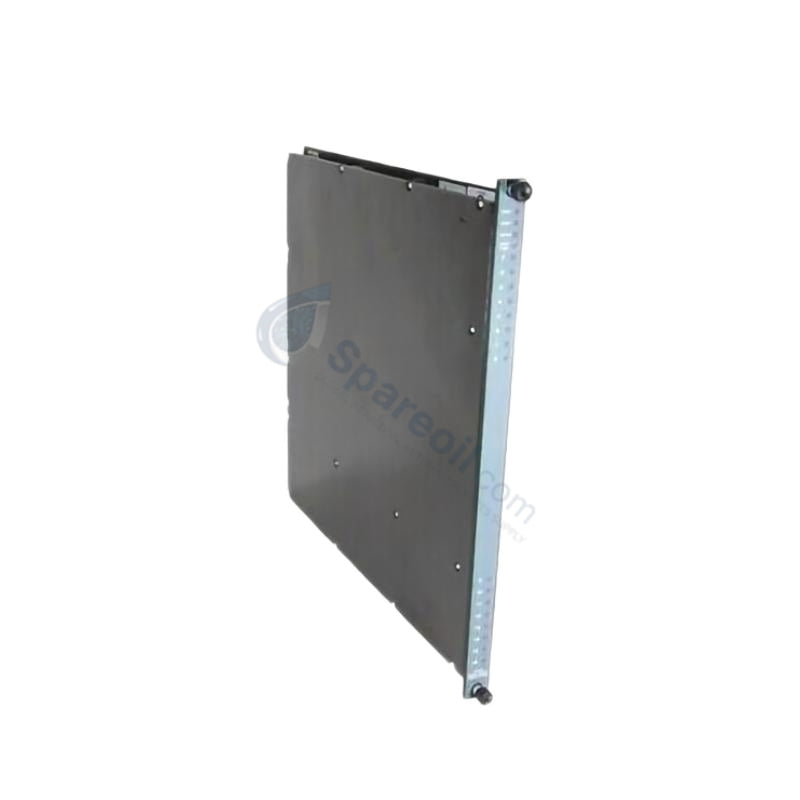

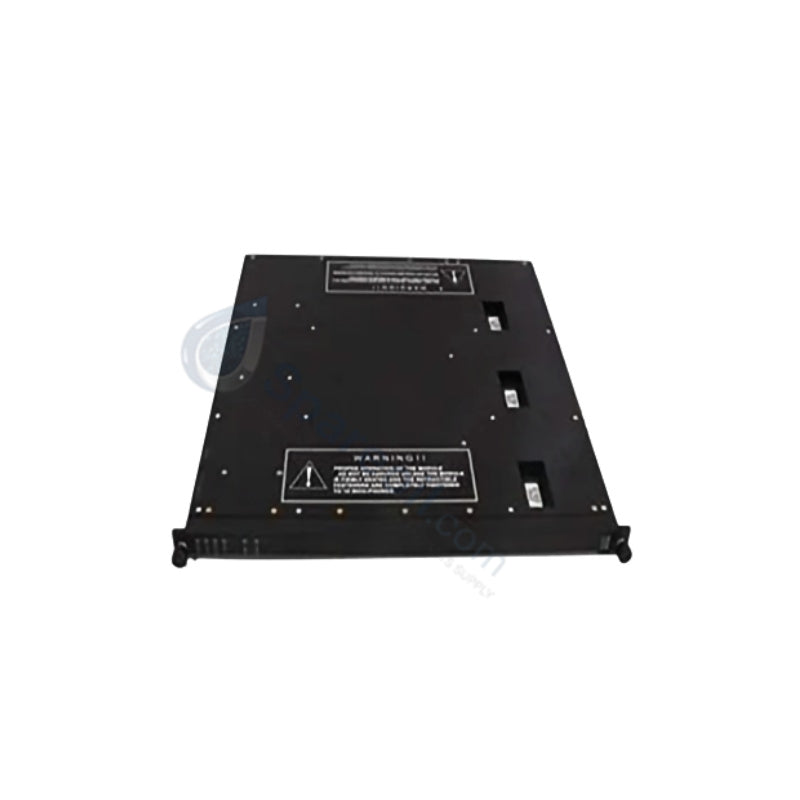

TRICONEX 3601E Digital Output Module

The TRICONEX 3601E, also cataloged as the TRICONEX 3601E Digital Output Module, operates as a dedicated hardware component for driving field devices with safe, redundant digital signals within safety-critical industrial loops. The module transforms digital processing logic into physical switching states to manipulate field actuators. It serves to regulate power distribution across discrete electrical loads under high-voltage configurations.

Hardware Specifications

Parameter	Specification
Model	3601E
Brand	TRICONEX (Schneider Electric)
Origin	United States
Weight	1.5 kg (Data variation: 7.85 lbs total module envelope specified in alternative logistics records)
Dimensions	177.8 mm x 101.6 mm x 228.6 mm (Secondary variant data: 190 mm x 100 mm x 50 mm packaging layout)
Operating Temp	-20 deg C to +60 deg C
Power Consumption	8 W typical internal logic draw (Note: Discrepancies in raw inputs list 6 W baseline metrics for low-voltage chassis logic)
Output Channels	16 opto-isolated, non-commoned digital outputs
Signal Type	115 VAC nominal digital output points
Voltage Range	80-155 VAC operational band
Frequency Range	47-63 Hz
Visual Indicators	Green color code identification panel
Safety Certification	IEC 61508 SIL3, IEC 61511, TÜV, UL Class I Div 2, ATEX Zone 2

Triple Modular Redundancy & Opto-Isolated Non-Commoned Safety Control

Designed for high-voltage emergency isolation loops, the module utilizes a Triple Modular Redundancy (TMR) architecture with integrated 2oo3 switching logic. The hardware maintains three completely separate logic legs that vote on the final commanded output state before changing circuit conduction. Each of the 16 output circuits is fully non-commoned and independent, using optical isolation arrays to completely separate individual channel tracks. This prevents external 115 VAC field faults or short circuits from migrating across adjacent channels or disrupting the internal TriBus backplane data logic. If an optical transceiver component encounters a fault, the internal diagnostics automatically flags the failure while the remaining redundant branches maintain loop operation.

Frequently Asked Questions

Q: What are the primary electrical requirements when connecting non-commoned outputs to diverse field devices?

A: Because the 16 output channels are completely non-commoned, each loop requires its own independent hot supply connection. This arrangement lets engineers mix different 115 VAC power sources on a single module without creating external electrical cross-connections or compromising the galvanic isolation boundaries between channels.

Q: How do the internal voter diagnostics handle phase shifts or frequency deviations in the 115 VAC field power supply?

A: The module is designed to handle frequency variations within a 47-63 Hz window. Internal monitoring systems check the voltage and frequency states against the safe operating configuration. If an external power supply drifts past these parameters, the channel diagnostics trip a fault flag without dropping the other healthy AC loops on the module.

Field Installation Guidelines

Independent AC Loop Wiring: Connect separate hot and neutral return lines for each field load across the termination block. Avoid bridging neutral terminals together to maintain the non-commoned safety profile.
High-Voltage Signal Segregation: Route all 115 VAC field output wires through dedicated wiring trays separated from low-voltage DC input or analog sensor lines to prevent electromagnetic coupling.
Redundant Hot-Swap Execution: Before extracting a faulted module, verify that the green slot indicator on the active companion unit is illuminated. Slide the module cleanly out along the chassis rails to avoid transient arcs on the backplane connectors.
Enclosure Cooling Management: Ensure the cabinet layout provides adequate airflow to keep temperatures within the -20 deg C to +60 deg C range, protecting the internal opto-isolation circuitry from thermal degradation.
