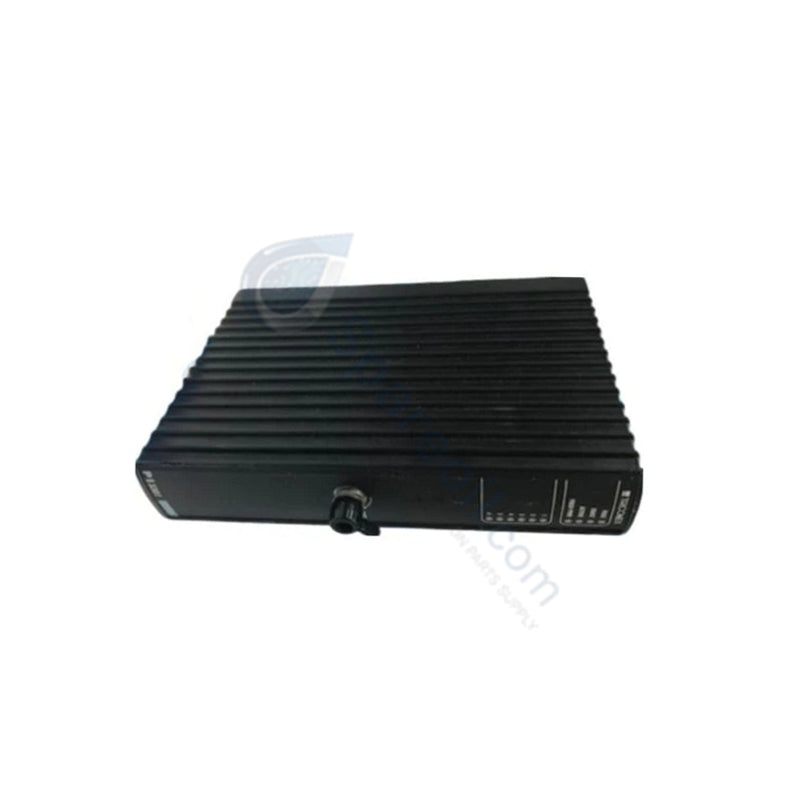

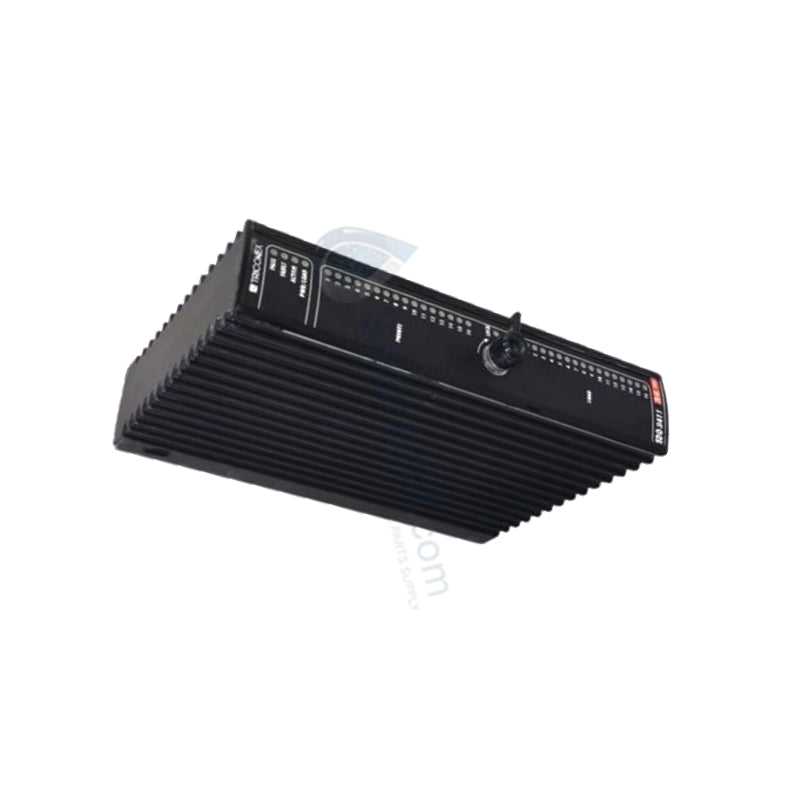

PI3381 Triconex Automate Pulse Input Module

PI3381 Triconex Automate Pulse Input Module

Availability: 10 left in stock

Triconex PI3381 Pulse Input Module Configured for fault-tolerant frequency processing in Triconex safety instrumented networks, the Triconex PI3381 (PI3381 Pulse...

SKU: PI3381

Manufacturer: Triconex
Product No.: PI3381
Product Type: Pulse Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

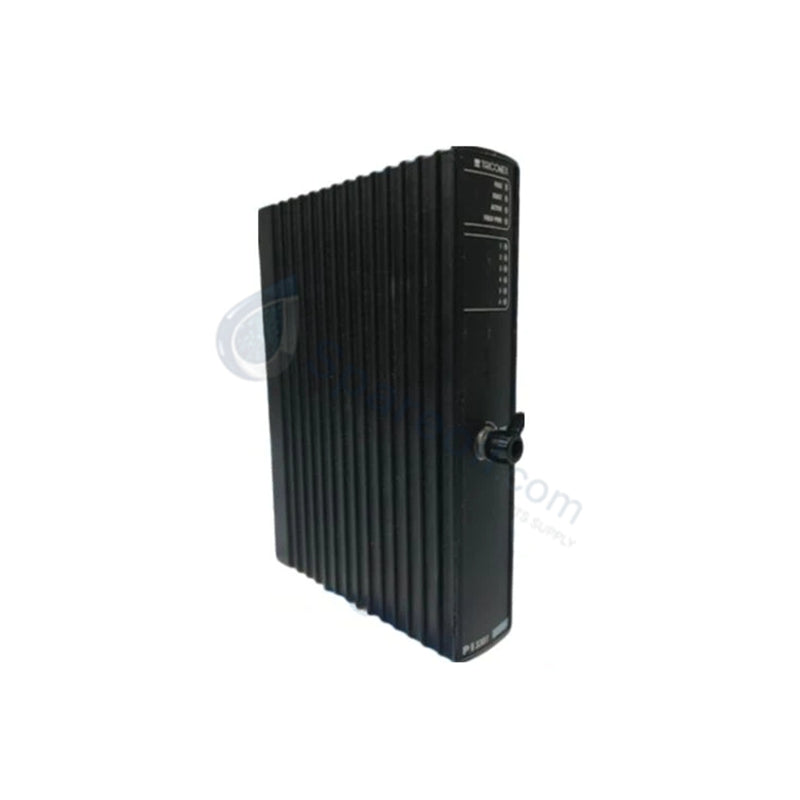

Triconex PI3381 Pulse Input Module

Configured for fault-tolerant frequency processing in Triconex safety instrumented networks, the Triconex PI3381 (PI3381 Pulse Input Module) provides direct physical/electrical execution. The module conditions voltage transitions originating from external magnetic pickups, active sensors, or open-collector circuits across 6 isolated input channels. Operating within an input frequency band spanning 0.5 Hz to 32 kHz, the internal hardware converts raw incoming pulses into digital velocity and rate records, outputting 24-bit resolution metrics directly to the centralized controller backplane.

Hardware Specifications

Parameter	Specification
Model	PI3381 (3381 variant)
Brand	Triconex
Origin	United States
Weight	0.5 kg
Dimensions	2.2 x 12.4 x 12.6 cm
Operating Temp	-40 to +70 deg C
Power Consumption	24 VDC nominal loop distribution
Input Channels	6 isolated input channels sharing common ground
Frequency Range	0.5 Hz - 32 kHz
Resolution	24 bits
Measurement Accuracy	+/- 0.01% at 2000 - 32000 Hz / +/- 0.1% at 0.5 - 2000 Hz
Maximum Input Voltage	+/- 33 VDC maximum
Isolation Barrier	500 VDC functional-to-protective earth / 800 VDC functional-to-functional
Safety Certification	IEC 61508 SIL 3, TÜV certified

Triple Modular Redundancy (TMR) 2oo3 Architecture

The hardware utilizes three fully isolated sensor processing paths running a triple modular redundancy (TMR) 2oo3 architecture to secure continuous data availability. Incoming pulse transitions travel to each distinct sub-circuit where a mid-value selection algorithm identifies and isolates measurement anomalies before voting. Integrated diagnostic circuits execute concurrent checks to trace field signal loss, open-circuit variations, and channel degradation, ensuring the execution of a fail-safe state under overspeed conditions.

Frequently Asked Questions

Q: What minimum voltage levels are required by the PI3381 input circuits to trigger a valid pulse event?

A: For differential configurations, the circuit requires a minimum input voltage of 500 mV P-P within the 2 to 32000 Hz frequency range, increasing to 1 V P-P from 0.5 to 2 Hz. For single-ended configurations, requirements stand at 1 V P-P for 2 to 32000 Hz and 2 V P-P for 0.5 to 2 Hz.

Q: How does the live online replacement or hot-swapping sequence affect active sensor processing loops?

A: The slot configuration permits live hot-swapping without disabling the primary safety rack or stopping system loops. Insertion of the replacement module invokes a brief startup routine where the module downloads operational registers, synchronizes its firmware flash image, and begins contributing valid voted velocity data alongside the redundant pairs.

Q: What parameters control the acceleration measurement boundaries of the module input channels?

A: The input registers handle maximum signal changes up to a slew rate of 4000 Hz/sec or 4000 RPM/sec assuming a standard 60-gear-tooth input configuration. The module supports adjustable gear profiles ranging from 1 to 255 teeth per revolution.

Field Installation Guidelines

Insert the module into the active chassis guide rails, locking the module faceplate screws securely to preserve backplane connection alignment.
Route magnetic pickup and active sensor signal cables through distinct, grounded steel conduit runs separated from high-voltage motor or actuator lines.
Terminate signal shields at the dedicated chassis earth reference point to block electromagnetic interference from corrupting the 24-bit digital pulse samples.
Verify that signal pulse widths match the minimum required duty cycle window of 20-80% or stay greater than or equal to 10 microseconds.
Inspect the surrounding enclosure panels regularly to verify that natural convection cooling maintains environmental temperatures below the 70 deg C ceiling limit.
