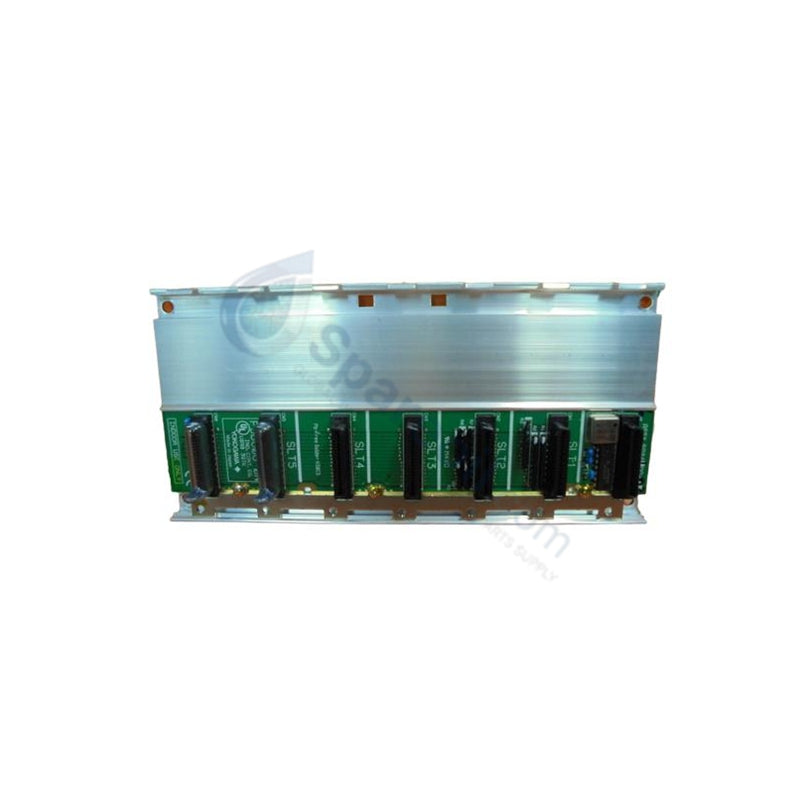

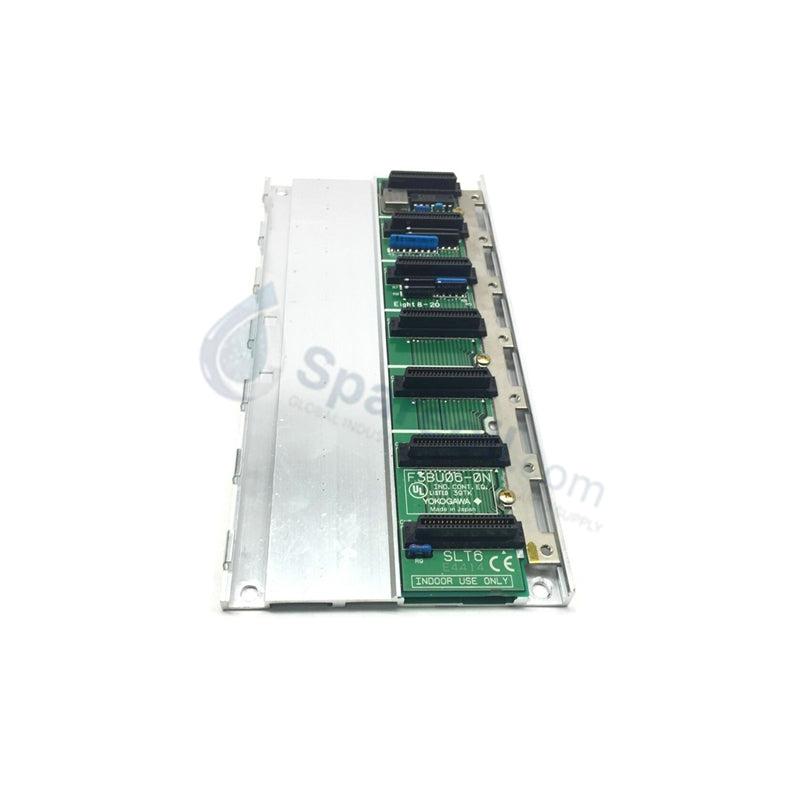

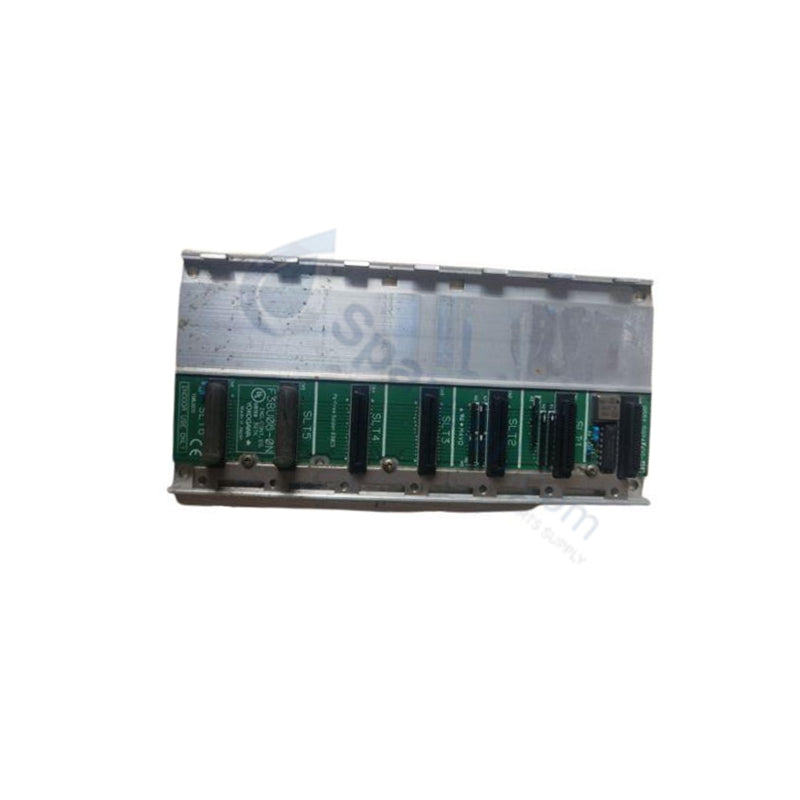

Yokogawa F3BU06-0N FA-M3 Base Module

The Yokogawa F3BU06-0N, also cataloged as the F3BU06-0N Base Module, operates as a dedicated hardware component for backplane power routing and inter-module bus communication within Yokogawa FA-M3 PLC networks. It anchors the physical backplane assembly to distribute DC operating power and facilitate high-speed data exchanges across CPU and expansion modules.

Suffix Breakdown & Model Matrix

  • F3BU06: Base module chassis platform providing 6 module slots (excluding dedicated power supply position)
  • -0: Standard structural chassis specification without auxiliary interface options
  • N: Standard industrial hardware revision level

Hardware Specifications

Parameter Specification
Model F3BU06-0N
Brand Yokogawa
Origin Japan
Weight 0.21 kg
Dimensions 20.3 cm x 2.5 cm x 10.2 cm
Operating Temp 0 deg C to +55 deg C
Power Consumption 50 mA at 5 VDC (backplane bus load)
System Platform FA-M3 Range PLC / Machine Control
Total Slot Capacity 6 slots (excluding power supply slot)
Usable I/O Slots 5 slots (with 1 CPU module installed)
Storage Temp -20 deg C to +75 deg C
Vibration Resistance 10 Hz to 55 Hz, 0.35 mm amplitude
Enclosure Rating IP20 (intended for cabinet mounting)
Mounting Format Panel mounting via M4 screws or standard DIN rail

4-20 mA HART Loop and Channel-to-Channel Isolation Characteristics

The F3BU06-0N backplane architecture maintains signal integrity across attached analog and fieldbus modules. While routing low-level signals from analog input cards, the backplane traces isolate field noise to preserve 4-20 mA HART loop protocol integrity. Built-in bus isolation channels prevent field-side voltage spikes from penetrating the main backplane bus, maintaining channel-to-channel isolation parameters across installed I/O cards.

Frequently Asked Questions

Q: How many functional I/O cards can an engineer fit into the F3BU06-0N chassis alongside a standard CPU?

A: The chassis contains 6 total slots excluding the power supply position; installing a standard single-slot CPU leaves 5 slots available for I/O modules.

Q: What is the primary cause of backplane bus communication errors during startup?

A: Technicians usually trace early startup errors to bent connector pins or improperly seated modules, as these break the backplane continuity circuits.

Q: Can an engineer hot-swap expansion modules on the F3BU06-0N while the system operates?

A: No, field crews must completely de-energize the main power supply before pulling or inserting modules to prevent backplane bus transients and hardware damage.

Field Installation Guidelines

Technicians must mount the F3BU06-0N vertically inside a protective enclosure to maintain proper convection airflow across all installed modules. Secure the module frame to the cabinet backplate using M4 screws through the designated 5 mm mounting holes, or lock it firmly onto a grounded DIN rail. Ensure that the total current draw of all connected modules remains strictly within the output ratings of the primary power supply. Route signal and field wiring far away from high-voltage motor cables to avoid inductive interference, and ground the cabinet backplate directly to the main system earth bar using a heavy copper strap.
