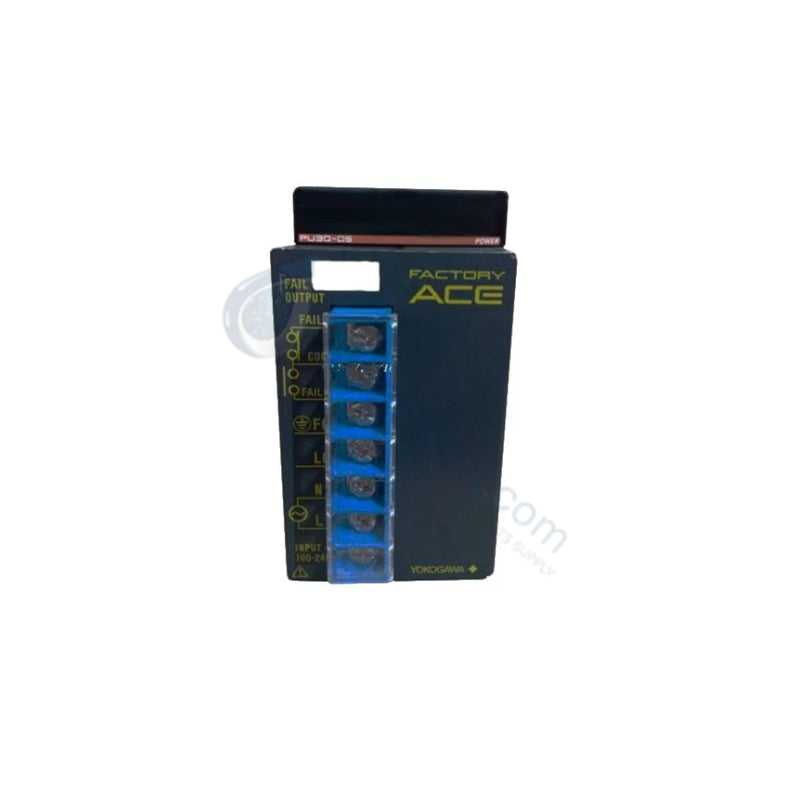

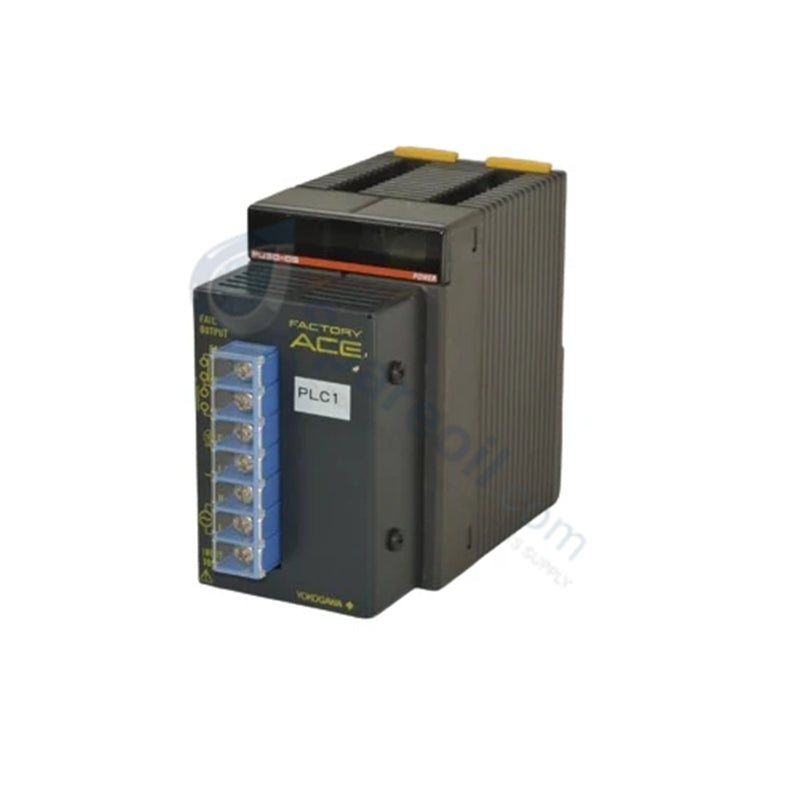

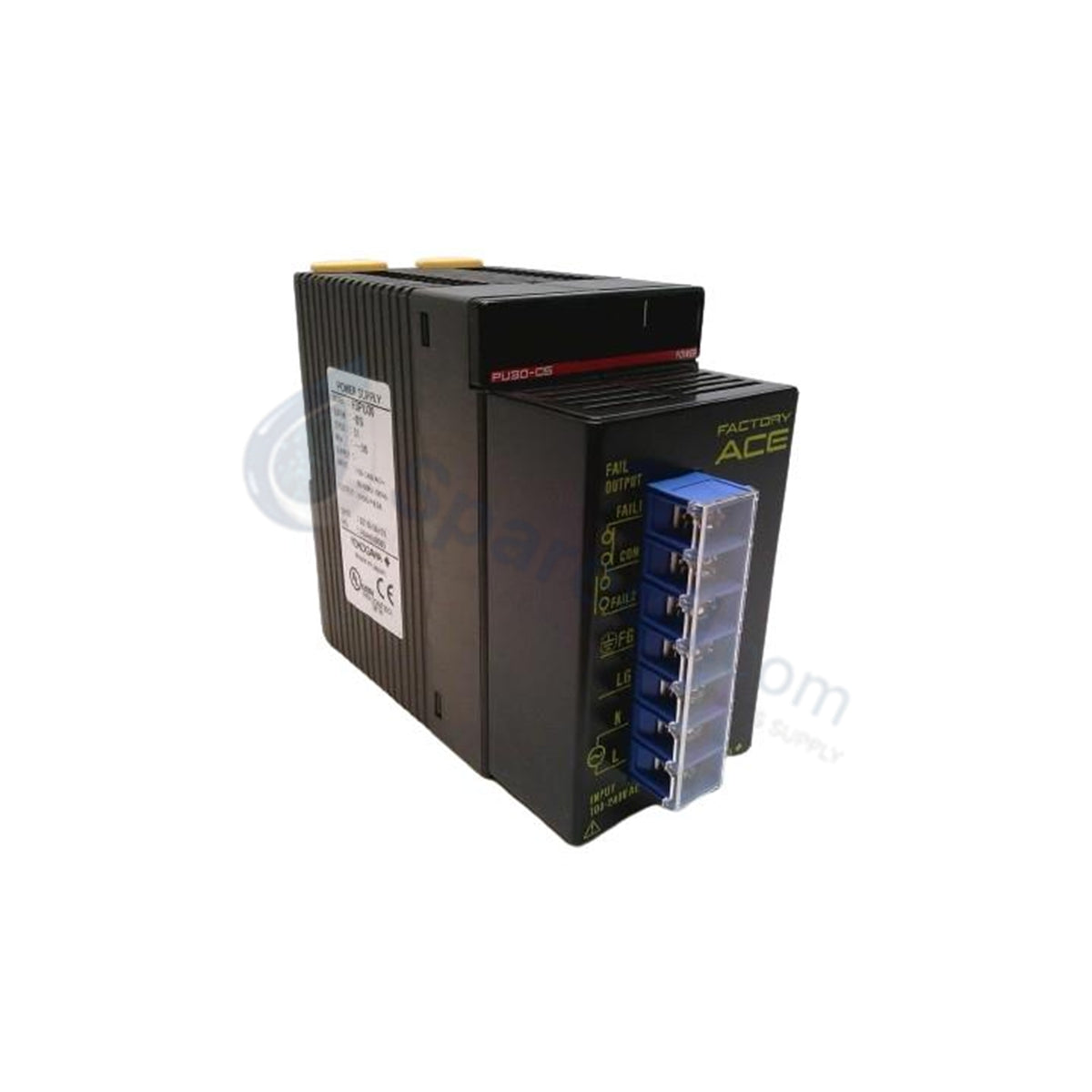

YOKOGAWA F3PU30-0S Power Supply Module

The YOKOGAWA F3PU30-0S, also cataloged as the F3PU300S Power Supply Module, operates as a dedicated hardware component for power distribution and voltage regulation within FA-M3 Range-free Multi-controller system platforms.

Suffix Breakdown & Model Matrix

F3PU30: Base model identifier for 5 V DC output power supply functionality within the FA-M3 series.
-0S: Configuration suffix designating standard AC input range compatibility and specific output power ratings for base unit integration.

Hardware Specifications

Parameter	Specification
Model	F3PU30-0S
Brand	YOKOGAWA
Origin	Japan
Weight	0.38 kg
Dimensions	58 × 100 × 126.1 mm
Operating Temp	0 deg C to +55 deg C
Power Consumption	100 VA
Output Voltage	5 V DC
Rated Current	6.0 A
Input Voltage	100–240 V AC (50/60 Hz)

PLC Control & Power Distribution Attributes

The F3PU30-0S is engineered to provide high-stability power conversion for FA-M3 backplane components, including CPU processors and I/O density modules. The unit incorporates firmware-managed protection circuits that monitor for input voltage transients and provide an allowable power failure duration of 20 ms, maintaining deterministic system operation during minor utility instability. The module features integrated surge protection with a dielectric strength rated at 1500 V AC between AC input terminals and functional ground. Additionally, the unit is optimized for backplane bus communication velocity compatibility, ensuring that the supply voltage remains within tight tolerances to prevent logic-level errors during high-frequency backplane data transactions.

Frequently Asked Questions

Q: Can this power supply be mounted in any slot of the FA-M3 base unit?

A: No. The F3PU30-0S must be installed in the leftmost slot designated for power supply modules on the FA-M3 base unit to ensure correct alignment with the backplane power distribution rails.

Q: How should the module be handled in the event of an overcurrent condition?

A: The module includes internal fail-safe circuitry. If the 6.0 A current limit is exceeded, the module will initiate a thermal or electronic shutdown; verify field load current before resetting the input power.

Q: Is the output voltage adjustable?

A: No, the output is factory-regulated to a fixed 5 V DC to ensure compatibility with standard FA-M3 logic levels.

Field Installation Guidelines

Mounting: Secure the module to the leftmost slot of the F3BU series base units using the integrated mounting screws to ensure reliable chassis grounding.
Wiring: Connect the AC input to the primary terminal block using wiring sized for at least 10 A current capacity. Ensure the FG (Frame Ground) terminal is connected to a low-impedance earth point to maximize noise immunity.
Clearance: Provide at least 50 mm of space above and below the module to allow for natural convective heat dissipation, as the unit dissipates heat through the top and bottom vents.
Safety: Confirm that the input voltage source is stable and within the 85–264 V AC range before energizing the module. Do not exceed the specified 20 ms power failure tolerance limit.
