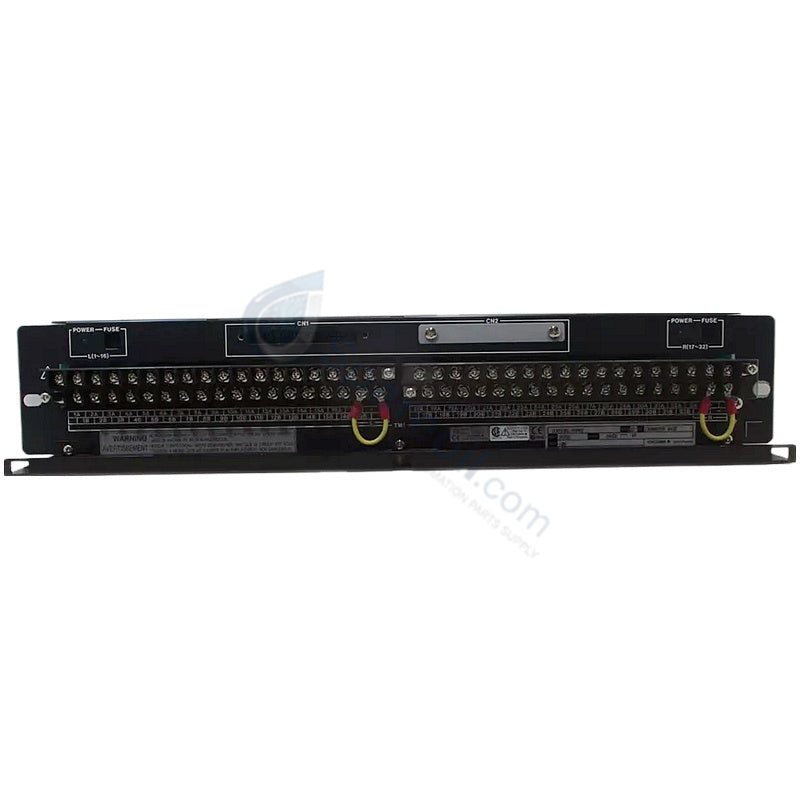

ProSafe-RS Sequence of Events Module | Yokogawa SEA4D-11

ProSafe-RS Sequence of Events Module | Yokogawa SEA4D-11

Availability: 10 left in stock

YOKOGAWA SEA4D-11 Terminal Board / Sequence of Events Module The YOKOGAWA SEA4D-11, also cataloged as the SEA4D Interface Terminal Board...

SKU: SEA4D-11

Manufacturer: Yokogawa
Product No.: SEA4D-11
Product Type: Digital I/O Cards
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

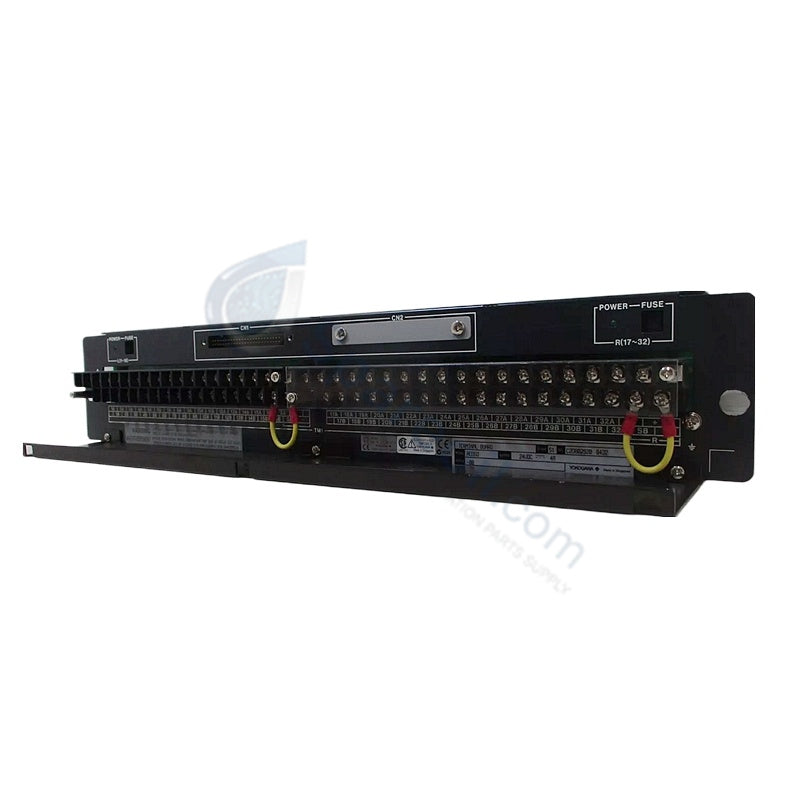

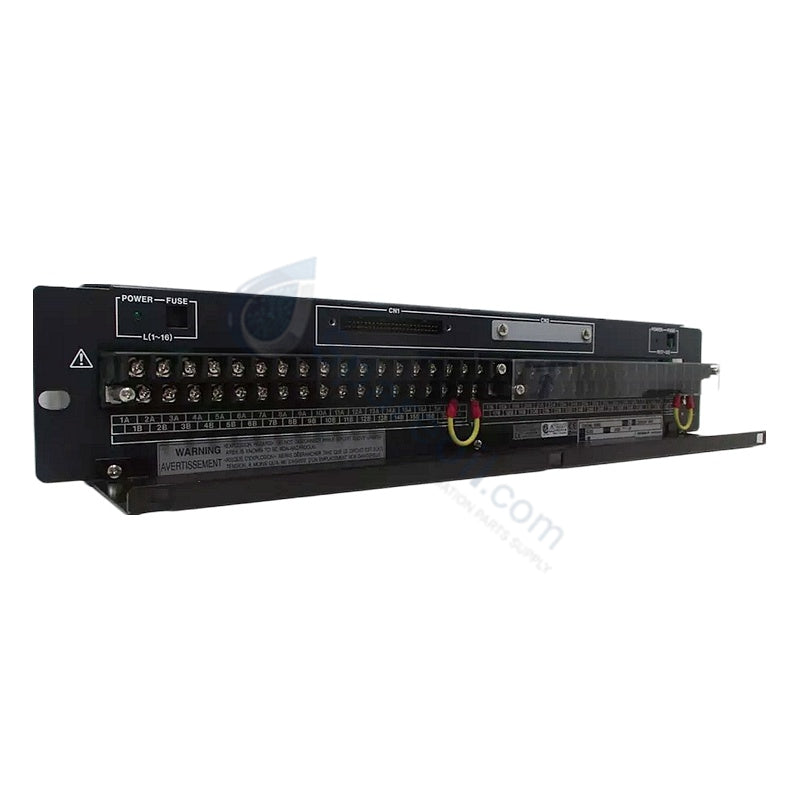

YOKOGAWA SEA4D-11 Terminal Board / Sequence of Events Module

The YOKOGAWA SEA4D-11, also cataloged as the SEA4D Interface Terminal Board / Sequence of Events Acquisition Module, operates as a dedicated hardware component for high-integrity signal transition and digital event recording within CENTUM VP and ProSafe-RS networks. The unit processes up to 32 digital input channels, capturing field contact state transitions down to a 1 ms timestamp resolution matrix. The hardware routes these electrical variables directly to host safety and regulatory processors through isolated connection cables, maintaining physical data continuity across protective monitoring layers.

Hardware Specifications

Parameter	Specification
Model	SEA4D-11
Brand	Yokogawa
Origin	Japan
Weight	1.5 kg (Terminal board assembly) / ~0.3 kg (Processor engine card)
Dimensions	125 x 130 x 248 mm
Operating Temp	-20 to +60 deg C
Power Consumption	1.5 W (300 mA at 5 VDC system bus voltage)
Channel Density	32 channels (16 x 2 high-density configuration)
Interface Termination	M4 screw terminal blocks
Signal Input Type	24 VDC digital inputs / 4-20 mA current loops (via SAI143 interface)
Input Voltage Range	18 to 32 VDC
Input Current Loading	Less than or equal to 10 mA per channel
Timestamp Resolution	1 ms
Dielectric Strength	500 VAC for 1 minute
Insulation Resistance	Greater than or equal to 100 MΩ at 500 VDC
Module Response Time	Less than or equal to 5 ms detection threshold
System Backplane Interface	KS1 interface connectivity matrix

Process Interface Control and Signal Conditioning

The hardware interface establishes independent galvanic isolation vectors across all 32 processing points, separating field-side instrumentation loops from the internal processor electronics. The termination matrix handles passive contact monitoring alongside active 4-20 mA HART loop protocol architectures by deploying internal signal conditioning filters that damp line noise. Channel-to-channel isolation parameters minimize common-mode transients, enabling the system to evaluate field changes under fluctuating electrical potentials without generating false status flags or compromising safety instrumented layers.

Frequently Asked Questions

Q: How does the module maintain a 1 ms timestamp resolution across 32 digital channels simultaneously?

A: The internal processing core scans the digital input state register using an onboard hardware clock matrix. When a contact transitions between ON and OFF states within the 18 to 32 VDC window, the local logic attaches a 1 ms precision timestamp to the event frame before transmitting the data packet over the KS1 interface to the host controller.

Q: What physical grounding configurations are necessary to secure the 500 VAC dielectric isolation rating?

A: The field signal cable shields must terminate directly onto the integrated grounding point of the terminal board framework. The functional earth bus must route independently to the primary instrument ground rail using heavy copper conductors, keeping loop resistance beneath the 1 Ω boundary to prevent noise-induced logic errors.

Q: Can the SEA4D-11 interface terminal block accept AC voltage inputs directly?

A: No. The internal signal tracking electronics are calibrated exclusively for 24 VDC discrete states and standard low-voltage analog current ranges. Connecting AC voltage loops directly to the M4 screw terminals will bridge the galvanic isolation barriers and damage the internal input processing components.

Field Installation Guidelines

Mechanical Panel Seating: Mount the base structure to the cabinet frame using standard M5 fasteners. Torque the M4 field connection screw terminals to standard specification to prevent vibration-induced termination failure.
Shield Wire Integration: Strip field instrument leads carefully, terminating the outer braided shielding onto the cabinet instrument ground strip. Avoid running separate signal leads outside of the shielded bundle to prevent electromagnetic cross-talk.
Cable Duct Partitioning: Separate the multi-core KS1 connection cable and 24 VDC field signal wires from high-voltage AC motor lines and distribution circuits. Maintain a physical spatial separation minimum of 300 mm inside the enclosure.
Thermal Flow Validation: Verify that air circulation pathways around the terminal board housing remain clear of obstruction. Maintain structural clearances to ensure internal cabinet temperatures do not exceed the 60 deg C limit.
