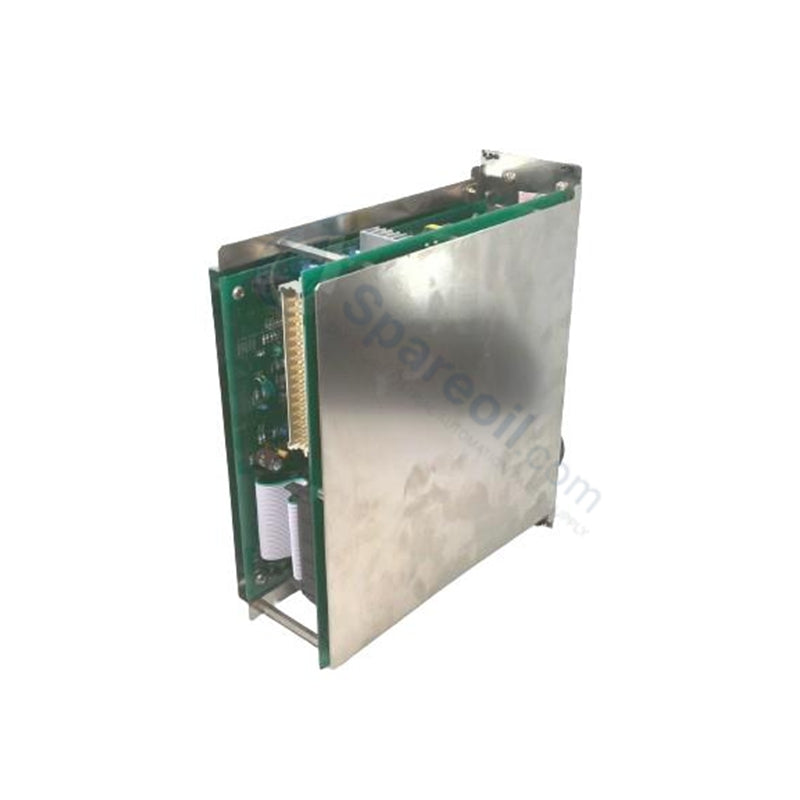

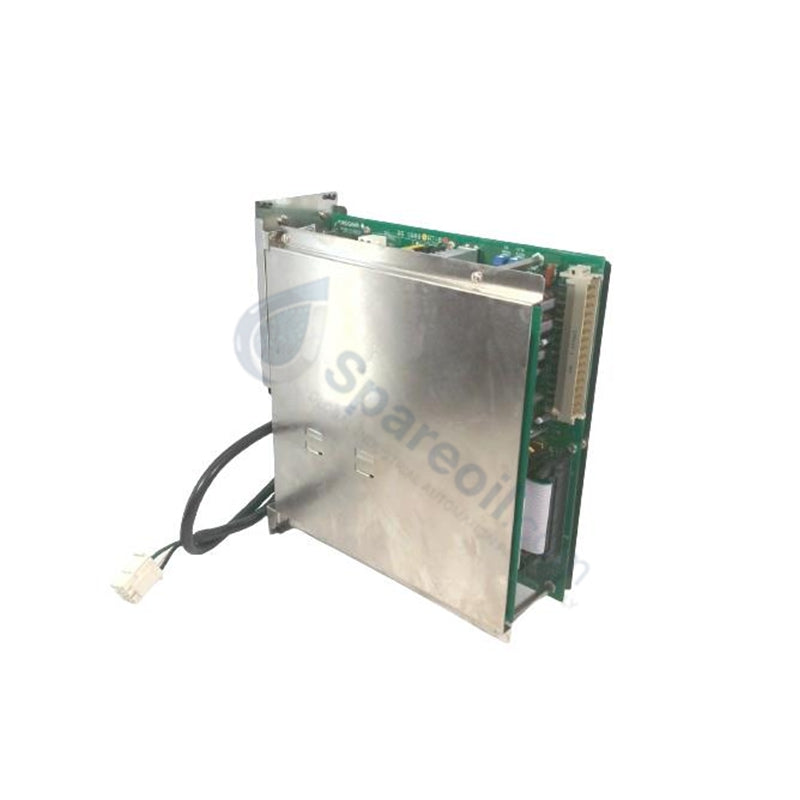

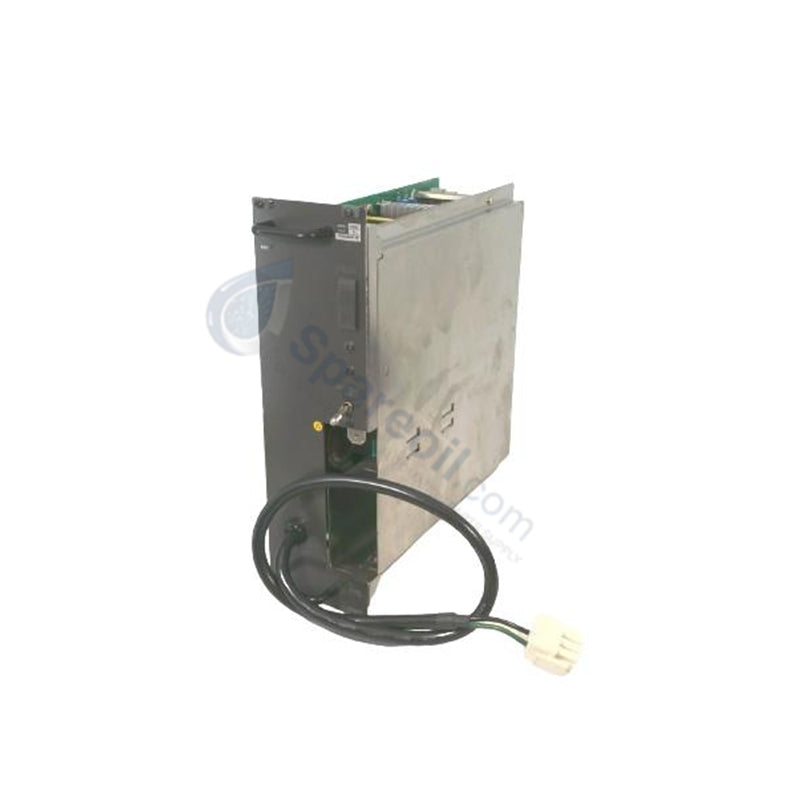

YOKOGAWA PW301 S4 Power Supply Module

Configured for regulated DC power distribution in CENTUM VP and ProSafe-RS systems, the YOKOGAWA PW301 S4 (PW301 Power Supply Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model PW301 S4
Brand YOKOGAWA
Origin USA / Japan
Weight 3.3 kg
Dimensions 27.9 x 10.2 x 27.9 cm
Operating Temp -20 deg C to +70 deg C
Power Consumption 88-94% typical efficiency
Input Voltage Range 100-240 VAC, 50/60 Hz
Output Voltages +5 VDC @ 8 A, +15 VDC @ 0.3 A, -15 VDC @ 0.3 A, aux 24 VDC
Protection Features Overvoltage, overcurrent, short-circuit, thermal shutdown
Redundancy Dual-redundant operation with <5 ms switchover
Hot-Swap Capability Supported

Channel-to-Channel Isolation & Fieldbus Power Conditioning

The module provides isolated backplane voltage outputs designed to maintain power stability across connected rack components. By isolating internal logic (+5 VDC) and analog reference (+/-15 VDC) power rails from external AC line disturbances, the hardware mitigates noise transfer to sensitive 4-20 mA HART loop protocol circuits and analog I/O nodes. This regulation preserves signal integrity and loop communication across distributed control station channels.

Frequently Asked Questions

Q: What is the failover response latency when operating in a dual-redundant power rack configuration?

A: Dual-redundant execution provides an automatic transfer time of under 5 ms upon detecting a power feed fault, preventing CPU reset or bus interruption on active node racks.

Q: Can the auxiliary 24 VDC output terminal be used to power field instrument loops directly?

A: The auxiliary 24 VDC output features low current capacity designed for logic or local signaling. External high-density 4-20 mA field transmitters require dedicated external loop power supplies.

Field Installation Guidelines

  • Verify that the rack chassis is securely mounted and grounded to the system earth bus bar before inserting the module into its assigned backplane slot.
  • Ensure backplane locking screws or retention clips engage fully to maintain solid electrical bus contact and withstand mechanical vibration.
  • Route incoming AC input cables separately from low-voltage DC signals and instrumentation field wiring to minimize electromagnetic coupling.
  • Maintain adequate ventilation space around the module rack to allow natural thermal dissipation across the full -20 deg C to +70 deg C operating temperature range.
