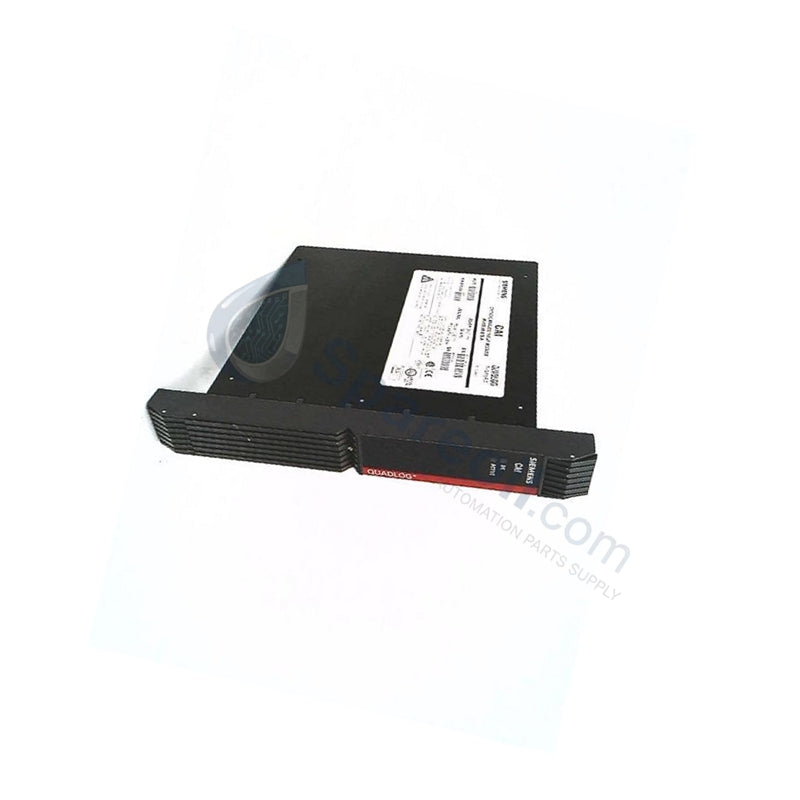

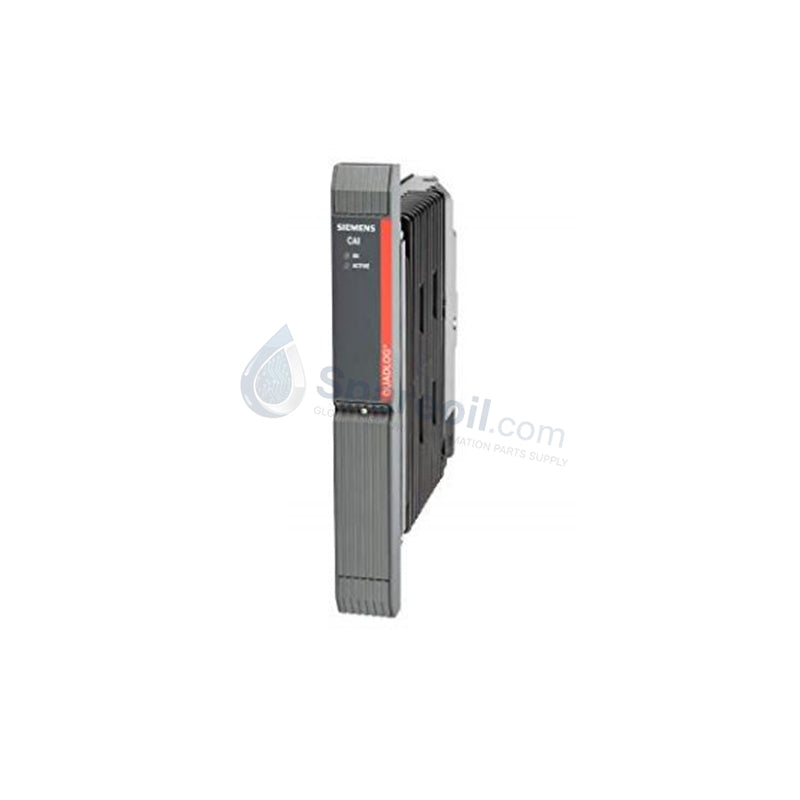

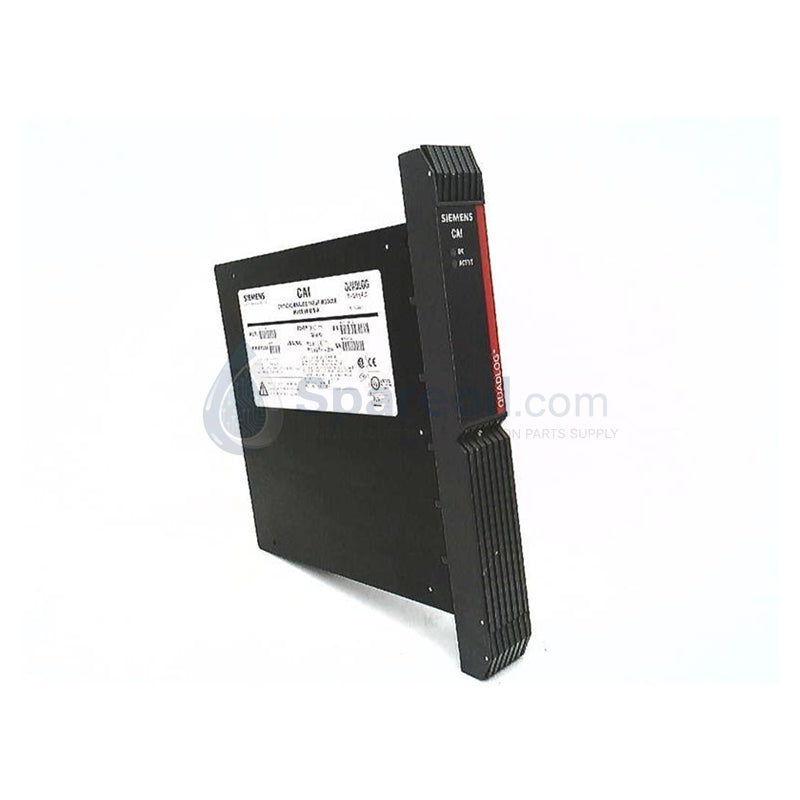

Siemens QLCAIAAN APACS+/QuadLog Critical Analog Input Module

Configured for analog signal acquisition in APACS+ and QuadLog safety PLCs, the Siemens QLCAIAAN (QLCAIAAN Critical Analog Input Module), alternate part number 16437-30/2 or manufacturing part number A5E00247442/03, provides direct physical and electrical execution. The module samples current and voltage instrumentation data from field devices, processing these inputs via internal analog-to-digital converters to deliver digitized variable feedback directly to the system backplane network.

Hardware Specifications

Parameter	Specification
Model	QLCAIAAN
Brand	Siemens / Moore Products
Origin	Germany / USA
Weight	1.19 lbs (0.54 kg) to 1.20 kg depending on packaging assembly
Dimensions	90 x 90 x 60 mm
Operating Temp	-25 deg C to +70 deg C
Power Consumption	300 mA at 24 VDC
Input Signal Types	Voltage: 1-5 VDC; Current: 4-20 mA
Conversion Resolution	12-16 bit
Measurement Accuracy	\pm 0.1% of full scale
Backplane Isolation	Integrated galvanic protection
Enclosure Rating	IP20
Firmware/ROM Version	3.04 (variant dependent)
Certifications	CE, RoHS

I/O Density Scaling and Backplane Bus Communication

The module utilizes high-density I/O channel scaling architectures to interfaces 8 or 16 independent analog channels within a compact 90 mm width form factor, maximizing DIN-rail real estate in high-density control cabinets. Internal logic operations are locked to the backplane bus communication velocity licenses authorized by the APACS+ controller framework. Deterministic scanning intervals ensure synchronous data delivery across the local rack assembly without introducing processing jitter. The on-board processing unit maintains strict firmware flash compatibility with system ROM version 3.04, allowing seamless integration with legacy Moore Products architectures while suppressing system bus cross-talk during rapid multipoint signal transitions.

Frequently Asked Questions

Q: How does the module handle a 4-20 mA loop failure or open-circuit condition?

A: The module continuously monitors input current levels. When a signal drops below the standard 4 mA threshold (typically diagnosed at < 3.6 mA), the internal logic registers an under-range fault, updates the channel status word on the backplane, and triggers system-level diagnostics to alert the controller of potential loop failure or wire breaks.

Q: Is hot-swapping permitted for the QLCAIAAN module during active system operation?

A: Hot-swapping must comply strictly with the parent APACS+/QuadLog rack deployment guidelines. While the hardware design mitigates backplane bus disruption during insertion or extraction, live maintenance should only be performed when the control loop is isolated or when the system architecture is configured for redundant fail-safe execution to prevent transient process disruptions.

Field Installation Guidelines

Enclosure and Mounting Requirements: Secure the module on standard symmetric DIN-rails within an IP54 or higher rated industrial enclosure to mitigate dust, moisture, and particulate ingress. Maintain a minimum clear space of 50 mm above and below the module assembly to ensure optimal convective heat dissipation within the cabinet ambient range of -25 deg C to +70 deg C.
Wiring and Shield Terminations: Route all 4-20 mA and 1-5 VDC signal lines using twisted-pair shielded instrumentation cables. Terminate the cable shields exclusively at the designated cabinet single-point ground bus. Do not ground the shield at both ends to eliminate the formation of ground loops that degrade measurement accuracy below the specified \pm 0.1% threshold.
Power Supply Integrity: Connect the dedicated 24 VDC power feed using conductors rated for the 300 mA steady-state consumption load. Implement external fast-acting fuses or current-limiting circuit breakers on the primary supply line to safeguard internal components from transient overvoltage conditions and reverse-polarity events.
