Redundant Modbus TCP Communication Card

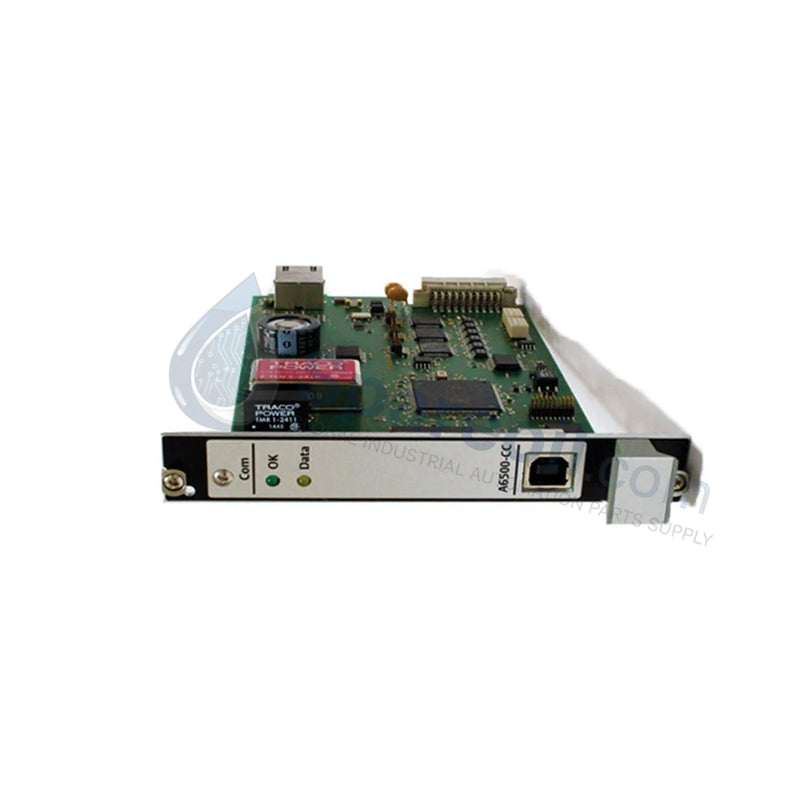

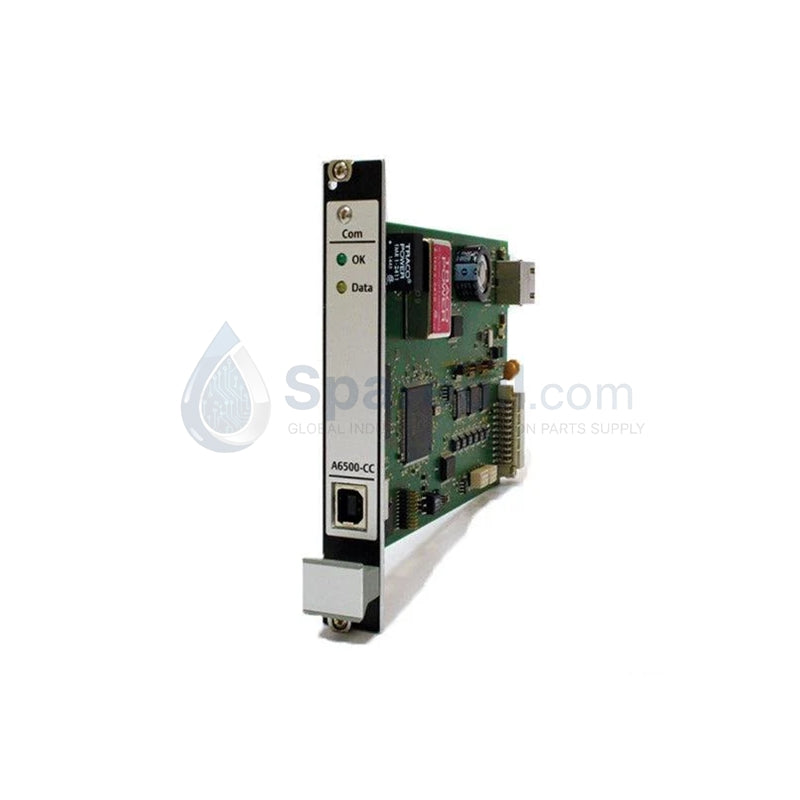

Redundant Modbus TCP Communication Card | Emerson A6500-CC

Availability: 99 left in stock

Product Overview The Emerson A6500-CC serves as the central data highway for the AMS 6500 ATG (Advanced Technology Generation) machinery protection system....

SKU: A6500-CC

Manufacturer: Emerson
Product No.: A6500-CC
Product Type: Machinery Health Monitoring
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Emerson A6500-CC serves as the central data highway for the AMS 6500 ATG (Advanced Technology Generation) machinery protection system. This communication card bridges the gap between individual protection modules—such as the A6500-UM (Universal Monitoring) and A6500-TP (Temperature Prediction)—and the plant-wide DCS, PLC, or SCADA network. By consolidating high-resolution vibration and status data into industry-standard protocols, the A6500-CC enables real-time asset visibility. We supply this module as 100% Brand New and Factory Sealed, ensuring high-availability data transmission for your critical industrial infrastructure.

Technical Specifications

The A6500-CC utilizes industrial-grade processors to handle high-bandwidth data traffic across multiple concurrent protocols.

Parameter	Specification
Rack Compatibility	Fits A6500-SR Rack (Standard/Redundant)
Supported Protocols	Modbus RTU, Modbus TCP, Profibus DP-V1, OPC
Power Supply	24 V DC (Nominal)
Connector Types	Push-in Spring Cage & D-Sub Connectors
Operating Temp	-20 °C to +70 °C (With forced cooling)
Storage Temp	-40 °C to +85 °C
Humidity Range	5% to 95% (Non-condensing)
Redundancy	Supports dual-card fail-safe architecture
Weight	1.0 kg

Engineering Advantages

Redundant Fail-Safe Communication: The A6500-SR rack supports the installation of two A6500-CC cards. This redundant configuration ensures that if one communication path fails, the second card immediately takes over data transmission. This prevents "blind spots" in the control room and maintains the integrity of your predictive maintenance data stream.
Multi-Protocol Versatility: This single hardware platform supports a wide array of industrial languages. Whether your plant operates on a legacy Modbus RTU serial network or a modern high-speed Modbus TCP/Ethernet backbone, the A6500-CC adapts via software configuration, reducing spare parts inventory.
High-Density Data Throughput: The module processes complex vibration spectrums and wave-form data from multiple A6500-UM cards simultaneously. It converts these high-frequency signals into manageable digital registers for seamless integration into Emerson DeltaV or third-party control systems.
Simplified Field Wiring: The card utilizes push-in spring cage connectors. This design accelerates installation, eliminates the risk of loose screw terminals due to machine vibration, and provides a gas-tight connection that resists corrosion in chemical-intensive environments.

FAQs

Does the A6500-CC handle the actual machinery shutdown logic?

No. The A6500-CC manages data communication and status reporting. The actual machinery protection and emergency trip logic reside within the A6500-UM or A6500-TP modules. The communication card ensures that the DCS receives the "Trip" status and diagnostic data explaining the cause of the shutdown.
Is the A6500-CC compatible with legacy AMS 6500 (non-ATG) systems?

The A6500-CC is designed exclusively for the AMS 6500 ATG framework and fits the A6500-SR rack. It is not backwards compatible with the older 19-inch EPRO MMS6000 or legacy AMS 6500 racks.
How do I configure the IP address for Modbus TCP?

You configure the network settings using the AMS 6500 ATG configuration software via the service port on the rack. The A6500-CC stores these settings in non-volatile memory, ensuring it retains the correct network identity after a power cycle.
What is the maximum number of A6500-CC cards I can install in one rack?

You can install up to two A6500-CC modules per A6500-SR rack to achieve full communication redundancy. In a standard setup, one card manages the primary data link, while the second remains in a "hot standby" mode.
