RS900G-HI-D-2SFP Siemens RuggedSwitch Datasheet Technical Manual

Availability: 99 left in stock

Siemens RS900G-HI-D-2SFP RuggedSwitch Industrial Ethernet Switch Configured for network distribution in harsh industrial environments, the Siemens RS900G-HI-D-2SFP (RS900G-HI-D-2SFP Managed Industrial...

SKU: RS900G-HI-D-2SFP

Manufacturer: Siemens
Product No.: RS900G-HI-D-2SFP
Product Type: Managed Industrial Ethernet Switches
Product Origin: Germany
Payment:T/T, Western Union
Weight: 1150g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

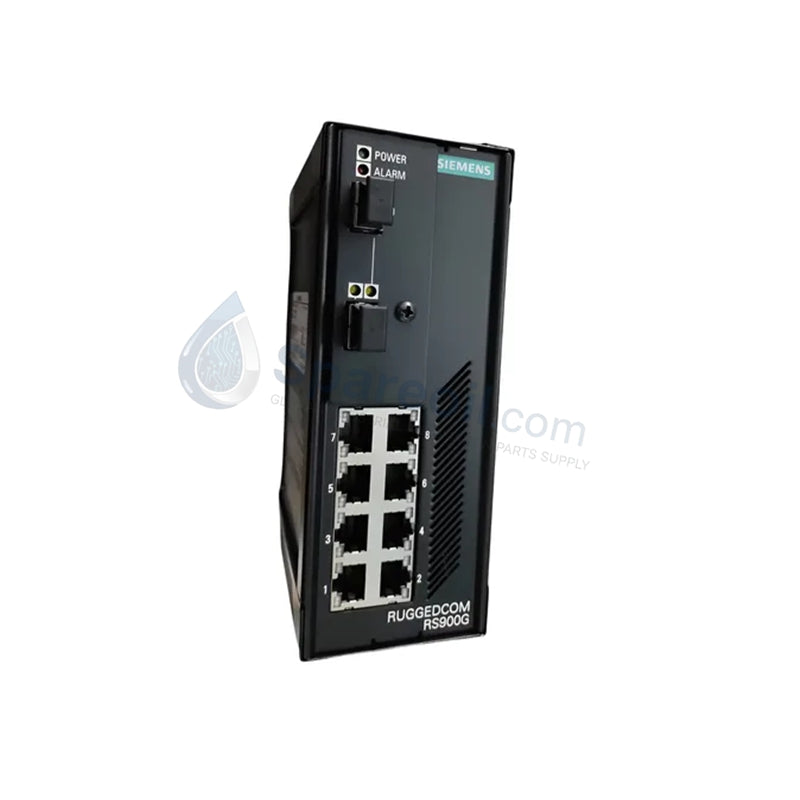

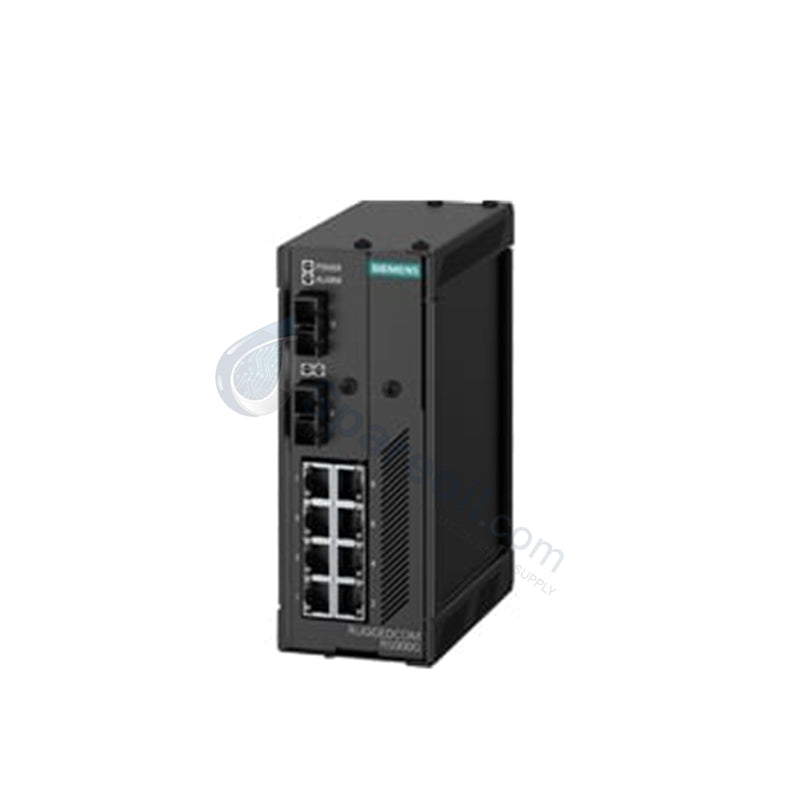

Siemens RS900G-HI-D-2SFP RuggedSwitch Industrial Ethernet Switch

Configured for network distribution in harsh industrial environments, the Siemens RS900G-HI-D-2SFP (RS900G-HI-D-2SFP Managed Industrial Ethernet Switch) provides direct physical and electrical execution. The hardware platform executes localized packet forwarding and routing parameters across multi-node topologies, transmitting data packets over copper and fiber interfaces within specialized substation and automation infrastructures.

Hardware Specifications

Parameter	Specification
Model	RS900G-HI-D-2SFP
Brand	Siemens / RuggedCom
Origin	Canada / Germany
Weight	2.54 lbs (1.15 kg) net weight / 2.5 kg shipping assembly
Dimensions	48 x 221 x 150 mm
Operating Temp	-40 deg C to +85 deg C
Power Consumption	20 W max
Input Voltage	88-300 VDC or 85-264 VAC (HI power configuration)
Port Count	8 x 10/100Base-T copper RJ45 ports + 2 x Gigabit SFP slots
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Latency	< 10 us
Encryption	128-bit encryption
Protection Class	IP40
Certifications	CE, UL, CSA, RoHS, IEC 61850-3, IEEE 1613

Deterministic Ethernet Networking and Firmware Compatibility

The managed switch utilizes embedded network logic to maintain Profinet and EtherNet/IP deterministic networks, driving zero-packet-loss performance under heavy electromagnetic interference. The processing core controls I/O density scaling via the independent 8 Fast Ethernet copper lines and dual Gigabit SFP interfaces, preventing transmission bottlenecks. System configurations ensure full firmware flash compatibility across legacy RuggedOperatingSystem (ROS) versions, deploying 128-bit encryption layers, Access Control Lists (ACLs), and IEEE 802.1X parameters without introducing protocol processing latencies to the underlying automation architecture.

Frequently Asked Questions

Q: How does the "HI" power supply variant execute power input mapping on the terminal block?

A: The HI designation defines a high-voltage internal power supply module. This component accepts a single universal input field connection matching either 88-300 VDC or 85-264 VAC, eliminating the requirement for external step-down transformers in high-voltage substation or control panel environments.

Q: What actions occur within the switch logic during a network ring interruption?

A: The onboard firmware invokes integrated rapid spanning tree and ring protocols to modify internal forwarding tables. Upon detecting a hardware link disruption, the loop topology automatically reconfigures to an alternate backup data path in less than 10 us, maintaining continuous network distribution to connected PLCs and DCS devices.

Field Installation Guidelines

DIN-Rail Mounting Stability: Secure the IP40 metal chassis onto a standard 35 mm symmetric DIN-rail. Ensure the rail is mounted to a rigid, unyielding panel backplate inside the enclosure to counteract vibration vectors and guarantee mechanical alignment under high thermal and physical stress conditions.
Fiber Optic SFP Module Deployment: Before inserting SFP transceivers into the dual SFP slots, inspect all optical end-faces for contaminant particulate. Align the SFP latch mechanism and seat the module firmly into the internal backplane connector receptacle before attaching the LC fiber connectors.
High-Voltage Terminal Isolation: Connect the 88-300 VDC or 85-264 VAC power conductors to the secure terminal block using wire sizes specified for the maximum current rating. Ensure a dedicated low-impedance ground wire connects the chassis grounding screw directly to the main cabinet ground bar to provide sufficient surge suppression capabilities.
