Safety Manager Termination Module | FC-TELD-0001 Honeywell

Availability: 99 left in stock

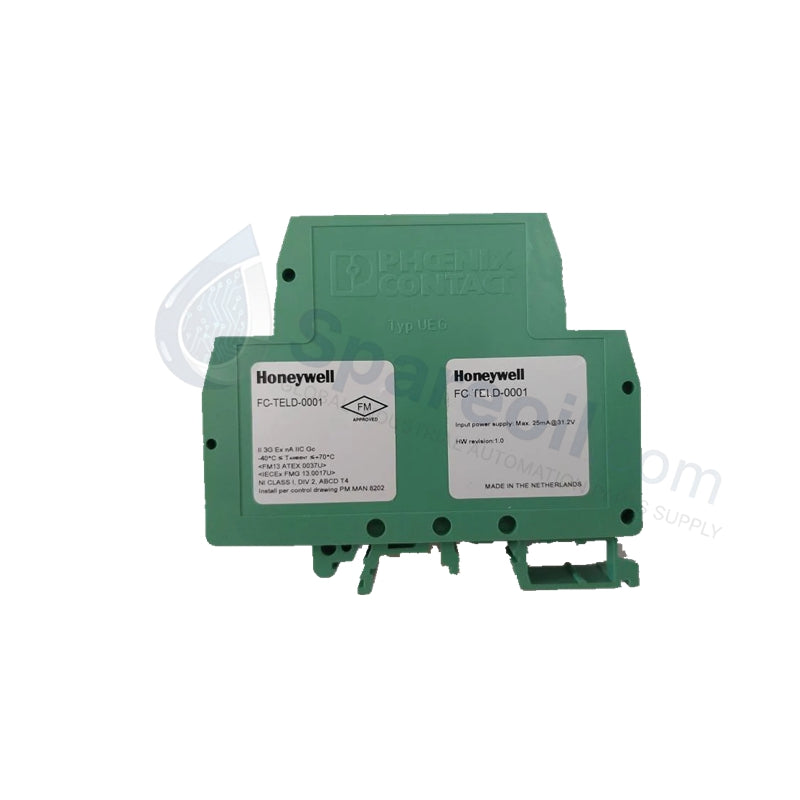

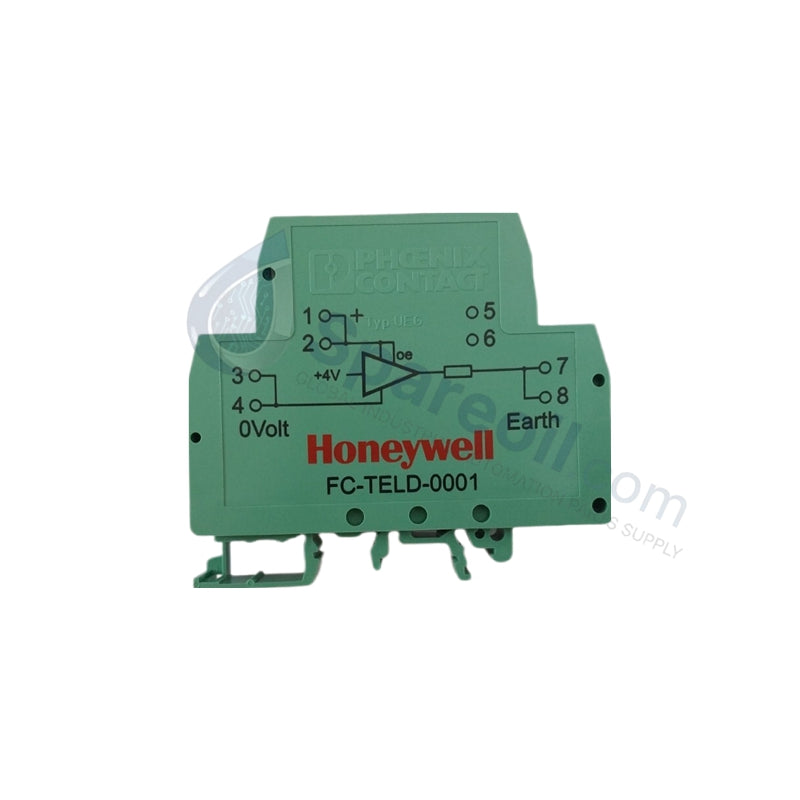

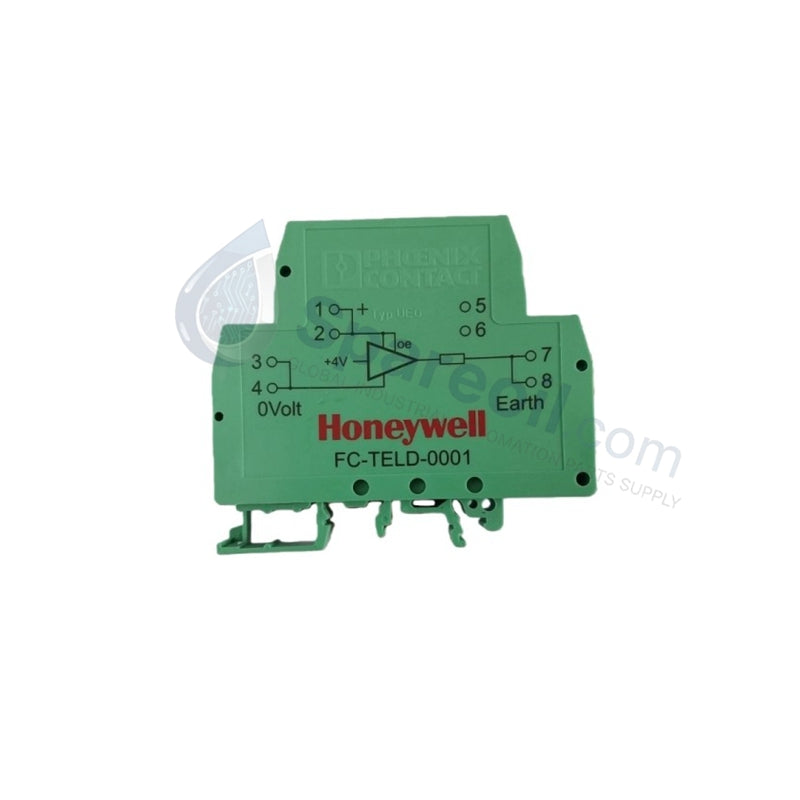

Product Overview The Honeywell FC-TELD-0001 serves as a specialized termination and load module for the Honeywell Safety Manager and Experion PKS platforms....

SKU: FC-TELD-0001

Manufacturer: Honeywell
Product No.: FC-TELD-0001
Product Type: Termination Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell FC-TELD-0001 serves as a specialized termination and load module for the Honeywell Safety Manager and Experion PKS platforms. This module fulfills two critical roles: it ensures the secure physical termination of I/O signals and maintains precise electrical loading across the I/O bus. By stabilizing the electrical environment, it prevents signal reflections and communication jitter in safety-critical loops. We provide this module as 100% Brand New and Original, engineered to maintain the deterministic performance required for SIL-rated industrial environments.

Technical Specifications

Attribute	Details
Manufacturer	Honeywell
Model Number	FC-TELD-0001
Module Type	Termination & Load Module
Max. Current	25 mA @ 31.2 V
Output Signal	4-20 mA (Monitoring Support)
Accuracy	±0.5% of Full Scale
Operating Voltage	24 VDC (System Supply)
Operating Temperature	-40°C to +70°C
Housing Material	Industrial-grade Aluminum / Stainless Steel
Dimensions	85 × 85 × 30 mm
Certifications	UL, CE, CSA, ISO 9001
Weight	0.3 kg (0.66 lbs)

Engineering Advantages

Signal Reflection Suppression: The FC-TELD-0001 provides precise impedance matching for the I/O bus. This eliminates signal reflections that cause data corruption, ensuring the Safety Manager receives clean, actionable data from field transmitters.
Deterministic Load Balancing: The module maintains a consistent electrical load of up to 25 mA at 31.2 V. This active loading stabilizes the power rails of the I/O subsystem, preventing voltage fluctuations from triggering false alarms or system trips.
Hardened Environmental Resistance: Featuring an industrial-grade aluminum and stainless steel housing, the module operates across an extreme temperature range of -40°C to +70°C. It withstands the corrosive atmospheres and thermal cycling typical of oil, gas, and chemical processing facilities.
Ultra-Fast Response Timing: With a response time of less than 5 seconds and high accuracy (±0.5%), the module ensures that the termination state is monitored in near real-time, providing an extra layer of diagnostic security for temperature and pressure loops.
Space-Efficient Integration: The compact 85mm footprint allows for high-density installation within standard control cabinets. Its modular design enables engineers to add termination points without redesigning the entire rack layout.

FAQs

What is the primary purpose of the FC-TELD-0001 in a Safety Manager system?

The FC-TELD-0001 ensures that the I/O communication bus remains electrically stable. It provides the necessary termination to prevent signal "echoes" and ensures the electrical load remains within the specified parameters for safe operation.

Can this module monitor temperature signals directly?

While categorized as a termination and load module, its secondary function as a temperature transmitter allows it to handle signals in the -50°C to +150°C range with 4-20 mA output, providing versatile utility in process safety loops.

Is this unit compatible with the Honeywell Experion PKS I/O bus?

Yes. The FC-TELD-0001 is fully compatible with both Honeywell Safety Manager and Experion PKS I/O bus systems, specifically those requiring 24 VDC system supplies and 4-20 mA signal standards.

How do I verify that the unit is brand new?

We guarantee every FC-TELD-0001 is 100% Brand New and Original. The unit ships in original Honeywell factory packaging, carries a unique serial number for traceability, and includes our 12-month factory-standard warranty.
