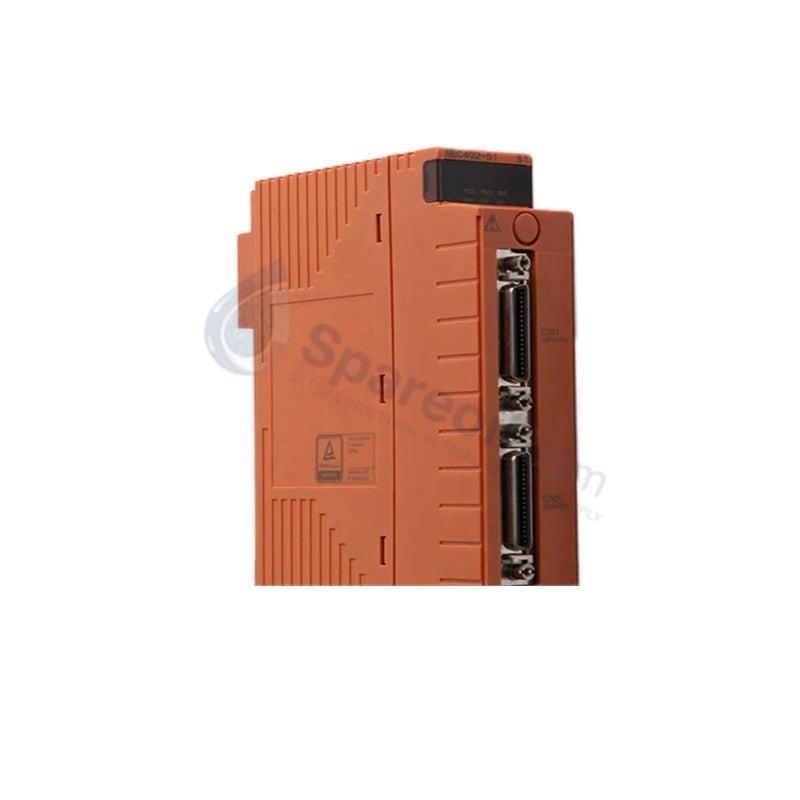

Yokogawa SAI143-S53 Analog Input Module

The Yokogawa SAI143-S53 S3, also cataloged as the SAI143 Analog Input Module, operates as a dedicated hardware component for isolated analog signal acquisition within CENTUM VP and CS 3000 control system networks.

Hardware Specifications

Parameter Specification
Model SAI143-S53 S3
Brand Yokogawa
Origin Japan
Weight 0.35 kg
Dimensions 100 mm x 110 mm x 30 mm
Operating Temp -20 to +70 deg C
Power Consumption  600 mA at 5 VDC
Input Channels 16 channels (module isolation)
Signal Range 4-20 mA DC
Input Resistance 250 ohm
Accuracy +/-0.1% of full scale
Environmental Protection ISA Standard G3 conformal coating
Isolation Voltage 2000 VAC for 1 min (Input to System)

4-20 mA HART Loop Protocol & Channel Isolation

The Yokogawa SAI143-S53 S3 analog input module provides 2000 VAC galvanic isolation between process field signals and system backplane electronics for up to 16 input channels. Supporting 4-20 mA HART loop protocol communications across field transmitters, the module converts current measurements into digital process variables while isolating channels against common-mode noise. Conformal coating per ISA Standard G3 protects onboard circuits against corrosive industrial atmospheres.

Frequently Asked Questions

Q: Can the SAI143-S53 replace an existing SAI143-S03 module in a system rack?

A: Yes, the SAI143-S53 serves as a direct form, fit, and functional replacement for the SAI143-S03 module, providing enhanced G3 environmental protection and extended operating temperatures.

Q: What termination interface options support field wiring for this module?

A: The module connects to field wiring via pressure clamp terminal blocks or MIL cable connector assemblies without requiring explosion-proof enclosures.

Q: How does the module handle signal anomalies and wire breaks?

A: Onboard diagnostic firmware continuously evaluates current loops to detect open-circuit faults and signal range overruns, immediately updating node error registers.

Field Installation Guidelines

Engineers must execute installation following standard DCS I/O mounting and wiring protocols:

  1. Insert the module into the designated slot on the node unit backplane until the locking latches secure the circuit board in place.
  2. Terminate 4-20 mA field loop conductors using pressure clamp terminal blocks or pre-assembled MIL connector cables.
  3. Keep field signal cables physically separated from AC power lines and variable frequency drive wiring to minimize inductive interference.
  4. Fasten overall cable shields to the protective grounding terminal at a single point to prevent ground loop currents from destabilizing input signals.
